Building a Physics engine
CS-116B: Computer Graphics Algorithms
Instructor: Robert Bruce
Spring 2017

SLIDE 1: Components of a Physics Engine

A generic physics engine contains the following components:

  • "Physics models"
  • "Simulated objects manager"
  • "Collision detection engine"
  • "Collision response module"
  • "Force effectors"
  • "Numerical integrator"
  • "Game engine interface"

Source: Physics for Game Developers, pp. 283

SLIDE 2: Physics Engine: Components we will use

  • Physics models:
    We will be using simple spheres, line segments, and polgons for our simulations.
  • Collision detection and collsion response:
    We will use this to determine when a hanging rope collides with an inanimate sphere. We will also be using collision detection to determine when an animated sphere is colliding with hanging cloth.
  • Force effectors:
    We will be using this to apply wind forces and gravity to hanging rope and cloth.
  • Numerical integrator:
    We will be using this algorithm to animate the rope and cloth and give them elastic (somewhat) properties.

SLIDE 3: Numerical integrator

  • We will be using Verlet integration to compute the displacement of interconnected particles connected together via weightless springs (Mass Spring Model).
  • For simulating rope, the particles will be connected linearly like a chain.
  • For simulating cloth, the particles will be connected in a mesh-like array.
  • For rope and cloth simulation we will also be using the Mass Spring Model.

SLIDE 4: Particle Physics

  • With the exception of Marching Squares, our assignments involve the displacement of particles.
  • Note: For simplicity in developing our physics engine, you do not need to be concerned with transfer of momentum or conservation of energy in any of our projects.

SLIDE 5: Particle Physics: Assignment 2

  • In assignment 2, you will be creating an explosion.
  • The particles will emanate from a center point.
  • The particles will move in a random direction but the motion will remain straight.
  • There is no gravity or other forces to influence trajectory of each particle.
  • The particles will have constant velocity
  • You will compute the displacement over time. You will compute displacement (s) for each particle over time (t) using:
    s = v*t

SLIDE 6: Particle Physics: Assignment 2

Illustration of particles traveling radially away from a center point to represent an explosion.

SLIDE 7: Particle Physics: assignment 3

  • In assignment 3, you will be simulating rope.
  • The particles will be constrained to each other via weightless springs.
  • The particles will have a mass, m.
  • The particles will be affected by gravity. The particles are also affected by spring forces.
  • You will use Newton’s second law of motion (F = ma) and Hooke’s law (F = kx).
  • Some of the particles will collide with a motionless and weightless sphere. Note: You do not need to be concerned with transfer of momentum or conservation of energy during a collision.

SLIDE 8: Particle Physics: assignment 3

Illustration of particles constrained to adjacent particles to simulate rope.

SLIDE 9: Particle Physics: assignment 4

  • In assignment 4, you will be simulating cloth.
  • This is very similar to rope simulation except the particles are now connected to each other via a two-dimensional matrix of weightless springs.
  • The springs are connected to particles horizontally, vertically, and diagonally.
  • The springs are weightless. The particles have a mass, m.
  • The particles are subject to a gravitational force. The particles are also subject to spring forces.
  • You will use Newton’s second law of motion (F = ma) and Hooke’s law (F = kx).

SLIDE 10: Particle Physics: assignment 4

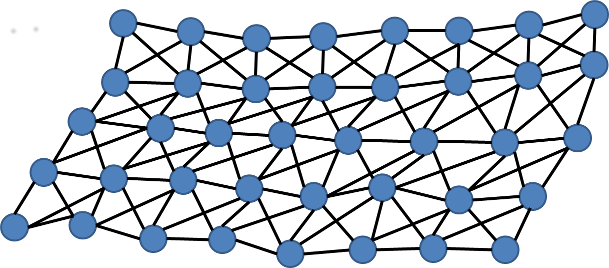

Illustration of particles constrained to adjacent particles in a 2-dimensional matrix to simulate cloth.

SLIDE 11: Particle Physics: assignment 5

  • In assignment 5, you will be simulating cloth with wind, gravity, and collision detection. This assignment builds upon your previous work in cloth simulation.
  • The springs are connected to particles horizontally, vertically, and diagonally.
  • You will use Newton’s second law of motion (F = ma) and Hooke’s law (F = kx).
  • The cloth will be subject to gravitational forces, random wind forces, and spring forces.
  • The cloth will collide with a weightless, moving sphere.

SLIDE 12: Next lecture: Vector operations

  • In our next lecture, we will review vectors and vector operations such as:
    vector dot product
    vector cross product
    vector magnitude
    normalizing a vector
  • These vector operations will be very important in developing our physics engine. We need to develop a robust library of vector math operations.
