Analysis Model for a Simple Web Browser
Client: Microsoft
Corp.
Developer: CyberSystems.com
Author: Steve Tyler
Introduction
The Simple Web Server provides a reduced number of commands for users baffled by the complexities of modern browsers.
Detailed requirements can be found in the functional specification document.

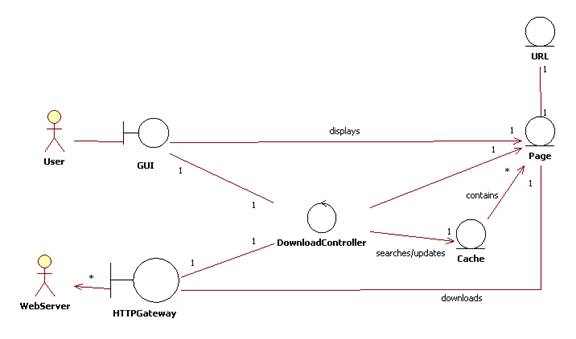

The Analysis Model
Boundaries
GUI
HTTPGateway
interface HTTPGateway {
�� String send(URL url);
�� String post(URL url);
}
Entities
Cache
Page
URL
Controls
Download �Controller

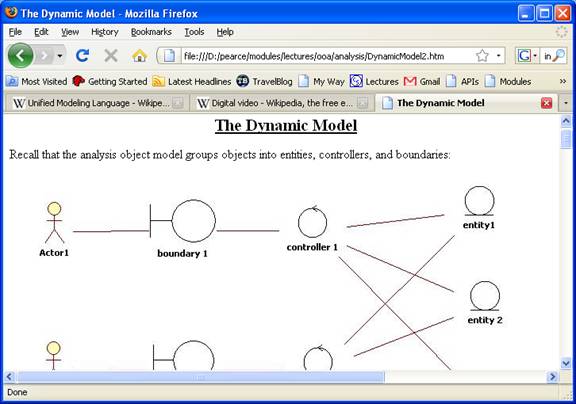

External Dynamics

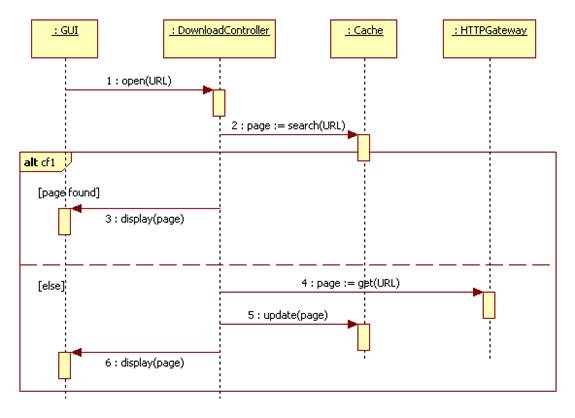

Internal Dynamics
Revision History
|
Revision |
Revised by |
Date |
|
1.0 |
Richards |
7/30/2009 |
|
1.1 |
Jagger |
8/8/2009 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
