Layout

Flow Layout

The default layout manager for JDialog is flow layout. This manager adds controls from left to right, starting a new row each time it runs out of room. The main feature of flow layout is that it attempts to center align the components.

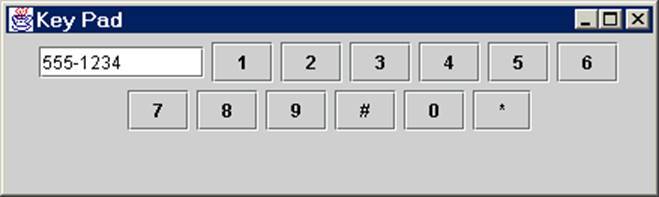

Here is a simple keypad created using the flow layout manager:

KeyPadPanel Class

class KeyPadPanel extends JPanel {
   JTextField display = new JTextField("555-1234", 10);
   JButton b1 = new JButton("1");
   JButton b2 = new JButton("2");
   JButton b3 = new JButton("3");
   JButton b4 = new JButton("4");
   JButton b5 = new JButton("5");
   JButton b6 = new JButton("6");
   JButton b7 = new JButton("7");
   JButton b8 = new JButton("8");
   JButton b9 = new JButton("9");
   JButton b0 = new JButton("0");
   JButton bSharp = new JButton("#");
   JButton bStar = new JButton("*");

   public KeyPadPanel() {
      add(display);
      add(b1);
      add(b2);
      add(b3);
      add(b4);
      add(b5);
      add(b6);
      add(b7);
      add(b8);
      add(b9);
      add(bSharp);
      add(b0);
      add(bStar);
   }
}

KeyPad Class

public class KeyPad extends jutil.MainJFrame {
   public KeyPad() {
      setTitle("Key Pad");
      Container contentPane = getContentPane();
      contentPane.add(new KeyPadPanel());
   }
   public static void main(String[] args) {
      JFrame demo = new KeyPad();
      demo.show();
   }
}

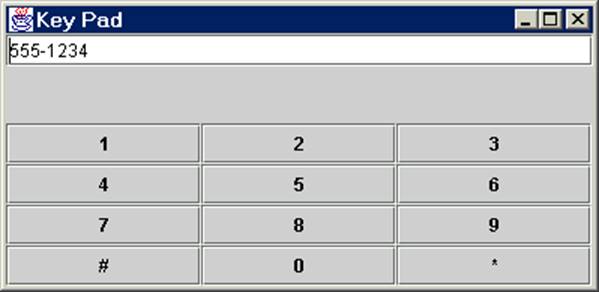

Grid and Border Layout

KeyPadPanel Constructor

   public KeyPadPanel() {
      setLayout(new BorderLayout());
      add(display, "North");
      JPanel keys = new JPanel();
      keys.setLayout(new GridLayout(4, 3));
      keys.add(b1);
      // etc.
      add(keys, "South");
   }

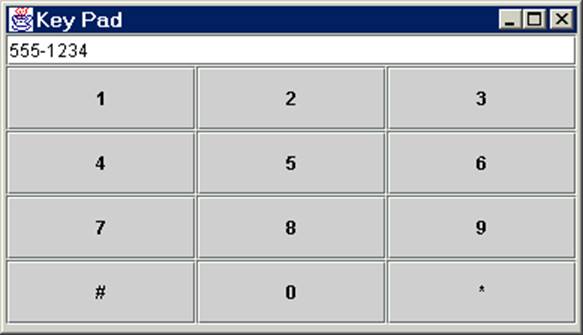

If we add keys without specifying the region, then it will be added to the central region and the east, west, and south regions disappear.

   public KeyPadPanel() {
      setLayout(new BorderLayout());
      add(display, "North");
      JPanel keys = new JPanel();
      keys.setLayout(new GridLayout(4, 3));
      keys.add(b1);
      // etc.
      add(keys);
   }

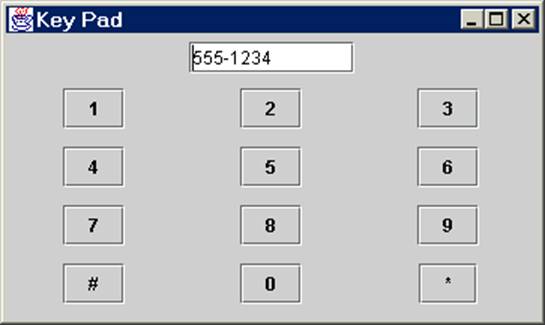

Paneled Controls



KeyPadPanel Constructor

   public KeyPadPanel() {
      setLayout(new BorderLayout());
      JPanel p = new JPanel();
      p.add(display);
      add(p, "North");
      JPanel keys = new JPanel();
      keys.setLayout(new GridLayout(4, 3));
      p = new JPanel();
      p.add(b1);
      keys.add(p);
      p = new JPanel();
      p.add(b2);
      keys.add(p);
      // etc.
      add(keys);
   }
