The Structure of a NetLogo Agent-Based Model

A typical NetLogo agent-based model starts with two global procedures:

to init-model
   ca                            ; clear all
   random-seed new-seed          ; randomly seed random number generator
   init-globals                  ; initialize all global variables
   ask patches [init-patch]      ; initialize attributes of each patch
   crt init-population           ; create init-population turtles
   ask turtles [init-turtle]     ; initialize attributes of each turtle
end



to update-model
   if finished?
   [
      print "Simulation halted"  ; displays in the Command Center
      stop                       ; halts the control loop
   ]
   tick                          ; increment the global tick counter
   update-globals                ; update all globals
   ask patches [update-patch]    ; update attributes of each patch
   ask turtles [update-turtle]   ; update attributes of each turtle
   update-plots                  ; update any plotters in the interface
end

The methods invoked (init-turtle, update-turtle, etc.) can be thought of as over-ridables

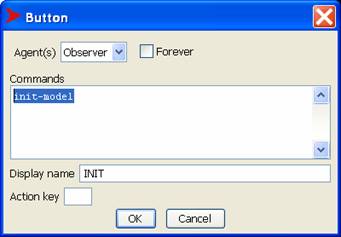

Usually the init-model procedure is invoked by pressing the INIT button on the interface:

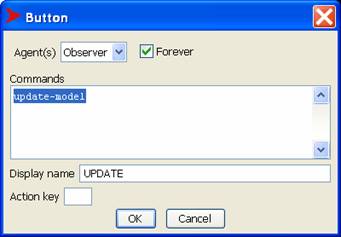

The update-model procedure is iterated by pressing the UPDATE button:

Repeatedly pressing the UPDATE button starts, pauses, and resumes the NetLogo control loop:

while [true] [update-model]

A NetLogo ABM Framework

See abm.nlogo for a working template.
