A Simple Accumulator

An accumulator is a very simple computer. It contains a single register and a program.

A program is a list of instructions.

When the accumulator runs its program, each instruction is executed.

Executing an instruction updates the register.

Initially, there are two types of instructions: Add(arg) (adds arg to register) and Mul(arg) (multiplies register by arg).

Here's a test driver:

object testAccumulator extends App {
  // computing 3 * 4 + 9
  Accumulator.program = List(Add(3), Mul(4), Add(9))
  Accumulator.run()
  println("register = " + Accumulator.register)
  // computing ((3 * 5) + 1) * 2
  Accumulator.program = List(Add(3), Mul(5), Add(1), Mul(2))
  Accumulator.run()
  println("register = " + Accumulator.register)
  // computing (((10 * 2) + 3) * 5)
  Accumulator.program = List(Add(10), Mul(2), Add(3), Mul(5))
  Accumulator.run()
  println("register = " + Accumulator.register)

Here's the output:

register = 21.0
register = 32.0
register = 115.0

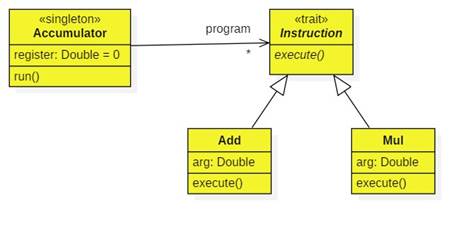

Here's the initial design:

Notes
I am representing singletons as classes with a singleton stereotype.

Problem 1

Implement and test the design.

Problem 2

Add a Halt instruction to the accumulator in instruction set. When executed, program execution immediately stops.

For example:

Accumulator.program = List(Add(3), Mul(4), Halt(), Add(9))
Accumulator.run()
println("register = " + Accumulator.register) // prints 12

Hint: Consider adding halt flag to the accumulator.

Problem 3

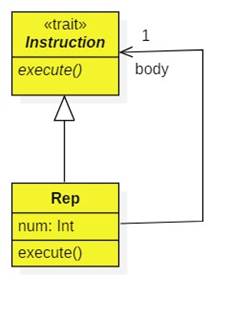

Add a Rep instruction to the accumulator in instruction set:

When executed, Rep executes its body num times. For example:

Accumulator.program = List(Add(1), Rep(5, Mul(2)), Add(10))
Accumulator.run()
println("register = " + Accumulator.register) // prints 42

Problem 4

Add a branch-if-less-than instruction to the accumulator in instruction set:

Blt(n, m)  // jumps ahead m instructions in the program if register < n

For example:

Accumulator.program = List(Add(1), Rep(5, Mul(2)), Blt(33, 2), Add(10), Halt(), Add(10))
Accumulator.run()
println("register = " + Accumulator.register) // prints 32

Hint: Consider adding an instruction pointer, ip, to the accumulator, where ip is the index of the next instruction to be excuted.
