Inheritance Lab

1. Download a CASE Tool such as StarUML.

Create the following classes in your UML diagram, then connect them appropriately using the extends arrow (generalization):

Student
Professor
TeachingAssistant
Employee
Secretary
DepartmentChair
Janitor
SeminarSpeaker
Person
Course
Seminar
Lecture
ComputerLab

Export your diagram as a jpeg and mail it to the grader.

2. Translate this diagram into Java class declarations:

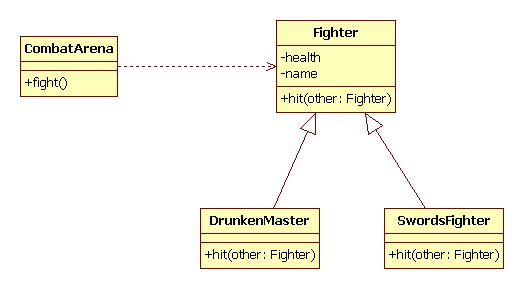

3. In a computer combat game a champion fights all opponent to the death. Here's the design:

Here's the declaration of CombatArena:

public class CombatArena {
private ArrayList<Fighter> opponents = new ArrayList<Fighter>();
private Fighter champ = new Fighter("The Champ");
public CombatArena() {
opponents.add(new DrunkenMaster("Baracho"));
opponents.add(new SwordFighter("Skeletor"));
// etc.
}

public void fight() {
int i = 0;
while(opponents.size() > 0 && champ.getHealth() > 0) {
Fighter next = opponents.get(i);
next.hit(champ);
champ.hit(next);
if (next.getHealth() < 0) {
opponents.remove(next);
}
i = (i + 1) % opponents.size();
}

if (champ.getHealth() > 0) {
System.out.println("The champ wins!");
} else {
System.out.println("The champ is defeated!");
}
}

public static void main(String[] args) {
CombatArena arena = new CombatArena();
arena.fight();
}
}

Here's the declaration of Fighter:

public class Fighter {
private int health;
private String name;
public void decHealth(int amt) {
if (0 < health) {
health -= amt;
System.out.println(name + " has been hurt, his/her health is " + health);
}
}
public int getHealth() {
return health;
}
public String getName() {
return name;
}
public Fighter(String nm) {
name = nm;
health = 100;
}
public void hit(Fighter f) {
if (0 < health) {
int blow = (int)(health/5 * Math.random());
f.decHealth(blow);
}
}
}

Here's the sample output:

Baracho barfs on The Champ
The Champ has been hurt, his/her health is 100
Baracho has been hurt, his/her health is 98
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 90
Skeletor has been hurt, his/her health is 90
Baracho barfs on The Champ
The Champ has been hurt, his/her health is 74
Baracho has been hurt, his/her health is 96
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 67
Skeletor has been hurt, his/her health is 83
Baracho barfs on The Champ
The Champ has been hurt, his/her health is 56
Baracho has been hurt, his/her health is 86
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 44
Skeletor has been hurt, his/her health is 83
Baracho barfs on The Champ
The Champ has been hurt, his/her health is 42
Baracho has been hurt, his/her health is 79
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 27
Skeletor has been hurt, his/her health is 81
Baracho barfs on The Champ
The Champ has been hurt, his/her health is 22
Baracho has been hurt, his/her health is 77
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 18
Skeletor has been hurt, his/her health is 81
Baracho barfs on The Champ
The Champ has been hurt, his/her health is 14
Baracho has been hurt, his/her health is 76
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 11
Skeletor has been hurt, his/her health is 81
Baracho barfs on The Champ
The Champ has been hurt, his/her health is 4
Baracho has been hurt, his/her health is 76
Skeletor stabs The Champ
The Champ has been hurt, his/her health is 0
The champ is defeated!

Implement DrunkenMaster and SwordFighter.
