Introduction

On Monday, we were talking about the classes `P` and `NP` and about `NP`-completeness.
We said a language was in `P` if it has a polynomial time decision procedure (i.e., an algorithm that runs in `p`-time in its input size that outputs "yes" if in language and "no" if not).
We said a language `L` was in `NP` if there is a polynomial time verification algorithm `A(x,y)` and a polynomial `q` such that `x in L` iff there exists `y` such that `|y| leq q(|x|)` and `A(x,y)` outputs 1.
We said a language `L` is `p`-time reducible to another language `L'`, written `L leq_p L'`, if there is a polynomial time computable map `f` from strings to string such that `x in L` iff `f(x) in L'`.
A language `L` is said to be `NP`-complete if it is in `NP` and any other language in `NP` is `p`-time reducible to `L`. Just the latter condition is called `NP`-hard.
We introduced CIRCUIT-SAT and showed it is in NP.
Today,we have show it and several problems related to satisfiability are `NP`-complete. (SAT, 3SAT as well).
We then exhibit several more `NP`-complete languages: CLIQUE, VERTEX-COVER, HAM-CYCLE, TSP, SUBSET-SUM, the last of which will serve as a starting point for approximation algorithms.

Cook's Theorem (1971)

Theorem. CIRCUIT-SAT is NP-hard. Hence, with our earlier result that CIRCUIT-SAT is in NP, we get CIRCUIT-SAT is NP-complete.

Proof. Let `L` be a language in `NP`, let `A(x,y)` verify the language in time `O(|x|^c)`. The algorithm `A` runs on some kind of computational hardware. If that hardware is in a given configuration `c_i` then its control determines in the next time step what its next configuration `c_(i+1)` will be. We assume that this mapping can be computed by some AND, OR, NOT circuit `M` implementing the computer hardware. Using this circuit `M`, we build an AND, OR, NOT circuit `langle C(y) rangle` which is split into main layers which have the properties:

The output of `C` at main layer 1 codes, `c_0` , a configuration of `M` at the start of the computation of `A(x,y)`. Here the values of `x` are hard-coded based on the instance `x` which we are trying to check is in `L`. `y` is not hard-coded and boolean variables are used to represent it.
For each `i`, the output of `C` at main layer `i + 1`, corresponds to the configuration obtained from main layer `i` by computing according to `M`.
The output of `C` is the value extracted from the final configuration of `A` after `O(|x|^c)` steps.

Since there are polynomially many main layers each separated by polynomial-sized circuits, this whole circuit will be polynomial-size. If there is some setting of the boolean variables for `y` which makes the circuit true, then `A(x,y)` holds and `x` will be in `L` as desired.

NP-completeness Proofs

In general, most `NP`-completeness proof will make use of the following lemma:

Lemma. If some `NP`-complete language reduces to a language `L`, then `L` is `NP`-hard. If `L` is further in `NP` then `L` will be NP-complete.

Proof. Just compose the reductions.

Some NP-complete Problems

Let SAT = `{langle F rangle | langle F rangle` is a satisfiable boolean formula `}`
Let 3SAT = `{langle F rangle | langle F rangle` is a satisfiable CNF formula where each clause has at most three literal `}`.

Theorem. Both SAT and 3SAT are `NP`-complete.

Proof. First both languages are in `NP` by the same argument that showed CIRCUIT-SAT in `NP`. Given an instance `langle C rangle` of CIRCUIT-SAT, let gate `i` be coded as `langle i, type, j, k rangle`. Here type is AND, OR, NOT, or input, and `j, k < i` are gates which are inputs to this gate. A `0` for `j` or `k` means that argument is not used. Let `c_i`'s be new variables other than the input variables `x_j`. Recall the symbol `<=>` is true if both its boolean inputs have the same value. For each gate we create a boolean formula either of the form `c_i <=> (c_j mbox( type ) c_k)`, where type is replaced with AND or OR; or of the form `c_i <=> (mbox( type ) c_j)` in the case of NOT or an input (in the input case type is nothing). The SAT formula we output on input `langle C rangle` is the conjunction of all such defining formulas conjuncted with `c_w`, where `w` is the last gate in the formula. The idea is if `c_w` is true, then its defining equation `c_w <=>...` must be true and this propagates back to some setting of the leaves which will make the circuit true. By rewriting each `c_i <=> (c_j mbox( type ) c_k)` formulas in 3CNF we can make this whole formula into 3CNF. We can pad clauses with less than 3 literals with dummy variables to make all clauses the same size.

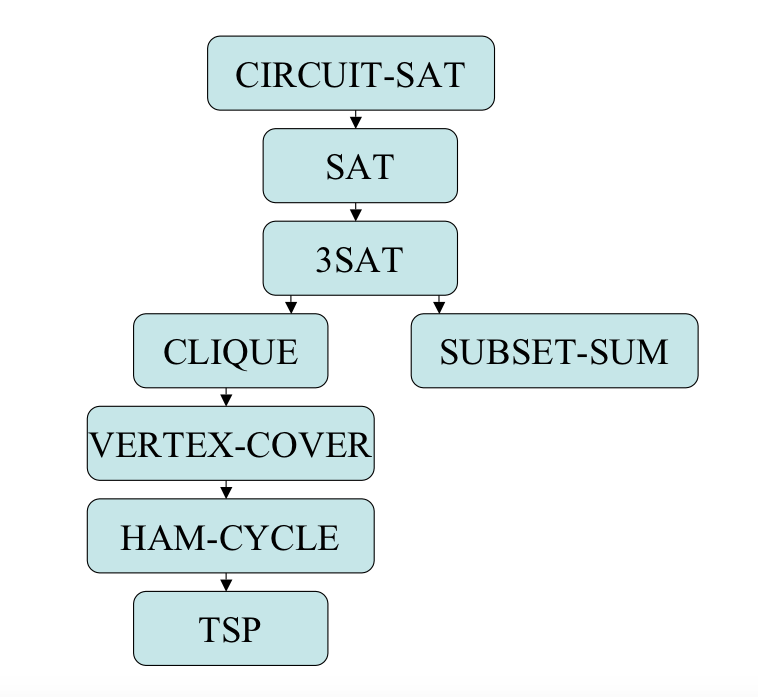

Reductions We Will Show

CLIQUE

A clique in an undirected graph `G=(V, E)` is a subset `V' subseteq V` of vertices in which each pair of vertices from `V'` is connected by an edge.
CLIQUE = `{langle G, k rangle | G ` is a graph with a clique of size `k}`.

Theorem. CLIQUE is `NP`-complete.

Proof. First CLIQUE is in `NP` because we can just guess a set of more than `k` vertices and check for each possible edge between these vertices. Next we show how to reduce 3SAT to CLIQUE. Let
`F = C_1^^C_2... ^^ C_k`
be an instance of 3SAT. For each `C_r= (l_1^r vv l_2^r vv l_3^r )`, we put a triple of vertices into our graph `G`, `v_1^r, v_2^r, v_3^r`. We put an edge between vertices `v_i^r` and `v_j^s` if they are in different triples and their corresponding literals are not negations of each other. Let `(G, k)` be the output instance of CLIQUE. Notice if there is a satisfying assignment to `F` then if we look at the corresponding vertices `v_j^r` of at least one satisfied literal/clause, it will be a CLIQUE of size `k` in `G`. As there are no edges between vertices coming from the same clause, any CLIQUE of size `k` has to have at least one vertex `v_j^r` for each `1 le r le k`. Choosing an assignment so that the corresponding literals for each `v_j^r` evaluates to true gives a satisfying assignment. So the reduction works.

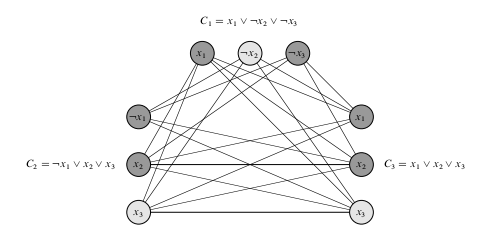

CLIQUE Example

Suppose we had the 3SAT instance `phi = C_1 ^^ C_2 ^^ C_3` where `C_1 = (x_1 vv neg x_2 vv neg x_3)`, `C_2 = ( neg x_1 vv x_2 vv x_3)`, and `C_3 = (x_1 vv x_2 vv x_3)`
Given this formula, the reduction from the previous slide would compute the graph above.
Notice if we set `x_2` to false and `x_3` true, the original formula is made true regardless of the value of `x_1`.
This corresponds to the clique of size 3 given by the white vertices in the above.
Consider the assignment which sets all of the variables false. This makes the formula false. In this case, there is no edge from `neg x_2` to `neg x_3` so it is not a clique.

VERTEX-COVER

A vertex cover in an undirected graph `G=langle V, E rangle` is a subset of the vertices `V'` such that each edge in `G` is connected to a vertex in `V'`.
VERTEX-COVER=`{langle G, k rangle` : graph `G` has a vertex cover of size `k}`

Theorem. VERTEX-COVER is `NP`-complete.

Proof. To see it is in `NP` notice if we guess a set of `k` vertices we can check if it is a vertex cover in polynomial time. To see it is `NP`-complete we reduce CLIQUE to this problem. Let `bar(G)` denote the complement of a graph `G= langle V, E rangle`, that is, the graph with the same vertices, but with edges `{i, j}` iff `{i, j}` is not an edge of `G`. Then notice `G` has a clique of size `k` iff `bar(G)` has a vertex cover of size `|V| - k`.
