Introduction

Today, we start looking at the Native SDK for the Oculus Go.

This will make use of a mix of Java for Android, C++ for the Oculus API, and C for shaders.

We assume you have followed our earlier instructions on How Enable Developer Mode on the Oculus Go.

We assume you have followed our earlier instructions on How to Install the Android Device Bridge.

If you need additional info, check out Oculus' Instructions on Device Set-Up.

Development can be done using either XCode or Android Studio -- we will focus on the latter.

Setting Up a Dev Environment With Android Studio

If you haven't already, Download Android Studio.
Next we need to make sure we can build for the correct version of Android and have the right build tools installs.
Along the top of the Android Studio Window you should see an icon like or , click on this to open the Android SDK Manager.
This has a few different tabs: .
Under the SDK Platforms tab make sure the Android Platform you need is installed (for me this was Platform 25, it corresponds to the version of Android on your Oculus Go).
Under the SDK tools tab make sure that NDK (Java Native Dev Kit), LLDB (debugger for LLVM C++ compiler), and Android SDK Build Tools are checked.
Next go to File - Project Structure. Make sure Android SDK, JDK, NDK all have values (you might need to click on select default NDK). Also, Use embedded JDK should be checked.
Finally, set up your JAVA_HOME environment variable according to the JDK variable above, ANDROID_HOME according to the Android SDK value, and ANDROID_NDK_HOME according to the NDK value above. Add the SDK tool path to your PATH variable.
On Windows, doing the above can be done from the Control Panel, on Mac or Linux, you can edit your .cshrc or .profile file.

Downloading Native API SDK, Syncing Projects

Download the Oculus Mobile SDK.

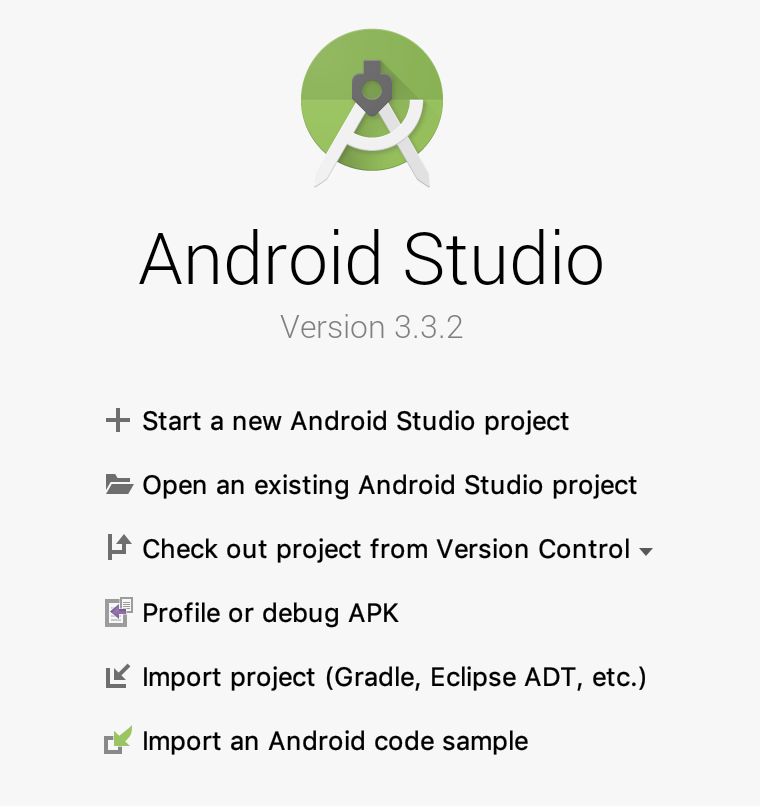

Unzip this file, then launch Android Studio and select Open and Existing Project:

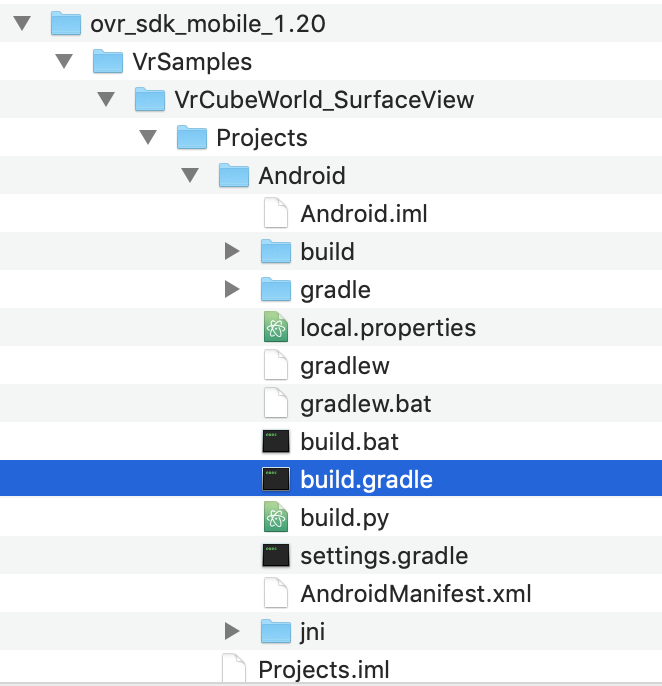

Select the Projects - Android - build.gradle file from a project you would like to compile:
If all goes well, this will actually load and build your project.
In the future to rebuild, you can select File - Sync Project With Gradle Files or you can click on the Run icon:

Troubleshooting Projects

This did not immediately work for me.
On a Mac, I had to copy the local.properties in the Projects - Android folder of my project, up to the root folder of my project to get the build to work.
Also, I had to specify the target of the build to be my Oculus device.

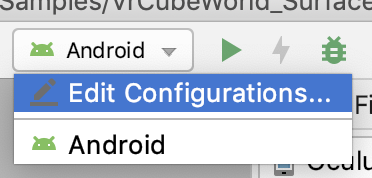

To do that I clicked on the Edit configuration button:

and selected deployment target options as USB Device.

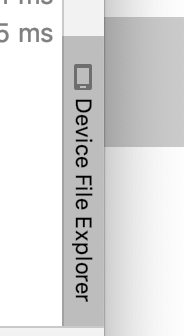

Android Studio initially still was having problems detecting my device. I had to install reinstall the cable a couple times before I got a device in the Device File Explorer tab

on the side of the Android Studio Window, which I could click to see the file system of my device.
After this showed, clicking Run did send the APK to the device.
To do development you don't need to digitally sign your apps, but to put them on the Oculus Store you do.

What the VrCubeWorld_SurfaceView Looks Like

Android Basics

Android is a mobile Operating System that was initially released in 2008.
It is built on top of Linux, so it has a file system like Linux, that you can read and write files to from your application.
The Android SDK allows you to write applications for this operating system using the Java language.
Usually to write an application, you make classes which extend Activity.
In the Oculus Samples, there is a folder VRTemplates which has a template for an Android Application suitable for Oculus Go developement.

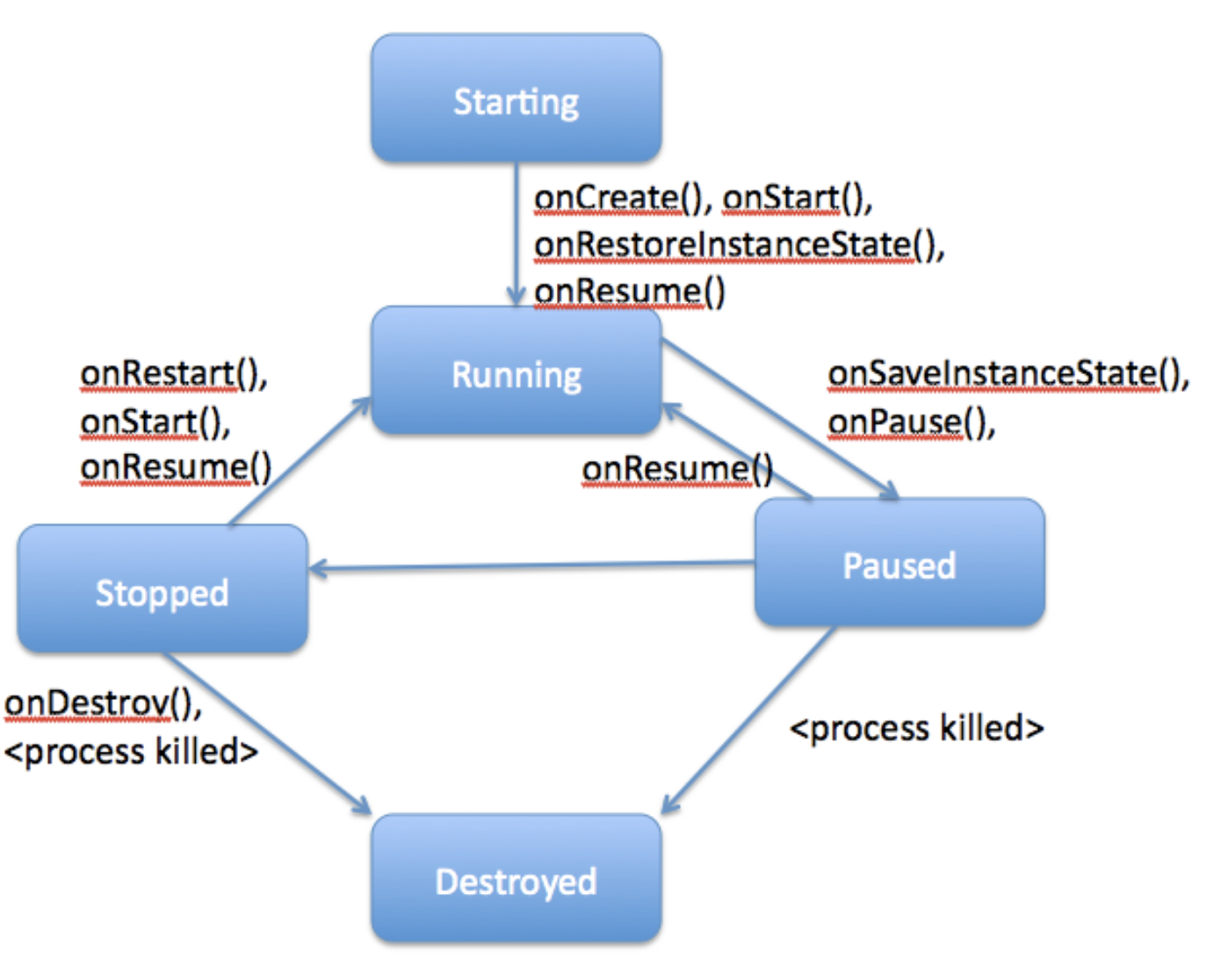

The Android Operating System calls different methods of an Activity depending on where the Activity is in its lifecyle:
Android activities can be thought of a little like controllers in a Model View Controller design pattern.
In onCreate or onStart or onResume you can set up listeners that respond to events from the UI and these listeners can communicate with the file system or sqlite database, etc to handle persistence.
In a non-VR Android App, UI is drawn typically drawn on Layout's (a subclass of View) which have on them one or more View's on them in some organized fashion. Layout's can be specified either programmatically or using XML files.
In the VR setting, we instead will often use one view (for example, a SurfaceView) on which we draw OpenGL or Vulkan stuff.

More Android Basics

Other important Android classes are:
- Intents - which are used to indicate you intend to do something, like, for example switch between activities.
- Services - for background tasks like a music player which keeps running even if you switch to different program.
- Content Providers - are a data source wrapped up in some object that is accessed using some standard API. For example, there is a content provider for contacts that allows you to get names, addresses, etc.
- Resources - text strings, bitmaps, or other small pieces of noncode info. These are created and stored in the res directory.
When you compile your program, it makes an .apk file (Android Package file) which is then either sent to your device or to an emulator for testing.
If you look at the VrCubeWorld_SurfaceView example project, you will see it has folders like: manifests, java, cpp, generatedJava, etc.
The source code for the main activity of this app is in the java folder.
The manifests folder has a file AndroidManifest.xml says which Activity should be the starting Activity for app. This file also says permissions, versions of Android, etc., that your app needs to run. For some permissions, it is up to the user on the mobile device to choose whether to grant or not the permissions.
The Oculus website gives some settings required for Oculus Manifest files.

In-Class Exercise

Download the Native code samples mentioned before, locate which file in the VrCubeWorld_SurfaceView has the main Activity for this project.
Post your solutions to the Mar 20 In-Class Exercise Thread.

Oculus Native SDK Basics

In the case of the example Oculus Android app we are considering, the Activity uses a SurfaceView for its UI.
As part of its load process, it loads C++ library, and its onCreate method sets up appropriate handles to connect GLES3JNILib method invocations with this library.
Otherwise, its onStart, onResume, etc methods are wrapper's which call GLES3JNILib's onStart, onResume, etc.
The C++ code in Src/VrCubeWorld_SurfaceView.c is where the real action of this project is.
In this file, if we look for methods prefixed with JNIEXPORT, (or if we search on Activity Lifestyle), we can see the C++ code that is invoke corresponding to different Java methods.
The API Classes used in this file come from VrApi.h
The API classes used to handle controller inputs are in VrApi_Input.h.
The running of an Activity corresponds to the AppThreadFunction executing. This has the main message loop of the app.
The AppThreadFunction also sets up either a separate rendering thread or a renderer for actually drawing the surface.
The code to handle events related drawing to the SurfaceView is done in Java_com_oculus_gles3jni_GLES3JNILib_onSurfaceCreated, Java_com_oculus_gles3jni_GLES3JNILib_onSurfaceChanged, Java_com_oculus_gles3jni_GLES3JNILib_onSurfaceDestroyed.
These actually queue messages which are then interpreted in AppThreadFunction.
In the case, where there isn't a separate render thread, the renderer set up by the AppThreadFunction is implemented by the the functions: ovrRenderer_Clear, ovrRenderer_Create, ovrRenderer_Destroy, and ovrRenderer_RenderFrame (the latter does the actual drawing and is called in this casse by AppThreadFunction).
If there is a separate rendering thread, then RenderThreadFunction does the drawing (it calls ovrRenderer_RenderFrame) and we have additional functions: ovrRenderThread_Clear, ovrRenderThread_Create, ovrRenderThread_Destroy, ovrRenderThread_Submit, ovrRenderThread_Wait, and ovrRenderThread_GetTid.

VrCubeWorld_SurfaceView.c

/************************************************************************************ Filename : VrCubeWorld_SurfaceView.c Content : This sample uses a plain Android SurfaceView and handles all Activity and Surface life cycle events in native code. This sample does not use the application framework and also does not use LibOVRKernel. This sample only uses the VrApi. Created : March, 2015 Authors : J.M.P. van Waveren Copyright : Copyright (c) Facebook Technologies, LLC and its affiliates. All rights reserved. *************************************************************************************/ #include <stdio.h> #include <stdlib.h> #include <math.h> #include <time.h> #include <unistd.h> #include <pthread.h> #include <sys/prctl.h> // for prctl( PR_SET_NAME ) #include <android/log.h> #include <android/native_window_jni.h> // for native window JNI #include <android/input.h> #include <EGL/egl.h> #include <EGL/eglext.h> #include <GLES3/gl3.h> #include <GLES3/gl3ext.h> #if !defined( EGL_OPENGL_ES3_BIT_KHR ) #define EGL_OPENGL_ES3_BIT_KHR 0x0040 #endif // EXT_texture_border_clamp #ifndef GL_CLAMP_TO_BORDER #define GL_CLAMP_TO_BORDER 0x812D #endif #ifndef GL_TEXTURE_BORDER_COLOR #define GL_TEXTURE_BORDER_COLOR 0x1004 #endif #if !defined( GL_EXT_multisampled_render_to_texture ) typedef void (GL_APIENTRY* PFNGLRENDERBUFFERSTORAGEMULTISAMPLEEXTPROC) (GLenum target, GLsizei samples, GLenum internalformat, GLsizei width, GLsizei height); typedef void (GL_APIENTRY* PFNGLFRAMEBUFFERTEXTURE2DMULTISAMPLEEXTPROC) (GLenum target, GLenum attachment, GLenum textarget, GLuint texture, GLint level, GLsizei samples); #endif #if !defined( GL_OVR_multiview ) static const int GL_FRAMEBUFFER_ATTACHMENT_TEXTURE_NUM_VIEWS_OVR = 0x9630; static const int GL_FRAMEBUFFER_ATTACHMENT_TEXTURE_BASE_VIEW_INDEX_OVR = 0x9632; static const int GL_MAX_VIEWS_OVR = 0x9631; typedef void (GL_APIENTRY* PFNGLFRAMEBUFFERTEXTUREMULTIVIEWOVRPROC) (GLenum target, GLenum attachment, GLuint texture, GLint level, GLint baseViewIndex, GLsizei numViews); #endif #if !defined( GL_OVR_multiview_multisampled_render_to_texture ) typedef void (GL_APIENTRY* PFNGLFRAMEBUFFERTEXTUREMULTISAMPLEMULTIVIEWOVRPROC)(GLenum target, GLenum attachment, GLuint texture, GLint level, GLsizei samples, GLint baseViewIndex, GLsizei numViews); #endif #include "VrApi.h" #include "VrApi_Helpers.h" #include "VrApi_SystemUtils.h" #include "VrApi_Input.h" #define DEBUG 1 #define LOG_TAG "VrCubeWorld" #define ALOGE(...) __android_log_print( ANDROID_LOG_ERROR, LOG_TAG, __VA_ARGS__ ) #if DEBUG #define ALOGV(...) __android_log_print( ANDROID_LOG_VERBOSE, LOG_TAG, __VA_ARGS__ ) #else #define ALOGV(...) #endif static const int CPU_LEVEL = 2; static const int GPU_LEVEL = 3; static const int NUM_MULTI_SAMPLES = 4; #define MULTI_THREADED 0 /* ================================================================================ System Clock Time ================================================================================ */ static double GetTimeInSeconds() { struct timespec now; clock_gettime( CLOCK_MONOTONIC, &now ); return ( now.tv_sec * 1e9 + now.tv_nsec ) * 0.000000001; } /* ================================================================================ OpenGL-ES Utility Functions ================================================================================ */ typedef struct { bool multi_view; // GL_OVR_multiview, GL_OVR_multiview2 bool EXT_texture_border_clamp; // GL_EXT_texture_border_clamp, GL_OES_texture_border_clamp } OpenGLExtensions_t; OpenGLExtensions_t glExtensions; static void EglInitExtensions() { const char * allExtensions = (const char *)glGetString( GL_EXTENSIONS ); if ( allExtensions != NULL ) { glExtensions.multi_view = strstr( allExtensions, "GL_OVR_multiview2" ) && strstr( allExtensions, "GL_OVR_multiview_multisampled_render_to_texture" ); glExtensions.EXT_texture_border_clamp = strstr( allExtensions, "GL_EXT_texture_border_clamp" ) || strstr( allExtensions, "GL_OES_texture_border_clamp" ); } } static const char * EglErrorString( const EGLint error ) { switch ( error ) { case EGL_SUCCESS: return "EGL_SUCCESS"; case EGL_NOT_INITIALIZED: return "EGL_NOT_INITIALIZED"; case EGL_BAD_ACCESS: return "EGL_BAD_ACCESS"; case EGL_BAD_ALLOC: return "EGL_BAD_ALLOC"; case EGL_BAD_ATTRIBUTE: return "EGL_BAD_ATTRIBUTE"; case EGL_BAD_CONTEXT: return "EGL_BAD_CONTEXT"; case EGL_BAD_CONFIG: return "EGL_BAD_CONFIG"; case EGL_BAD_CURRENT_SURFACE: return "EGL_BAD_CURRENT_SURFACE"; case EGL_BAD_DISPLAY: return "EGL_BAD_DISPLAY"; case EGL_BAD_SURFACE: return "EGL_BAD_SURFACE"; case EGL_BAD_MATCH: return "EGL_BAD_MATCH"; case EGL_BAD_PARAMETER: return "EGL_BAD_PARAMETER"; case EGL_BAD_NATIVE_PIXMAP: return "EGL_BAD_NATIVE_PIXMAP"; case EGL_BAD_NATIVE_WINDOW: return "EGL_BAD_NATIVE_WINDOW"; case EGL_CONTEXT_LOST: return "EGL_CONTEXT_LOST"; default: return "unknown"; } } static const char * GlFrameBufferStatusString( GLenum status ) { switch ( status ) { case GL_FRAMEBUFFER_UNDEFINED: return "GL_FRAMEBUFFER_UNDEFINED"; case GL_FRAMEBUFFER_INCOMPLETE_ATTACHMENT: return "GL_FRAMEBUFFER_INCOMPLETE_ATTACHMENT"; case GL_FRAMEBUFFER_INCOMPLETE_MISSING_ATTACHMENT: return "GL_FRAMEBUFFER_INCOMPLETE_MISSING_ATTACHMENT"; case GL_FRAMEBUFFER_UNSUPPORTED: return "GL_FRAMEBUFFER_UNSUPPORTED"; case GL_FRAMEBUFFER_INCOMPLETE_MULTISAMPLE: return "GL_FRAMEBUFFER_INCOMPLETE_MULTISAMPLE"; default: return "unknown"; } } #ifdef CHECK_GL_ERRORS static const char * GlErrorString( GLenum error ) { switch ( error ) { case GL_NO_ERROR: return "GL_NO_ERROR"; case GL_INVALID_ENUM: return "GL_INVALID_ENUM"; case GL_INVALID_VALUE: return "GL_INVALID_VALUE"; case GL_INVALID_OPERATION: return "GL_INVALID_OPERATION"; case GL_INVALID_FRAMEBUFFER_OPERATION: return "GL_INVALID_FRAMEBUFFER_OPERATION"; case GL_OUT_OF_MEMORY: return "GL_OUT_OF_MEMORY"; default: return "unknown"; } } static void GLCheckErrors( int line ) { for ( int i = 0; i < 10; i++ ) { const GLenum error = glGetError(); if ( error == GL_NO_ERROR ) { break; } ALOGE( "GL error on line %d: %s", line, GlErrorString( error ) ); } } #define GL( func ) func; GLCheckErrors( __LINE__ ); #else // CHECK_GL_ERRORS #define GL( func ) func; #endif // CHECK_GL_ERRORS /* ================================================================================ ovrEgl ================================================================================ */ typedef struct { EGLint MajorVersion; EGLint MinorVersion; EGLDisplay Display; EGLConfig Config; EGLSurface TinySurface; EGLSurface MainSurface; EGLContext Context; } ovrEgl; static void ovrEgl_Clear( ovrEgl * egl ) { egl->MajorVersion = 0; egl->MinorVersion = 0; egl->Display = 0; egl->Config = 0; egl->TinySurface = EGL_NO_SURFACE; egl->MainSurface = EGL_NO_SURFACE; egl->Context = EGL_NO_CONTEXT; } static void ovrEgl_CreateContext( ovrEgl * egl, const ovrEgl * shareEgl ) { if ( egl->Display != 0 ) { return; } egl->Display = eglGetDisplay( EGL_DEFAULT_DISPLAY ); ALOGV( " eglInitialize( Display, &MajorVersion, &MinorVersion )" ); eglInitialize( egl->Display, &egl->MajorVersion, &egl->MinorVersion ); // Do NOT use eglChooseConfig, because the Android EGL code pushes in multisample // flags in eglChooseConfig if the user has selected the "force 4x MSAA" option in // settings, and that is completely wasted for our warp target. const int MAX_CONFIGS = 1024; EGLConfig configs[MAX_CONFIGS]; EGLint numConfigs = 0; if ( eglGetConfigs( egl->Display, configs, MAX_CONFIGS, &numConfigs ) == EGL_FALSE ) { ALOGE( " eglGetConfigs() failed: %s", EglErrorString( eglGetError() ) ); return; } const EGLint configAttribs[] = { EGL_RED_SIZE, 8, EGL_GREEN_SIZE, 8, EGL_BLUE_SIZE, 8, EGL_ALPHA_SIZE, 8, // need alpha for the multi-pass timewarp compositor EGL_DEPTH_SIZE, 0, EGL_STENCIL_SIZE, 0, EGL_SAMPLES, 0, EGL_NONE }; egl->Config = 0; for ( int i = 0; i < numConfigs; i++ ) { EGLint value = 0; eglGetConfigAttrib( egl->Display, configs[i], EGL_RENDERABLE_TYPE, &value ); if ( ( value & EGL_OPENGL_ES3_BIT_KHR ) != EGL_OPENGL_ES3_BIT_KHR ) { continue; } // The pbuffer config also needs to be compatible with normal window rendering // so it can share textures with the window context. eglGetConfigAttrib( egl->Display, configs[i], EGL_SURFACE_TYPE, &value ); if ( ( value & ( EGL_WINDOW_BIT | EGL_PBUFFER_BIT ) ) != ( EGL_WINDOW_BIT | EGL_PBUFFER_BIT ) ) { continue; } int j = 0; for ( ; configAttribs[j] != EGL_NONE; j += 2 ) { eglGetConfigAttrib( egl->Display, configs[i], configAttribs[j], &value ); if ( value != configAttribs[j + 1] ) { break; } } if ( configAttribs[j] == EGL_NONE ) { egl->Config = configs[i]; break; } } if ( egl->Config == 0 ) { ALOGE( " eglChooseConfig() failed: %s", EglErrorString( eglGetError() ) ); return; } EGLint contextAttribs[] = { EGL_CONTEXT_CLIENT_VERSION, 3, EGL_NONE }; ALOGV( " Context = eglCreateContext( Display, Config, EGL_NO_CONTEXT, contextAttribs )" ); egl->Context = eglCreateContext( egl->Display, egl->Config, ( shareEgl != NULL ) ? shareEgl->Context : EGL_NO_CONTEXT, contextAttribs ); if ( egl->Context == EGL_NO_CONTEXT ) { ALOGE( " eglCreateContext() failed: %s", EglErrorString( eglGetError() ) ); return; } const EGLint surfaceAttribs[] = { EGL_WIDTH, 16, EGL_HEIGHT, 16, EGL_NONE }; ALOGV( " TinySurface = eglCreatePbufferSurface( Display, Config, surfaceAttribs )" ); egl->TinySurface = eglCreatePbufferSurface( egl->Display, egl->Config, surfaceAttribs ); if ( egl->TinySurface == EGL_NO_SURFACE ) { ALOGE( " eglCreatePbufferSurface() failed: %s", EglErrorString( eglGetError() ) ); eglDestroyContext( egl->Display, egl->Context ); egl->Context = EGL_NO_CONTEXT; return; } ALOGV( " eglMakeCurrent( Display, TinySurface, TinySurface, Context )" ); if ( eglMakeCurrent( egl->Display, egl->TinySurface, egl->TinySurface, egl->Context ) == EGL_FALSE ) { ALOGE( " eglMakeCurrent() failed: %s", EglErrorString( eglGetError() ) ); eglDestroySurface( egl->Display, egl->TinySurface ); eglDestroyContext( egl->Display, egl->Context ); egl->Context = EGL_NO_CONTEXT; return; } } static void ovrEgl_DestroyContext( ovrEgl * egl ) { if ( egl->Display != 0 ) { ALOGE( " eglMakeCurrent( Display, EGL_NO_SURFACE, EGL_NO_SURFACE, EGL_NO_CONTEXT )" ); if ( eglMakeCurrent( egl->Display, EGL_NO_SURFACE, EGL_NO_SURFACE, EGL_NO_CONTEXT ) == EGL_FALSE ) { ALOGE( " eglMakeCurrent() failed: %s", EglErrorString( eglGetError() ) ); } } if ( egl->Context != EGL_NO_CONTEXT ) { ALOGE( " eglDestroyContext( Display, Context )" ); if ( eglDestroyContext( egl->Display, egl->Context ) == EGL_FALSE ) { ALOGE( " eglDestroyContext() failed: %s", EglErrorString( eglGetError() ) ); } egl->Context = EGL_NO_CONTEXT; } if ( egl->TinySurface != EGL_NO_SURFACE ) { ALOGE( " eglDestroySurface( Display, TinySurface )" ); if ( eglDestroySurface( egl->Display, egl->TinySurface ) == EGL_FALSE ) { ALOGE( " eglDestroySurface() failed: %s", EglErrorString( eglGetError() ) ); } egl->TinySurface = EGL_NO_SURFACE; } if ( egl->Display != 0 ) { ALOGE( " eglTerminate( Display )" ); if ( eglTerminate( egl->Display ) == EGL_FALSE ) { ALOGE( " eglTerminate() failed: %s", EglErrorString( eglGetError() ) ); } egl->Display = 0; } } /* ================================================================================ ovrGeometry ================================================================================ */ typedef struct { GLuint Index; GLint Size; GLenum Type; GLboolean Normalized; GLsizei Stride; const GLvoid * Pointer; } ovrVertexAttribPointer; #define MAX_VERTEX_ATTRIB_POINTERS 3 typedef struct { GLuint VertexBuffer; GLuint IndexBuffer; GLuint VertexArrayObject; int VertexCount; int IndexCount; ovrVertexAttribPointer VertexAttribs[MAX_VERTEX_ATTRIB_POINTERS]; } ovrGeometry; enum VertexAttributeLocation { VERTEX_ATTRIBUTE_LOCATION_POSITION, VERTEX_ATTRIBUTE_LOCATION_COLOR, VERTEX_ATTRIBUTE_LOCATION_UV, VERTEX_ATTRIBUTE_LOCATION_TRANSFORM }; typedef struct { enum VertexAttributeLocation location; const char * name; } ovrVertexAttribute; static ovrVertexAttribute ProgramVertexAttributes[] = { { VERTEX_ATTRIBUTE_LOCATION_POSITION, "vertexPosition" }, { VERTEX_ATTRIBUTE_LOCATION_COLOR, "vertexColor" }, { VERTEX_ATTRIBUTE_LOCATION_UV, "vertexUv" }, { VERTEX_ATTRIBUTE_LOCATION_TRANSFORM, "vertexTransform" } }; static void ovrGeometry_Clear( ovrGeometry * geometry ) { geometry->VertexBuffer = 0; geometry->IndexBuffer = 0; geometry->VertexArrayObject = 0; geometry->VertexCount = 0; geometry->IndexCount = 0; for ( int i = 0; i < MAX_VERTEX_ATTRIB_POINTERS; i++ ) { memset( &geometry->VertexAttribs[i], 0, sizeof( geometry->VertexAttribs[i] ) ); geometry->VertexAttribs[i].Index = -1; } } static void ovrGeometry_CreateCube( ovrGeometry * geometry ) { typedef struct { char positions[8][4]; unsigned char colors[8][4]; } ovrCubeVertices; static const ovrCubeVertices cubeVertices = { // positions { { -127, +127, -127, +127 }, { +127, +127, -127, +127 }, { +127, +127, +127, +127 }, { -127, +127, +127, +127 }, // top { -127, -127, -127, +127 }, { -127, -127, +127, +127 }, { +127, -127, +127, +127 }, { +127, -127, -127, +127 } // bottom }, // colors { { 255, 0, 255, 255 }, { 0, 255, 0, 255 }, { 0, 0, 255, 255 }, { 255, 0, 0, 255 }, { 0, 0, 255, 255 }, { 0, 255, 0, 255 }, { 255, 0, 255, 255 }, { 255, 0, 0, 255 } }, }; static const unsigned short cubeIndices[36] = { 0, 2, 1, 2, 0, 3, // top 4, 6, 5, 6, 4, 7, // bottom 2, 6, 7, 7, 1, 2, // right 0, 4, 5, 5, 3, 0, // left 3, 5, 6, 6, 2, 3, // front 0, 1, 7, 7, 4, 0 // back }; geometry->VertexCount = 8; geometry->IndexCount = 36; geometry->VertexAttribs[0].Index = VERTEX_ATTRIBUTE_LOCATION_POSITION; geometry->VertexAttribs[0].Size = 4; geometry->VertexAttribs[0].Type = GL_BYTE; geometry->VertexAttribs[0].Normalized = true; geometry->VertexAttribs[0].Stride = sizeof( cubeVertices.positions[0] ); geometry->VertexAttribs[0].Pointer = (const GLvoid *)offsetof( ovrCubeVertices, positions ); geometry->VertexAttribs[1].Index = VERTEX_ATTRIBUTE_LOCATION_COLOR; geometry->VertexAttribs[1].Size = 4; geometry->VertexAttribs[1].Type = GL_UNSIGNED_BYTE; geometry->VertexAttribs[1].Normalized = true; geometry->VertexAttribs[1].Stride = sizeof( cubeVertices.colors[0] ); geometry->VertexAttribs[1].Pointer = (const GLvoid *)offsetof( ovrCubeVertices, colors ); GL( glGenBuffers( 1, &geometry->VertexBuffer ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, geometry->VertexBuffer ) ); GL( glBufferData( GL_ARRAY_BUFFER, sizeof( cubeVertices ), &cubeVertices, GL_STATIC_DRAW ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, 0 ) ); GL( glGenBuffers( 1, &geometry->IndexBuffer ) ); GL( glBindBuffer( GL_ELEMENT_ARRAY_BUFFER, geometry->IndexBuffer ) ); GL( glBufferData( GL_ELEMENT_ARRAY_BUFFER, sizeof( cubeIndices ), cubeIndices, GL_STATIC_DRAW ) ); GL( glBindBuffer( GL_ELEMENT_ARRAY_BUFFER, 0 ) ); } static void ovrGeometry_Destroy( ovrGeometry * geometry ) { GL( glDeleteBuffers( 1, &geometry->IndexBuffer ) ); GL( glDeleteBuffers( 1, &geometry->VertexBuffer ) ); ovrGeometry_Clear( geometry ); } static void ovrGeometry_CreateVAO( ovrGeometry * geometry ) { GL( glGenVertexArrays( 1, &geometry->VertexArrayObject ) ); GL( glBindVertexArray( geometry->VertexArrayObject ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, geometry->VertexBuffer ) ); for ( int i = 0; i < MAX_VERTEX_ATTRIB_POINTERS; i++ ) { if ( geometry->VertexAttribs[i].Index != -1 ) { GL( glEnableVertexAttribArray( geometry->VertexAttribs[i].Index ) ); GL( glVertexAttribPointer( geometry->VertexAttribs[i].Index, geometry->VertexAttribs[i].Size, geometry->VertexAttribs[i].Type, geometry->VertexAttribs[i].Normalized, geometry->VertexAttribs[i].Stride, geometry->VertexAttribs[i].Pointer ) ); } } GL( glBindBuffer( GL_ELEMENT_ARRAY_BUFFER, geometry->IndexBuffer ) ); GL( glBindVertexArray( 0 ) ); } static void ovrGeometry_DestroyVAO( ovrGeometry * geometry ) { GL( glDeleteVertexArrays( 1, &geometry->VertexArrayObject ) ); } /* ================================================================================ ovrProgram ================================================================================ */ #define MAX_PROGRAM_UNIFORMS 8 #define MAX_PROGRAM_TEXTURES 8 typedef struct { GLuint Program; GLuint VertexShader; GLuint FragmentShader; // These will be -1 if not used by the program. GLint UniformLocation[MAX_PROGRAM_UNIFORMS]; // ProgramUniforms[].name GLint UniformBinding[MAX_PROGRAM_UNIFORMS]; // ProgramUniforms[].name GLint Textures[MAX_PROGRAM_TEXTURES]; // Texture%i } ovrProgram; typedef struct { enum { UNIFORM_MODEL_MATRIX, UNIFORM_VIEW_ID, UNIFORM_SCENE_MATRICES, } index; enum { UNIFORM_TYPE_VECTOR4, UNIFORM_TYPE_MATRIX4X4, UNIFORM_TYPE_INT, UNIFORM_TYPE_BUFFER, } type; const char * name; } ovrUniform; static ovrUniform ProgramUniforms[] = { { UNIFORM_MODEL_MATRIX, UNIFORM_TYPE_MATRIX4X4, "ModelMatrix" }, { UNIFORM_VIEW_ID, UNIFORM_TYPE_INT, "ViewID" }, { UNIFORM_SCENE_MATRICES, UNIFORM_TYPE_BUFFER, "SceneMatrices" }, }; static void ovrProgram_Clear( ovrProgram * program ) { program->Program = 0; program->VertexShader = 0; program->FragmentShader = 0; memset( program->UniformLocation, 0, sizeof( program->UniformLocation ) ); memset( program->UniformBinding, 0, sizeof( program->UniformBinding ) ); memset( program->Textures, 0, sizeof( program->Textures ) ); } static const char * programVersion = "#version 300 es\n"; static bool ovrProgram_Create( ovrProgram * program, const char * vertexSource, const char * fragmentSource, const bool useMultiview ) { GLint r; GL( program->VertexShader = glCreateShader( GL_VERTEX_SHADER ) ); const char * vertexSources[3] = { programVersion, ( useMultiview ) ? "#define DISABLE_MULTIVIEW 0\n" : "#define DISABLE_MULTIVIEW 1\n", vertexSource }; GL( glShaderSource( program->VertexShader, 3, vertexSources, 0 ) ); GL( glCompileShader( program->VertexShader ) ); GL( glGetShaderiv( program->VertexShader, GL_COMPILE_STATUS, &r ) ); if ( r == GL_FALSE ) { GLchar msg[4096]; GL( glGetShaderInfoLog( program->VertexShader, sizeof( msg ), 0, msg ) ); ALOGE( "%s\n%s\n", vertexSource, msg ); return false; } const char * fragmentSources[2] = { programVersion, fragmentSource }; GL( program->FragmentShader = glCreateShader( GL_FRAGMENT_SHADER ) ); GL( glShaderSource( program->FragmentShader, 2, fragmentSources, 0 ) ); GL( glCompileShader( program->FragmentShader ) ); GL( glGetShaderiv( program->FragmentShader, GL_COMPILE_STATUS, &r ) ); if ( r == GL_FALSE ) { GLchar msg[4096]; GL( glGetShaderInfoLog( program->FragmentShader, sizeof( msg ), 0, msg ) ); ALOGE( "%s\n%s\n", fragmentSource, msg ); return false; } GL( program->Program = glCreateProgram() ); GL( glAttachShader( program->Program, program->VertexShader ) ); GL( glAttachShader( program->Program, program->FragmentShader ) ); // Bind the vertex attribute locations. for ( int i = 0; i < sizeof( ProgramVertexAttributes ) / sizeof( ProgramVertexAttributes[0] ); i++ ) { GL( glBindAttribLocation( program->Program, ProgramVertexAttributes[i].location, ProgramVertexAttributes[i].name ) ); } GL( glLinkProgram( program->Program ) ); GL( glGetProgramiv( program->Program, GL_LINK_STATUS, &r ) ); if ( r == GL_FALSE ) { GLchar msg[4096]; GL( glGetProgramInfoLog( program->Program, sizeof( msg ), 0, msg ) ); ALOGE( "Linking program failed: %s\n", msg ); return false; } int numBufferBindings = 0; // Get the uniform locations. memset( program->UniformLocation, -1, sizeof( program->UniformLocation ) ); for ( int i = 0; i < sizeof( ProgramUniforms ) / sizeof( ProgramUniforms[0] ); i++ ) { const int uniformIndex = ProgramUniforms[i].index; if ( ProgramUniforms[i].type == UNIFORM_TYPE_BUFFER ) { GL( program->UniformLocation[uniformIndex] = glGetUniformBlockIndex( program->Program, ProgramUniforms[i].name ) ); program->UniformBinding[uniformIndex] = numBufferBindings++; GL( glUniformBlockBinding( program->Program, program->UniformLocation[uniformIndex], program->UniformBinding[uniformIndex] ) ); } else { GL( program->UniformLocation[uniformIndex] = glGetUniformLocation( program->Program, ProgramUniforms[i].name ) ); program->UniformBinding[uniformIndex] = program->UniformLocation[uniformIndex]; } } GL( glUseProgram( program->Program ) ); // Get the texture locations. for ( int i = 0; i < MAX_PROGRAM_TEXTURES; i++ ) { char name[32]; sprintf( name, "Texture%i", i ); program->Textures[i] = glGetUniformLocation( program->Program, name ); if ( program->Textures[i] != -1 ) { GL( glUniform1i( program->Textures[i], i ) ); } } GL( glUseProgram( 0 ) ); return true; } static void ovrProgram_Destroy( ovrProgram * program ) { if ( program->Program != 0 ) { GL( glDeleteProgram( program->Program ) ); program->Program = 0; } if ( program->VertexShader != 0 ) { GL( glDeleteShader( program->VertexShader ) ); program->VertexShader = 0; } if ( program->FragmentShader != 0 ) { GL( glDeleteShader( program->FragmentShader ) ); program->FragmentShader = 0; } } static const char VERTEX_SHADER[] = "#ifndef DISABLE_MULTIVIEW\n" " #define DISABLE_MULTIVIEW 0\n" "#endif\n" "#define NUM_VIEWS 2\n" "#if defined( GL_OVR_multiview2 ) && ! DISABLE_MULTIVIEW\n" " #extension GL_OVR_multiview2 : enable\n" " layout(num_views=NUM_VIEWS) in;\n" " #define VIEW_ID gl_ViewID_OVR\n" "#else\n" " uniform lowp int ViewID;\n" " #define VIEW_ID ViewID\n" "#endif\n" "in vec3 vertexPosition;\n" "in vec4 vertexColor;\n" "in mat4 vertexTransform;\n" "uniform SceneMatrices\n" "{\n" " uniform mat4 ViewMatrix[NUM_VIEWS];\n" " uniform mat4 ProjectionMatrix[NUM_VIEWS];\n" "} sm;\n" "out vec4 fragmentColor;\n" "void main()\n" "{\n" " gl_Position = sm.ProjectionMatrix[VIEW_ID] * ( sm.ViewMatrix[VIEW_ID] * ( vertexTransform * vec4( vertexPosition * 0.1, 1.0 ) ) );\n" " fragmentColor = vertexColor;\n" "}\n"; static const char FRAGMENT_SHADER[] = "in lowp vec4 fragmentColor;\n" "out lowp vec4 outColor;\n" "void main()\n" "{\n" " outColor = fragmentColor;\n" "}\n"; /* ================================================================================ ovrFramebuffer ================================================================================ */ typedef struct { int Width; int Height; int Multisamples; int TextureSwapChainLength; int TextureSwapChainIndex; bool UseMultiview; ovrTextureSwapChain * ColorTextureSwapChain; GLuint * DepthBuffers; GLuint * FrameBuffers; } ovrFramebuffer; static void ovrFramebuffer_Clear( ovrFramebuffer * frameBuffer ) { frameBuffer->Width = 0; frameBuffer->Height = 0; frameBuffer->Multisamples = 0; frameBuffer->TextureSwapChainLength = 0; frameBuffer->TextureSwapChainIndex = 0; frameBuffer->UseMultiview = false; frameBuffer->ColorTextureSwapChain = NULL; frameBuffer->DepthBuffers = NULL; frameBuffer->FrameBuffers = NULL; } static bool ovrFramebuffer_Create( ovrFramebuffer * frameBuffer, const bool useMultiview, const GLenum colorFormat, const int width, const int height, const int multisamples ) { PFNGLRENDERBUFFERSTORAGEMULTISAMPLEEXTPROC glRenderbufferStorageMultisampleEXT = (PFNGLRENDERBUFFERSTORAGEMULTISAMPLEEXTPROC)eglGetProcAddress( "glRenderbufferStorageMultisampleEXT" ); PFNGLFRAMEBUFFERTEXTURE2DMULTISAMPLEEXTPROC glFramebufferTexture2DMultisampleEXT = (PFNGLFRAMEBUFFERTEXTURE2DMULTISAMPLEEXTPROC)eglGetProcAddress( "glFramebufferTexture2DMultisampleEXT" ); PFNGLFRAMEBUFFERTEXTUREMULTIVIEWOVRPROC glFramebufferTextureMultiviewOVR = (PFNGLFRAMEBUFFERTEXTUREMULTIVIEWOVRPROC) eglGetProcAddress( "glFramebufferTextureMultiviewOVR" ); PFNGLFRAMEBUFFERTEXTUREMULTISAMPLEMULTIVIEWOVRPROC glFramebufferTextureMultisampleMultiviewOVR = (PFNGLFRAMEBUFFERTEXTUREMULTISAMPLEMULTIVIEWOVRPROC) eglGetProcAddress( "glFramebufferTextureMultisampleMultiviewOVR" ); frameBuffer->Width = width; frameBuffer->Height = height; frameBuffer->Multisamples = multisamples; frameBuffer->UseMultiview = ( useMultiview && ( glFramebufferTextureMultiviewOVR != NULL ) ) ? true : false; frameBuffer->ColorTextureSwapChain = vrapi_CreateTextureSwapChain3( frameBuffer->UseMultiview ? VRAPI_TEXTURE_TYPE_2D_ARRAY : VRAPI_TEXTURE_TYPE_2D, colorFormat, width, height, 1, 3 ); frameBuffer->TextureSwapChainLength = vrapi_GetTextureSwapChainLength( frameBuffer->ColorTextureSwapChain ); frameBuffer->DepthBuffers = (GLuint *)malloc( frameBuffer->TextureSwapChainLength * sizeof( GLuint ) ); frameBuffer->FrameBuffers = (GLuint *)malloc( frameBuffer->TextureSwapChainLength * sizeof( GLuint ) ); ALOGV( " frameBuffer->UseMultiview = %d", frameBuffer->UseMultiview ); for ( int i = 0; i < frameBuffer->TextureSwapChainLength; i++ ) { // Create the color buffer texture. const GLuint colorTexture = vrapi_GetTextureSwapChainHandle( frameBuffer->ColorTextureSwapChain, i ); GLenum colorTextureTarget = frameBuffer->UseMultiview ? GL_TEXTURE_2D_ARRAY : GL_TEXTURE_2D; GL( glBindTexture( colorTextureTarget, colorTexture ) ); if ( glExtensions.EXT_texture_border_clamp ) { GL( glTexParameteri( colorTextureTarget, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_BORDER ) ); GL( glTexParameteri( colorTextureTarget, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_BORDER ) ); GLfloat borderColor[] = { 0.0f, 0.0f, 0.0f, 0.0f }; GL( glTexParameterfv( colorTextureTarget, GL_TEXTURE_BORDER_COLOR, borderColor ) ); } else { // Just clamp to edge. However, this requires manually clearing the border // around the layer to clear the edge texels. GL( glTexParameteri( colorTextureTarget, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE ) ); GL( glTexParameteri( colorTextureTarget, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE ) ); } GL( glTexParameteri( colorTextureTarget, GL_TEXTURE_MIN_FILTER, GL_LINEAR ) ); GL( glTexParameteri( colorTextureTarget, GL_TEXTURE_MAG_FILTER, GL_LINEAR ) ); GL( glBindTexture( colorTextureTarget, 0 ) ); if ( frameBuffer->UseMultiview ) { // Create the depth buffer texture. GL( glGenTextures( 1, &frameBuffer->DepthBuffers[i] ) ); GL( glBindTexture( GL_TEXTURE_2D_ARRAY, frameBuffer->DepthBuffers[i] ) ); GL( glTexStorage3D( GL_TEXTURE_2D_ARRAY, 1, GL_DEPTH_COMPONENT24, width, height, 2 ) ); GL( glBindTexture( GL_TEXTURE_2D_ARRAY, 0 ) ); // Create the frame buffer. GL( glGenFramebuffers( 1, &frameBuffer->FrameBuffers[i] ) ); GL( glBindFramebuffer( GL_DRAW_FRAMEBUFFER, frameBuffer->FrameBuffers[i] ) ); if ( multisamples > 1 && ( glFramebufferTextureMultisampleMultiviewOVR != NULL ) ) { GL( glFramebufferTextureMultisampleMultiviewOVR( GL_DRAW_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, frameBuffer->DepthBuffers[i], 0 /* level */, multisamples /* samples */, 0 /* baseViewIndex */, 2 /* numViews */ ) ); GL( glFramebufferTextureMultisampleMultiviewOVR( GL_DRAW_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, colorTexture, 0 /* level */, multisamples /* samples */, 0 /* baseViewIndex */, 2 /* numViews */ ) ); } else { GL( glFramebufferTextureMultiviewOVR( GL_DRAW_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, frameBuffer->DepthBuffers[i], 0 /* level */, 0 /* baseViewIndex */, 2 /* numViews */ ) ); GL( glFramebufferTextureMultiviewOVR( GL_DRAW_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, colorTexture, 0 /* level */, 0 /* baseViewIndex */, 2 /* numViews */ ) ); } GL( GLenum renderFramebufferStatus = glCheckFramebufferStatus( GL_DRAW_FRAMEBUFFER ) ); GL( glBindFramebuffer( GL_DRAW_FRAMEBUFFER, 0 ) ); if ( renderFramebufferStatus != GL_FRAMEBUFFER_COMPLETE ) { ALOGE( "Incomplete frame buffer object: %s", GlFrameBufferStatusString( renderFramebufferStatus ) ); return false; } } else { if ( multisamples > 1 && glRenderbufferStorageMultisampleEXT != NULL && glFramebufferTexture2DMultisampleEXT != NULL ) { // Create multisampled depth buffer. GL( glGenRenderbuffers( 1, &frameBuffer->DepthBuffers[i] ) ); GL( glBindRenderbuffer( GL_RENDERBUFFER, frameBuffer->DepthBuffers[i] ) ); GL( glRenderbufferStorageMultisampleEXT( GL_RENDERBUFFER, multisamples, GL_DEPTH_COMPONENT24, width, height ) ); GL( glBindRenderbuffer( GL_RENDERBUFFER, 0 ) ); // Create the frame buffer. // NOTE: glFramebufferTexture2DMultisampleEXT only works with GL_FRAMEBUFFER. GL( glGenFramebuffers( 1, &frameBuffer->FrameBuffers[i] ) ); GL( glBindFramebuffer( GL_FRAMEBUFFER, frameBuffer->FrameBuffers[i] ) ); GL( glFramebufferTexture2DMultisampleEXT( GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, colorTexture, 0, multisamples ) ); GL( glFramebufferRenderbuffer( GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_RENDERBUFFER, frameBuffer->DepthBuffers[i] ) ); GL( GLenum renderFramebufferStatus = glCheckFramebufferStatus( GL_FRAMEBUFFER ) ); GL( glBindFramebuffer( GL_FRAMEBUFFER, 0 ) ); if ( renderFramebufferStatus != GL_FRAMEBUFFER_COMPLETE ) { ALOGE( "Incomplete frame buffer object: %s", GlFrameBufferStatusString( renderFramebufferStatus ) ); return false; } } else { // Create depth buffer. GL( glGenRenderbuffers( 1, &frameBuffer->DepthBuffers[i] ) ); GL( glBindRenderbuffer( GL_RENDERBUFFER, frameBuffer->DepthBuffers[i] ) ); GL( glRenderbufferStorage( GL_RENDERBUFFER, GL_DEPTH_COMPONENT24, width, height ) ); GL( glBindRenderbuffer( GL_RENDERBUFFER, 0 ) ); // Create the frame buffer. GL( glGenFramebuffers( 1, &frameBuffer->FrameBuffers[i] ) ); GL( glBindFramebuffer( GL_DRAW_FRAMEBUFFER, frameBuffer->FrameBuffers[i] ) ); GL( glFramebufferRenderbuffer( GL_DRAW_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_RENDERBUFFER, frameBuffer->DepthBuffers[i] ) ); GL( glFramebufferTexture2D( GL_DRAW_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, colorTexture, 0 ) ); GL( GLenum renderFramebufferStatus = glCheckFramebufferStatus( GL_DRAW_FRAMEBUFFER ) ); GL( glBindFramebuffer( GL_DRAW_FRAMEBUFFER, 0 ) ); if ( renderFramebufferStatus != GL_FRAMEBUFFER_COMPLETE ) { ALOGE( "Incomplete frame buffer object: %s", GlFrameBufferStatusString( renderFramebufferStatus ) ); return false; } } } } return true; } static void ovrFramebuffer_Destroy( ovrFramebuffer * frameBuffer ) { GL( glDeleteFramebuffers( frameBuffer->TextureSwapChainLength, frameBuffer->FrameBuffers ) ); if ( frameBuffer->UseMultiview ) { GL( glDeleteTextures( frameBuffer->TextureSwapChainLength, frameBuffer->DepthBuffers ) ); } else { GL( glDeleteRenderbuffers( frameBuffer->TextureSwapChainLength, frameBuffer->DepthBuffers ) ); } vrapi_DestroyTextureSwapChain( frameBuffer->ColorTextureSwapChain ); free( frameBuffer->DepthBuffers ); free( frameBuffer->FrameBuffers ); ovrFramebuffer_Clear( frameBuffer ); } static void ovrFramebuffer_SetCurrent( ovrFramebuffer * frameBuffer ) { GL( glBindFramebuffer( GL_DRAW_FRAMEBUFFER, frameBuffer->FrameBuffers[frameBuffer->TextureSwapChainIndex] ) ); } static void ovrFramebuffer_SetNone() { GL( glBindFramebuffer( GL_DRAW_FRAMEBUFFER, 0 ) ); } static void ovrFramebuffer_Resolve( ovrFramebuffer * frameBuffer ) { // Discard the depth buffer, so the tiler won't need to write it back out to memory. const GLenum depthAttachment[1] = { GL_DEPTH_ATTACHMENT }; glInvalidateFramebuffer( GL_DRAW_FRAMEBUFFER, 1, depthAttachment ); // Flush this frame worth of commands. glFlush(); } static void ovrFramebuffer_Advance( ovrFramebuffer * frameBuffer ) { // Advance to the next texture from the set. frameBuffer->TextureSwapChainIndex = ( frameBuffer->TextureSwapChainIndex + 1 ) % frameBuffer->TextureSwapChainLength; } /* ================================================================================ ovrScene ================================================================================ */ #define NUM_INSTANCES 1500 #define NUM_ROTATIONS 16 typedef struct { bool CreatedScene; bool CreatedVAOs; unsigned int Random; ovrProgram Program; ovrGeometry Cube; GLuint SceneMatrices; GLuint InstanceTransformBuffer; ovrVector3f Rotations[NUM_ROTATIONS]; ovrVector3f CubePositions[NUM_INSTANCES]; int CubeRotations[NUM_INSTANCES]; } ovrScene; static void ovrScene_Clear( ovrScene * scene ) { scene->CreatedScene = false; scene->CreatedVAOs = false; scene->Random = 2; scene->SceneMatrices = 0; scene->InstanceTransformBuffer = 0; ovrProgram_Clear( &scene->Program ); ovrGeometry_Clear( &scene->Cube ); } static bool ovrScene_IsCreated( ovrScene * scene ) { return scene->CreatedScene; } static void ovrScene_CreateVAOs( ovrScene * scene ) { if ( !scene->CreatedVAOs ) { ovrGeometry_CreateVAO( &scene->Cube ); // Modify the VAO to use the instance transform attributes. GL( glBindVertexArray( scene->Cube.VertexArrayObject ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, scene->InstanceTransformBuffer ) ); for ( int i = 0; i < 4; i++ ) { GL( glEnableVertexAttribArray( VERTEX_ATTRIBUTE_LOCATION_TRANSFORM + i ) ); GL( glVertexAttribPointer( VERTEX_ATTRIBUTE_LOCATION_TRANSFORM + i, 4, GL_FLOAT, false, 4 * 4 * sizeof( float ), (void *)( i * 4 * sizeof( float ) ) ) ); GL( glVertexAttribDivisor( VERTEX_ATTRIBUTE_LOCATION_TRANSFORM + i, 1 ) ); } GL( glBindVertexArray( 0 ) ); scene->CreatedVAOs = true; } } static void ovrScene_DestroyVAOs( ovrScene * scene ) { if ( scene->CreatedVAOs ) { ovrGeometry_DestroyVAO( &scene->Cube ); scene->CreatedVAOs = false; } } // Returns a random float in the range [0, 1]. static float ovrScene_RandomFloat( ovrScene * scene ) { scene->Random = 1664525L * scene->Random + 1013904223L; unsigned int rf = 0x3F800000 | ( scene->Random & 0x007FFFFF ); return (*(float *)&rf) - 1.0f; } static void ovrScene_Create( ovrScene * scene, bool useMultiview ) { ovrProgram_Create( &scene->Program, VERTEX_SHADER, FRAGMENT_SHADER, useMultiview ); ovrGeometry_CreateCube( &scene->Cube ); // Create the instance transform attribute buffer. GL( glGenBuffers( 1, &scene->InstanceTransformBuffer ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, scene->InstanceTransformBuffer ) ); GL( glBufferData( GL_ARRAY_BUFFER, NUM_INSTANCES * 4 * 4 * sizeof( float ), NULL, GL_DYNAMIC_DRAW ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, 0 ) ); // Setup the scene matrices. GL( glGenBuffers( 1, &scene->SceneMatrices ) ); GL( glBindBuffer( GL_UNIFORM_BUFFER, scene->SceneMatrices ) ); GL( glBufferData( GL_UNIFORM_BUFFER, 2 * sizeof( ovrMatrix4f ) /* 2 view matrices */ + 2 * sizeof( ovrMatrix4f ) /* 2 projection matrices */, NULL, GL_STATIC_DRAW ) ); GL( glBindBuffer( GL_UNIFORM_BUFFER, 0 ) ); // Setup random rotations. for ( int i = 0; i < NUM_ROTATIONS; i++ ) { scene->Rotations[i].x = ovrScene_RandomFloat( scene ); scene->Rotations[i].y = ovrScene_RandomFloat( scene ); scene->Rotations[i].z = ovrScene_RandomFloat( scene ); } // Setup random cube positions and rotations. for ( int i = 0; i < NUM_INSTANCES; i++ ) { // Using volatile keeps the compiler from optimizing away multiple calls to ovrScene_RandomFloat(). volatile float rx, ry, rz; for ( ; ; ) { rx = ( ovrScene_RandomFloat( scene ) - 0.5f ) * ( 50.0f + sqrt( NUM_INSTANCES ) ); ry = ( ovrScene_RandomFloat( scene ) - 0.5f ) * ( 50.0f + sqrt( NUM_INSTANCES ) ); rz = ( ovrScene_RandomFloat( scene ) - 0.5f ) * ( 50.0f + sqrt( NUM_INSTANCES ) ); // If too close to 0,0,0 if ( fabsf( rx ) < 4.0f && fabsf( ry ) < 4.0f && fabsf( rz ) < 4.0f ) { continue; } // Test for overlap with any of the existing cubes. bool overlap = false; for ( int j = 0; j < i; j++ ) { if ( fabsf( rx - scene->CubePositions[j].x ) < 4.0f && fabsf( ry - scene->CubePositions[j].y ) < 4.0f && fabsf( rz - scene->CubePositions[j].z ) < 4.0f ) { overlap = true; break; } } if ( !overlap ) { break; } } rx *= 0.1f; ry *= 0.1f; rz *= 0.1f; // Insert into list sorted based on distance. int insert = 0; const float distSqr = rx * rx + ry * ry + rz * rz; for ( int j = i; j > 0; j-- ) { const ovrVector3f * otherPos = &scene->CubePositions[j - 1]; const float otherDistSqr = otherPos->x * otherPos->x + otherPos->y * otherPos->y + otherPos->z * otherPos->z; if ( distSqr > otherDistSqr ) { insert = j; break; } scene->CubePositions[j] = scene->CubePositions[j - 1]; scene->CubeRotations[j] = scene->CubeRotations[j - 1]; } scene->CubePositions[insert].x = rx; scene->CubePositions[insert].y = ry; scene->CubePositions[insert].z = rz; scene->CubeRotations[insert] = (int)( ovrScene_RandomFloat( scene ) * ( NUM_ROTATIONS - 0.1f ) ); } scene->CreatedScene = true; #if !MULTI_THREADED ovrScene_CreateVAOs( scene ); #endif } static void ovrScene_Destroy( ovrScene * scene ) { #if !MULTI_THREADED ovrScene_DestroyVAOs( scene ); #endif ovrProgram_Destroy( &scene->Program ); ovrGeometry_Destroy( &scene->Cube ); GL( glDeleteBuffers( 1, &scene->InstanceTransformBuffer ) ); GL( glDeleteBuffers( 1, &scene->SceneMatrices ) ); scene->CreatedScene = false; } /* ================================================================================ ovrSimulation ================================================================================ */ typedef struct { ovrVector3f CurrentRotation; } ovrSimulation; static void ovrSimulation_Clear( ovrSimulation * simulation ) { simulation->CurrentRotation.x = 0.0f; simulation->CurrentRotation.y = 0.0f; simulation->CurrentRotation.z = 0.0f; } static void ovrSimulation_Advance( ovrSimulation * simulation, double elapsedDisplayTime ) { // Update rotation. simulation->CurrentRotation.x = (float)( elapsedDisplayTime ); simulation->CurrentRotation.y = (float)( elapsedDisplayTime ); simulation->CurrentRotation.z = (float)( elapsedDisplayTime ); } /* ================================================================================ ovrRenderer ================================================================================ */ typedef struct { ovrFramebuffer FrameBuffer[VRAPI_FRAME_LAYER_EYE_MAX]; int NumBuffers; } ovrRenderer; static void ovrRenderer_Clear( ovrRenderer * renderer ) { for ( int eye = 0; eye < VRAPI_FRAME_LAYER_EYE_MAX; eye++ ) { ovrFramebuffer_Clear( &renderer->FrameBuffer[eye] ); } renderer->NumBuffers = VRAPI_FRAME_LAYER_EYE_MAX; } static void ovrRenderer_Create( ovrRenderer * renderer, const ovrJava * java, const bool useMultiview ) { renderer->NumBuffers = useMultiview ? 1 : VRAPI_FRAME_LAYER_EYE_MAX; // Create the frame buffers. for ( int eye = 0; eye < renderer->NumBuffers; eye++ ) { ovrFramebuffer_Create( &renderer->FrameBuffer[eye], useMultiview, GL_RGBA8, vrapi_GetSystemPropertyInt( java, VRAPI_SYS_PROP_SUGGESTED_EYE_TEXTURE_WIDTH ), vrapi_GetSystemPropertyInt( java, VRAPI_SYS_PROP_SUGGESTED_EYE_TEXTURE_HEIGHT ), NUM_MULTI_SAMPLES ); } } static void ovrRenderer_Destroy( ovrRenderer * renderer ) { for ( int eye = 0; eye < renderer->NumBuffers; eye++ ) { ovrFramebuffer_Destroy( &renderer->FrameBuffer[eye] ); } } static ovrLayerProjection2 ovrRenderer_RenderFrame( ovrRenderer * renderer, const ovrJava * java, const ovrScene * scene, const ovrSimulation * simulation, const ovrTracking2 * tracking, ovrMobile * ovr ) { ovrMatrix4f rotationMatrices[NUM_ROTATIONS]; for ( int i = 0; i < NUM_ROTATIONS; i++ ) { rotationMatrices[i] = ovrMatrix4f_CreateRotation( scene->Rotations[i].x * simulation->CurrentRotation.x, scene->Rotations[i].y * simulation->CurrentRotation.y, scene->Rotations[i].z * simulation->CurrentRotation.z ); } // Update the instance transform attributes. GL( glBindBuffer( GL_ARRAY_BUFFER, scene->InstanceTransformBuffer ) ); GL( ovrMatrix4f * cubeTransforms = (ovrMatrix4f *) glMapBufferRange( GL_ARRAY_BUFFER, 0, NUM_INSTANCES * sizeof( ovrMatrix4f ), GL_MAP_WRITE_BIT | GL_MAP_INVALIDATE_BUFFER_BIT ) ); for ( int i = 0; i < NUM_INSTANCES; i++ ) { const int index = scene->CubeRotations[i]; // Write in order in case the mapped buffer lives on write-combined memory. cubeTransforms[i].M[0][0] = rotationMatrices[index].M[0][0]; cubeTransforms[i].M[0][1] = rotationMatrices[index].M[0][1]; cubeTransforms[i].M[0][2] = rotationMatrices[index].M[0][2]; cubeTransforms[i].M[0][3] = rotationMatrices[index].M[0][3]; cubeTransforms[i].M[1][0] = rotationMatrices[index].M[1][0]; cubeTransforms[i].M[1][1] = rotationMatrices[index].M[1][1]; cubeTransforms[i].M[1][2] = rotationMatrices[index].M[1][2]; cubeTransforms[i].M[1][3] = rotationMatrices[index].M[1][3]; cubeTransforms[i].M[2][0] = rotationMatrices[index].M[2][0]; cubeTransforms[i].M[2][1] = rotationMatrices[index].M[2][1]; cubeTransforms[i].M[2][2] = rotationMatrices[index].M[2][2]; cubeTransforms[i].M[2][3] = rotationMatrices[index].M[2][3]; cubeTransforms[i].M[3][0] = scene->CubePositions[i].x; cubeTransforms[i].M[3][1] = scene->CubePositions[i].y; cubeTransforms[i].M[3][2] = scene->CubePositions[i].z; cubeTransforms[i].M[3][3] = 1.0f; } GL( glUnmapBuffer( GL_ARRAY_BUFFER ) ); GL( glBindBuffer( GL_ARRAY_BUFFER, 0 ) ); ovrTracking2 updatedTracking = *tracking; ovrMatrix4f eyeViewMatrixTransposed[2]; eyeViewMatrixTransposed[0] = ovrMatrix4f_Transpose( &updatedTracking.Eye[0].ViewMatrix ); eyeViewMatrixTransposed[1] = ovrMatrix4f_Transpose( &updatedTracking.Eye[1].ViewMatrix ); ovrMatrix4f projectionMatrixTransposed[2]; projectionMatrixTransposed[0] = ovrMatrix4f_Transpose( &updatedTracking.Eye[0].ProjectionMatrix ); projectionMatrixTransposed[1] = ovrMatrix4f_Transpose( &updatedTracking.Eye[1].ProjectionMatrix ); // Update the scene matrices. GL( glBindBuffer( GL_UNIFORM_BUFFER, scene->SceneMatrices ) ); GL( ovrMatrix4f * sceneMatrices = (ovrMatrix4f *) glMapBufferRange( GL_UNIFORM_BUFFER, 0, 2 * sizeof( ovrMatrix4f ) /* 2 view matrices */ + 2 * sizeof( ovrMatrix4f ) /* 2 projection matrices */, GL_MAP_WRITE_BIT | GL_MAP_INVALIDATE_BUFFER_BIT ) ); if ( sceneMatrices != NULL ) { memcpy( (char *)sceneMatrices, &eyeViewMatrixTransposed, 2 * sizeof( ovrMatrix4f ) ); memcpy( (char *)sceneMatrices + 2 * sizeof( ovrMatrix4f ), &projectionMatrixTransposed, 2 * sizeof( ovrMatrix4f ) ); } GL( glUnmapBuffer( GL_UNIFORM_BUFFER ) ); GL( glBindBuffer( GL_UNIFORM_BUFFER, 0 ) ); ovrLayerProjection2 layer = vrapi_DefaultLayerProjection2(); layer.HeadPose = updatedTracking.HeadPose; for ( int eye = 0; eye < VRAPI_FRAME_LAYER_EYE_MAX; eye++ ) { ovrFramebuffer * frameBuffer = &renderer->FrameBuffer[renderer->NumBuffers == 1 ? 0 : eye]; layer.Textures[eye].ColorSwapChain = frameBuffer->ColorTextureSwapChain; layer.Textures[eye].SwapChainIndex = frameBuffer->TextureSwapChainIndex; layer.Textures[eye].TexCoordsFromTanAngles = ovrMatrix4f_TanAngleMatrixFromProjection( &updatedTracking.Eye[eye].ProjectionMatrix ); } layer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_CHROMATIC_ABERRATION_CORRECTION; // Render the eye images. for ( int eye = 0; eye < renderer->NumBuffers; eye++ ) { // NOTE: In the non-mv case, latency can be further reduced by updating the sensor prediction // for each eye (updates orientation, not position) ovrFramebuffer * frameBuffer = &renderer->FrameBuffer[eye]; ovrFramebuffer_SetCurrent( frameBuffer ); GL( glUseProgram( scene->Program.Program ) ); GL( glBindBufferBase( GL_UNIFORM_BUFFER, scene->Program.UniformBinding[UNIFORM_SCENE_MATRICES], scene->SceneMatrices ) ); if ( scene->Program.UniformLocation[UNIFORM_VIEW_ID] >= 0 ) // NOTE: will not be present when multiview path is enabled. { GL( glUniform1i( scene->Program.UniformLocation[UNIFORM_VIEW_ID], eye ) ); } GL( glEnable( GL_SCISSOR_TEST ) ); GL( glDepthMask( GL_TRUE ) ); GL( glEnable( GL_DEPTH_TEST ) ); GL( glDepthFunc( GL_LEQUAL ) ); GL( glEnable( GL_CULL_FACE ) ); GL( glCullFace( GL_BACK ) ); GL( glViewport( 0, 0, frameBuffer->Width, frameBuffer->Height ) ); GL( glScissor( 0, 0, frameBuffer->Width, frameBuffer->Height ) ); GL( glClearColor( 0.125f, 0.0f, 0.125f, 1.0f ) ); GL( glClear( GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT ) ); GL( glBindVertexArray( scene->Cube.VertexArrayObject ) ); GL( glDrawElementsInstanced( GL_TRIANGLES, scene->Cube.IndexCount, GL_UNSIGNED_SHORT, NULL, NUM_INSTANCES ) ); GL( glBindVertexArray( 0 ) ); GL( glUseProgram( 0 ) ); // Explicitly clear the border texels to black when GL_CLAMP_TO_BORDER is not available. if ( glExtensions.EXT_texture_border_clamp == false ) { // Clear to fully opaque black. GL( glClearColor( 0.0f, 0.0f, 0.0f, 1.0f ) ); // bottom GL( glScissor( 0, 0, frameBuffer->Width, 1 ) ); GL( glClear( GL_COLOR_BUFFER_BIT ) ); // top GL( glScissor( 0, frameBuffer->Height - 1, frameBuffer->Width, 1 ) ); GL( glClear( GL_COLOR_BUFFER_BIT ) ); // left GL( glScissor( 0, 0, 1, frameBuffer->Height ) ); GL( glClear( GL_COLOR_BUFFER_BIT ) ); // right GL( glScissor( frameBuffer->Width - 1, 0, 1, frameBuffer->Height ) ); GL( glClear( GL_COLOR_BUFFER_BIT ) ); } ovrFramebuffer_Resolve( frameBuffer ); ovrFramebuffer_Advance( frameBuffer ); } ovrFramebuffer_SetNone(); return layer; } /* ================================================================================ ovrRenderThread ================================================================================ */ #if MULTI_THREADED typedef enum { RENDER_FRAME, RENDER_LOADING_ICON, RENDER_BLACK_FINAL } ovrRenderType; typedef struct { JavaVM * JavaVm; jobject ActivityObject; const ovrEgl * ShareEgl; pthread_t Thread; int Tid; bool UseMultiview; // Synchronization bool Exit; bool WorkAvailableFlag; bool WorkDoneFlag; pthread_cond_t WorkAvailableCondition; pthread_cond_t WorkDoneCondition; pthread_mutex_t Mutex; // Latched data for rendering. ovrMobile * Ovr; ovrRenderType RenderType; long long FrameIndex; double DisplayTime; int SwapInterval; ovrScene * Scene; ovrSimulation Simulation; ovrTracking2 Tracking; } ovrRenderThread; void * RenderThreadFunction( void * parm ) { ovrRenderThread * renderThread = (ovrRenderThread *)parm; renderThread->Tid = gettid(); ovrJava java; java.Vm = renderThread->JavaVm; (*java.Vm)->AttachCurrentThread( java.Vm, &java.Env, NULL ); java.ActivityObject = renderThread->ActivityObject; // Note that AttachCurrentThread will reset the thread name. prctl( PR_SET_NAME, (long)"OVR::Renderer", 0, 0, 0 ); ovrEgl egl; ovrEgl_CreateContext( &egl, renderThread->ShareEgl ); ovrRenderer renderer; ovrRenderer_Create( &renderer, &java, renderThread->UseMultiview ); ovrScene * lastScene = NULL; for( ; ; ) { // Signal work completed. pthread_mutex_lock( &renderThread->Mutex ); renderThread->WorkDoneFlag = true; pthread_cond_signal( &renderThread->WorkDoneCondition ); pthread_mutex_unlock( &renderThread->Mutex ); // Wait for work. pthread_mutex_lock( &renderThread->Mutex ); while ( !renderThread->WorkAvailableFlag ) { pthread_cond_wait( &renderThread->WorkAvailableCondition, &renderThread->Mutex ); } renderThread->WorkAvailableFlag = false; pthread_mutex_unlock( &renderThread->Mutex ); // Check for exit. if ( renderThread->Exit ) { break; } // Make sure the scene has VAOs created for this context. if ( renderThread->Scene != NULL && renderThread->Scene != lastScene ) { if ( lastScene != NULL ) { ovrScene_DestroyVAOs( lastScene ); } ovrScene_CreateVAOs( renderThread->Scene ); lastScene = renderThread->Scene; } // Render. ovrLayer_Union2 layers[ovrMaxLayerCount] = {}; int layerCount = 0; int frameFlags = 0; if ( renderThread->RenderType == RENDER_FRAME ) { ovrLayerProjection2 layer; layer = ovrRenderer_RenderFrame( &renderer, &java, renderThread->Scene, &renderThread->Simulation, &renderThread->Tracking, renderThread->Ovr ); layers[layerCount++].Projection = layer; } else if ( renderThread->RenderType == RENDER_LOADING_ICON ) { ovrLayerProjection2 blackLayer = vrapi_DefaultLayerBlackProjection2(); blackLayer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_INHIBIT_SRGB_FRAMEBUFFER; layers[layerCount++].Projection = blackLayer; ovrLayerLoadingIcon2 iconLayer = vrapi_DefaultLayerLoadingIcon2(); iconLayer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_INHIBIT_SRGB_FRAMEBUFFER; layers[layerCount++].LoadingIcon = iconLayer; frameFlags |= VRAPI_FRAME_FLAG_FLUSH; } else if ( renderThread->RenderType == RENDER_BLACK_FINAL ) { ovrLayerProjection2 layer = vrapi_DefaultLayerBlackProjection2(); layer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_INHIBIT_SRGB_FRAMEBUFFER; layers[layerCount++].Projection = layer; frameFlags |= VRAPI_FRAME_FLAG_FLUSH | VRAPI_FRAME_FLAG_FINAL; } const ovrLayerHeader2 * layerList[ovrMaxLayerCount] = {}; for ( int i = 0; i < layerCount; i++ ) { layerList[i] = &layers[i].Header; } ovrSubmitFrameDescription2 frameDesc = {}; frameDesc.Flags = frameFlags; frameDesc.SwapInterval = renderThread->SwapInterval; frameDesc.FrameIndex = renderThread->FrameIndex; frameDesc.DisplayTime = renderThread->DisplayTime; frameDesc.LayerCount = layerCount; frameDesc.Layers = layerList; vrapi_SubmitFrame2( renderThread->Ovr, &frameDesc ); } if ( lastScene != NULL ) { ovrScene_DestroyVAOs( lastScene ); } ovrRenderer_Destroy( &renderer ); ovrEgl_DestroyContext( &egl ); (*java.Vm)->DetachCurrentThread( java.Vm ); return NULL; } static void ovrRenderThread_Clear( ovrRenderThread * renderThread ) { renderThread->JavaVm = NULL; renderThread->ActivityObject = NULL; renderThread->ShareEgl = NULL; renderThread->Thread = 0; renderThread->Tid = 0; renderThread->UseMultiview = false; renderThread->Exit = false; renderThread->WorkAvailableFlag = false; renderThread->WorkDoneFlag = false; renderThread->Ovr = NULL; renderThread->RenderType = RENDER_FRAME; renderThread->FrameIndex = 1; renderThread->DisplayTime = 0; renderThread->SwapInterval = 1; renderThread->Scene = NULL; ovrSimulation_Clear( &renderThread->Simulation ); } static void ovrRenderThread_Create( ovrRenderThread * renderThread, const ovrJava * java, const ovrEgl * shareEgl, const bool useMultiview ) { renderThread->JavaVm = java->Vm; renderThread->ActivityObject = java->ActivityObject; renderThread->ShareEgl = shareEgl; renderThread->Thread = 0; renderThread->Tid = 0; renderThread->UseMultiview = useMultiview; renderThread->Exit = false; renderThread->WorkAvailableFlag = false; renderThread->WorkDoneFlag = false; pthread_cond_init( &renderThread->WorkAvailableCondition, NULL ); pthread_cond_init( &renderThread->WorkDoneCondition, NULL ); pthread_mutex_init( &renderThread->Mutex, NULL ); const int createErr = pthread_create( &renderThread->Thread, NULL, RenderThreadFunction, renderThread ); if ( createErr != 0 ) { ALOGE( "pthread_create returned %i", createErr ); } } static void ovrRenderThread_Destroy( ovrRenderThread * renderThread ) { pthread_mutex_lock( &renderThread->Mutex ); renderThread->Exit = true; renderThread->WorkAvailableFlag = true; pthread_cond_signal( &renderThread->WorkAvailableCondition ); pthread_mutex_unlock( &renderThread->Mutex ); pthread_join( renderThread->Thread, NULL ); pthread_cond_destroy( &renderThread->WorkAvailableCondition ); pthread_cond_destroy( &renderThread->WorkDoneCondition ); pthread_mutex_destroy( &renderThread->Mutex ); } static void ovrRenderThread_Submit( ovrRenderThread * renderThread, ovrMobile * ovr, ovrRenderType type, long long frameIndex, double displayTime, int swapInterval, ovrScene * scene, const ovrSimulation * simulation, const ovrTracking2 * tracking ) { // Wait for the renderer thread to finish the last frame. pthread_mutex_lock( &renderThread->Mutex ); while ( !renderThread->WorkDoneFlag ) { pthread_cond_wait( &renderThread->WorkDoneCondition, &renderThread->Mutex ); } renderThread->WorkDoneFlag = false; // Latch the render data. renderThread->Ovr = ovr; renderThread->RenderType = type; renderThread->FrameIndex = frameIndex; renderThread->DisplayTime = displayTime; renderThread->SwapInterval = swapInterval; renderThread->Scene = scene; if ( simulation != NULL ) { renderThread->Simulation = *simulation; } if ( tracking != NULL ) { renderThread->Tracking = *tracking; } // Signal work is available. renderThread->WorkAvailableFlag = true; pthread_cond_signal( &renderThread->WorkAvailableCondition ); pthread_mutex_unlock( &renderThread->Mutex ); } static void ovrRenderThread_Wait( ovrRenderThread * renderThread ) { // Wait for the renderer thread to finish the last frame. pthread_mutex_lock( &renderThread->Mutex ); while ( !renderThread->WorkDoneFlag ) { pthread_cond_wait( &renderThread->WorkDoneCondition, &renderThread->Mutex ); } pthread_mutex_unlock( &renderThread->Mutex ); } static int ovrRenderThread_GetTid( ovrRenderThread * renderThread ) { ovrRenderThread_Wait( renderThread ); return renderThread->Tid; } #endif // MULTI_THREADED /* ================================================================================ ovrApp ================================================================================ */ typedef struct { ovrJava Java; ovrEgl Egl; ANativeWindow * NativeWindow; bool Resumed; ovrMobile * Ovr; ovrScene Scene; ovrSimulation Simulation; long long FrameIndex; double DisplayTime; int SwapInterval; int CpuLevel; int GpuLevel; int MainThreadTid; int RenderThreadTid; bool BackButtonDownLastFrame; bool GamePadBackButtonDown; #if MULTI_THREADED ovrRenderThread RenderThread; #else ovrRenderer Renderer; #endif bool UseMultiview; } ovrApp; static void ovrApp_Clear( ovrApp * app ) { app->Java.Vm = NULL; app->Java.Env = NULL; app->Java.ActivityObject = NULL; app->NativeWindow = NULL; app->Resumed = false; app->Ovr = NULL; app->FrameIndex = 1; app->DisplayTime = 0; app->SwapInterval = 1; app->CpuLevel = 2; app->GpuLevel = 2; app->MainThreadTid = 0; app->RenderThreadTid = 0; app->BackButtonDownLastFrame = false; app->GamePadBackButtonDown = false; app->UseMultiview = true; ovrEgl_Clear( &app->Egl ); ovrScene_Clear( &app->Scene ); ovrSimulation_Clear( &app->Simulation ); #if MULTI_THREADED ovrRenderThread_Clear( &app->RenderThread ); #else ovrRenderer_Clear( &app->Renderer ); #endif } static void ovrApp_PushBlackFinal( ovrApp * app ) { #if MULTI_THREADED ovrRenderThread_Submit( &app->RenderThread, app->Ovr, RENDER_BLACK_FINAL, app->FrameIndex, app->DisplayTime, app->SwapInterval, NULL, NULL, NULL ); #else int frameFlags = 0; frameFlags |= VRAPI_FRAME_FLAG_FLUSH | VRAPI_FRAME_FLAG_FINAL; ovrLayerProjection2 layer = vrapi_DefaultLayerBlackProjection2(); layer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_INHIBIT_SRGB_FRAMEBUFFER; const ovrLayerHeader2 * layers[] = { &layer.Header }; ovrSubmitFrameDescription2 frameDesc = {}; frameDesc.Flags = frameFlags; frameDesc.SwapInterval = 1; frameDesc.FrameIndex = app->FrameIndex; frameDesc.DisplayTime = app->DisplayTime; frameDesc.LayerCount = 1; frameDesc.Layers = layers; vrapi_SubmitFrame2( app->Ovr, &frameDesc ); #endif } static void ovrApp_HandleVrModeChanges( ovrApp * app ) { if ( app->Resumed != false && app->NativeWindow != NULL ) { if ( app->Ovr == NULL ) { ovrModeParms parms = vrapi_DefaultModeParms( &app->Java ); // Must reset the FLAG_FULLSCREEN window flag when using a SurfaceView parms.Flags |= VRAPI_MODE_FLAG_RESET_WINDOW_FULLSCREEN; parms.Flags |= VRAPI_MODE_FLAG_NATIVE_WINDOW; parms.Display = (size_t)app->Egl.Display; parms.WindowSurface = (size_t)app->NativeWindow; parms.ShareContext = (size_t)app->Egl.Context; ALOGV( " eglGetCurrentSurface( EGL_DRAW ) = %p", eglGetCurrentSurface( EGL_DRAW ) ); ALOGV( " vrapi_EnterVrMode()" ); app->Ovr = vrapi_EnterVrMode( &parms ); ALOGV( " eglGetCurrentSurface( EGL_DRAW ) = %p", eglGetCurrentSurface( EGL_DRAW ) ); // If entering VR mode failed then the ANativeWindow was not valid. if ( app->Ovr == NULL ) { ALOGE( "Invalid ANativeWindow!" ); app->NativeWindow = NULL; } // Set performance parameters once we have entered VR mode and have a valid ovrMobile. if ( app->Ovr != NULL ) { vrapi_SetClockLevels( app->Ovr, app->CpuLevel, app->GpuLevel ); ALOGV( " vrapi_SetClockLevels( %d, %d )", app->CpuLevel, app->GpuLevel ); vrapi_SetPerfThread( app->Ovr, VRAPI_PERF_THREAD_TYPE_MAIN, app->MainThreadTid ); ALOGV( " vrapi_SetPerfThread( MAIN, %d )", app->MainThreadTid ); vrapi_SetPerfThread( app->Ovr, VRAPI_PERF_THREAD_TYPE_RENDERER, app->RenderThreadTid ); ALOGV( " vrapi_SetPerfThread( RENDERER, %d )", app->RenderThreadTid ); } } } else { if ( app->Ovr != NULL ) { #if MULTI_THREADED // Make sure the renderer thread is no longer using the ovrMobile. ovrRenderThread_Wait( &app->RenderThread ); #endif ALOGV( " eglGetCurrentSurface( EGL_DRAW ) = %p", eglGetCurrentSurface( EGL_DRAW ) ); ALOGV( " vrapi_LeaveVrMode()" ); vrapi_LeaveVrMode( app->Ovr ); app->Ovr = NULL; ALOGV( " eglGetCurrentSurface( EGL_DRAW ) = %p", eglGetCurrentSurface( EGL_DRAW ) ); } } } static void ovrApp_HandleInput( ovrApp * app ) { bool backButtonDownThisFrame = false; for ( int i = 0; ; i++ ) { ovrInputCapabilityHeader cap; ovrResult result = vrapi_EnumerateInputDevices( app->Ovr, i, &cap ); if ( result < 0 ) { break; } if ( cap.Type == ovrControllerType_Headset ) { ovrInputStateHeadset headsetInputState; headsetInputState.Header.ControllerType = ovrControllerType_Headset; result = vrapi_GetCurrentInputState( app->Ovr, i, &headsetInputState.Header ); if ( result == ovrSuccess ) { backButtonDownThisFrame |= headsetInputState.Buttons & ovrButton_Back; } } else if ( cap.Type == ovrControllerType_TrackedRemote ) { ovrInputStateTrackedRemote trackedRemoteState; trackedRemoteState.Header.ControllerType = ovrControllerType_TrackedRemote; result = vrapi_GetCurrentInputState( app->Ovr, i, &trackedRemoteState.Header ); if ( result == ovrSuccess ) { backButtonDownThisFrame |= trackedRemoteState.Buttons & ovrButton_Back; } } else if ( cap.Type == ovrControllerType_Gamepad ) { ovrInputStateGamepad gamepadState; gamepadState.Header.ControllerType = ovrControllerType_Gamepad; result = vrapi_GetCurrentInputState( app->Ovr, i, &gamepadState.Header ); if ( result == ovrSuccess ) { backButtonDownThisFrame |= gamepadState.Buttons & ovrButton_Back; } } } backButtonDownThisFrame |= app->GamePadBackButtonDown; bool backButtonDownLastFrame = app->BackButtonDownLastFrame; app->BackButtonDownLastFrame = backButtonDownThisFrame; if ( backButtonDownLastFrame && !backButtonDownThisFrame ) { ALOGV( "back button short press" ); ALOGV( " ovrApp_PushBlackFinal()" ); ovrApp_PushBlackFinal( app ); ALOGV( " vrapi_ShowSystemUI( confirmQuit )" ); vrapi_ShowSystemUI( &app->Java, VRAPI_SYS_UI_CONFIRM_QUIT_MENU ); } } static int ovrApp_HandleKeyEvent( ovrApp * app, const int keyCode, const int action ) { // Handle back button. if ( keyCode == AKEYCODE_BACK || keyCode == AKEYCODE_BUTTON_B ) { if ( action == AKEY_EVENT_ACTION_DOWN ) { app->GamePadBackButtonDown = true; } else if ( action == AKEY_EVENT_ACTION_UP ) { app->GamePadBackButtonDown = false; } return 1; } return 0; } /* ================================================================================ ovrMessageQueue ================================================================================ */ typedef enum { MQ_WAIT_NONE, // don't wait MQ_WAIT_RECEIVED, // wait until the consumer thread has received the message MQ_WAIT_PROCESSED // wait until the consumer thread has processed the message } ovrMQWait; #define MAX_MESSAGE_PARMS 8 #define MAX_MESSAGES 1024 typedef struct { int Id; ovrMQWait Wait; long long Parms[MAX_MESSAGE_PARMS]; } ovrMessage; static void ovrMessage_Init( ovrMessage * message, const int id, const int wait ) { message->Id = id; message->Wait = wait; memset( message->Parms, 0, sizeof( message->Parms ) ); } static void ovrMessage_SetPointerParm( ovrMessage * message, int index, void * ptr ) { *(void **)&message->Parms[index] = ptr; } static void * ovrMessage_GetPointerParm( ovrMessage * message, int index ) { return *(void **)&message->Parms[index]; } static void ovrMessage_SetIntegerParm( ovrMessage * message, int index, int value ) { message->Parms[index] = value; } static int ovrMessage_GetIntegerParm( ovrMessage * message, int index ) { return (int)message->Parms[index]; } static void ovrMessage_SetFloatParm( ovrMessage * message, int index, float value ) { *(float *)&message->Parms[index] = value; } static float ovrMessage_GetFloatParm( ovrMessage * message, int index ) { return *(float *)&message->Parms[index]; } // Cyclic queue with messages. typedef struct { ovrMessage Messages[MAX_MESSAGES]; volatile int Head; // dequeue at the head volatile int Tail; // enqueue at the tail ovrMQWait Wait; volatile bool EnabledFlag; volatile bool PostedFlag; volatile bool ReceivedFlag; volatile bool ProcessedFlag; pthread_mutex_t Mutex; pthread_cond_t PostedCondition; pthread_cond_t ReceivedCondition; pthread_cond_t ProcessedCondition; } ovrMessageQueue; static void ovrMessageQueue_Create( ovrMessageQueue * messageQueue ) { messageQueue->Head = 0; messageQueue->Tail = 0; messageQueue->Wait = MQ_WAIT_NONE; messageQueue->EnabledFlag = false; messageQueue->PostedFlag = false; messageQueue->ReceivedFlag = false; messageQueue->ProcessedFlag = false; pthread_mutexattr_t attr; pthread_mutexattr_init( &attr ); pthread_mutexattr_settype( &attr, PTHREAD_MUTEX_ERRORCHECK ); pthread_mutex_init( &messageQueue->Mutex, &attr ); pthread_mutexattr_destroy( &attr ); pthread_cond_init( &messageQueue->PostedCondition, NULL ); pthread_cond_init( &messageQueue->ReceivedCondition, NULL ); pthread_cond_init( &messageQueue->ProcessedCondition, NULL ); } static void ovrMessageQueue_Destroy( ovrMessageQueue * messageQueue ) { pthread_mutex_destroy( &messageQueue->Mutex ); pthread_cond_destroy( &messageQueue->PostedCondition ); pthread_cond_destroy( &messageQueue->ReceivedCondition ); pthread_cond_destroy( &messageQueue->ProcessedCondition ); } static void ovrMessageQueue_Enable( ovrMessageQueue * messageQueue, const bool set ) { messageQueue->EnabledFlag = set; } static void ovrMessageQueue_PostMessage( ovrMessageQueue * messageQueue, const ovrMessage * message ) { if ( !messageQueue->EnabledFlag ) { return; } while ( messageQueue->Tail - messageQueue->Head >= MAX_MESSAGES ) { usleep( 1000 ); } pthread_mutex_lock( &messageQueue->Mutex ); messageQueue->Messages[messageQueue->Tail & ( MAX_MESSAGES - 1 )] = *message; messageQueue->Tail++; messageQueue->PostedFlag = true; pthread_cond_broadcast( &messageQueue->PostedCondition ); if ( message->Wait == MQ_WAIT_RECEIVED ) { while ( !messageQueue->ReceivedFlag ) { pthread_cond_wait( &messageQueue->ReceivedCondition, &messageQueue->Mutex ); } messageQueue->ReceivedFlag = false; } else if ( message->Wait == MQ_WAIT_PROCESSED ) { while ( !messageQueue->ProcessedFlag ) { pthread_cond_wait( &messageQueue->ProcessedCondition, &messageQueue->Mutex ); } messageQueue->ProcessedFlag = false; } pthread_mutex_unlock( &messageQueue->Mutex ); } static void ovrMessageQueue_SleepUntilMessage( ovrMessageQueue * messageQueue ) { if ( messageQueue->Wait == MQ_WAIT_PROCESSED ) { messageQueue->ProcessedFlag = true; pthread_cond_broadcast( &messageQueue->ProcessedCondition ); messageQueue->Wait = MQ_WAIT_NONE; } pthread_mutex_lock( &messageQueue->Mutex ); if ( messageQueue->Tail > messageQueue->Head ) { pthread_mutex_unlock( &messageQueue->Mutex ); return; } while ( !messageQueue->PostedFlag ) { pthread_cond_wait( &messageQueue->PostedCondition, &messageQueue->Mutex ); } messageQueue->PostedFlag = false; pthread_mutex_unlock( &messageQueue->Mutex ); } static bool ovrMessageQueue_GetNextMessage( ovrMessageQueue * messageQueue, ovrMessage * message, bool waitForMessages ) { if ( messageQueue->Wait == MQ_WAIT_PROCESSED ) { messageQueue->ProcessedFlag = true; pthread_cond_broadcast( &messageQueue->ProcessedCondition ); messageQueue->Wait = MQ_WAIT_NONE; } if ( waitForMessages ) { ovrMessageQueue_SleepUntilMessage( messageQueue ); } pthread_mutex_lock( &messageQueue->Mutex ); if ( messageQueue->Tail <= messageQueue->Head ) { pthread_mutex_unlock( &messageQueue->Mutex ); return false; } *message = messageQueue->Messages[messageQueue->Head & ( MAX_MESSAGES - 1 )]; messageQueue->Head++; pthread_mutex_unlock( &messageQueue->Mutex ); if ( message->Wait == MQ_WAIT_RECEIVED ) { messageQueue->ReceivedFlag = true; pthread_cond_broadcast( &messageQueue->ReceivedCondition ); } else if ( message->Wait == MQ_WAIT_PROCESSED ) { messageQueue->Wait = MQ_WAIT_PROCESSED; } return true; } /* ================================================================================ ovrAppThread ================================================================================ */ enum { MESSAGE_ON_CREATE, MESSAGE_ON_START, MESSAGE_ON_RESUME, MESSAGE_ON_PAUSE, MESSAGE_ON_STOP, MESSAGE_ON_DESTROY, MESSAGE_ON_SURFACE_CREATED, MESSAGE_ON_SURFACE_DESTROYED, MESSAGE_ON_KEY_EVENT, MESSAGE_ON_TOUCH_EVENT }; typedef struct { JavaVM * JavaVm; jobject ActivityObject; pthread_t Thread; ovrMessageQueue MessageQueue; ANativeWindow * NativeWindow; } ovrAppThread; void * AppThreadFunction( void * parm ) { ovrAppThread * appThread = (ovrAppThread *)parm; ovrJava java; java.Vm = appThread->JavaVm; (*java.Vm)->AttachCurrentThread( java.Vm, &java.Env, NULL ); java.ActivityObject = appThread->ActivityObject; // Note that AttachCurrentThread will reset the thread name. prctl( PR_SET_NAME, (long)"OVR::Main", 0, 0, 0 ); const ovrInitParms initParms = vrapi_DefaultInitParms( &java ); int32_t initResult = vrapi_Initialize( &initParms ); if ( initResult != VRAPI_INITIALIZE_SUCCESS ) { // If intialization failed, vrapi_* function calls will not be available. exit( 0 ); } ovrApp appState; ovrApp_Clear( &appState ); appState.Java = java; // This app will handle android gamepad events itself. vrapi_SetPropertyInt( &appState.Java, VRAPI_EAT_NATIVE_GAMEPAD_EVENTS, 0 ); ovrEgl_CreateContext( &appState.Egl, NULL ); EglInitExtensions(); appState.UseMultiview &= ( glExtensions.multi_view && vrapi_GetSystemPropertyInt( &appState.Java, VRAPI_SYS_PROP_MULTIVIEW_AVAILABLE ) ); ALOGV( "AppState UseMultiview : %d", appState.UseMultiview ); appState.CpuLevel = CPU_LEVEL; appState.GpuLevel = GPU_LEVEL; appState.MainThreadTid = gettid(); #if MULTI_THREADED ovrRenderThread_Create( &appState.RenderThread, &appState.Java, &appState.Egl, appState.UseMultiview ); // Also set the renderer thread to SCHED_FIFO. appState.RenderThreadTid = ovrRenderThread_GetTid( &appState.RenderThread ); #else ovrRenderer_Create( &appState.Renderer, &java, appState.UseMultiview ); #endif const double startTime = GetTimeInSeconds(); for ( bool destroyed = false; destroyed == false; ) { for ( ; ; ) { ovrMessage message; const bool waitForMessages = ( appState.Ovr == NULL && destroyed == false ); if ( !ovrMessageQueue_GetNextMessage( &appThread->MessageQueue, &message, waitForMessages ) ) { break; } switch ( message.Id ) { case MESSAGE_ON_CREATE: { break; } case MESSAGE_ON_START: { break; } case MESSAGE_ON_RESUME: { appState.Resumed = true; break; } case MESSAGE_ON_PAUSE: { appState.Resumed = false; break; } case MESSAGE_ON_STOP: { break; } case MESSAGE_ON_DESTROY: { appState.NativeWindow = NULL; destroyed = true; break; } case MESSAGE_ON_SURFACE_CREATED: { appState.NativeWindow = (ANativeWindow *)ovrMessage_GetPointerParm( &message, 0 ); break; } case MESSAGE_ON_SURFACE_DESTROYED: { appState.NativeWindow = NULL; break; } case MESSAGE_ON_KEY_EVENT: { ovrApp_HandleKeyEvent( &appState, ovrMessage_GetIntegerParm( &message, 0 ), ovrMessage_GetIntegerParm( &message, 1 ) ); break; } } ovrApp_HandleVrModeChanges( &appState ); } ovrApp_HandleInput( &appState ); if ( appState.Ovr == NULL ) { continue; } // Create the scene if not yet created. // The scene is created here to be able to show a loading icon. if ( !ovrScene_IsCreated( &appState.Scene ) ) { #if MULTI_THREADED // Show a loading icon. ovrRenderThread_Submit( &appState.RenderThread, appState.Ovr, RENDER_LOADING_ICON, appState.FrameIndex, appState.DisplayTime, appState.SwapInterval, NULL, NULL, NULL ); #else // Show a loading icon. int frameFlags = 0; frameFlags |= VRAPI_FRAME_FLAG_FLUSH; ovrLayerProjection2 blackLayer = vrapi_DefaultLayerBlackProjection2(); blackLayer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_INHIBIT_SRGB_FRAMEBUFFER; ovrLayerLoadingIcon2 iconLayer = vrapi_DefaultLayerLoadingIcon2(); iconLayer.Header.Flags |= VRAPI_FRAME_LAYER_FLAG_INHIBIT_SRGB_FRAMEBUFFER; const ovrLayerHeader2 * layers[] = { &blackLayer.Header, &iconLayer.Header, }; ovrSubmitFrameDescription2 frameDesc = {}; frameDesc.Flags = frameFlags; frameDesc.SwapInterval = 1; frameDesc.FrameIndex = appState.FrameIndex; frameDesc.DisplayTime = appState.DisplayTime; frameDesc.LayerCount = 2; frameDesc.Layers = layers; vrapi_SubmitFrame2( appState.Ovr, &frameDesc ); #endif // Create the scene. ovrScene_Create( &appState.Scene, appState.UseMultiview ); } // This is the only place the frame index is incremented, right before // calling vrapi_GetPredictedDisplayTime(). appState.FrameIndex++; // Get the HMD pose, predicted for the middle of the time period during which // the new eye images will be displayed. The number of frames predicted ahead // depends on the pipeline depth of the engine and the synthesis rate. // The better the prediction, the less black will be pulled in at the edges. const double predictedDisplayTime = vrapi_GetPredictedDisplayTime( appState.Ovr, appState.FrameIndex ); const ovrTracking2 tracking = vrapi_GetPredictedTracking2( appState.Ovr, predictedDisplayTime ); appState.DisplayTime = predictedDisplayTime; // Advance the simulation based on the elapsed time since start of loop till predicted display time. ovrSimulation_Advance( &appState.Simulation, predictedDisplayTime - startTime ); #if MULTI_THREADED // Render the eye images on a separate thread. ovrRenderThread_Submit( &appState.RenderThread, appState.Ovr, RENDER_FRAME, appState.FrameIndex, appState.DisplayTime, appState.SwapInterval, &appState.Scene, &appState.Simulation, &tracking ); #else // Render eye images and setup the primary layer using ovrTracking2. const ovrLayerProjection2 worldLayer = ovrRenderer_RenderFrame( &appState.Renderer, &appState.Java, &appState.Scene, &appState.Simulation, &tracking, appState.Ovr ); const ovrLayerHeader2 * layers[] = { &worldLayer.Header }; ovrSubmitFrameDescription2 frameDesc = {}; frameDesc.Flags = 0; frameDesc.SwapInterval = appState.SwapInterval; frameDesc.FrameIndex = appState.FrameIndex; frameDesc.DisplayTime = appState.DisplayTime; frameDesc.LayerCount = 1; frameDesc.Layers = layers; // Hand over the eye images to the time warp. vrapi_SubmitFrame2( appState.Ovr, &frameDesc ); #endif } #if MULTI_THREADED ovrRenderThread_Destroy( &appState.RenderThread ); #else ovrRenderer_Destroy( &appState.Renderer ); #endif ovrScene_Destroy( &appState.Scene ); ovrEgl_DestroyContext( &appState.Egl ); vrapi_Shutdown(); (*java.Vm)->DetachCurrentThread( java.Vm ); return NULL; } static void ovrAppThread_Create( ovrAppThread * appThread, JNIEnv * env, jobject activityObject ) { (*env)->GetJavaVM( env, &appThread->JavaVm ); appThread->ActivityObject = (*env)->NewGlobalRef( env, activityObject ); appThread->Thread = 0; appThread->NativeWindow = NULL; ovrMessageQueue_Create( &appThread->MessageQueue ); const int createErr = pthread_create( &appThread->Thread, NULL, AppThreadFunction, appThread ); if ( createErr != 0 ) { ALOGE( "pthread_create returned %i", createErr ); } } static void ovrAppThread_Destroy( ovrAppThread * appThread, JNIEnv * env ) { pthread_join( appThread->Thread, NULL ); (*env)->DeleteGlobalRef( env, appThread->ActivityObject ); ovrMessageQueue_Destroy( &appThread->MessageQueue ); } /* ================================================================================ Activity lifecycle ================================================================================ */ JNIEXPORT jlong JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onCreate( JNIEnv * env, jobject obj, jobject activity ) { ALOGV( " GLES3JNILib::onCreate()" ); ovrAppThread * appThread = (ovrAppThread *) malloc( sizeof( ovrAppThread ) ); ovrAppThread_Create( appThread, env, activity ); ovrMessageQueue_Enable( &appThread->MessageQueue, true ); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_CREATE, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); return (jlong)((size_t)appThread); } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onStart( JNIEnv * env, jobject obj, jlong handle ) { ALOGV( " GLES3JNILib::onStart()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_START, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onResume( JNIEnv * env, jobject obj, jlong handle ) { ALOGV( " GLES3JNILib::onResume()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_RESUME, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onPause( JNIEnv * env, jobject obj, jlong handle ) { ALOGV( " GLES3JNILib::onPause()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_PAUSE, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onStop( JNIEnv * env, jobject obj, jlong handle ) { ALOGV( " GLES3JNILib::onStop()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_STOP, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onDestroy( JNIEnv * env, jobject obj, jlong handle ) { ALOGV( " GLES3JNILib::onDestroy()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_DESTROY, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); ovrMessageQueue_Enable( &appThread->MessageQueue, false ); ovrAppThread_Destroy( appThread, env ); free( appThread ); } /* ================================================================================ Surface lifecycle ================================================================================ */ JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onSurfaceCreated( JNIEnv * env, jobject obj, jlong handle, jobject surface ) { ALOGV( " GLES3JNILib::onSurfaceCreated()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ANativeWindow * newNativeWindow = ANativeWindow_fromSurface( env, surface ); if ( ANativeWindow_getWidth( newNativeWindow ) < ANativeWindow_getHeight( newNativeWindow ) ) { // An app that is relaunched after pressing the home button gets an initial surface with // the wrong orientation even though android:screenOrientation="landscape" is set in the // manifest. The choreographer callback will also never be called for this surface because // the surface is immediately replaced with a new surface with the correct orientation. ALOGE( " Surface not in landscape mode!" ); } ALOGV( " NativeWindow = ANativeWindow_fromSurface( env, surface )" ); appThread->NativeWindow = newNativeWindow; ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_SURFACE_CREATED, MQ_WAIT_PROCESSED ); ovrMessage_SetPointerParm( &message, 0, appThread->NativeWindow ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onSurfaceChanged( JNIEnv * env, jobject obj, jlong handle, jobject surface ) { ALOGV( " GLES3JNILib::onSurfaceChanged()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ANativeWindow * newNativeWindow = ANativeWindow_fromSurface( env, surface ); if ( ANativeWindow_getWidth( newNativeWindow ) < ANativeWindow_getHeight( newNativeWindow ) ) { // An app that is relaunched after pressing the home button gets an initial surface with // the wrong orientation even though android:screenOrientation="landscape" is set in the // manifest. The choreographer callback will also never be called for this surface because // the surface is immediately replaced with a new surface with the correct orientation. ALOGE( " Surface not in landscape mode!" ); } if ( newNativeWindow != appThread->NativeWindow ) { if ( appThread->NativeWindow != NULL ) { ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_SURFACE_DESTROYED, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); ALOGV( " ANativeWindow_release( NativeWindow )" ); ANativeWindow_release( appThread->NativeWindow ); appThread->NativeWindow = NULL; } if ( newNativeWindow != NULL ) { ALOGV( " NativeWindow = ANativeWindow_fromSurface( env, surface )" ); appThread->NativeWindow = newNativeWindow; ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_SURFACE_CREATED, MQ_WAIT_PROCESSED ); ovrMessage_SetPointerParm( &message, 0, appThread->NativeWindow ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); } } else if ( newNativeWindow != NULL ) { ANativeWindow_release( newNativeWindow ); } } JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onSurfaceDestroyed( JNIEnv * env, jobject obj, jlong handle ) { ALOGV( " GLES3JNILib::onSurfaceDestroyed()" ); ovrAppThread * appThread = (ovrAppThread *)((size_t)handle); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_SURFACE_DESTROYED, MQ_WAIT_PROCESSED ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); ALOGV( " ANativeWindow_release( NativeWindow )" ); ANativeWindow_release( appThread->NativeWindow ); appThread->NativeWindow = NULL; } /* ================================================================================ Input ================================================================================ */ JNIEXPORT void JNICALL Java_com_oculus_gles3jni_GLES3JNILib_onKeyEvent( JNIEnv * env, jobject obj, jlong handle, int keyCode, int action ) { if ( action == AKEY_EVENT_ACTION_UP ) { ALOGV( " GLES3JNILib::onKeyEvent( %d, %d )", keyCode, action ); } ovrAppThread * appThread = ( ovrAppThread * )( ( size_t )handle ); ovrMessage message; ovrMessage_Init( &message, MESSAGE_ON_KEY_EVENT, MQ_WAIT_NONE ); ovrMessage_SetIntegerParm( &message, 0, keyCode ); ovrMessage_SetIntegerParm( &message, 1, action ); ovrMessageQueue_PostMessage( &appThread->MessageQueue, &message ); }

VR Controller Sample

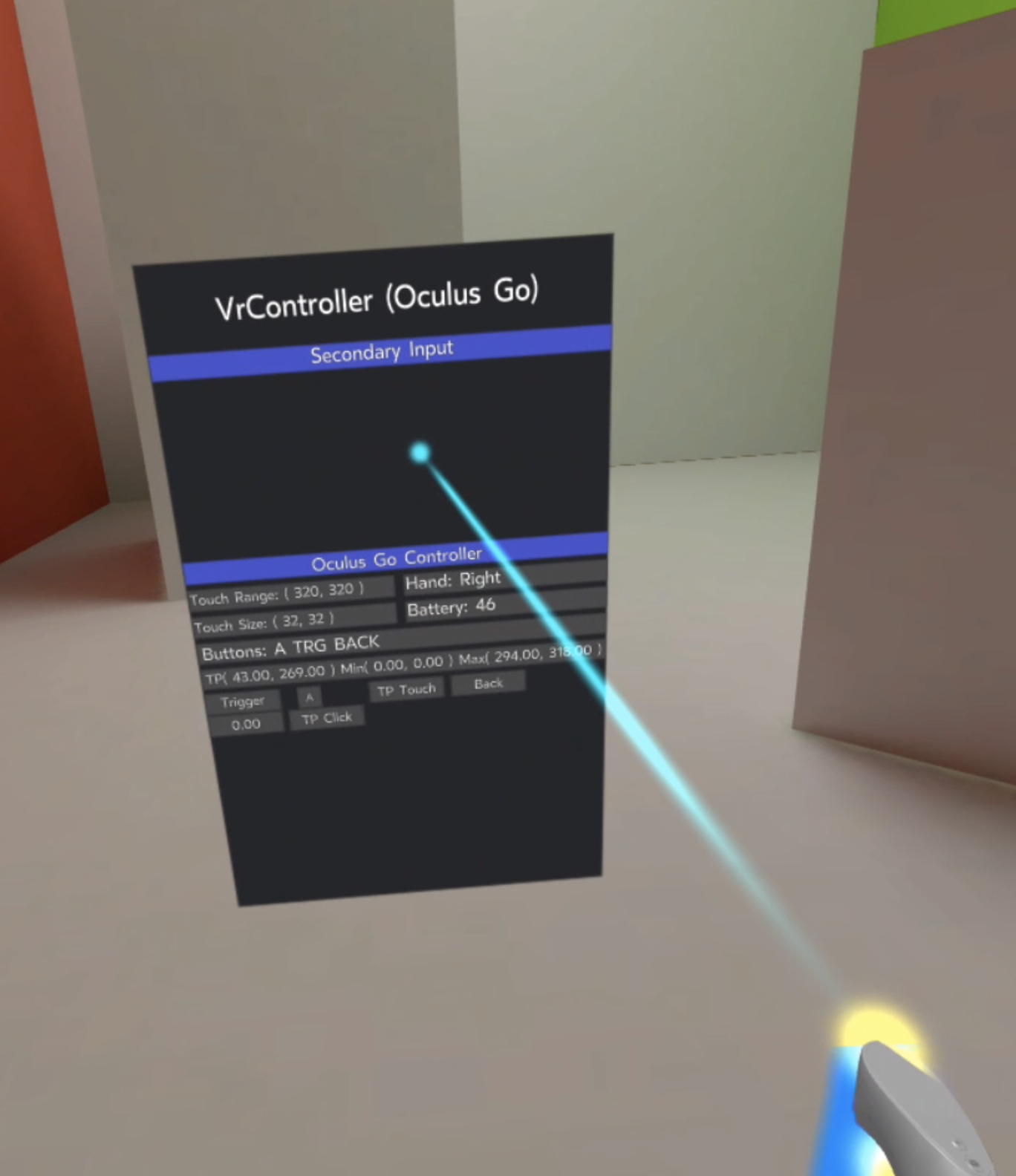

Another sample in the VrSamples folder in VrController.
It shows off a dashboard where various info about the controller state can be seen.
Controller movements also leave a particle trail.
This could is a fair bit larger than VrCubeWorld_SurfaceView and makes use of more kinds of shaders as well as texture mapping.
The principal place you want to look in the code to see how reading the controller state is done is in the file: VrController/Src/VrController.app

Frame drawing is done in this file in the method:

ovrFrameResult ovrVrController::Frame( const ovrFrameInput & vrFrame )

The class ovrVrController extends VrAppInterface which has a pointer to an app which wraps the activity from Java-land.
app has properties which can be found out by calling app->GetSystemProperty with different constants. For example, VRAPI_SYS_PROP_DOMINANT_HAND

Headset pose can be gotten by the call:

ovrTracking hmtTracking;
ovrResult result = vrapi_GetInputTrackingState( app->GetOvrMobile(), deviceID,
    vrFrame.PredictedDisplayTimeInSeconds,
    &hmtTracking );
// ...
Quatf r( hmtTracking.HeadPose.Pose.Orientation );

Controller button states can be read using:

ovrInputStateHeadset headsetInputState;
headsetInputState.Header.ControllerType = ovrControllerType_Headset;
result = vrapi_GetCurrentInputState( app->GetOvrMobile(), deviceID,
    &headsetInputState.Header );

Information from this is spit out with the code:

TrackpadStats( headsetInputState.TrackpadPosition,
    Vector2f( hsDevice.GetHeadsetCaps().TrackpadMaxX, hsDevice.GetHeadsetCaps().TrackpadMaxY ),
    Vector2f( hsDevice.GetHeadsetCaps().TrackpadSizeX, hsDevice.GetHeadsetCaps().TrackpadSizeY ),
    minTrackpad, maxTrackpad, mm );
SetObjectVisible( *GuiSys, Menu, "secondary_input_touch_pos", true );
SetObjectText( *GuiSys, Menu, "secondary_input_touch_pos",
    "Pos( %.2f, %.2f ) Min( %.2f, %.2f ) Max( %.2f, %.2f )",
    headsetInputState.TrackpadPosition.x, headsetInputState.TrackpadPosition.y,
    minTrackpad.x, minTrackpad.y, maxTrackpad.x, maxTrackpad.y );

In the above the hsDevice is gotten by appropriately casting a device and deviceID was found by a call to device->GetDeviceID(). The device was gotten by the list reeeturn from a call to the function:

void ovrVrController::EnumerateInputDevices()
{
	for ( uint32_t deviceIndex = 0; ; deviceIndex++ )
	{
		ovrInputCapabilityHeader curCaps;

		if ( vrapi_EnumerateInputDevices( app->GetOvrMobile(), deviceIndex, &curCaps ) <0 )
		{
			//OVR_LOG_WITH_TAG( "Input", "No more devices!" );
			break;	// no more devices
		}

		if ( !IsDeviceTracked( curCaps.DeviceID ) )
		{
			OVR_LOG_WITH_TAG( "Input", "     tracked" );
			OnDeviceConnected( curCaps );
		}
	}
}
