Routing (Finish RIP, OSPF) - Switch Implementation

CS158a

Chris Pollett

Mar. 6, 2023

Outline

Finish Routing Information Protocol
Quiz
Link State Routing (OSPF)
Switch Implementation

Introduction

Last week, we finished talking about switched ethernet and then began talking about internetworks.
We discussed the format of packets in IP and how fragmentation and reassembly is done.
We then discussed how addressing of networks works for IP.
Once a packet has been forwarded to the correct destination network, we said the Address Resolution Protocol (ARP) is typically used to find the ethernet address corresponding to an IP address.
When a new host with a particular IP adds itself to a switched ethernet, we said the DHCP (dynamic host configuration protocol) is often used to dynamically give it an IP address for that network.
We said that when things go wrong with a IP packet, the source host is sometimes (but not always) notified via some kind of ICMP (Internet Control Message Protocol) message.
We briefly described IP tunnels (IP packets whose payload is an IP packet), and how they can be used to build VPNs (virtual private networks).
We then began talking about routing -- the process of building forwarding tables for routers so that they can deliver IP packets to the correct network for a given destination IP.
We began talking about the distance vector algorithm. Today, we review this discussion before continuing...

Distance Vector/Routing Information Protocol (RIP)

The distance-vector (aka Bellman-Ford) algorithm is one such distributed routing algorithm.
It was published by Bellman (in 1958) and Ford (in 1956), but was first proposed at a conference by Alfonso Shimbel 1955.
The starting assumption is that each node knows the costs of its directly connected neighbors.
The routing table has entries of the form (Destination, Cost, Next Hop) and is initialized to just these connected neighbors.
Each router then sends its routing table to each of its directly connected neighbors.
Using this information, the receiving router updates its own table. Here are a couple of cases where a receiving router might have to update its table:
- The sending router sends information for a host that the receiving router has never heard of before
- The path to some host through the sending router might be cheaper than some existing path.
This process is then repeated until hopefully the routing table converges to a table with routing information for the whole domain.
Routers following distance vector send periodic updates to make sure the routing information is current.
They also send triggered updates whenever a node receives information that causes the nodes tables to be updated.

Problems with Distance Vector

Although distance vector routing does converge to the correct answer, it tends to do it slowly.
As an example, consider the situations below in a linear network where on the left A comes alive at some time t and on right where it fails at some later time. On the left it takes a significant amount of time for all machines to get the correct distance to A. On the right the machines keep incrementing the distance to A forever (count to infinity problem):
One approach to solve this is to use a split horizon: You don't send routes you learned from neighbors back to them.
Another problem with Distance Vector routing is that it does not take line bandwidth into account.

More on RIP

Distance Vector routing is an idealized algorithm to compute forwarding tables.
One of its chief implementations is the Routing Information Protocol (RIP) which became popular because of its inclusion in BSD Unix.
In our model of distance vector, we tell our neighbor routers our cost to reach them.
In the RIP model what we tell our neighbors is the cost to reach various networks to which we know of.
Otherwise, RIP is a fairly straightforward implementation of distance vector.
Routers running RIP send their advertisements every 30 seconds.
RIP supports multiple types of addresses not just IP.

Quiz

Which of the following is true?

A bridge address is 6 bytes long.
In order for bridges to do switching they need to be pre-configured with a spanning tree for the switched ethernet they belong to.
In classless interdomain routing, network addresses are often written as Address/#lead on bits in the mask.

Link State Routing (OSPF)

The second major class of intradomain routing protocols are those based on link state routing.
The starting assumptions for these algorithms are similar to those for distance vector protocols: It is assumed that each node is capable of finding out the state of its neighbors (up or down) and the cost of each link going out.
Link state routing makes use of reliable flooding. This is the process of making sure that all nodes participating in the routing protocol get a copy of the link-state information from all other nodes.
To do this each node sends its link-state information on all of its directly connected links, with each node that receives this information forwarding it out on all its links.
This link-state information is sent out in a so-called link-state packet (LSP).
Each node periodically calculates and sends out such packets.
An LSP consists of: The identity of the sender, followed by a sequence number, a TTL, and then followed by a list of neighbors.
After a router has been accumulating a set of link state packets for a while, it can construct the entire subnet as each link is represented in some link state packet.
Dijkstra's algorithm can then be used to construct the shortest paths to all possible destinations, this can be installed in the routing tables, and normal operations can be resumed.

Link State -- Filling in More of the Details

As an example of LSPs for a specific graph consider:

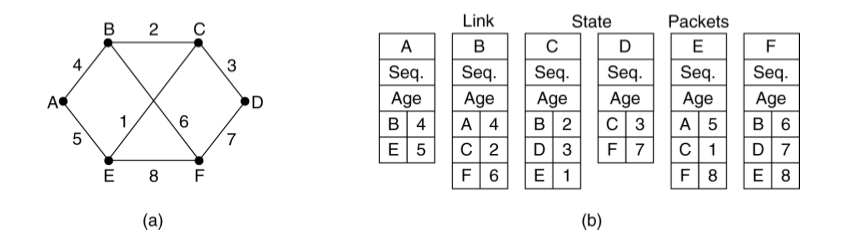

The link state packets for each router in the graph (a) below are listed in (b).
To avoid the flooding process continuing indefinately, routers keep track of (source router, sequence) pairs and duplicates are discarded. Only non-duplicates are forwarded using flooding.
The sequence number is 32-bits or 64 bits so is unlikely to wrap before being discarded.
The TTL (aka Age) field is decremented once per second by the routers who are remembering a particular router, sequence number pair, if it hits zero, the router discards the entry. They also reflood this LSP with a TTL of 0. This signals to other router to delete the entry.
If a router goes down, it starts at sequence number 0 again. If it was down for a long time, all the earlier packets will have timed out, and so this will be okay. If it has only been down a short time, the router will eventually receive one of its own packets from before it went down. If it does, it adds 1 to this LSP's sequence number and refloods.
All link state packets are acknowledged.
It can be proven that the link state algorithm converges quickly, does not generate much traffic, and responds rapidly to topology changes.

Link State -- Dijkstra's Algorithm

Dijkstra's algorithm (1959) can be used to find the shortest path between two points in a graph, assuming we know its vertices, edges, and weights.
For each node, the link-state packets give us this information.
The algorithm works as follows
- Each node is initially labeled with its distance from the source along the best known path. Node for which no path is known are labeled initially with INFINITY.
- Nodes are also labeled temporary or permanent. Initially, the start node is labeled permanent. We also have an active node which is initially the start node.
- In a round, we update the distances to each of the nodes adjacent to the active node, we then search the graph for the temporary node of least distance, mark it permanent and set it as active. Then iterate until no change.

Open Shortest Path First Protocol (OSPF)

OSPF is one of the most common link-state routing protocols.
Another link state protocol which was very influential was IS-IS (Intermediate System - Intermediate System) which was developed for DECnet and later used by ISO in its connectionless network layer protocol, CLNP.
Open in the name comes from the fact that the defining standards body, the IETF wanted this standard to be open (non-proprietary).
SPF is an alternative name for link-state routing.
(RIP) was replaced by OSPF sometime in the early 1990s as the main interior gateway protocol.
OSPF supports several features not in the original link-state algorithm:
- Authentication of routing messages - this is to guard against a misconfigured host being able to claim that it is distance 0 from everybody.
- Additional hierarchy - to increase scalability of the internetworks that can be handled by this protocol domains can be further split into areas. i.e., routers within an area only need to be able to route within that area; not necessarily the whole domain -- a second layer of routers is used to route between areas.
- Load balancing -- OSPF allows multiple routes to the same place to be assigned the same cost and will cause traffic to be evenly distributed over those routes.

More on OSPF

Domains are also called autonomous systems (AS).
In OSPF, every AS has a backbone area, called area 0, and all other areas are connected to this backbone (possibly by tunnels).
A tunnel is represented by an arc and has a cost.
Each router connected to two or more areas is part of the backbone.
Within an area each router has the same link state database and runs the same shortest path.
OSPF has three kinds of routes: intra-area, inter-area, and inter-AS.
- Intra-area routes are essentially computed using only link state.
- Inter-area routes are all computed in three steps: compute source to backbone, backbone to destination area, destination area to final destination.
- We'll talk about inter-AS routes later.

Even More on OSPF

OSPF distinguishes four classes (allowed to overlap) of routers:
1. Intra-area routers
2. Area Border Routers connect two or more areas
3. Backbone Routers are on the backbone
4. AS boundary routers that talk to routers in other AS's.
When a router boots it sends HELLO on each of its point-to-point lines and multicasts them on LANs to the group of other routers on the LAN.
OSPF works by exchanging information between adjacent routers.
On each LAN one router is voted to be a designated router.
Two routers are adjacent if they are on the same LAN and one is the designated router. Only adjacent routers exchange information.
Periodically each router floods LINK STATE UPDATE messages to each of its adjacent routers.
This has a sequence number to prevent it from propagating forever.
These messages are also sent when a line goes up or down or changes cost.
Other messages that are used are DATABASE DESCRIPTION, which gives the sequence number of all link state entries currently held by the sender. (Used when a line is brought up), LINK STATE REQUEST, and LINK STATE ACKNOWLEDGEMENT.

Metrics

We haven't discussed so far how to calculate the cost of links.
We could always just give a cost of 1 to all links.
This has the drawback that it doesn't take into account the latency of the link. For instance, a satellite link might have a large latency.
It also doesn't take into account the capacity of the link.
ARPANET, a precursor of the Internet, used the queue length of packets waiting to be transmitted on each link as a metric for load on a link.
This has the tendency of favoring the shortest queue, rather than actually than actually measuring latency or capacity.

More Metrics

A later variant of ARPANET, timestamped each packet that came in with its ArrivalTime at the router; its DepartTime was also recorded.
When a link-level ACK was received from the other side, the node computed the delay for the packet as:
```
Delay = (DepartTime-ArrivalTime) + TransmissionTime + Latency.
```
Here TransmissionTime and Latency were statically defined for the link.
(DepartTime-ArrivalTime) measures how long something stays in the queue.
Under light loads the above metric works reasonably well; however, at high loads (DepartTime-ArrivalTime) tends to dominate the Delay which can cause a congested router to suddenly get a high cost on that link, so it often won't be used even after it becomes idle.
Another problem with this approach was it allowed too many possible link values.
A later version still of Arpanet addressed these issues by compressing the range of the metric, and by smoothing the variation of the metric with time. I.e., a function f(utilization, link type, link speed) was computed that had a fixed range with a number of useful properties as such a fully loaded link's cost was never more than 3 times a idle one's, etc.
Nowadays, there is less variation in link speeds and latencies then in the early internet. For this reason, in modern routers static metrics like (1/link_bandwidth) are commonly used.

Switch Implementation

We next look at different ways one could actually implement a switch.
The simplest way is to just buy a general purpose computer, equip it with a number of network interfaces, and have it run the appropriate software.
This is actually a popular way to build experimental switches that implement new routing protocols.

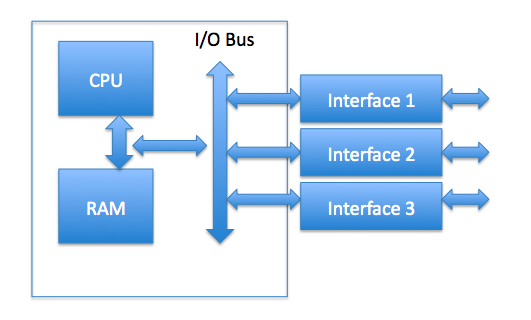

Here is a picture of how such a set-up might look:
How well would such a switch perform?

Software Switch Example

We assume that an interface uses DMA to write the RAM directly.
When a packet is in RAM, the CPU can read its header and determine which interface the packet should be sent out on.
Each packet thus must cross the I/O bus twice: Once when the incoming interface writes to RAM; once when it is written to the outgoing interface
The packet must be written to and read from main memory once.
The upper bound on aggregate throughput of such a device is thus either half the main memory bandwidth or half the I/O bus bandwidth, whichever is less.
As an example, 1333MHz, 64-bit wide I/O bus can transmit data at a little over 100Gbps.
Since forwarding involves crossing a bus twice, the actual limit is 50Gbps. This rate is enough to handle a fair number of 10Gbps Ethernet ports, but couldn't be used as a router in the core of the internet.

More on Software Switch Example

When packets are short, the cost of processing each packet can be more important than the cost of merely moving the data.
For instance, suppose that a processor can perform all the tasks to switch a 40 million packets per second (pps).
If each packet is short, say 64 bytes, this implies:
```
Throughput = pps × (BitsPerPacket)
           = 40 × 10^6 × 64 × 8
           = 2048 × 10^7
```
So around 20Gbps, a lot less than the earlier upper bound.
This figure is actually shared by all users connected to the medium. So a 16-port switch would only be able to cope with an average data rate of about 1 Gbps per port.
Hardware designers have come up with a large array of switch designs that reduce the amount of contention and provide high aggregate throughput.
On Wednesday we will talk about hardware switches.
