Last day, we finished up talking about First-order Logic and theorem-proving algorithms in first-order logic using a combination of
resolution and unification.
Today, we are going to use first-order logic to express planning problems and develop logical agents which can solve them.
Recall we mentioned planning agents when talking about goal-based agents: We said goal-based agents restricted to atomic
domains are called problem-solving agents and goal-based agents on factored domains where called planning-agents.
Planning, PDDL
To start we look at some specific logics for expressing planning problems...
The main logic we are going to consider is PDDL (Planning Domain Definition Language).
PDDL was developed by Drew McDermott in 1998 and was heavily influenced by earlier planning languages such as STRIPS (Fikes Nillson 1971) and
ADL (Pednault 1987).
PDDL has also served as the basis for several notable extended languages that can handle multi-agent (MA-PDDL, MAPL), probabilistic (PPDDL), and temporal environments (NASA's NDDL).
As of Fall 2022, the most recent version of PDDL is Version 3.1.
PDDL Fluents, States
As planning is a kind of search problem, we need to define the initial state, the set of actions available in a state, the results of applying an action, and a goal test
Each state is represented as a conjunction of fluents (facts that might change from situation to situation) that are ground (slots filled by terms not involving variables), functionless atoms. For example,
`P\o\o\r ^^ Unknown` might represent the state of a hapless agent. An example state from a package delivery problem might be
`At(Truck_1, Melbou\r\n\e) ^^ At(Truck_2, Syd\n\ey)`.
In our system we make use of the Closed World Assumption (CWA). If a fluent is not in our KB then it is false.
We also make use of the unique names assumption: So if we mention `Truck_1` and `Truck_2` we assume `Truck_1 ne Truck_2`.
The following fluents would not be in a state description: `At(x,y)`, as it is not ground as `x` and `y` are variable); `neg P\o\o\r` as it is a negation of an atom, and `At(Father(Fred), Syd\n\e\y)`, as it uses functions.
Since it is a conjunction, the order of writing the fluents does not matter and we can also use sets of fluents to represent states.
PDDL Actions
To define Actions, we make use of schemas that implicitly define the ACTIONS(s) and RESULT(s,a) functions needed for a problem-solving search.
One thing that we require of our schemas is that they clearly define what changes and what stays the same as a result of an action.
Otherwise, it is often quite hard to calculate what stays the same. This is known as the frame problem.
As classical planning concerns itself with problems whose actions leave most things in the state unchanged, PDDL specifies the result of an action by only mentioning what changes, everything that stays the same is unmentioned.
Entailment can be expressed with the set semantics `s |== q` iff every positive literal in `q` is in `s` and every negated literal in `q` is not.
In formal notation we say:
`(a \in Action(s)) iff s |== Precond(a)`
Here any variables in `a` are universally quantified.
We say that an action `a` is applicable in state `s` if the preconditions are satisfied by `s`.
Different instantiations of the same action can be applicable in a given state. For example, in the initial state, `Fly(P_1, SFO, JFK)` and `Fly(P_2, JFK, SFO)` might both be applicable.
If an action has `v` variables, then in a domain with `k` unique names of objects, it takes `O(k^v)` time in the worst case (try each setting of each variable) to find the applicable ground actions.
PDDL Results of Action
The result of executing action `a` in state `s` consists in removing the fluents that appear as negative literals in the action's effects (the delete list, `Del(a)`), and adding the fluents that are positive literals in the action's effects (the add list or `Add(a)`):
`Re\s\u\l\t(s, a) = (s - Del(a)) cup Add(a)`.
For example, with the action `Fly(P_1, SFO, JFK)`, we would remove `At(P_1, SFO)` and add `At(P_1, JFK)`.
We require that any variable in the effect of an action schema be also in the precondition.
This ensures that when we bind the precondition to ground atoms, the result will also contain only ground atoms and no variables.
Notice that fluents do not explicitly refer to time: Preconditions always refer to time `t` and Effects always refer to time `t+1`.
PDDL - A Complete Problem
A set of action schemas serves as a definition of a planning domain.
A specific problem is defined with the addition of an initial state and a goal.
As we said before, the initial state is a conjunction of ground atoms.
A goal is a conjunction of literals.
Variables in this goal are treated as existentially quantified.
So to satisfy a goal like `At(p,SFO) ^^ Pla\n\e(p)` it suffices to have any plane at SFO.
A planning problem is solved when we can find a sequence of actions that end in a state `s` that entails the goal.
So for example, `Rich ^^ Famous ^^ Miserab\l\e` entails `Rich ^^ Famous`; the state `Pla\n\e(P_1) ^^ At(P_1, SFO)` entails `At(p,SFO) ^^ Pla\n\e(p)`.
So now we have completely defined a search problem, we have an initial state, an Actions function, a Result function, and a goal test... Let's look at an example.
Quiz
Which of the following is true?
Skolemization is the process of replacing `exists vec(y) forall vec(x)` blocks in a prenex normal formula with function symbols.
g(h(z),h(g(a,b))) and g(g(a,b),h(z)) are unifiable.
Paramodulation is the following rule of inference for any terms `r, s, t` where `t` appears somewhere in literal `M_i`, and where `r` and `t` can be unified via `theta`:
`(L_1 vv ...vv L_k vv r=s, qquad M_1 vv ...vv M_n)/(SUB(SUBST(theta, r), SUBST(theta, s), SUBST(theta, L_1 vv ...vv L_k vv M_1 vv ...vv M_n)).`
Example Planning Problem

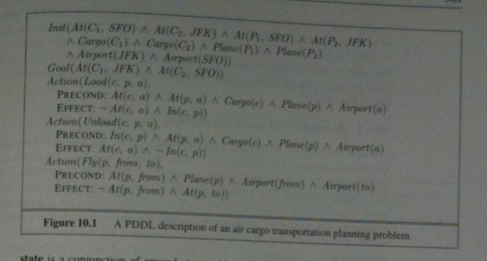

Cargo Problem
An example, solution to this problem is the sequence:
`[Load(C_1, P_1, SFO), Fly(P_1, SFO, JFK), Unload(C_1, P_1, JFK),`
`\quad Load(C_2, P_2, JFK), Fly(P_2, JFK, SFO), Unload(C_2, P_2, SFO)]`
This problem illustrates one thing that we will have to be careful about when we talk about algorithms...
Consider the action `Fly(P_1, JFK, JFK)`. Intuitively, this should do nothing. However, the effect according to
the fly rule is `At(P_1, JFK) ^^ neg At(P_1, JFK)`. Our rules for changing
from one state say that we add `At(P_1, JFK)` (no change to the state set) then delete `At(P_1, JFK)`, causing the plane to vanish!
Typically, this problem is solved by adding inequality conditions on the from and to airports.
The Spare Tire Problem

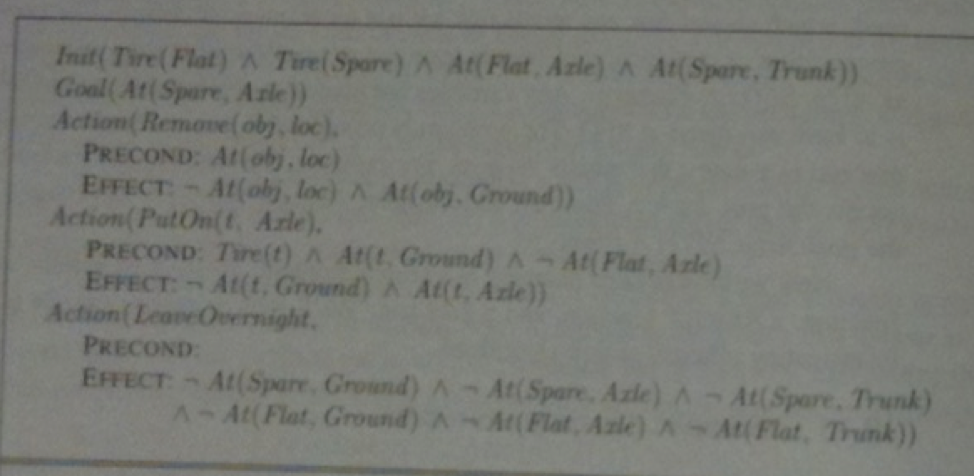

Consider the problem of changing a flat tire. This can be expressed using the problem statement above from the book.
The goal is to have a good spare tire properly mounted onto the car's axle. The initial state has a flat tire on the axle and
a good spare in the trunk.
A solution to the problem is the sequence:
`[Remove(Flat, Ax\l\e), Remove(Spare, Trunk), PutOn(Spare, Ax\l\e)]`
Blocks World
One of the most famous early AI planners was SHRDLU (1968-1970) which allowed a human to
converse with a program about objects in block world. Using English the human could instruct the program to rearrange, stack blocks, etc, and
the program would figure out the sequence of actions needed to accomplish this.

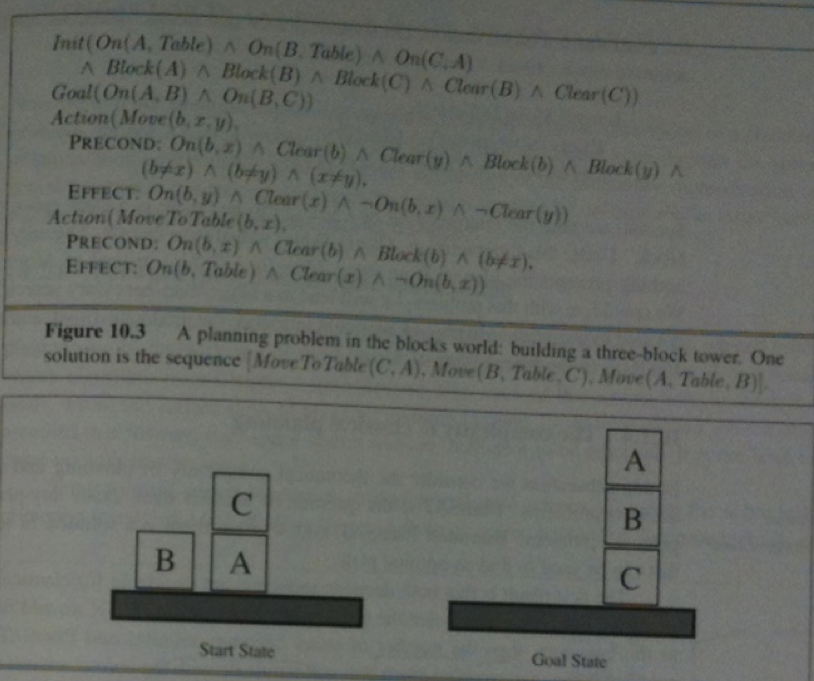

Above we give a simplified block world, state it as a planning domain, and give an initial and goal state.
Here `On(b,x)` indicates that block `b` is on `x`, where `x` is another block or the table. `Move(b,x,y)` moves block `b` from on top of
`x` to on top of `y` provided that nothing is on top of `b`, `b` is on top of `x` and nothing is on top of `y`.
In order to allow the table to hold multiple blocks, we have a separate action for it. We also in the above interpret `Cl\e\a\r(x)` to be there is
a clear space on `x` to hold a block.
The above problem is known as the Sussman Anomaly. It was a problem that many early planning
systems had difficulty with.
The Complexity of Classical Planning
Two common questions associated with planning are:
PlanSat - given a planning problem, does there exist any plan that solves the problem?
BoundedPlanSat - given a planning problem, does there exist any plan that solves the problem in `k` steps of less?
Both of these problems are known to be decidable for classical planning, that is, there is an algorithm (maybe inefficient) to find a plan if it exists.
Further (Ghallab 2004) shows that both problems are in fact in PSPACE but are NP-hard.
They remain NP-hard if we disallow negative effects from our actions. However, PlanSat, for problems without negative preconditions is in polynomial time (P).
These are worst-case results. Many real-world problems are much easier than the worst case. But these results do show that there is an art to solving planning problems,
and this art often means coming up with good heuristics.
