Refining the Type Object Pattern:

The Class Object Pattern

Intent

As its inspiring antecesor, the Type Object pattern, allows to decouple instances from their class so that those classes can be implemented as instances of a class and provide the ability of adding arbitrary number of subclasses and class attributes.

The refinenment presented here, takes this idea and also allows a dynamically created class to support single inheritance, allowing setting not only it´s superclasses but an arbitrary number of subclasses.

Motivation

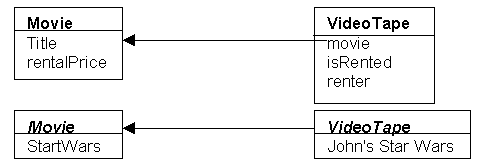

As an introduction, we could consider the example presented for the Type Object, the video rental store’s inventory, where since many of the videotapes are very similar, the videotape’s instances would share a lot of redundant information. Following the example, all copies of "Star Wars" are pretty similar: they have the same title, rental price, etc. Thus repeating all that information through all copies of "Star Wars" is redundant.

There are many ways to overcome this problem, for example, subclassing VideoTape for each movie, where each time a movie is added to the system it would be necessary to add a new subclass and recompile the system. This approach is neither practical nor flexible. Similar constraints arise with other strategies such as adding a special class -the UnknownTape- to handle the tapes for a new movie.

Both approaches to a solution that deals with the fact that each type of videotape needs to be an instance of a class of type videotape. Unfortunately, class based languages do not give support for instances of instances of classes.

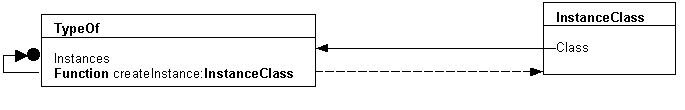

As expressed in [woolf 96] the key is to implement two classes, one whose instances represents application instances and other whose instances represent what would normally be the application classes. Each application instance has a pointer to its corresponding class-instance. So to implement this solution two classes should be implemented: one to represent the VideoTape and other to represent the Movie.

The last solution adds the flexibility necessary to allow for example, changing the class of a VideoTape in runtime by simply changing its class reference. However, there are a number of posibilities it would be interesting to analize, for instance: to protect from video piracy, the industry adds a special code to their movies, so each new movie would have a special code/identification.

We could solve this problem with the technics described above but, even using the type object pattern, it would be necessary to recompile due to the lack of posibility of changing/adding a class variable to support Movie code.

As another example, we can discuss the design and implementation of CASE environment to support an OO hypermedia design methodology (OOHDM [Schwabe96]). The tool must be able to model every design component as a class, and support any kind of operations upon it, as if they were actual classes. The kind of operations on a class involves adding class and instance attributes, inheritance (is-a relationships) and composition (part-of relationships).

Another goal of the system is to provide the ability of generating a working hypermedia application for a given plattform (html, Toolbook, etc). Such automated implementation should be generated from the OO model given by the user. Thus, the need of supporting instances of model classes is implicit.

At this point, even though the Type Object pattern does not provide the needed functionality, the strategy of having separate classes whose instances behave as classes and instances will be of use to our solution.

The Class Object pattern describes how dinamically created classes can be extended through inheritance or by adding class and instance attributes, and the way the instances of these classes are generated. It also describes how the latter behave as actual instances whose type and number of attributes may vary in runtime.

To provide a dinamic mechanism for adding attributes to a class, we need to describe them in a way such that the creation of class instances with the specified attributes could be possible. These descriptions of the attributes could be further specialized to specify whether the attributes would be class or instance attributes at the moment of instantiation.

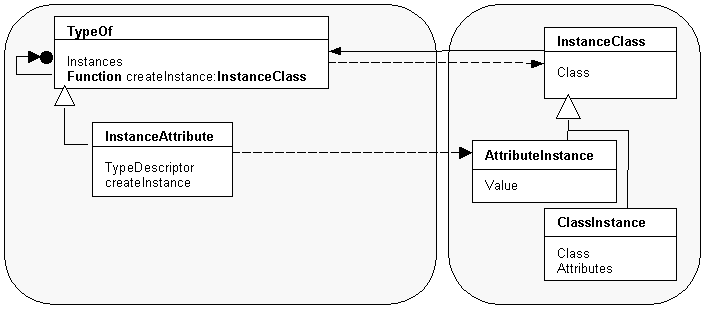

Class Instance

The classes, whose instances represent actual system instances, are all descendants of the InstanceClass, such as AttributeInstance and ClassInstance. The former is the AttributeType counterpart and holds the actual value of an instance attribute value, and the latter represent the instances of a class.

The AttributeType class provides a way to describe a class attribute and plays somehow as a factory method depending on the typeDescriptor value. When an instance of a dinamic class is being created, the class asks to its attributes for an instance of themselves that will belong to the new instance.

The idea of supporting single inheritance through simple dynamic subclassing mechanism relies on the ability of creating a virtual concatenation of a class attributes to its superclass attributes.

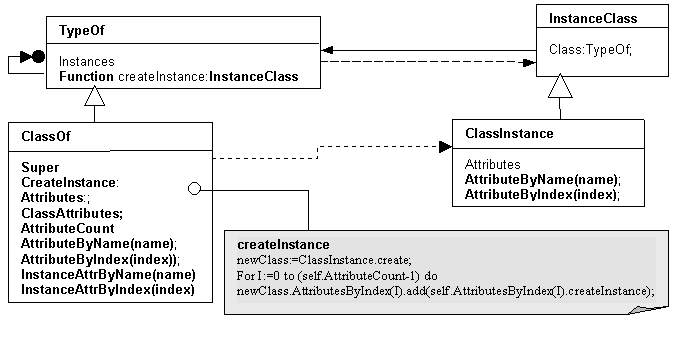

To provide this feature, each ClassOf instance has:

• Its instance and class attributes stored in dictionaries.
• A method that tells how many attributes the class have (no matter whether they are inherited or not) (-attributesCount-)
• A reference to its superclass.

When the superclass of one of the dinamic classes is set, the new subclass sets its "super" reference to the given class. At this step, further steps could eventually take place in order to allow a class notify to its instances and subclasses.

All dinamically created classes and instances of these classes have access to their attributes through a method to specify whether the attributes are to be fetched by name or through an index.

Or

This approach allows hidding whether the attributes are inherited or not by providing a uniform access mechanism. Both ClassOf class and ClassInstance implement the AttributeBy… methods to access their attributes, with some differences:

• In the classOf class these methods provide access to class attributes searching through its superclasses if necessary, and InstanceAttrBy… methods to access instance atrributes definitions.

• ClassInstance provides access to its attributes without the need of extra searching since as an instance, it already holds all its attributes.

Or

Aplicability

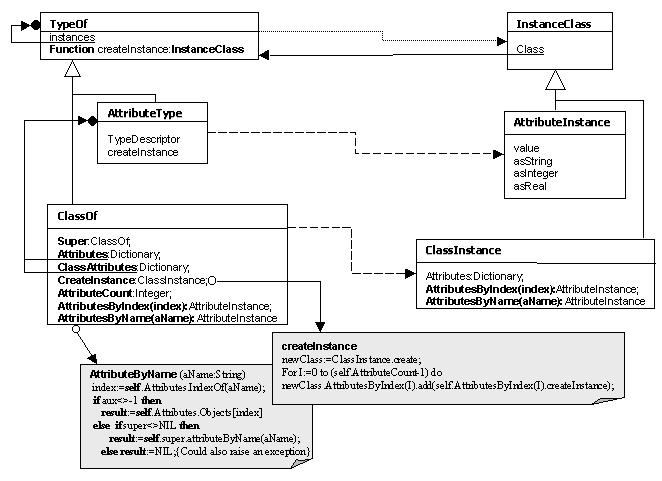

Structure:

Participants

Consequences

Implementation

There are a number of issues to consider when implementing the Class Object pattern:

1. Class instance references ClassObject: since the programing language does not know the relationship between a ClassInstance object and a ClassOf object, the relationship and meaning of the class reference of ClassInstances must be established by the software designer.
2. Changing dynamically the class of instances: changing dynamically the class of an instance may take a little effort, since the idea of creating a full class does not allow us asume the new class will have a similar structure (as it happens with the type object). We have to ensure instance attributes are consistent in meaning and structure with the class. Mutate the attributes could be a possibility, matching instance attributes with the new class attributes by name, and adding/deleting remaining attributes.
3. Reflecting Class changes to their instances: reflecting class changes to its instances is a class responsibility. In languages such as Delphi or C++ do not provide their basic Object classes with the ability of sending a "self changed:" message. Thus, the notification capability should be implemented either by the ClassObject itself or delegating this functionality to specialized objects that behave as Observers or DependencyTransformers (both also custom-programmed).
4. Attributes ability for holding values: AttributeInstance instances have the ability of holding the actual attribute’s data (value). For pure OO languages such as Smalltalk, this is a trivial issue. The problem arises with hybrid OO languages such C++, where type information is needed at compile time. An easy way to overcome this problem could be the following:

• Adding to AttributeType a symbol (identifier) to specify the type of the attribute.
• Adding the methods asString, AsInteger, etc to AttributeInstance Class and derive new subclasses to support value for all specified types.
• The createInstance method of Attributetype would work somehow as a factory method, to match the creation of the attribute instance with the attribute’s type.

Now we present an outline of the implementation. A complete implementation of this pattern is freely available on the web in both Borland´s Delphi, and Smalltalk (C++ version coming soon!) versions at: http:\\www-lifia.info.unlp.edu.ar\~fer\plop97.html .

Sample Code

Type

TypeObject= Class(TObject)

public

instances:Tlist;

Function CreateInstance:InstanceClass; Virtual;

end;

ClassOF= Class(TypeObject)

Private

Attributes,ClassAttributes:TStringlist; {TstringList works much like a}

{Dictionary in Smalltalk }

Public

Super:ClassOf;

Function attributesCount:integer;

Function attributesByName(aName:String):AttributeInstance;

Function AttributesByIndex(anIndex:Integer):AttributeInstance;

Function InstanceattrByName(aName:String):AttributeInstance;

Function InstanceAttrByIndex(anIndex:Integer):AttributeInstance;

Function CreateInstance:InstanceClass; Override;

end;

Function ClassOf.CreateInstance:InstanceClass;

var newInstance:ClassInstance;

i:Integer;

temp:AttributeInstance;

begin

newInstance:=ClassInstance.create;

For i:=0 to self.Attributes.Count-1 do

begin

temp:=self.InstanceAttrByIndex(i).CreateInstance;

newInstance.Attributes.AddObject(temp.Name,temp);

end;

Result:=newInstance;

end;

Function ClassOfType.attributesCount:Integer;

Begin

If assigned(super) then

Result:=super.attributes.Count+self.FattributeList.count

Else

Result:=self.FattributeList.count;

End;

Related Patterns

References
