Gateway Pattern

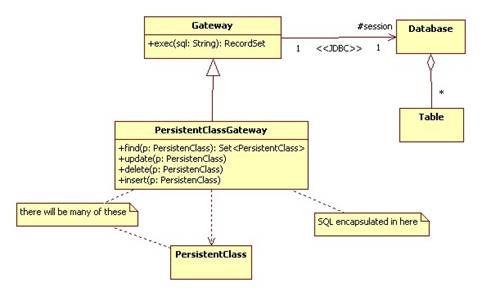

A gateway encapsulates the semantic gap between the object-oriented domain layer and the relation-oriented persistence layer. More specifically, it encapsulates and centralizes the application's SQL:

More generally, a gateway can be anything that hides access to a remote server or a complex library.

Example

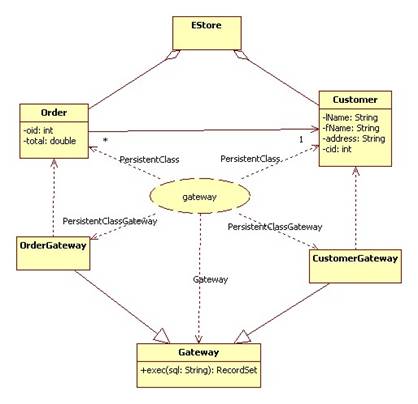

For each persistent class in the domain layer we assume there is a corresponding table (virtual or base) in the database and we introduce a corresponding gateway:

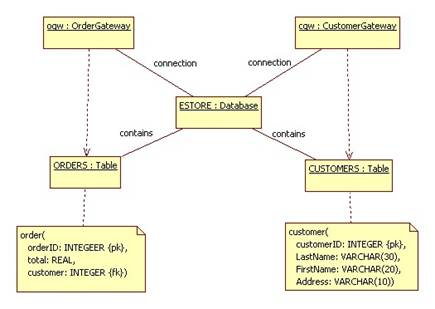

Here's an object diagram showing the table schemas:

Here's a simple Gateway class:

Gateway.java



The SQL would be created in the Gateway subclasses.
