Regular Expression Labs

Write and test regular expressions that define the following languages:

1. Natural Numbers

A natural numbers is an unsigned zero or a positive integer.

scala> val natPattern = ???

scala> "0".matches(natPattern)
res0: Boolean = true

scala> "007".matches(natPattern)
res1: Boolean = false

scala> "700".matches(natPattern)
res2: Boolean = true

2. Integers

A signed integer is zero or a positive integer optionally preceded by a +or – sign.

scala> val intPattern = ???

scala> "0".matches(intPattern)
res3: Boolean = true

scala> "007".matches(intPattern)
res4: Boolean = false

scala> "100".matches(intPattern)
res5: Boolean = true

scala> "-100".matches(intPattern)
res6: Boolean = true

scala> "+100".matches(intPattern)
res7: Boolean = true

scala> "-0".matches(natPattern)
res8: Boolean = false

3. Floating Point Numbers

A floating point number is an integer optionally followed by a decimal point and a sequence of digits.

scala> val floatPattern = ???

scala> "100".matches(floatPattern)
res0: Boolean = true

scala> "100.001".matches(floatPattern)
res1: Boolean = true

scala> "100.".matches(floatPattern)
res2: Boolean = false

scala> ".001".matches(floatPattern)
res3: Boolean = false

scala> "0.001".matches(floatPattern)
res4: Boolean = true

scala> "007".matches(floatPattern)
res5: Boolean = false

4. Date Pattern

A date has the format month/day/year optionally followed by /CE or /BCE.

scala> val datePattern = ???

Two ways to write Jesus' birthday:

scala> "1/25/1".matches(datePattern)
res9: Boolean = true

scala> "1/25/1/CE".matches(datePattern)
res10: Boolean = true

And the year before:

scala> "1/25/1/BCE".matches(datePattern)
res11: Boolean = true

There is no year, month, or day 0:

scala> "0/25/1".matches(datePattern)
res12: Boolean = false

scala> "1/25/0".matches(datePattern)
res15: Boolean = false

scala> "1/0/2018".matches(datePattern)
res17: Boolean = false

The year can be anything from year 1 to year 9999. (We will have a "Year 10000" bug, though.)

scala> "1/1/2018".matches(datePattern)
res16: Boolean = true

scala> "12/25/800".matches(datePattern)
res13: Boolean = true

scala> "1/1/10000".matches(datePattern)
res21: Boolean = false

A month can be anything from 1 to 12:

scala> "13/25/800".matches(datePattern)
res14: Boolean = false

The day can be anything from 1 to 31:

scala> "1/35/2018".matches(datePattern)
res18: Boolean = false

scala> "2/31/2018".matches(datePattern)
res19: Boolean = true

A more complex pattern would not allow this last date.

5. URL Pattern

Here are some examples of URLs:

http://www.sjsu.edu/cs/index.html
www.ibm.com/dev/info.html
https://www.whitehouse.gov/trump/crimes.html

Write a regular expression that matches all URLs of this form.

6. Regular Expressions as objects

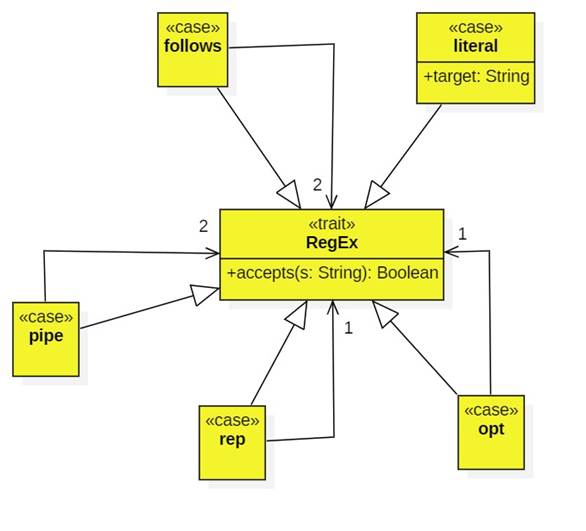

We can represent regular expressions as instances of regular expression classes. Here's the design:

Complete the implementation: TestRegEx.scala.

Note: Scala does have a Regex class similar to this. One cool feature is that we can construct instances of the class from a regular expression represented as a string by following it with .r. For example:

"00|11?".r

7. Parser Parser

Recall the format of regular expressions:

If r and s are regular expressions, then so are:

  literal(string)
  r | s
  r ~ s
  opt(r)
  rep(r)
  (r)

Express this definition using an EBNF grammar.

Complete RegParsers.scala. (This should be done in a project that contains your definitions from problem 6.

Test using Console.scala.
