Install Shore
Description:
Shore - a persistent object storage engine that supports creation of
persistent files and records. Each object in Shore can be accessed
using its global unique OID. Two-phase commit protocol is used among
servers.If a transaction updates data from it's own server's database,
transaction can be commit locally. Transaction rollback/abort or restart
recovery algorithm are based on ARIES with variation extended for
client/server architecture. Server that own the object will also
create log records for the object and perform rollback/recovery.
Client that cache the object will also generate log records for
the object but will send log records back to server that owns the object.
Shore supports log-based recovery based on ARIES mechanism
Natix - a native XML database management system - introduce the
idea of subsidiary logging and annihilator undo. The motivation of
these ideas is to reduce the log size by log only the composite
update operation as one operation and annihilator undo skips undo
operations implied by the annihilators. These ideas are logic and
if success, will improve the performance for the recovery process.

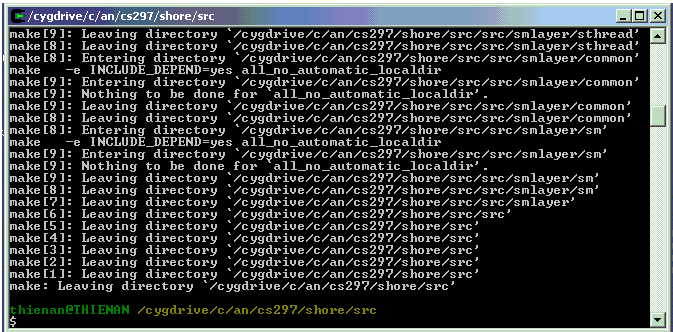

Following is the installation screenshot (compilation of Shore)
on Cygwin:
Installation Steps:
1. download Shore source code from http://www.cs.wisc.edu/shore/
2. download and install cygwin from http://cygwin.com
3. download and install perl from http://www.perl.com or ActivePerl
4. download and install tcl from http://www.scriptics.com
5. install Visual C++ 6.0
6. Set PATH environment variables:
6a. Right click on My Computer -> properties -> Advanced ->
Environment variables. Select PATH, click Edit.
On the popup dialog, enter in the value field with:
C:\Tcl\bin;C:\Program Files\Microsoft Visual Studio\VC98\bin;
c:\cygwin\bin;c:\cygwin\lib;c:\perl\bin;c:\ActivePerl\Perl\bin;
c:\Tcl\include;
6b. set INCLUDE variable to C:\Program Files\Microsoft Visual Studio\VC98\include
6c. set LIB variable to C:\Program Files\Microsoft Visual Studio\VC98\lib
6d. set MAKE_MODE system variable to UNIX
7. use winzip to unzip src-2.0.tar.gz into ./cs297/shore/src
8. Edit shore.def to set up Tcl path
9. open cygwin window, cd to c:/an/cs297/shore/src. At the command line, type make
10. After the build finish, type make intall at the commandline
|
