Outline

• More Effectiveness Measures
• Building a Test Collection
• Homework Problem
• Efficiency Measures
• Punctuation and Capitalization
• Stemming

F-measures

• At the end of Monday, we introduced two measures for the effectiveness of search results based on the relevant and result sets for a topic:
  `mbox(recall) = frac(|Rel cap Res|)(|Rel|)`
  `mbox(precision) = frac(|Rel cap Res|)(|Res|)`
• Sometimes these two values are combined into one number known as an F-measure.
• The simplest F-measure, the `F_1`-measure, takes the harmonic mean of recall and precision: `F_1 = frac(2)(frac(1)(R) + frac(1)(P)) = frac(2 cdot R cdot P)(R+P)`.

• Unlike, the arithmetic mean `frac(R+P)(2)`, the harmonic mean enforces a balance between precision and recall.
• For example, we return the whole data set in response to a query.
• The recall will be 1 and for a large data set the precision will be close to 0, so the arithmetic mean will be about 0.5.
• In constrast, the harmonic mean gives a value of `frac(2P)(1+P)` which will be close `0`.
• A common generalization of the `F_1`-measure is the weighted measure:
  `F_(beta) = frac((beta^2 + 1) cdot R cdot P)(beta^2 cdot R + P)`
• Notice if `beta = 1` this corresponds to the harmonic mean, if `beta = 0` one gets just the recall, and if `beta = infty` one gets just the precision.

Measures for the first `k` results

• For an ordered set `X`, we use `X[1..k]` to denote its first `k` elements.
• Often for search, we are interested in the first 10, 20, 50, or 100 results.
• We can modify precision and recall to the first `k` results as:
  `mbox(recall@k) = frac(|Rel cap Res[1..k]|)(|Rel|)`
  `mbox(precision@k) = frac(|Rel cap Res[1..k]|)(|Res[1..k]|)`
• We write `mbox(P@k)` for `mbox(precision@k)`.
• By definition, `mbox(recall@k)` will increase with `k`. On the other hand, `mbox(P@k)` will tend to decrease with `k`.
• An IR experiment typically looks at `k` over a range of values to try to find out how `mbox(recall@k)` and `mbox(P@k)` trade-off against each other. One may then make a recall-precision plot.
• In such a plot, one puts the on x-axis, the recall values between 0 and 100%. Given such a recall value x, we look for the maximum precision achieved at this recall value or higher (this is called interpolated precision).

Average Precision

• It is also possible to compute an average precision across the full range of recall values:
  `frac(1)(|Rel|)cdot sum_(i=1)^k mbox(relevant)(i) times mbox(P@i)`
  Here `mbox(relevant)(i)` is 1 if the `i`th result is relevant and `0` otherwise.
• This roughly represents the area under a non-interpolated recall-precision curve.
• To get one number for how the IR system performs across a range of topics, one typically takes the arithmetic mean of the average precision of the system for each topic.
• This number is called the mean average precision or MAP.
• The most common measures to give when trying to present the effectiveness of your IR system are to give its average `mbox(P@10)` across topics and to give its MAP score. The former is more intuitive, the latter probably better means the complete performance of the IR system.

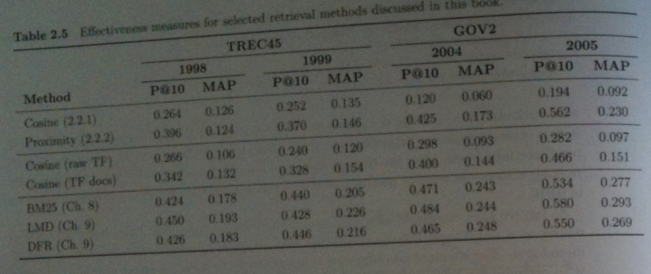

• The above images of a table from the book gives some `mbox(P@10)` and MAP scores for the TREC45 and GOV2 data sets for some of the ranking methods we will consider this semester.
• We will talk about BM25, LMD (language modeling), DFR (difference from randomness) later in the semester.
• Usually one doesn't compute such scores by hand, but instead uses some piece of well-tested software such as trec_eval.

HW Problem

Exercise 2.8. Demonstrate that the term vector `(t_1, ..., t_n)` may have at most `n cdot l` covers (see Section 2.2.2), where `l` is the length of the shortest posting list for the terms in the vector.

Answer. On Page 60 of the book, the example where one has a test collection in which all the terms occur in the same order, the same number of times, is given. i.e.,
`...t_1 ... t_2 ... t_3 ... t_n ...t_1 ... t_2 ... t_3 ... t_n ... t_1 ...`
Since any sequence of `n` terms in the above is a cover, and the number of times we repeat is `l`, this shows `Omega(n cdot l)` might be required. We are tasked with finding a matching upper bound. To do this it suffices to show that an occurrence of a term, whose posting list is shortest amongst all the terms in the term vector, appears in at most `n` covers. Since such a term must be in every cover, and it occurs only `l` times in the corpus, this would give the `n cdot l` bound. Suppose there were `n+1` covers around an occurrence at location `p` of such a term `t`. Denote them `[L_1, R_1], ... [L_(n+1), R_(n+1)]` where `L_i` denotes the left side of the `i`th interval; `R_i` denote the right side of the `i`th interval. So for each `i`, `p in [L_i, R_i]` and `|R_i - L_i| ge n`. Let `R_j ge p` be the least value among `R_i`. Then `L_j` must also be the least value among the `L_j`, for if `L_k` were less than `L_j`, then `[L_k, R_k]` would not be a cover as it would contain `[L_j, R_j]`. We can perform a similar argument on the next to smallest `R_(j')` to argue `L_(j')` must be the next to smallest `L_i`. Hence, we can sort the intervals into intervals `[L_(i_v), R_(i_(v))]` so that `L_(i_1) < L_(i_2)... < L_(i_n+1)` and `R_(i_1) < R_(i_2)... < R_(i_n+1)`. The term that the cover `[L_(i_1), R_(i_1)]` begins with cannot be the same as the one `[L_(i_2), R_(i_2)]` begins with, or it would not be a cover, as you could use `[L_(i_2), R_(i_1)]` instead. As there are only `n` terms, by the pigeonhole principle, two of these supposed `n+1` many covers share the same first term, `t'`. Let's call these covers `[L_j, R_j]` and `[L_k, R_k]`. We can assume `L_j < L_k le p` so `[L_j, R_j]` is not a cover as we could increase `L_j` and not lose `t'`. So we have a contradiction from assuming that we could have `n+1` covers.

Building a Test Collection

• In a simple set-up, given a topic we go through each document in our collection and either score it as 1 relevant or 0 not.
• At 10 seconds/document, for the 0.5 million document TREC45 collection, this would take about a year for one person to judge one topic.
• For the 25 million document GOV2 collection, someone would have to spend the whole career to just judge one topic.
• TREC instead typically uses a system of pooling:
  • One or more experimental runs from each group participating in an adhoc task is accepted.
  • Each run consists of the top 1000 or 10,000 documents for each topic.
  • The top 100 or so from each run are then pooled for that topic.
  • These are then presented to assessors in random order for judging. This takes about a week.
  • One group might rank a document 50 and another group 150, if its in the top 100 for any group it will be judged. This is called the pool depth.
  • Unjudged documents are treated as not relevant.
  • `mbox(P@10)`, `mbox(recall@k)`, and MAP scores are then calculated.

Efficiency Measures

• In addition to evaluating a system's retrieval effectiveness, one also wants to evaluate how efficiently it returns results.
• That is, things like the cost of running the system, and how quickly it gets results to its users.
• User's are typically interested in response time, the time between entering the query and receiving results.
• Another important measure is the throughput, the average number of queries processed in a given amount of time.
• Typically, response time is measured by taking a measure of the OS time before executing a set of queries, executing those queries, and then measuring the time again. AN average is then taken over the number of queries in the set to give the average response time.

Token and Terms

• So far we have viewed tokens as sequences of alphanumeric text separated by nonalphanumeric text.
• We have further case normalized these tokens by converting each of their letters to lower case.
• We have also treated XML tags as tokens.
• In practice, more complex tokenization is usually done.
• For example, under the above scheme "didn't" would be two tokens "didn" and "t" and neither would match "did" "not".
• 10, 000, 000 would be three tokens and would not match 10000000, but might match "10".
• UTF-8 characters of other languages are ignored.
• For the next couple of days, we will examine some of these issues in detail.

Punctuation and Capitalization

• We've already mentioned that apostrophes can cause problems. For contractions it might make sense to tokenize them as separate words. For instance, "did" "not" for "didn't".
• For other uses, of apostrophe such as in possessives it might makes sense to tokenize things like "Bill's" as "bill" and "bill's", the latter with the apostrophe as part of token.
• Periods usually end sentences, and for such occurrences can be safely dropped. However, they also appear in acronyms such as "I.B.M." and somehow this token should map to the same things as "IBM".
• If we case normalize some acronyms such as "US" we lose their meaning.
• Sometimes text is written in ALL CAPS which could further confuse the issue.
• We also don't want to drop the special characters from some terms; otherwise, one has things like "C#" and "C++" become "C".
• Typically, the solution to these problems is a rule based approach, and each rule in the system would be need to be evaluated for its impact on results.

Stemming

• Stemming allows a query term such as "orienteering" to match an occurrence of "orienteers" or "runs" to match "running".
• Stemming thus considers the morphology or internal structure of terms, where the goal for an IR system is to reduce each term to its root form.
• The program/function that does this is called a stemmer.
• A related concept from linguistics is lemmatization.
• This is the proces whereby a term is reduced to a lexeme, which roughly corresponds to a word in the sense of a dictionary entry.
• For each lexeme a particular form of the word, or a lemma, is chosen to represent it. For example, "run" for "running" and "ran".
• One common stemmer is the Porter Stemmer developed by Martin Porter in the 1970s. This has been ported to many languages. his website also has stemmers for other languages.
