Outline

• Batch Updates
• HW Problem
• Incremental Index Updates

Dynamic Inverted Indexes

• So far we have been assuming that the collection does not change during the process of index creation
• For many applications such as indexing file systems, digital libraries, and the web, the collection does in fact change with time.
• A dynamic index needs to support: (1) document insertions, (2) document deletions and (3) document modifications.
• Since the semester is winding down and we still have a lot to cover, we will at handle the first two.
• Collections that support the first two are sometimes called semi-static.

Batch Updates

• For some applications, it might be okay to collect changes to the text collection over a period of time, and then add them in one go in a batch update operation.
• This is typically implemented in one of two ways:
  • (REBUILD) A new index is built from scratch. When this process is finished, the old index is deleted and replaced with the new one.
  • (REMERGE) An index is built from the text found in the newly inserted documents. After this index has been created, it is merged with the previously existing index.
• Obviously, REBUILD is easier to implement, but it slower to add new data than REMERGE.
• The situation as to which is better in the presence of both insertions and deletions is less clear...

REBUILD versus REMERGE

• Suppose the original index `I_(old)` contains postings for `d_(old)` documents and all these documents are about the same size.
• Suppose the batch update consists of `d_(\d\e\l\e\te)` deletions and `d_(\i\n\s\e\r\t)` insertions.
• The new index, `I_(\n\e\w)` will contain postings for:
  `d_(\n\e\w) = d_(old) - d_(\d\e\l\e\te) + d_(\i\n\s\e\r\t)`
  documents
• The time for REBUILD only depends on `I_(\n\e\w)`. For merge-based index construction, it can build `I_(\n\e\w)` in time
  `c cdot d_(\n\e\w) = c cdot (d_(old) - d_(\d\e\l\e\te) + d_(\i\n\s\e\r\t))`
• On the other hand, if we do REMERGE instead, the answer depends on the relative performance of indexing and merging in the search engine.
• Based on experiments the book's authors carried out with the GOV2 collection, the final merge operation in merge-based index construction takes about 25% of the total time required to build a full-text index.
• From this we could estimate the time to REMERGE as:
  `c cdot d_(\i\n\s\e\r\t) + frac(c)(4) cdot(d_(old) + d_(\i\n\s\e\r\t))`.
• The two methods then exhibit the same performance if:
  `d_(\d\e\l\e\te) = frac(3)(4) cdot d_(old) - frac(1)(4) cdot d_(\i\n\s\e\r\t)`.
• If there are more deletions than the above it makes sense to REBUILD rather than REMERGE.

HW Problem

Exercise 6.6. What is the expected number of bits per codeword when using a Rice code with parameter `M = 2^7` to compress a geometrically distributed postings list for a term `T` with `N_t/N approx 0.01`?

Answer. `E[mbox(bits/code word)] = sum_(k=1)^(infty) P(mbox(gap is k))cdot (mbox(length of codeword when the gap is k)).`
Since the postings are distributed geometrically with `N_t/N approx 0.01` we have:
`P(mbox(gap is k)) = (1 - 0.01)^(k-1)(0.01) = 0.01(0.99)^(k-1)`.
The length of a codeword when the gap is `k` using a Rice code is `q(k) +1 + lfloor log_2(M) rfloor` where `q(k) = lfloor (k-1)/M rfloor`. Since we are given `M = 2^7`, the length is
`1 + 7 + lfloor (k-1)/(2^7) rfloor = 8 + lfloor (k-1)/(2^7) rfloor`.
So `E[mbox(bits/code word)]` is
`sum_(k=1)^(infty) 0.01(0.99)^(k-1) cdot (8 + lfloor (k-1)/(2^7) rfloor)`
`approx 0.08 sum_(k=1)^(infty) (0.99)^(k-1) + 7.81 times 10^(-5) sum _(k=1)^(infty) (k-1)(0.99)^(k-1)`
` approx 0.0799 sum_(k=1)^(infty) (0.99)^(k-1) + 7.81 times 10^(-5) sum _(k=1)^(infty) k(0.99)^(k-1)`
Temporarily, set `r= 0.99`, so we have
` = 7.81 times 10^(-5) d/(dr)(sum _(k= 0)^(infty) r^k) + 0.0799 sum_(k=0)^(infty) r^(k)`
Using that the sum of a geometric series `sum_(k=0)^(infty)r^k` is `1/(1-r)`. ` = 7.81 times 10^(-5) d/(dr)(1/(1 - r)) + 0.0799 1/(1-r)`
Taking the derivative
` = 7.81 times 10^(-5) /(1-r)^2 + 0.0799 1/(1-r)`
Finally, substituting for `r`
`= 0.781 + 7.99 = 8.77` bits.

Incremental Index Updates

• For applications like Internet news search, file system search, e-business search, etc.; it is imperative that the search results always accurately reflect the text collection.
• In these cases batch updates are no longer an appropriate strategy.
• We next look at how to do incremental updates in the case, where we only add new data and don't perform deletes.

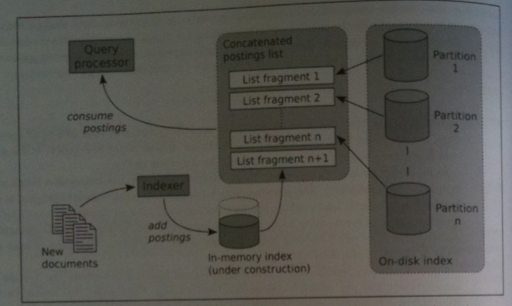

• The backbone on the hash-based in-memory index that we discussed earlier this semester, is an in-memory hash-table that maps from term strings to the memory address of the corresponding postings lists
• This might be used for both query processing, in addition to index processing.

NO MERGE Index Updates

Contiguous Inverted Lists

• The most drastic way to guarantee a low degree of fragmentation in the on-disk postings list is to not allow the creation of a new on-disk fragment for a term for which a list fragment already exists in the index.
• There are two common ways to achieve this: using an in-place update; using a remerge update strategy.

REMERGE UPDATE

• The batch remerge that we discussed earlier can be used not only for batch update operations in the context of semi-static collections, but also as an update policy for incremental collections.
• The search engine's indexing module processes incoming documents in the same way as in the static case.
• However, whenever the indexer runs out of memory, a fresh on-disk index is created by merging the existing on-disk index with the data accumulated in-memory.

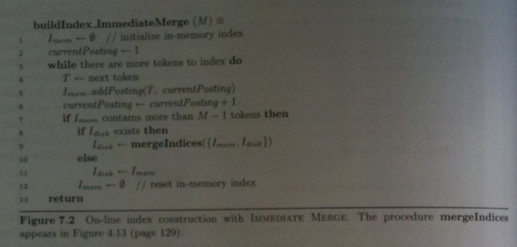

• We call this strategy IMMEDIATE MERGE. Below is some pseudo-code:

• In terms GOV2, if our partition size is 100k documents, then query response time according to the book is about 10 times faster than the NO MERGE case.
• However, on the other hand, the total number of token transferred to/from disk with immediate merge is quadratic in the number of tokens in the collections, so is impractical for large indexes. To index GOV2 even with a partition size of 250K is about 6 times slower than NO MERGE.

In-place Index Updates

• In-place index update strategies try to overcome IMMEDIATE MERGE's limitations by not requiring the search engine read the entire index from disk every time it runs out of memory.
• Instead, whenever a posting list is written to disk during an on-disk update, some free room is left at the end of the list.
• When additional postings for the same term have to be transferred to disk at a later point in time, they can simply be appended to the existing list.
• If the amount of free space available at the end of the list is too small, then the entire list is relocated to a new position on disk.
• Different versions of in-place update, pre-allocate space differently. We will look at this more on Monday.
