Measuring Retrieval Effectiveness

Measuring the effectiveness of a retrieval method depends on human assessments of relevance.
TREC experiments often use binary relevance judgements by humans. i.e., someone says, document X is or is not relevant to the topic A.
A document is typically judged relevant if any part of it is relevant.
For example, for TREC topic 426, a user might formulate the Boolean query:
(("law" AND "enforcement") OR "police") AND ("dog" OR "dogs").
Using the TREC45, (disk 4 and disk 5 of a TREC dataset of newspaper articles), this query produces 881 documents of the 500,000 or so in the collection.

Recall and Precision

In order to determine the effectiveness of a Boolean Query, we compare (1) the set of documents returned by the query, Res, and (2) the set of relevant documents for the topic contained in the collection, Rel.
From these two sets we can compute two common standard measures of effectiveness, recall and precision.
`mbox(recall) = frac(|Rel cap Res|)(|Rel|)`
`mbox(precision) = frac(|Rel cap Res|)(|Res|)`
Recall indicates the fraction of relevant documents that appear in the result set, precision indicates the fraction of the result set that is relevant.
According to NIST there are `202` relevant documents for topic 426. The above Boolean query only returns `167` of these. So the precision is `0.190`, and the recall is `0.827`.

Sometimes recall and precision are combined into one number known as an F-measure.
The simplest F-measure, the `F_1`-measure, takes the harmonic mean of recall and precision: `F_1 = frac(2)(frac(1)(R) + frac(1)(P)) = frac(2 cdot R cdot P)(R+P)`.
Unlike, the arithmetic mean `frac(R+P)(2)`, the harmonic mean enforces a balance between precision and recall.
For example, we return the whole data set in response to a query.
The recall will be 1 and for a large data set the precision will be close to 0, so the arithmetic mean will be about 0.5.
In constrast, the harmonic mean gives a value of `frac(2P)(1+P)` which will be close `0`.
A common generalization of the `F_1`-measure is the weighted measure:
`F_(beta) = frac((beta^2 + 1) cdot R cdot P)(beta^2 cdot R + P)`
Notice if `beta = 1` this corresponds to the harmonic mean, if `beta = 0` one gets just the recall, and if `beta = infty` one gets just the precision.

For an ordered set `X`, we use `X[1..k]` to denote its first `k` elements.
Often for search, we are interested in the first 10, 20, 50, or 100 results.
We can modify precision and recall to the first `k` results as:
`mbox(recall@k) = frac(|Rel cap Res[1..k]|)(|Rel|)`
`mbox(precision@k) = frac(|Rel cap Res[1..k]|)(|Res[1..k]|)`
We write `mbox(P@k)` for `mbox(precision@k)`.
By definition, `mbox(recall@k)` will increase with `k`. On the other hand, `mbox(P@k)` will tend to decrease with `k`.

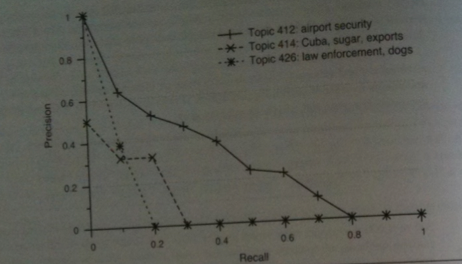

An IR experiment typically looks at `k` over a range of values to try to find out how `mbox(recall@k)` and `mbox(P@k)` trade-off against each other. One may then make a recall-precision plot.
In such a plot, one puts the on x-axis, the recall values between 0 and 100%. Given such a recall value x, we look for the maximum precision achieved at this recall value or higher (this is called interpolated precision).

It is also possible to compute an average precision across the full range of recall values:
`frac(1)(|Rel|)cdot sum_(i=1)^(k) (mbox(relevant)(i) times mbox(P@i))`
Here `mbox(relevant)(i)` is 1 if the `i`th result is relevant and `0` otherwise.
This roughly represents the area under a non-interpolated recall-precision curve.
Choosing `k` larger than the index of the last relevant result does not change the value of average precision.
To get one number for how the IR system performs across a range of topics, one typically takes the arithmetic mean of the average precision of the system for each topic.
This number is called the mean average precision or MAP.
The most common measures to give when trying to present the effectiveness of your IR system are to give its average `mbox(P@10)` across topics and to give its MAP score. The former is more intuitive, the latter probably better means the complete performance of the IR system.

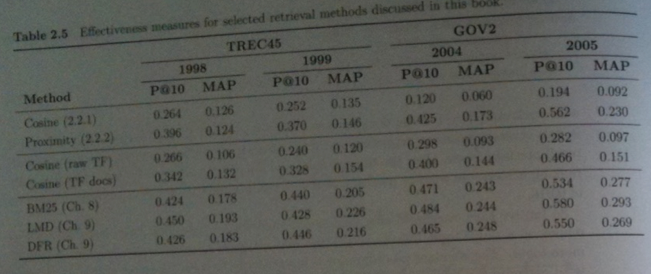

The above images of a table from the book gives some `mbox(P@10)` and MAP scores for the TREC45 and GOV2 data sets for some of the ranking methods we will consider this semester.
We will talk about BM25, LMD (language modeling), DFR (divergence from randomness) later in the semester.
Usually one doesn't compute such scores by hand, but instead uses some piece of well-tested software such as trec_eval.

Which of the following is true?

If we are using VSM for ranking and retrieval, we can use a frequency index for our inverted index.
If we are computing boolean queries, it is impossible to rank results using the proximity ranking.
The IDF score as presented in class depends on the document but not the query term.

In a simple set-up, given a topic we go through each document in our collection and either score it as 1 relevant or 0 not.
At 10 seconds/document, for the 0.5 million document TREC45 collection, this would take about a year for one person to judge one topic.
For the 25 million document GOV2 collection, someone would have to spend the whole career to just judge one topic.
TREC instead typically uses a system of pooling:
- One or more experimental runs from each group participating in an adhoc task is accepted.
- Each run consists of the top 1000 or 10,000 documents for each topic.
- The top 100 or so from each run are then pooled for that topic.
- These are then presented to assessors in random order for judging. This takes about a week.
- One group might rank a document 50 and another group 150, if its in the top 100 for any group it will be judged. This is called the pool depth.
- Unjudged documents are treated as not relevant.
- `mbox(P@10)`, `mbox(recall@k)`, and MAP scores are then calculated.

In addition to evaluating a system's retrieval effectiveness, one also wants to evaluate how efficiently it returns results.
That is, things like the cost of running the system, and how quickly it gets results to its users.
User's are typically interested in response time, the time between entering the query and receiving results.
Another important measure is the throughput, the average number of queries processed in a given amount of time.
Typically, response time is measured by taking a measure of the OS time before executing a set of queries, executing those queries, and then measuring the time again. An average is then taken over the number of queries in the set to give the average response time.
