Finishing Up General Text Compression

Last week, we were talking about using compression algorithms to try to shrink the size of our inverted index.
Up till now we have been looking at general purpose text-compression algorithms.
Such algorithms might be suitable for compressing the raw text downloaded from a collection of web sites.
For example, the file formats that the internet archive uses for web downloads, arc and warc, consist of a file which contains a sequence of objects each of which is compressed using gzip.
We have looked at Huffman and Arithmetic coding, gzip and bzip use more sophisticated generalization of these techniques.
`k`th order versions of Huffman coding use a separate dictionary for each `k-1` previous character contexts and then code the `k`th character.
Length-limited Huffman codes start with a canonical Huffman tree and do manipulations to it to produce a prefix-free code in which no codeword for a symbol is longer than some value.
The book has a slide comparing 0th, 1st, 2nd order variant of Huffman, Arithmetic coding versus each other and versus gzip and bzip2 for Shakespeare, TREC45, and Gov2.
Because Huffman has to store the code table, it performed the worst, followed by arithmetic coding followed by gzip, followed by bzip2 (2.5 times better than Huffman, and between 4.5 and 5 times compression over the original text).
There is a Huffman encoding scheme called LLRUN, which is sometimes used to do posting list compression.

Compressing Posting Lists: `Delta`-values

A posting list consists of a sequence of integers giving the doc id's of the document that contained a particular word.
So it looks like a sequence of increasing integers such as: `L = langle 3, 7, 11, 23, 29, 37, 41 ... rangle`
In the worst case you might imagine having to use a whole int to store a particular posting.
On the other hand if we look at the difference between adjacent pairs, the numbers involved are usually quite small (but all greater than 0): `Delta(L) = \langle 3, 4, 4, 12, 6, 8, 4... rangle `.
These are called `Delta`-values. One of the games of index compression is to understand the distribution of `Delta`-values so that one can find a good compression scheme for them.
It should be noted that if one has a positional index rather than a schema independent index it also makes sense to compute the delta values for the positions within a document.
Two common classes of codes used to do this are nonparametric and parametric codes: The former don't take into account the distribution when encoding, the latter do. Usually, the former are faster, the latter compress better.

Nonparametric Gap Compression

The simplest nonparametric code on the positive integers is the unary code: code `k` as k-1 0's followed by a 1.
This code is optimal if the `Delta`-values follow a geometric distribution of the form: `Pr[Delta = k] = 2^(-k)`. This is usually not the case.
Elias (1975) proposed the `gamma` code which we have already mentioned.
To code `k` we use `lfloor log_2(k) rfloor` 0's followed k written in binary.
So `|\gamma(k)| = 2 lfloor log_2(k) rfloor + 1` bits.
The `gamma`-code is good for compressing gaps of size less than 32. It is optimal when the gaps are distributed according to `1/(2k^2)`.
If we encode `k` by first encoding its length with a `gamma` code followed by its binary representation we get a `delta`-code. It performs better for larger gaps and is optimal for distributions of the form `1/(2k(\log k)^2)`.
One could imagine encoding `log^star k` using a unary code, followed by binary codes for each of the `m`-fold iterates of `log` between `log^star k` and `0` to get a code for `k`. This is essentially the `omega` code for `k`.

Quiz

Which of the following is true?

The trec_eval program makes use of a sub-module to automatically judge relevance of documents without human involvement.
A static, symbol-wise compression method compresses symbols in the same way independent of message being compressed.
To code a string using arithmetic compression we first build a Huffman tree.

Parametric Gap Compression

Unlike nonparametric codes, parametric ones take into account the specific characteristics of the list to be compressed.
Parametric codes fall into two categories: global, which choose a single parameter value that is used for all lists in the index; and local, which use a different value for each list.
We will mainly consider local methods on the next few slides...
One example of a global techniques is to to group gaps into buckets, `B_j = [2^j, 2^(j+1))`.
We use Huffman coding to encode the gaps seen and store the encoding table once. Then an individual gap is encoded as its Huffman code for its bucket, followed by its binary representation.
This scheme is called LLRUN.
It uses a 0th order language model. The book also talks about variants that use higher-order models.

Geometric Distributions and Posting Lists

Suppose the `Delta`-values follow a geometric distribution: `Pr[Delta = k] = (1 - p)^(k-1)p`.
This is not unreasonable: If our collection has N documents and term T appears in `N_T` of them. One would expect that the probability `p` that `T` appears in a given document chosen at random is something like `N_T/N`.
So if all documents are independent of each other, the probability of seeing a gap of size `k` between two subsequent occurrences of `T` is:
`Pr[Delta =k] = (1 - frac(N_T)(N))^(k-1)cdot frac(N_t)(N)`
The diagram below show this distribution:

Golomb/Rice Codes

Notice that most of the gaps fall around a common length. In the picture in the last slide this was between length 6 and 8.
Call this common length the modulus.
One way to encode the gaps is to: (1) determine an appropriate modulus, (2) split each `Delta`-value `k` into two components: a quotient q(k) and a remainder r(k) where:
`q(k) = lfloor (k-1)/M rfloor, r(k) = (k -1)mod M`
Encode `k` by writing `q(k)+1` in unary followed by `r(k)` as a `lfloor log(M) rfloor` bit or `|~ log(M) ~|` bit number.
For general `M` the above code is called a Golomb code after S. Golomb (1966). If `M` is a power of `2` then is is called a Rice code after the paper that popularized this kind of coding R. Rice (1971).
Rice codes tends to be only slightly less efficient in terms of compression, but run faster.

Finding the Modulus

Recall a code `C` is optimal with respect to a given probability distribution `M` if the relationship
`|C(sigma_1)| = |C(sigma_2)|+ 1`
for two symbols `sigma_1` and `sigma_2` implies `M(sigma_1) = 1/2 cdotM(sigma_2)`.
We know that the Golomb codeword for integer `k+M` is `1` bit longer than the codeword for the integer `k`.
Therefore, the optimal parameter value for the modulus (call this modulus `M^star`) is: `Pr[Delta = k + M^star] = 1/2Pr[Delta = k] iff (1 - N_t/N)^(k+M^star - 1) = 1/2 (1 - N_T/N)^(k-1)`
(divide the common `N_t/N` factor on of both sides)
`iff M^star = frac(- log(2))(log(1 - N_T/N))`.
This is not usually an integer.
For Rice coding we need to choose between `M = 2^(lfloor log_2 M^star rfloor)` and `M = 2^(|~ log_2 M^star ~|)`.
For Golomb coding we choose between `\lfloor M^star rfloor` and `|~ M^star ~|`.
Gallagher and van Voorhis (1975) have shown that the optimal choice is:
`M_(opt) = |~ frac(log(2 - N_T/N))(-log(1 - N_T/N)) ~|`.

Byte-Aligned Codes

If we want to improve compression and decompression speeds, it makes sense to look at compression methods that are more geared to the way microprocessors in today's computers work.
Thus, it make sense to look at codes such that the split between code words falls on byte or word boundaries.
One of the simplest of these kinds of codes is vByte. In vByte, we use the top bit of a byte to say if the thing we are encoding continues to the next byte (1) or not (0).
We then use the remaining seven bits of each byte in our code as payload. And we encode from low order bit of the bit string we are encoding to high-order bit.
You can also have word-aligned codes which work on multiples of 32 or 64 bits.
One example of these is Simple-9 proposed by Anh and Moffat (2005). In this coding scheme, the first 4 bits of a 32 bits word server as a selector. The remaining 28 bits are split into chunks according to the particular selector.
For example, if the top four bits were 0000, then 28 1 bit numbers would be encoded in the word; if the selector was 0001, 14, 2 bit numbers could be encoded and so on.

Dynamic Inverted Indexes

So far we have been assuming that the collection does not change during the process of index creation.
For many applications such as indexing file systems, digital libraries, and the web, the collection does in fact change with time.
A dynamic index needs to support: (1) document insertions, (2) document deletions and (3) document modifications.
Since the semester is winding down and we still have a lot to cover, we will at handle the first two.
Collections that support the first two are sometimes called semi-static.

Batch Updates

For some applications, it might be okay to collect changes to the text collection over a period of time, and then add them in one go in a batch update operation.
This is typically implemented in one of two ways:
- (REBUILD) A new index is built from scratch. When this process is finished, the old index is deleted and replaced with the new one.
- (REMERGE) An index is built from the text found in the newly inserted documents. After this index has been created, it is merged with the previously existing index.
Obviously, REBUILD is easier to implement, but is slower to add new data than REMERGE.
The situation as to which is better in the presence of both insertions and deletions is less clear...

REBUILD versus REMERGE

Suppose the original index `I_(old)` contains postings for `d_(old)` documents and all these documents are about the same size.
Suppose the batch update consists of `d_(\d\e\l\e\te)` deletions and `d_(\i\n\s\e\r\t)` insertions.
The new index, `I_(\n\e\w)` will contain postings for:
`d_(\n\e\w) = d_(old) - d_(\d\e\l\e\te) + d_(\i\n\s\e\r\t)`
documents
The time for REBUILD only depends on `I_(\n\e\w)`. For merge-based index construction, it can build `I_(\n\e\w)` in time
`c cdot d_(\n\e\w) = c cdot (d_(old) - d_(\d\e\l\e\te) + d_(\i\n\s\e\r\t))`
On the other hand, if we do REMERGE instead, the answer depends on the relative performance of indexing and merging in the search engine.
Based on experiments the book's authors carried out with the GOV2 collection, the final merge operation in merge-based index construction takes about 25% of the total time required to build a full-text index.
From this we could estimate the time to REMERGE as:
`c cdot d_(\i\n\s\e\r\t) + frac(c)(4) cdot(d_(old) + d_(\i\n\s\e\r\t))`.
The two methods then exhibit the same performance if:
`d_(\d\e\l\e\te) = frac(3)(4) cdot d_(old) - frac(1)(4) cdot d_(\i\n\s\e\r\t)`.
If there are more deletions than the above it makes sense to REBUILD rather than REMERGE.

Incremental Index Updates

For applications like Internet news search, file system search, e-business search, etc.; it is imperative that the search results always accurately reflect the text collection.
In these cases, batch updates are no longer an appropriate strategy.
We next look at how to do incremental updates in the case where we only add new data and don't perform deletes.
The backbone of the hash-based in-memory index that we discussed earlier this semester, is an in-memory hash-table that maps from term strings to the memory address of the corresponding postings lists
This might be used for both query processing, in addition to index processing.

NO MERGE Index Updates

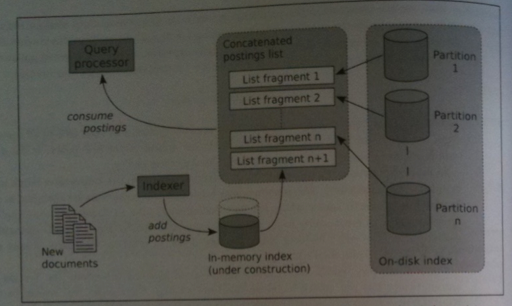

Suppose that, while the search engine is building an index, say after creating `n` on-disk index partitions, we want it to process a keyword query composed of `m` query terms.

We could repeat the following procedure for each of the query terms:

Fetch the terms postings list fragment from each of the `n` posting lists on disk index partitions
Use the in-memory hash table to fetch the term's in-memory list fragment.
Concatenate all n+1 fragments to form the terms postings list.

This strategy is called the NO MERGE index update strategy.

It tends not to be a very attractive strategy, due to the large number of disk seeks required to process a search query. (one for every query term and index partition).

It is often used as a baseline to which other strategies are compared.

Contiguous Inverted Lists

The most drastic way to guarantee a low degree of fragmentation in the on-disk postings list is to not allow the creation of a new on-disk fragment for a term for which a list fragment already exists in the index.
There are two common ways to achieve this: using an in-place update; using a remerge update strategy.

REMERGE UPDATE

The batch remerge that we discussed earlier can be used not only for batch update operations in the context of semi-static collections, but also as an update policy for incremental collections.
The search engine's indexing module processes incoming documents in the same way as in the static case.
However, whenever the indexer runs out of memory, a fresh on-disk index is created by merging the existing on-disk index with the data accumulated in-memory.

We call this strategy IMMEDIATE MERGE. Below is some pseudo-code:

buildIndex_ImmediateMerge(M)
{
    I[mem] := empty index //init in-memory index
    currentPosting := 1;
    while (there are more tokens to index) {
        T := next token;
        I[mem].addPosting(T, currentPosting);
        currentPosting++;
        if (I[mem] contains more than M-1 tokens) {
            if (I[disk] exists) {
                I[disk] := mergeIndices(I[mem], I[disk]);
            } else {
                I[disk] := I[mem];
            }
            I[mem] = empty index
        }
    }
    return;
}

In terms GOV2, if our partition size is 100k documents, then query response time according to the book is about 10 times faster than the NO MERGE case.
However, on the other hand, the total number of token transferred to/from disk with immediate merge is quadratic in the number of tokens in the collections, so is impractical for large indexes. To index GOV2 even with a partition size of 250K is about 6 times slower than NO MERGE.

In-place Index Updates

In-place index update strategies try to overcome IMMEDIATE MERGE's limitations by not requiring the search engine read the entire index from disk every time it runs out of memory.
Instead, whenever a posting list is written to disk during an on-disk update, some free room is left at the end of the list.
When additional postings for the same term have to be transferred to disk at a later point in time, they can simply be appended to the existing list.
If the amount of free space available at the end of the list is too small, then the entire list is relocated to a new position on disk.
Different versions of in-place update, pre-allocate space differently. We will look at this more on Monday.
