Maps

CS185c

Chris Pollett

May 2, 2012

Outline

Maps in General
Google Maps
Open Street Map
Using MKMapView on iPhone

Introduction

So far we have seen how to determine our location in iPhone and Android
We will begin today by looking at how to do this in HTML 5
We will then consider techniques for using maps with our apps.
Since all platforms have some means for creating a view which displays a web page, one of the simplest ways to add mapping functionality is to just use an existing web-paged mapping service
We will look briefly at Google Maps and Open Street Map
We will then go over one of Apple's Example apps for using a map on iPhone.
Then we will go over one of Google's examples for the MapView.

Determining Location in HTML 5

If a user grants the web browser permission to use location data it is possible to find this information within HTML 5.
The code is pretty simple and just uses the geolocation property of the Javascript navigator object.

Here is a minimal example:

<!DOCTYPE html>
<html>
<head>
<title>Location Test</title>
</head>
<body>
<h1>Hi There</h1>
<script type="text/javascript">

function mycallback(position)
{
    alert("Your latitude is: " + position.coords.latitude);
    alert("Your longitude is: " + position.coords.longitude);
    alert("The accuracy is:" + position.coords.accuracy);
}

function error(msg)
{
    if(msg) {
        alert(msg);
    } else {
        alert("that did not work");
    }
}

if (navigator.geolocation) {
   navigator.geolocation.getCurrentPosition(mycallback, error);
} else {
   error('not supported');
}

</script>
</body>
</html>

HTML Mapping

Maps have been available on the Web almost since its inception.
Some early examples are MMMWWW (1995), Vicinity Corporation (1995), and MapQuest (1996). The last of these is actually a company founded in the sixties that was doing early electronic maps in the 1980s.
Google, Yahoo and several other vendors provide online maps.
Open Street Map provides creative commons licensed web maps, somewhat like Wikipedia for maps.
We won't go into too much detail for any of these mapping services, but for Google Maps and OSM we will show how to draw a map and drop a pin.

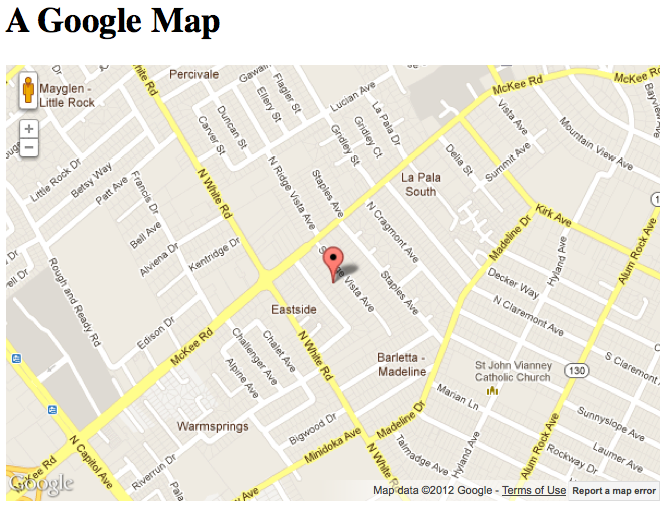

Google Maps

To use Google maps, you basically include Google's Javascript file, then in your own Javscript code you set up the map options and give a div tag you would like a map to appear in, if you want markers you can also configure them.

Here is a simple example:

<!DOCTYPE html>
<html>
<head>
<title>A Google Test</title>
</head>
<body onload="drawMap()">
<h1>A Google Map</h1>
<div id="mymap"></div>
<script type="text/javascript"
    src="http://maps.google.com/maps/api/js?sensor=false"></script>
<!-- ?sensor=false means not determining location of map using a sensor-->
<script type="text/javascript">
function drawMap()
{
    var latlng = new google.maps.LatLng(37.375, -121.833);
    mapcanvas= document.getElementById("mymap");
    mapcanvas.style.height = '400px';
    mapcanvas.style.width = '600px';
    var myOptions = {
        zoom: 15,
        center: latlng,
        mapTypeControl: false,
        navigationControlOptions: {style: google.maps.NavigationControlStyle.SMALL},
        mapTypeId: google.maps.MapTypeId.ROADMAP
    };


    var map = new google.maps.Map( mapcanvas, myOptions);

    var marker = new google.maps.Marker({
        position: latlng,
        map: map,
        title:"This is a great pin!"
    });
}
</script>
</body>
</html>

Open Street Map

OSM is a data set. There are several third-party Javascript Frameworks that can be used to display data from it on a map

We will look at an example (theirs) using OpenLayers

<html>
<body>
  <div id="mapdiv" style="width:400px; height:400px"></div>
  <script src="http://www.openlayers.org/api/OpenLayers.js"></script>
  <script>
    map = new OpenLayers.Map("mapdiv");
    map.addLayer(new OpenLayers.Layer.OSM());

    var lonLat = new OpenLayers.LonLat( -0.1279688 ,51.5077286 )
          .transform(
            new OpenLayers.Projection("EPSG:4326"), // transform from WGS 1984
            map.getProjectionObject() // to Spherical Mercator Projection
          );

    var zoom=16;

    var markers = new OpenLayers.Layer.Markers( "Markers" );
    map.addLayer(markers);

    markers.addMarker(new OpenLayers.Marker(lonLat));

    map.setCenter (lonLat, zoom);
  </script>
</body>
</html>

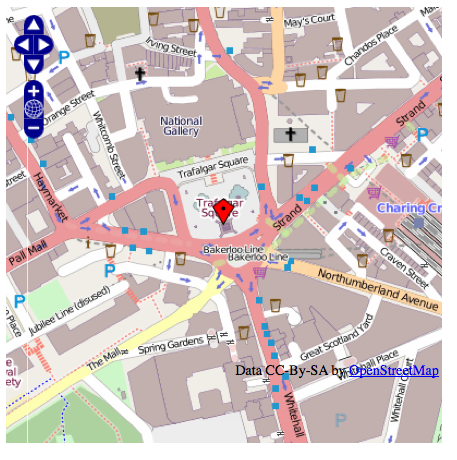

Open Street Map Screen Shot

Maps in iPhone Native

We are now going to look at how to use Maps using the iPhone's native API.
The iOS Map example we are going to describe is from the Apple website.
It was developed for iOS 4, but the techniques in iOS 5 are similar.

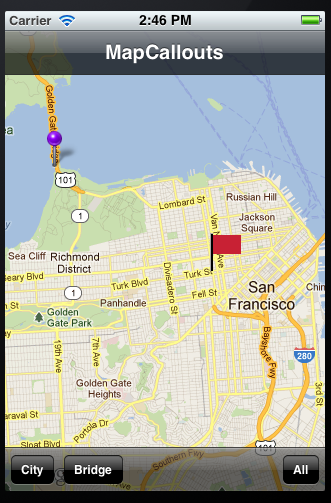

MapCallouts Screenshot

Building the App

To make the App, the MainWindow.Xib is created with a Navigation controller with a Navigation Bar and a toolbar
This Xib also has a MapViewController (our class)
On this we have city, bridge and all buttons
In addition we have some navigation items.
We have two additional Xib files: One for the MapViewController which has a MapView on it, the other for a DetailViewController which will have a picture of the Golden Gate Bridge.

MapViewController.h

#import <UIKit/UIKit.h>
#import <MapKit/MapKit.h>

@class DetailViewController;

@interface MapViewController : UIViewController <MKMapViewDelegate>
{
    MKMapView *mapView;
    DetailViewController *detailViewController;
    NSMutableArray *mapAnnotations;
}

@property (nonatomic, retain) IBOutlet MKMapView *mapView;
@property (nonatomic, retain) IBOutlet DetailViewController *detailViewController;

@property (nonatomic, retain) NSMutableArray *mapAnnotations;

+ (CGFloat)annotationPadding;
+ (CGFloat)calloutHeight;

- (IBAction)cityAction:(id)sender;
- (IBAction)bridgeAction:(id)sender;
- (IBAction)allAction:(id)sender;

@end

MapViewController.m

#import "MapViewController.h"
#import "DetailViewController.h"
#import "SFAnnotation.h"
#import "BridgeAnnotation.h"

enum
{
    kCityAnnotationIndex = 0,
    kBridgeAnnotationIndex
};

@implementation MapViewController

@synthesize mapView, detailViewController, mapAnnotations;


#pragma mark -

+ (CGFloat)annotationPadding;
{
    return 10.0f;
}
+ (CGFloat)calloutHeight;
{
    return 40.0f;
}

- (void)gotoLocation
{
    // start off by default in San Francisco
    MKCoordinateRegion newRegion;
    newRegion.center.latitude = 37.786996;
    newRegion.center.longitude = -122.440100;
    newRegion.span.latitudeDelta = 0.112872;
    newRegion.span.longitudeDelta = 0.109863;

    [self.mapView setRegion:newRegion animated:YES];
}

- (void)viewDidAppear:(BOOL)animated
{
    // bring back the toolbar
    [self.navigationController setToolbarHidden:NO animated:NO];
}

- (void)viewDidLoad
{
    self.mapView.mapType = MKMapTypeStandard;   // also MKMapTypeSatellite or MKMapTypeHybrid

    // create a custom navigation bar button and set it to always says "Back"
	UIBarButtonItem *temporaryBarButtonItem = [[UIBarButtonItem alloc] init];
	temporaryBarButtonItem.title = @"Back";
	self.navigationItem.backBarButtonItem = temporaryBarButtonItem;
	[temporaryBarButtonItem release];

    // create out annotations array (in this example only 2)
    self.mapAnnotations = [[NSMutableArray alloc] initWithCapacity:2];

    // annotation for the City of San Francisco
    SFAnnotation *sfAnnotation = [[SFAnnotation alloc] init];
    [self.mapAnnotations insertObject:sfAnnotation atIndex:kCityAnnotationIndex];
    [sfAnnotation release];

    // annotation for Golden Gate Bridge
    BridgeAnnotation *bridgeAnnotation = [[BridgeAnnotation alloc] init];
    [self.mapAnnotations insertObject:bridgeAnnotation atIndex:kBridgeAnnotationIndex];
    [bridgeAnnotation release];

    [self gotoLocation];    // finally goto San Francisco
}

- (void)viewDidUnload
{
    self.mapAnnotations = nil;
    self.detailViewController = nil;
    self.mapView = nil;
}

- (void)dealloc
{
    [mapView release];
    [detailViewController release];
    [mapAnnotations release];

    [super dealloc];
}


#pragma mark -
#pragma mark ButtonActions

- (IBAction)cityAction:(id)sender
{
    [self gotoLocation];//"" avoid this by checking its region from ours??

    [self.mapView removeAnnotations:self.mapView.annotations];  // remove any annotations that exist

    [self.mapView addAnnotation:[self.mapAnnotations objectAtIndex:kCityAnnotationIndex]];
}

- (IBAction)bridgeAction:(id)sender
{
    [self gotoLocation];
    [self.mapView removeAnnotations:self.mapView.annotations];  // remove any annotations that exist

    [self.mapView addAnnotation:[self.mapAnnotations objectAtIndex:kBridgeAnnotationIndex]];
}

- (IBAction)allAction:(id)sender
{
    [self gotoLocation];
    [self.mapView removeAnnotations:self.mapView.annotations];  // remove any annotations that exist

    [self.mapView addAnnotations:self.mapAnnotations];
}

#pragma mark -
#pragma mark MKMapViewDelegate

- (void)showDetails:(id)sender
{
    // the detail view does not want a toolbar so hide it
    [self.navigationController setToolbarHidden:YES animated:NO];

    [self.navigationController pushViewController:self.detailViewController animated:YES];
}

- (MKAnnotationView *)mapView:(MKMapView *)theMapView viewForAnnotation:(id )annotation
{
    // if it's the user location, just return nil.
    if ([annotation isKindOfClass:[MKUserLocation class]])
        return nil;

    // handle our two custom annotations
    //
    if ([annotation isKindOfClass:[BridgeAnnotation class]]) // for Golden Gate Bridge
    {
        // try to dequeue an existing pin view first
        static NSString* BridgeAnnotationIdentifier = @"bridgeAnnotationIdentifier";
        MKPinAnnotationView* pinView = (MKPinAnnotationView *)
                                        [mapView dequeueReusableAnnotationViewWithIdentifier:BridgeAnnotationIdentifier];
        if (!pinView)
        {
            // if an existing pin view was not available, create one
            MKPinAnnotationView* customPinView = [[[MKPinAnnotationView alloc]
                                             initWithAnnotation:annotation reuseIdentifier:BridgeAnnotationIdentifier] autorelease];
            customPinView.pinColor = MKPinAnnotationColorPurple;
            customPinView.animatesDrop = YES;
            customPinView.canShowCallout = YES;

            // add a detail disclosure button to the callout which will open a new view controller page
            //
            // note: you can assign a specific call out accessory view, or as MKMapViewDelegate you can implement:
            //  - (void)mapView:(MKMapView *)mapView annotationView:(MKAnnotationView *)view calloutAccessoryControlTapped:(UIControl *)control;
            //
            UIButton* rightButton = [UIButton buttonWithType:UIButtonTypeDetailDisclosure];
            [rightButton addTarget:self
                            action:@selector(showDetails:)
                  forControlEvents:UIControlEventTouchUpInside];
            customPinView.rightCalloutAccessoryView = rightButton;

            return customPinView;
        }
        else
        {
            pinView.annotation = annotation;
        }
        return pinView;
    }
    else if ([annotation isKindOfClass:[SFAnnotation class]])   // for City of San Francisco
    {
        static NSString* SFAnnotationIdentifier = @"SFAnnotationIdentifier";
        MKPinAnnotationView* pinView =
            (MKPinAnnotationView *)[mapView dequeueReusableAnnotationViewWithIdentifier:SFAnnotationIdentifier];
        if (!pinView)
        {
            MKAnnotationView *annotationView = [[[MKAnnotationView alloc] initWithAnnotation:annotation
                                                                             reuseIdentifier:SFAnnotationIdentifier] autorelease];
            annotationView.canShowCallout = YES;

            UIImage *flagImage = [UIImage imageNamed:@"flag.png"];

            CGRect resizeRect;

            resizeRect.size = flagImage.size;
            CGSize maxSize = CGRectInset(self.view.bounds,
                                         [MapViewController annotationPadding],
                                         [MapViewController annotationPadding]).size;
            maxSize.height -= self.navigationController.navigationBar.frame.size.height + [MapViewController calloutHeight];
            if (resizeRect.size.width > maxSize.width)
                resizeRect.size = CGSizeMake(maxSize.width, resizeRect.size.height / resizeRect.size.width * maxSize.width);
            if (resizeRect.size.height > maxSize.height)
                resizeRect.size = CGSizeMake(resizeRect.size.width / resizeRect.size.height * maxSize.height, maxSize.height);

            resizeRect.origin = (CGPoint){0.0f, 0.0f};
            UIGraphicsBeginImageContext(resizeRect.size);
            [flagImage drawInRect:resizeRect];
            UIImage *resizedImage = UIGraphicsGetImageFromCurrentImageContext();
            UIGraphicsEndImageContext();

            annotationView.image = resizedImage;
            annotationView.opaque = NO;

            UIImageView *sfIconView = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"SFIcon.png"]];
            annotationView.leftCalloutAccessoryView = sfIconView;
            [sfIconView release];

            return annotationView;
        }
        else
        {
            pinView.annotation = annotation;
        }
        return pinView;
    }

    return nil;
}

@end

DetailViewController

The app also has a DetailViewController .h and .m files but nothing particularly interesting is contain in them.

SF Annotation

To control the text next to our pins we use Annotations. For San Francisco the header looks like:

#import <MapKit/MapKit.h>

@interface SFAnnotation : NSObject <MKAnnotation>
{
    UIImage *image;
    NSNumber *latitude;
    NSNumber *longitude;
}

@property (nonatomic, retain) UIImage *image;
@property (nonatomic, retain) NSNumber *latitude;
@property (nonatomic, retain) NSNumber *longitude;

@end

The implementation looks like:

#import "SFAnnotation.h"

@implementation SFAnnotation

@synthesize image;
@synthesize latitude;
@synthesize longitude;


- (CLLocationCoordinate2D)coordinate;
{
    CLLocationCoordinate2D theCoordinate;
    theCoordinate.latitude = 37.786996;
    theCoordinate.longitude = -122.419281;
    return theCoordinate;
}

- (void)dealloc
{
    [image release];
    [super dealloc];
}

- (NSString *)title
{
    return @"San Francisco";
}

// optional
- (NSString *)subtitle
{
    return @"Founded: June 29, 1776";
}

@end

Bridge Annotation

The header looks like:

#import <MapKit/MapKit.h>

@interface BridgeAnnotation : NSObject
{

}

@end

The implementation looks like:

#import "BridgeAnnotation.h"

@implementation BridgeAnnotation

- (CLLocationCoordinate2D)coordinate;
{
    CLLocationCoordinate2D theCoordinate;
    theCoordinate.latitude = 37.810000;
    theCoordinate.longitude = -122.477989;
    return theCoordinate;
}

// required if you set the MKPinAnnotationView's "canShowCallout" property to YES
- (NSString *)title
{
    return @"Golden Gate Bridge";
}

// optional
- (NSString *)subtitle
{
    return @"Opened: May 27, 1937";
}

- (void)dealloc
{
    [super dealloc];
}

@end
