Basic Graphics Android

We start our discussion of graphics in Android by looking at how to draw 2D shapes.
The android.graphics package is what we'll use to do this.

Here is a simple example from the book that draws a rectangle:

package org.pollett;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.View;
import android.graphics.*;
import android.graphics.drawable.ShapeDrawable;

public class GraphicsTest extends Activity {
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(new GraphicsTestView(this));
    }


    private static class GraphicsTestView extends View
    {
    	private ShapeDrawable mDrawable =
    		new ShapeDrawable();

    	public GraphicsTestView (Context context)
    	{
    	   super(context);
    	   setFocusable(true);
    	   this.mDrawable.getPaint().setColor(0xFFFF0000); //argb where a is alpha
    	}

	    @Override
	    protected void onDraw(Canvas canvas)
	    {
	    	int x = 10;
	    	int y = 10;
	    	int width = 300;
	    	int height = 50;
	    	this.mDrawable.setBounds(x, y, x + width, y + height);
	    	this.mDrawable.draw(canvas);
	    }
    }
}

GraphicsTestView Screenshot

Drawing with XML

In the last example, we dynamically created the GraphicsTestView in our activity's onCreate methods.
Another way to create 2D Graphics is to draw using XML.
There are two steps to this: (1) We add ImageView's to our programs layout. (2) We create xml file which have our shapes in them.

To start let's create a new layout:

<?xml version="1.0" encoding="utf-8"?>

<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    >
<LinearLayout
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    >
<ImageView
    android:layout_width="fill_parent"
    android:layout_height="50dip"
    android:src="@drawable/shape_1"
    />

<ImageView
    android:layout_width="fill_parent"
    android:layout_height="50dip"
    android:src="@drawable/line"
    />

<ImageView
    android:layout_width="fill_parent"
    android:layout_height="50dip"
    android:src="@drawable/shape_2"
    />

<ImageView
    android:layout_width="fill_parent"
    android:layout_height="50dip"
    android:src="@drawable/shape_3"
    />
</LinearLayout>
</ScrollView>

Making Shapes

We next turn to the XML code for a four shapes:

Shape 1
-------
<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="http://schemas.android.com/apk/res/android"
       type="oval"
     >
     <solid android:color="#00000000" />
     <padding android:left="10sp"
         android:right="10sp"
         android:top="4sp"
         android:bottom="4sp"
     />
     <stroke android:width="1dp" android:color="#FFFFFFFF" />
</shape>

Shape 2
-------
<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="http://schemas.android.com/apk/res/android"
       type="oval"
     >
     <solid android:color="#FF0000FF" />
     <stroke android:width="4dp"
             android:dashWidth="1dp"
             android:dashGap="2dp"
             android:color="#FFFFFFFF" />

     <padding android:left="7sp"
         android:right="7sp"
         android:top="7sp"
         android:bottom="7sp"
     />
     <corners android:radius="4dp" />
</shape>

Shape 3
-------
<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="http://schemas.android.com/apk/res/android"
       type="oval"
     >
     <gradient android:startColor="#FFFF0000"
               android:endColor="#88FF00FF"
     />

     <padding android:left="7sp"
         android:right="7sp"
         android:top="7sp"
         android:bottom="7sp"
     />
     <corners android:radius="8dp" />
</shape>

Line
----
<?xml version="1.0" encoding="utf-8"?>

<shape xmlns:android="http://schemas.android.com/apk/res/android"
       type="oval"
     >
     <solid android:color="#FFFFFFFF" />

      <stroke android:width="1dp" android:color="#FFFFFFFF"
            android:dashWidth="1dp"
             android:dashGap="2dp"
      />

     <size android:height="23dp" />
 </shape>

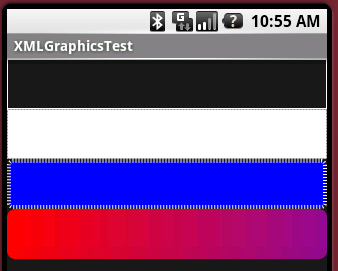

Screenshot XML Graphics

Image of a four ovals with different borders

Quiz

Which of the following statements is true:

A TableLayout in Android is only allowed to have TableRow items on it.
A TableRow's height is always fill_parent.
Subclasses of ListActivity are often used to display lists of items in Android.

Animation

Animation on Android can be done either via XML or using the Graphics API.
In XML you can create a sequence of drawable resources and have Android display these one after another.
To start you create a file in res/anim to drive the animation my_animation.xml

Then in your layout you could display the animation as an ImageView just as we did in the last example, referring to it as the @+id/my_anim . We will locate this resource in code in a minute.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    >
    <ImageView
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:gravity="center"
    android:layout_centerHorizontal="true"
    android:id="@+id/my_anim"
    />
<TextView
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:text="@string/hello"
    />
</LinearLayout>

The content of the animation file look like:

<?xml version="1.0" encoding="utf-8"?>

<animation-list xmlns:android="http://schemas.android.com/apk/res/android"
       id="selected" android:oneshot="false"
     >
    <item android:drawable="@drawable/ball1" android:duration="50" />
    <item android:drawable="@drawable/ball2" android:duration="50" />
    <item android:drawable="@drawable/ball3" android:duration="50" />
    <item android:drawable="@drawable/ball4" android:duration="50" />
    <item android:drawable="@drawable/ball5" android:duration="50" />
    <item android:drawable="@drawable/ball6" android:duration="50" />
</animation-list>

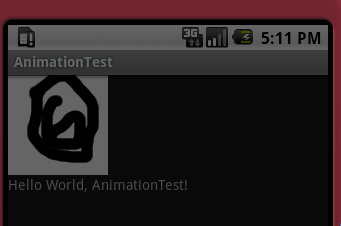

Driver Class

Here is the class that drives the animation:

package org.pollett;

import java.util.Timer;
import java.util.TimerTask;

import android.app.Activity;
import android.graphics.drawable.AnimationDrawable;
import android.os.Bundle;
import android.util.Log;
import android.widget.ImageView;

public class AnimationTest extends Activity {
	@Override
	   public void onCreate (Bundle icicle)
	   {
	      super.onCreate(icicle);
	      setContentView(R.layout.main);
	      ImageView img = (ImageView)findViewById(R.id.my_anim);
	      img.setBackgroundResource(R.anim.my_animation);
	      MyAnimationRoutine mar = new MyAnimationRoutine();
	      MyAnimationRoutine2 mar2 = new MyAnimationRoutine2();

	      Timer t = new Timer(false);
	      t.schedule(mar, 100);
	      Timer t2 = new Timer(false);
	      t2.schedule(mar2, 5000);

	   }


	   class MyAnimationRoutine extends TimerTask
	   {
	      @Override
	      public void run()
	      {
	    	  Log.i("AnimationTest","hello");
	         ImageView img = (ImageView) findViewById(R.id.my_anim);
	         AnimationDrawable frameAnimation = (AnimationDrawable)
	            img.getBackground();
	         frameAnimation.start();
	      }
	   }

	   class MyAnimationRoutine2 extends TimerTask
	   {
	      @Override
	      public void run()
	      {
	         ImageView img = (ImageView) findViewById(R.id.my_anim);
	         AnimationDrawable frameAnimation = (AnimationDrawable)
	            img.getBackground();
	         frameAnimation.stop();
	      }
	   }
}
