Maps

CS175

Chris Pollett

Nov 26, 2014

Outline

Maps in General
Google Maps
Open Street Map
Using MKMapView on iPhone

Introduction

So far we have seen how to determine our location in iPhone and Android
We will begin today by looking at how to do this in HTML 5
We will then consider techniques for using maps with our apps.
Since all platforms have some means for creating a view which displays a web page, one of the simplest ways to add mapping functionality is to just use an existing web-paged mapping service
We will look briefly at Google Maps and Open Street Map
We will then go over one of Apple's Example apps for using a map on iPhone.
Then we will go over one of Google's examples for the MapView.

Determining Location in HTML 5

If a user grants the web browser permission to use location data it is possible to find this information within HTML 5.
The code is pretty simple and just uses the geolocation property of the Javascript navigator object.

Here is a minimal HTML5 location example:

<!DOCTYPE html>
<html>
<head>
<title>Location Test</title>
</head>
<body>
<h1>Location Test</h1>
<script type="text/javascript">

function mycallback(position)
{
    alert("Your latitude is: " + position.coords.latitude);
    alert("Your longitude is: " + position.coords.longitude);
    alert("The accuracy is:" + position.coords.accuracy);
}

function error(msg)
{
    if(msg) {
        alert(msg);
    } else {
        alert("that did not work");
    }
}

if (navigator.geolocation) {
   navigator.geolocation.getCurrentPosition(mycallback, error);
} else {
   error('not supported');
}

</script>
</body>
</html>

HTML Mapping

Maps have been available on the Web almost since its inception.
Some early examples are MMMWWW (1995), Vicinity Corporation (1995), and MapQuest (1996). The last of these is actually a company founded in the sixties that was doing early electronic maps in the 1980s.
Google, Yahoo and several other vendors provide online maps.
Open Street Map provides creative commons licensed web maps, somewhat like Wikipedia for maps.
We won't go into too much detail for any of these mapping services, but for Google Maps and OSM we will show how to draw a map and drop a pin.

Google Maps

To use Google maps, you basically include Google's Javascript file, then in your own Javascript code you set up the map options and give a div tag you would like a map to appear in, if you want markers you can also configure them.

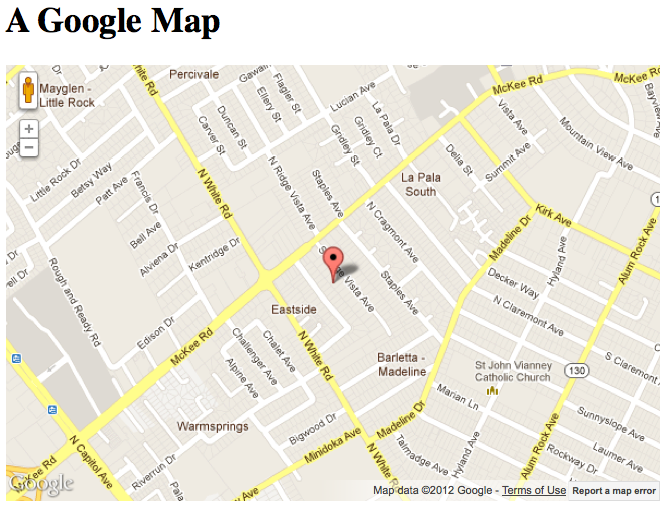

Here is a simple HTML5 Google Map example:

<!DOCTYPE html>
<html>
<head>
<title>A Google Test</title>
</head>
<body onload="drawMap()">
<h1>A Google Map</h1>
<div id="mymap"></div>
<script type="text/javascript"
    src="http://maps.google.com/maps/api/js?sensor=false"></script>
<!-- ?sensor=false means not determining location of map using a sensor-->
<script type="text/javascript">
function drawMap()
{
    var latlng = new google.maps.LatLng(37.375, -121.833);
    mapcanvas= document.getElementById("mymap");
    mapcanvas.style.height = '400px';
    mapcanvas.style.width = '600px';
    var myOptions = {
        zoom: 15,
        center: latlng,
        mapTypeControl: false,
        navigationControlOptions: {style: google.maps.NavigationControlStyle.SMALL},
        mapTypeId: google.maps.MapTypeId.ROADMAP
    };


    var map = new google.maps.Map( mapcanvas, myOptions);

    var marker = new google.maps.Marker({
        position: latlng,
        map: map,
        title:"This is a great pin!"
    });
}
</script>
</body>
</html>

Open Street Map

OSM is a data set. There are several third-party Javascript Frameworks that can be used to display data from it on a map

We will look at a open street map example (theirs) using OpenLayers

<html>
<body>
  <div id="mapdiv" style="width:400px; height:400px"></div>
  <script src="http://www.openlayers.org/api/OpenLayers.js"></script>
  <script>
    map = new OpenLayers.Map("mapdiv");
    map.addLayer(new OpenLayers.Layer.OSM());

    var lonLat = new OpenLayers.LonLat( -0.1279688 ,51.5077286 )
          .transform(
            new OpenLayers.Projection("EPSG:4326"), // transform from project used by GPS
            map.getProjectionObject() // to Spherical Mercator Projection
          );

    var zoom=16;

    var markers = new OpenLayers.Layer.Markers( "Markers" );
    map.addLayer(markers);

    markers.addMarker(new OpenLayers.Marker(lonLat));

    map.setCenter (lonLat, zoom);
  </script>
</body>
</html>

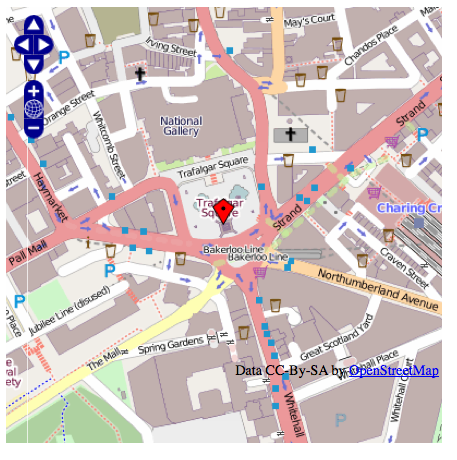

Open Street Map Screen Shot

Maps in iPhone Native

We are now going to look at how to use Maps using the iPhone's native API.
The iOS Map example we are going to describe is from the Apple website.
It was developed for iOS 7 or higher.

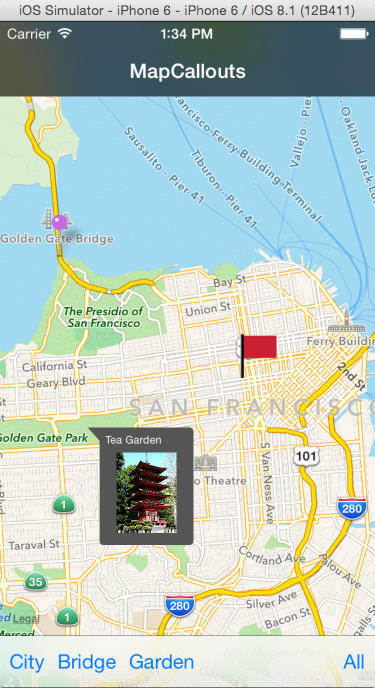

MapCallouts Screenshot

Building the App

The app makes use of the CoreLocation and MapKit Frameworks.
This app has a iPhone and a iPad storyboard associated with it. If we click on the project and look at the deployment info you can see how the storyboards are set for each platform.
We will consider StoryboardIphone.storyboard. This is created with a Navigation controller with a Navigation Bar and a toolbar
It also also has two dependent storyboard one MapViewController (our class) and another with a DetailViewController.
On the MapViewController a UIMapView and we have the city, bridge, garden and all buttons
The DetailViewController is used for a picture of the Golden Gate Bridge.

MapViewController.m

MapViewController.h is standard boiler plate, the implementation file has all the specifics:

cityAction, bridgeAction, etc, are connected to our storyboard sent actions.

Notice the two Delegate methods we write for since we implement MKMapViewDelegate.

(MKAnnotationView *)mapView:(MKMapView *)theMapView
    viewForAnnotation:(id <MKAnnotation>)annotation

draws the view when the annotations is tapped. If the view further has a callout, then

- (void)mapView:(MKMapView *)mapView annotationView:(MKAnnotationView *)view
   calloutAccessoryControlTapped:(UIControl *)control

sets it up.

#import "MapViewController.h"
#import "DetailViewController.h"

#import "SFAnnotation.h"            // annotation for the city of San Francisco
#import "BridgeAnnotation.h"        // annotation for the Golden Gate bridge
#import "CustomAnnotation.h"        // annotation for the Tea Garden

@interface MapViewController () <MKMapViewDelegate>

@property (nonatomic, weak) IBOutlet MKMapView *mapView;
@property (nonatomic, strong) NSMutableArray *mapAnnotations;
@property (nonatomic, strong) UIPopoverController *bridgePopoverController;

@end


#pragma mark -

@implementation MapViewController

- (void)gotoDefaultLocation
{
    // start off by default in San Francisco
    MKCoordinateRegion newRegion;
    newRegion.center.latitude = 37.786996;
    newRegion.center.longitude = -122.440100;
    newRegion.span.latitudeDelta = 0.112872;
    newRegion.span.longitudeDelta = 0.109863;

    [self.mapView setRegion:newRegion animated:YES];
}

- (void)viewWillAppear:(BOOL)animated
{
    [super viewWillAppear:animated];

    // restore the nav bar to translucent
    self.navigationController.navigationBar.barStyle = UIBarStyleBlackTranslucent;
}

- (void)viewDidLoad
{
    [super viewDidLoad];

    // create a custom navigation bar button and set it to always says "Back"
	UIBarButtonItem *temporaryBarButtonItem = [[UIBarButtonItem alloc] init];
	temporaryBarButtonItem.title = @"Back";
	self.navigationItem.backBarButtonItem = temporaryBarButtonItem;

    // create out annotations array (in this example only 3)
    self.mapAnnotations = [[NSMutableArray alloc] initWithCapacity:2];

    // annotation for the City of San Francisco
    SFAnnotation *sfAnnotation = [[SFAnnotation alloc] init];
    [self.mapAnnotations addObject:sfAnnotation];

    // annotation for Golden Gate Bridge
    BridgeAnnotation *bridgeAnnotation = [[BridgeAnnotation alloc] init];
    [self.mapAnnotations addObject:bridgeAnnotation];

    // annotation for Japanese Tea Garden
    CustomAnnotation *item = [[CustomAnnotation alloc] init];
    item.place = @"Tea Garden";
    item.imageName = @"teagarden";
    item.coordinate = CLLocationCoordinate2DMake(37.770, -122.4709);

    [self.mapAnnotations addObject:item];

    [self allAction:self];  // initially show all annotations
}


#pragma mark - Button Actions

- (void)gotoByAnnotationClass:(Class)annotationClass
{
    // user tapped "City" button in the bottom toolbar
    for (id annotation in self.mapAnnotations)
    {
        if ([annotation isKindOfClass:annotationClass])
        {
            // remove any annotations that exist
            [self.mapView removeAnnotations:self.mapView.annotations];
            // add just the city annotation
            [self.mapView addAnnotation:annotation];

            [self gotoDefaultLocation];
        }
    }
}

- (IBAction)cityAction:(id)sender
{
    [self gotoByAnnotationClass:[SFAnnotation class]];
}

- (IBAction)bridgeAction:(id)sender
{
    // user tapped "Bridge" button in the bottom toolbar
    [self gotoByAnnotationClass:[BridgeAnnotation class]];
}

- (IBAction)teaGardenAction:(id)sender
{
    // user tapped "Tea Gardon" button in the bottom toolbar
    [self gotoByAnnotationClass:[CustomAnnotation class]];
}

- (IBAction)allAction:(id)sender
{
    // user tapped "All" button in the bottom toolbar

    // remove any annotations that exist
    [self.mapView removeAnnotations:self.mapView.annotations];

    // add all 3 annotations
    [self.mapView addAnnotations:self.mapAnnotations];

    [self gotoDefaultLocation];
}


#pragma mark - MKMapViewDelegate

// user tapped the disclosure button in the bridge callout
//
- (void)mapView:(MKMapView *)mapView annotationView:(MKAnnotationView *)view
    calloutAccessoryControlTapped:(UIControl *)control
{
    // here we illustrate how to detect which annotation type was clicked on for its callout
    id <MKAnnotation> annotation = [view annotation];
    if ([annotation isKindOfClass:[BridgeAnnotation class]])
    {
        NSLog(@"clicked Golden Gate Bridge annotation");

        DetailViewController *detailViewController = [[self storyboard]
           instantiateViewControllerWithIdentifier:@"DetailViewController"];
        if ([[UIDevice currentDevice] userInterfaceIdiom] == UIUserInterfaceIdiomPad)
        {
            // for iPad, we use a popover
            if (self.bridgePopoverController == nil)
            {
                _bridgePopoverController = [[UIPopoverController alloc]
                   initWithContentViewController:detailViewController];
            }
            [self.bridgePopoverController presentPopoverFromRect:control.bounds
                                                          inView:control
                                        permittedArrowDirections:UIPopoverArrowDirectionLeft
                                                        animated:YES];
        }
        else
        {
            // for iPhone we navigate to a detail view controller using UINavigationController
            [self.navigationController pushViewController:detailViewController animated:YES];
        }
    }
}

- (MKAnnotationView *)mapView:(MKMapView *)theMapView viewForAnnotation:(id <MKAnnotation>)annotation
{
    MKAnnotationView *returnedAnnotationView = nil;

    // in case it's the user location, we already have an annotation, so just return nil
    if (![annotation isKindOfClass:[MKUserLocation class]])
    {
        // handle our three custom annotations
        //
        if ([annotation isKindOfClass:[BridgeAnnotation class]]) // for Golden Gate Bridge
        {
            returnedAnnotationView = [BridgeAnnotation createViewAnnotationForMapView:self.mapView annotation:annotation];

            // add a detail disclosure button to the callout which will open a new view controller page or a popover
            //
            // note: when the detail disclosure button is tapped, we respond to it via:
            //       calloutAccessoryControlTapped delegate method
            //
            // by using "calloutAccessoryControlTapped", it's a convenient way to find out which annotation was tapped
            //
            UIButton *rightButton = [UIButton buttonWithType:UIButtonTypeDetailDisclosure];
            [rightButton addTarget:nil action:nil forControlEvents:UIControlEventTouchUpInside];
            ((MKPinAnnotationView *)returnedAnnotationView).rightCalloutAccessoryView = rightButton;
        }
        else if ([annotation isKindOfClass:[SFAnnotation class]])   // for City of San Francisco
        {
            returnedAnnotationView = [SFAnnotation createViewAnnotationForMapView:self.mapView annotation:annotation];

            // provide the annotation view's image
            returnedAnnotationView.image = [UIImage imageNamed:@"flag.png"];

            // provide the left image icon for the annotation
            UIImageView *sfIconView = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"SFIcon.png"]];
            returnedAnnotationView.leftCalloutAccessoryView = sfIconView;
        }
        else if ([annotation isKindOfClass:[CustomAnnotation class]])  // for Japanese Tea Garden
        {
            returnedAnnotationView = [CustomAnnotation createViewAnnotationForMapView:self.mapView
                annotation:annotation];
        }
    }

    return returnedAnnotationView;
}

@end

DetailViewController

DetailViewController.h is boilerplate, the implementation file loads the image of the Golden Gate breidge and draw its on the screen.

#import "DetailViewController.h"

@implementation DetailViewController

- (void)viewDidLoad
{
    [super viewDidLoad];

    // fit the our popover size to match our image size
    UIImageView *imageView = (UIImageView *)self.view;

    // this will determine the appropriate size of our popover
    self.preferredContentSize = CGSizeMake(imageView.image.size.width, imageView.image.size.height);
    self.title = @"Golden Gate";

    // for this view controller we want a black style nav bar
    self.navigationController.navigationBar.barStyle = UIBarStyleBlack;
}

@end

SF Annotation

To control the text next to our pins we use Annotations. For San Francisco the header looks like:

@interface SFAnnotation : NSObject

+ (MKAnnotationView *)createViewAnnotationForMapView:(MKMapView *)mapView
       annotation:(id )annotation;
@end

The implementation looks like:

#import "SFAnnotation.h"

@implementation SFAnnotation

- (CLLocationCoordinate2D)coordinate
{
    CLLocationCoordinate2D theCoordinate;
    theCoordinate.latitude = 37.786996;
    theCoordinate.longitude = -122.419281;
    return theCoordinate;
}

- (NSString *)title
{
    return @"San Francisco";
}

// optional
- (NSString *)subtitle
{
    return @"Founded: June 29, 1776";
}

+ (MKAnnotationView *)createViewAnnotationForMapView:(MKMapView *)mapView annotation:(id )annotation
{
    MKAnnotationView *returnedAnnotationView =
        [mapView dequeueReusableAnnotationViewWithIdentifier:NSStringFromClass([SFAnnotation class])];
    if (returnedAnnotationView == nil)
    {
        returnedAnnotationView =
            [[MKAnnotationView alloc] initWithAnnotation:annotation
                                         reuseIdentifier:NSStringFromClass([SFAnnotation class])];

        returnedAnnotationView.canShowCallout = YES;

        // offset the flag annotation so that the flag pole rests on the map coordinate
        returnedAnnotationView.centerOffset = CGPointMake( returnedAnnotationView.centerOffset.x +
           returnedAnnotationView.image.size.width/2, returnedAnnotationView.centerOffset.y - returnedAnnotationView.image.size.height/2 );
    }
    else
    {
        returnedAnnotationView.annotation = annotation;
    }
    return returnedAnnotationView;
}

@end

Bridge Annotation

The header looks like:

#import <MapKit/MapKit.h>

@interface BridgeAnnotation : NSObject

+ (MKAnnotationView *)createViewAnnotationForMapView:(MKMapView *)mapView
     annotation:(id )annotation;
@end

The implementation looks like:

#import "BridgeAnnotation.h"

@implementation BridgeAnnotation

- (CLLocationCoordinate2D)coordinate
{
    CLLocationCoordinate2D theCoordinate;
    theCoordinate.latitude = 37.810000;
    theCoordinate.longitude = -122.477450;
    return theCoordinate;
}

// required if you set the MKPinAnnotationView's "canShowCallout" property to YES
- (NSString *)title
{
    return @"Golden Gate Bridge";
}

// optional
- (NSString *)subtitle
{
    return @"Opened: May 27, 1937";
}

+ (MKAnnotationView *)createViewAnnotationForMapView:(MKMapView *)mapView annotation:(id )annotation
{
    // try to dequeue an existing pin view first
    MKAnnotationView *returnedAnnotationView =
        [mapView dequeueReusableAnnotationViewWithIdentifier:NSStringFromClass([BridgeAnnotation class])];
    if (returnedAnnotationView == nil)
    {
        returnedAnnotationView =
            [[MKPinAnnotationView alloc] initWithAnnotation:annotation
                                            reuseIdentifier:NSStringFromClass([BridgeAnnotation class])];

        ((MKPinAnnotationView *)returnedAnnotationView).pinColor = MKPinAnnotationColorPurple;
        ((MKPinAnnotationView *)returnedAnnotationView).animatesDrop = YES;
        ((MKPinAnnotationView *)returnedAnnotationView).canShowCallout = YES;
    }

    return returnedAnnotationView;
}

@end
