Outline

• Multilevel Security
• HW Problem
• Compartments
• Covert Channels
• Inference Control

Multilevel Security (MLS)

• Last day, we concluded with clearances and classification; today, we look at multi-level security in more detail.
• MLS is needed when subjects/objects at different levels use/on same system
• MLS is a form of Access Control
• Military and government have been interested in MLS for many decades
  • Lots of research into MLS
  • Strengths and weaknesses of MLS well understood (almost entirely theoretical)
  • Many possible uses of MLS outside military

MLS Applications

• Classified government/military systems
• Business example: Might want to restrict info to: Senior management only, all management, everyone in company, or general public
• Network firewall
• Confidential medical info, databases, etc.
• Usually, MLS not a viable technical system -- More of a legal device than technical system

MLS Security Models

• MLS models explain what needs to be done
• Models do not tell you how to implement
• Models are descriptive, not prescriptive -- That is, high level description, not an algorithm
• There are many MLS models
• We'll discuss the simplest MLS models
  • Other models are more realistic
  • Other models also more complex, more difficult to enforce, harder to verify, etc.

HW Problem

Problem 7.37 Using the info provided with this problem...

(a). Use equation 7.1 to compute the distance: `d(\A\l\i\c\e, \B\o\b)`, `d(\A\l\i\c\e, \C\h\a\r\l\i\e)`, `d(\B\o\b, \C\h\a\r\l\i\e)`.

(b). Assuming the same statistics apply to the shortened iris codes as to normal-lengthed ones, which of the users U,V,W,X,Y is most likely Alice? Bob? Charlie? None of the above?

Answer. To solve this problem, I wrote the following PHP script to dompute all the distances:

<?php
//php in xampp is 32 bit
$c['alice'][0]=  0xbe439ad5; // high order half
$c['alice'][1]=  0x98ef5147; // low order half
$c['bob'][0] =   0x9c8b7a14;
$c['bob'][1] =   0x25369584;
$c['charlie'][0]=0x88552233;
$c['charlie'][1]=0x6699ccbb;

$c['u'][0] =     0xc975a213;
$c['u'][1] =     0x2e89ceaf;
$c['v'][0] =     0xdb9a8675;
$c['v'][1] =     0x342fec15;
$c['w'][0] =     0xa6039ad5;
$c['w'][1] =     0xf8cfd965;
$c['x'][0] =     0x1dca7a54;
$c['x'][1] =     0x273497cc;
$c['y'][0] =     0xaf8b6c7d;
$c['y'][1] =     0x5e3f0f9a;

foreach($c as $first_pair => $first_iris_code) {
    foreach($c as $last_pair => $last_iris_code) {
        echo "d($first_pair, $last_pair) = " .
            iris_distance($first_iris_code, $last_iris_code)."\n";
    }
}

function iris_distance($code1, $code2)
{

    $score = 0;
    for($k = 0; $k < 2; $k++) {
        for($i = 0; $i< 32; $i++) {
            if (($code1[$k] & 1) != ($code2[$k] & 1)) {
                $score++;
            }
            $code1[$k] = floor($code1[$k]/2);
            $code2[$k] = floor($code2[$k]/2);
        }
    }
    return $score/64;
}
?>

Using this `d(\A\l\i\c\e, \B\o\b) = 0.453125`, `d(\A\l\i\c\e, \C\h\a\r\l\i\e) = 0.609375`, and `d(\B\o\b, \C\h\a\r\l\i\e) = 0.53125`, answering (a). For (b), `d(u, \C\h\a\r\l\i\e) = 0.171875` so is Charlie, `v` had a score bigger than 0.32 in each case so was no one, `d(w, \A\l\i\c\e) = 0.15625` so `w` is alice, `d(x, \B\o\b) = 0.15625` so `x` is Bob, and `y` did not correspond to anyone.

Bell-LaPadula

• The BLP security model designed to express the essential requirements for MLS
• BLP deals with confidentiality -- to prevent unauthorized reading
• Recall that O is an object, S a subject
  • Object O has a classification
  • Subject S has a clearance
  • Security level denoted L(O) and L(S)

Bell-LaPadula Idea

• BLP consists of:
  • Simple Security Condition: S can read O if and only if `L(O) le L(S)`
  • *-Property (Star Property): S can write O if and only if `L(S) le L(O)`
• No read up, no write down

McLeans Criticisms of BLP

• McLean: BLP is "so trivial that it is hard to imagine a realistic security model for which it does not hold"
• McLean's "system Z" allowed administrator to reclassify object, then "write down"
• Is this fair?
• Violates spirit of BLP, but not expressly forbidden in statement of BLP
• Raises fundamental questions about the nature of (and limits of) modeling

B and LPs Response

• BLP enhanced with tranquility property
  • Strong tranquility: security labels never change
  • Weak tranquility: security label can only change if it does not violate "established security policy"
• Strong tranquility impractical in real world
  • Often want to enforce "least privilege"
  • Give users lowest privilege for current work
  • Then upgrade as needed (and allowed by policy)
  • This is known as the high water mark principle
• Weak tranquility allows for least privilege (high water mark), but the property is vague

BLP: The Bottom Line

• BLP is simple, probably too simple
• BLP is one of the few security models that can be used to prove things about systems
• BLP has inspired other security models
  • Most other models try to be more realistic
  • Other security models are more complex
  • Models difficult to analyze, apply in practice

Biba's Model

• BLP for confidentiality, Biba for integrity -- Biba is to prevent unauthorized writing
• Biba is (in a sense) the dual of BLP
• Integrity model
  • Suppose you trust the integrity of O1 but not O2
  • If object O3 includes O1 and O2 then you cannot trust the integrity of O3
• Integrity level of `O` is minimum of the integrity of any object in `O`
• Low water mark principle for integrity

Biba

• Biba can be stated as:
  • Write Access Rule: `S` can write `O` if and only if `I(O) le I(S)`
    (if `S` writes `O`, the integrity of `O` less than that of `S`)
  • Biba's Model: `S` can read `O` if and only if
    `I(S) le I(O)`
    (if `S` reads `O`, the integrity of `S` less than that of `O`)
• Often, replace Biba's Model with
  Low Water Mark Policy: If `S` reads `O`, then
  `I(S) = min(I(S), I(O))`.

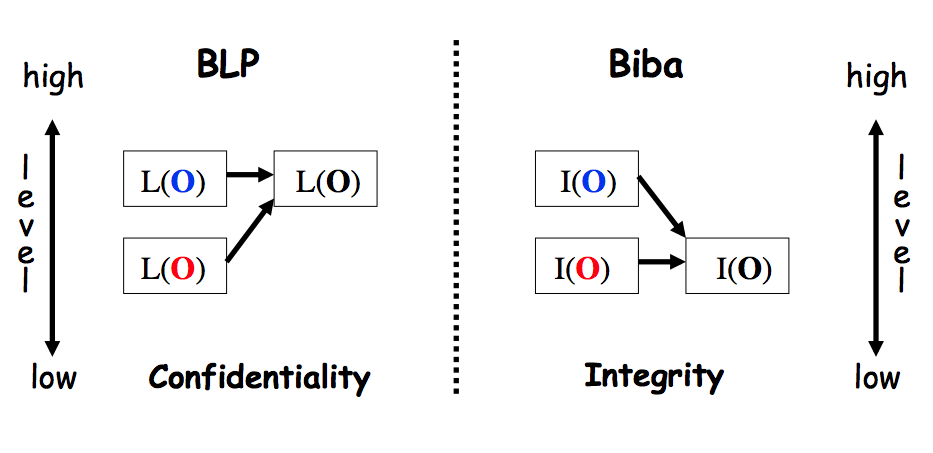

BLP versus Biba

Compartments

• Multilevel Security (MLS) enforces access control up and down
• Simple hierarchy of security labels is generally not flexible enough
• Compartments enforces restrictions across
• Suppose TOP SECRET divided into TOP SECRET {CAT} and TOP SECRET {DOG}
• Both are TOP SECRET but information flow restricted across the TOP SECRET level

More Compartments

• Why compartments? Why not create a new classification level?
• May not want either of
  TOP SECRET {CAT} `le` TOP SECRET {DOG}
  TOP SECRET {DOG} `le` TOP SECRET {CAT}
• Compartments designed to enforce the need to know principle -- Regardless of clearance, you only have access to info that you need to know to do your job

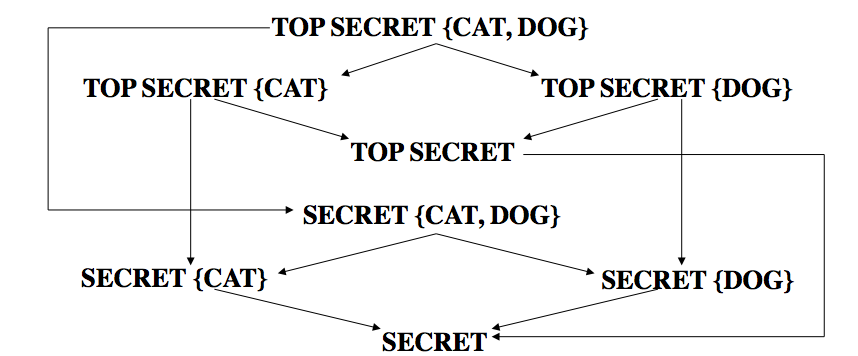

Example Compartments

• Arrows indicate "`ge`" relationship
• Not all classifications are comparable, e.g., TOP SECRET {CAT} vs SECRET {CAT, DOG}

MLS vs Compartments

• MLS can be used without compartments. And vice-versa
• But, MLS almost always uses compartments
• Example
  • MLS mandated for protecting medical records of British Medical Association (BMA)
  • AIDS was TOP SECRET, prescriptions SECRET
  • What is the classification of an AIDS drug?
  • Everything tends toward TOP SECRET
  • Defeats the purpose of the system!
  • Compartments-only approach used instead

Covert Channel

• MLS designed to restrict legitimate channels of communication
• May be other ways for information to flow
• For example, resources shared at different levels could be used to "signal" information
• Covert channel: a communication path not intended as such by system's designers

Covert Channel Example

• Alice has TOP SECRET clearance, Bob has CONFIDENTIAL clearance
• Suppose the file space shared by all users
• Alice creates file FileXYzW to signal "1" to Bob, and removes file to signal "0"
• Once per minute Bob lists the files
  • If the file FileXYzW does not exist, Alice sent 0
  • If the file FileXYzW exists, Alice sent 1
• Alice can leak TOP SECRET info to Bob!

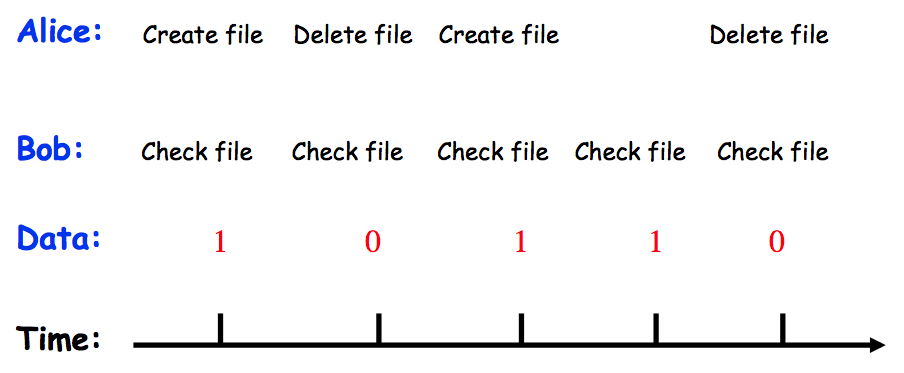

Covert Channel Example

More Covert Channels

• Other possible covert channels?
  • Print queue
  • ACK messages
  • Network traffic, etc.
• When does covert channel exist?
  • Sender and receiver have a shared resource
  • Sender able to vary some property of resource that receiver can observe
  • "Communication" between sender and receiver can be synchronized

Covert Channel Pervasiveness

• So, covert channels are everywhere
• "Easy" to eliminate covert channels:
  • Eliminate all shared resources...
  • ...and all communication
• Virtually impossible to eliminate covert channels in any useful system
  • DoD guidelines: reduce covert channel capacity to no more than 1 bit/second
  • Implication? DoD has given up on eliminating covert channels!

Covert Channel Data Rate

• Consider 100MB TOP SECRET file
  • Plaintext stored in TOP SECRET location
  • Ciphertext (encrypted with AES using 256-bit key) stored in UNCLASSIFIED location
• Suppose we reduce covert channel capacity to 1 bit per second
• It would take more than 25 years to leak entire document through a covert channel
• But it would take less than 5 minutes to leak 256-bit AES key thru covert channel!

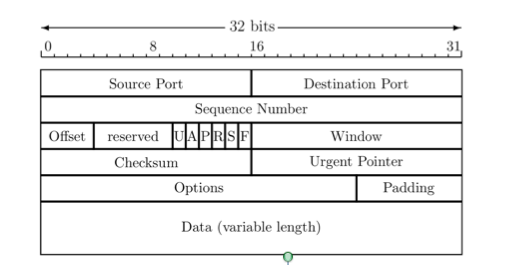

Real-World Covert Channel

• Hide data in TCP header reserved field
• Or use covert_TCP, tool to hide data in
  • Sequence number
  • ACK number

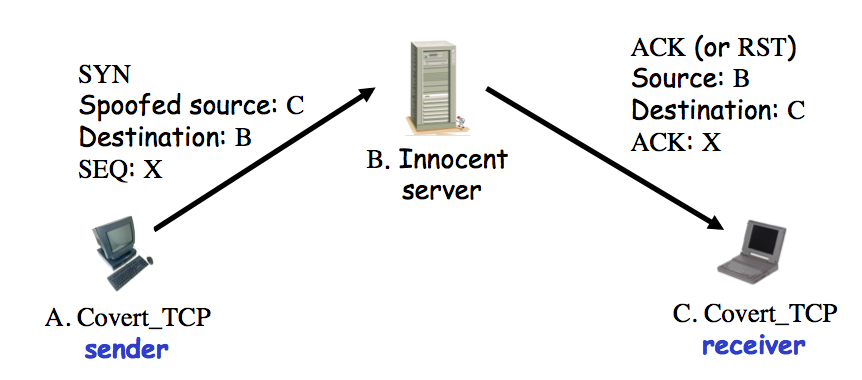

Real-World Covert Channel

• Hide data in TCP sequence numbers
• Tool: covert_TCP
• Sequence number X contains covert info

Inference Control Example

• Suppose we query a database
• Question: What is average salary of female CS professors at SJSU?
• Answer: $95,000
• Question: How many female CS professors at SJSU?
• Answer: 1
• Specific information has leaked from responses to general questions!

Inference Control and Research

• For example, medical records are private but valuable for research
• How to make info available for research and protect privacy?
• How to allow access to such data without leaking specific information?

Naive Inference Control

• Remove names from medical records?
• Still may be easy to get specific info from such anonymous data
• Removing names is not enough -- As seen in previous example
• What more can be done?

Less-naive Inference Control

• Query set size control -- Don't return an answer if set size is too small
• N-respondent, k% dominance rule
  • Do not release statistic if k% or more contributed by N or fewer
  • Example: Avg salary in Bill Gates' neighborhood
  • This approach used by US Census Bureau
• Randomization -- Add small amount of random noise to data
• Many other methods -- none satisfactory
