Authorization

CS166

Chris Pollett

Oct 22, 2012

Outline

History
Quiz
Access Control Matrix

Authentication vs Authorization

Today, we are going to start talking about Authorization (Chapter 8)
Let's briefly review Authentication vs Authorization.
Authentication -- Are you who you say you are? This deals with restrictions on who (or what) can access system
Authorization -- Are you allowed to do that? This deals with restrictions on actions of authenticated users
Authorization is a form of access control
To start talking about authorization, we first look at system certification...

System Certification

System Certification are government attempt to certify "security level" of products
Studying it will give us some idea of the history of authorization
System certification is still required today if you want to sell your product to the government.

Orange Book

Trusted Computing System Evaluation Criteria (TCSEC), 1983

Universally known as the "orange book"
Name is due to color of it's cover
About 115 pages
Developed by DoD (NSA)
Part of the "rainbow series" of NSA books

Orange book generated a pseudo-religious fervor among some people
Less and less intensity as time goes by

Orange Book Outline

Goals
- Provide way to assess security products
- Provide guidance on how to build more secure products
Four divisions labeled D thru A -- D is lowest, A is highest
Divisions split into numbered classes

D and C Divisions

D -- minimal protection. i.e., Losers that can't get into higher division
C -- discretionary protection, i.e., don't force security on users, have means to detect breaches (audit)
- C1 -- discretionary security protection
- C2 -- controlled access protection
- C2 slightly stronger than C1 (both vague)

B Division

B -- mandatory protection
B is a huge step up from C
- In C, can break security, but get caught
- In B, "mandatory" means can't break it
B1 -- labeled security protection
- All data labeled, which restricts what can be done with it
- This access control cannot be violated

B and A Divisions

B2 -- structured protection. Adds covert channel protection onto B1
B3 -- security domains. On top of B2 protection, adds that code must be tamperproof and "small"
A -- verified protection. Like B3, but proved using formal methods. Such methods still impractical (usually)

Orange Book: Last Word

The book has a 2nd part which discusses rationale
It attempts to provide specific guidance on how to meet the requirements.

Quiz

Which of the following is true?

Dictionary attacks are not much of a threat if the password file is copied -- provided passwords are hashed and salts are used.
The Equal Error Rate of a biometric is when the insult rate equals the fraud rate.
A CSRF attack is an attack against password generators.

Common Criteria

Successor to the orange book (ca. 1998)
More than 1000 pages
An international government standard. And it reads like it... Won't ever stir same passions as orange book
CC is relevant in practice, but only if you want to sell to the government
CC uses Evaluation Assurance Levels (EALs) 1 thru 7, from lowest to highest security

EAL

Note: product with high EAL may not be more secure than one with lower EAL. Why?
Also, because product has EAL doesnt mean its better than the competition. Why?

EAL 1 thru 7

EAL1 -- functionally tested
EAL2 -- structurally tested
EAL3 -- methodically tested, checked
EAL4 -- designed, tested, reviewed
EAL5 -- semiformally designed, tested
EAL6 -- semiformally verified design and tested
EAL7 -- formally verified design and tested

Common Criteria

EAL4 is most commonly sought
Minimum needed to sell to government
EAL7 requires formal proofs
Not many such product...
Who performs evaluations?
Government accredited labs, of course
For a hefty fee (like, at least 6 figures)

Classic Authorization

Classic authorization enforced by

Access Control Lists (ACLs)
Capabilities (C-lists)

Lampson's Access Control Matrix

Subjects (users) index the rows
Objects (resources) index the columns
Entries say what subject is allowed to do with that resource

Are You Allowed to Do That?

Could be 1000's of users, 1000's of resources
Then matrix with 1,000,000s of entries
How to manage such a large matrix?
Need to check this matrix before access to any resource is allowed
How to make this efficient?

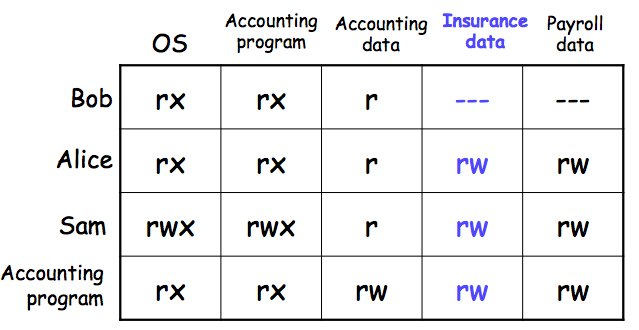

Access Control Lists (ACLs)

ACL: store access control matrix by column
Example: ACL for insurance data is in blue

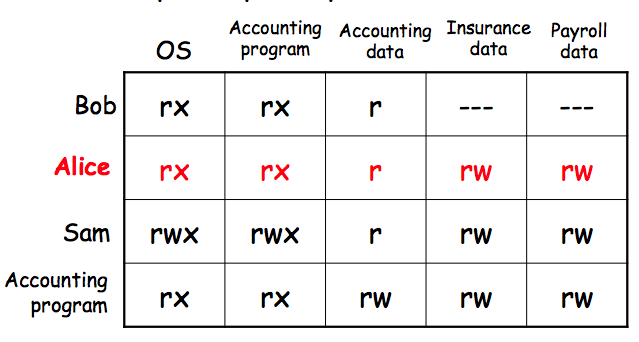

Capabilities (or C-Lists)

Store access control matrix by row
Example: Capability for Alice is in red

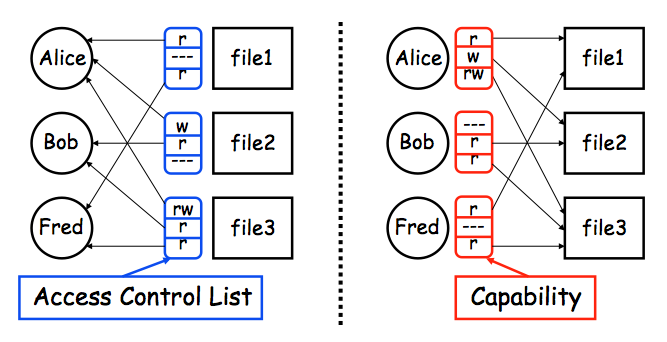

ACLs vs Capabilities

Note that arrows point in opposite directions...
With ACLs, still need to associate users to files

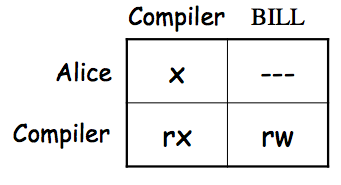

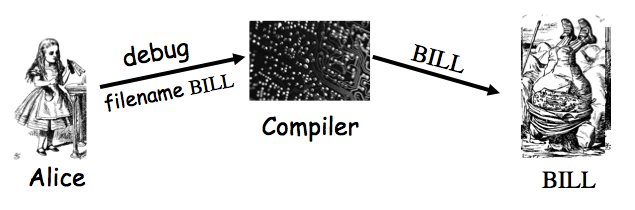

Confused Deputy

Two resources -- Compiler and BILL file (billing info)
Compiler can write file BILL
Alice can invoke compiler with a debug filename
Alice not allowed to write to BILL

ACL's and Confused Deputy

Compiler is deputy acting on behalf of Alice
Compiler is confused -- Alice is not allowed to write BILL
Compiler has confused its rights with Alice's

Confused Deputy

Compiler acting for Alice is confused
There has been a separation of authority from the purpose for which it is used
With ACLs, difficult to avoid this problem
With Capabilities, easier to prevent problem
- Must maintain association between authority and intended purpose. i.e., Alice gives her C-list to compiler
- Capabilities make it easy to delegate authority. Compiler can then use Alice's capabilities when figuring if can compile, write debug files, etc.

ACLs vs Capabilities

ACLs
- Good when users manage their own files
- Protection is data-oriented
- Easy to change rights to a resource
Capabilities
- Easy to delegate---avoid the confused deputy
- Easy to add/delete users
- More difficult to implement
Capabilities loved by academics - Capability Myths Demolished

Classifications and Clearances

We are now going to start looking at Multilevel Security (MLS) Models.

Classifications apply to objects
Clearances apply to subjects
US Department of Defense (DoD) uses 4 levels:
- TOP SECRET
- SECRET
- CONFIDENTIAL
- UNCLASSIFIED

Clearances and Classification

To obtain a SECRET clearance requires a routine background check
A TOP SECRET clearance requires extensive background check
Practical classification problems
- Proper classification not always clear
- Level of granularity to apply classifications
- Aggregation -- flipside of granularity

Subjects and Objects

Let O be an object, S a subject
- O has a classification
- S has a clearance
- Security level denoted L(O) and L(S)

For DoD levels, we have

TOP SECRET > SECRET >
CONFIDENTIAL > UNCLASSIFIED
