Outline

• Distributed Query Processing
• Quiz
• Distributed Commits

Introduction

• Last week, we began talk about parallel and distributed databases.
• We said one of the key differences between these systems is whether we think communication cost will play or won't play a significant amount in data processing on multiple machines.
• After talking about different kinds of parallel DB architectures (shared memory, shared disk, shared nothing), we said how to implement tuple at a time and full relation, relational algebra operations in the parallel shared nothing set-up.
• We then talked about the map reduce model of parallelism.
• Finally, we started talking about distributed databases.
• We gave three example situation where we might have a distributed database set-up: a bank, a department store chain, and a digital library.
• Today, we begin by looking at how transaction processing needs to be modified in a distributed database setting.

Distributed Query Processing

• We have already said how to do query processing in the parallel shared nothing architecture setting.
• Recall one step in computing a join was for each machine to send each of the other machines, its fraction of the join. If the network is relatively low-capacity this might be very slow.
• To fix a simple example suppose we want to compute $R(X,Y) \bowtie S(Y, Z)$.
• A naive way to compute the join might be:
  1. Determine who has the smaller table.
  2. Send a copy of the smaller table to the other site, then compute the join there.
• Ideally, we'd like to send only the relevant part of the query to the other site.

Semi-join Reductions

• Assume `R` is the smaller table
• To facilitate only sending data needed to compute the join, we introduce the notion of a semi-join, $R \ltimes S := R \bowtie (\pi_Y(S))$.
• Notice the project of `\pi_Y(S)` will return precisely those values of `Y` which might join with $R$ in $R(X,Y) \bowtie S(Y, Z)$.

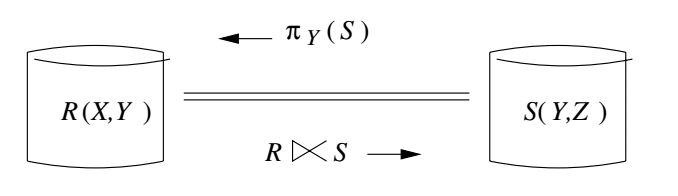

• To minimize the communication between the two sites, we can then do the following steps to compute the join:
  1. The machine with `S` computes `\pi_Y(S)` sends it the machine with `R`.
  2. The machine with `R` computes $R \ltimes S$ sends it to the machine with `S`.
  3. The machine with `S` uses $R \ltimes S$ to compute $R(X,Y) \bowtie S(Y, Z)$.

• For this to be an improvement over the naive algorithm, it should be the case that $R \ltimes S$ is smaller than `R`.
• That is, `R` contains many tuples which are dangling (don't join with `S`).
• In the case of joins of many relations, it becomes important to identify which semi-joins to compute and in what order. The book gives algorithms for this that we will skip.
• Hopefully, though, the above example gives a flavor of how query processing might change in the distributed setting.

Quiz

Which of the following statements is true?

1. Using strict 2PL will guarantee recoverable schedules.
2. If a schedule avoids cascading rollbacks it could always have been generated by using strict 2PL.
3. In distributed databases we treat the cost of communication between databases on different machines as negligible.

Distributed Commit

• A distributed transaction might have component that live at a variety of sites.
• Nevertheless, we want our transactions to operate atomically and serializably.
• For example, consider the department store chain setting.
• Suppose we want to find the inventory of toothbrushes at each, and issue instructions to move toothbrushes from store to store in order to balance inventory.
• This operation could be coordinated by a single global transaction `T` that has components `T_i` at the `i`th store and component `T_0` at the office where the manager is.
• T might do:
  1. Create `T_0` at manager site.
  2. For store `i`, have `T_0` send message to Store `i` to create `T_i`.
  3. Each `T_i` executes a query to compute the number of toothbrushes at Store `i` and sends the result back to `T_0`.
  4. `T_0` computes what shipments of toothbrushes are desired. `T_0` sends messages to the stores of the form: "Store i send X toothbrushes to Store j".
  5. Stores receive messages, update their inventory and perform shipments.

What Might Go Wrong

• Atomicity of `T` could get broken if some of its actions get executed but not others.
• We will assume that each site has logging and recovery for its database.
• This assures that each `T_i` will execute atomically, but not that the whole transaction will.
• Suppose a bug in the distribution algorithm tells Store 10 to send out more toothbrushes then it has. This cause `T_10` to abort. On the other hand, `T_7` never detects a problem for its portion of the transaction so commits.
• So the whole transaction won't have executed atomically and the database will be in an inconsistent state.
• Another source of problems is one of the sites might go down while the transaction is in progress.
• This might affect whether the transaction can ever commit and it also leads to the question of what should the machine do when it comes back alive?

Two Phase Commit - Prerequisites

• One of the building blocks that is used to solve the problems we just raised is the two phase commit protocol. (This is something entirely different than two-phase locking)
• The two phase commit protocol needs the following prerequisites:
  • Each site needs to log actions for that site. There is no global log.
  • One site, called the coordinator, gets to determine if the transaction has committed or not. (In our previous example, this could be `T_0`.)
  • When messages are sent, the sender logs the message that was sent to aid in recovery if necessary.

Two Phase Commit - Phase 1

• During this phase, the coordinator decides when to attempt to commit or abort transaction `T`. If the coordinator is running `T_0` then this should be after `T_0` is ready to commit or abort.
• To make this decision the coordinator and other sites do the following:
  1. The coordinator places a log record `langle Prepare\ T rangle` on the log at its site.
  2. The coordinator sends to each component's site, the message prepare T.
  3. Each site receiving this message, decides whether to commit or abort its `T_i`. The site is allowed to delay if it is not yet done, but must eventually respond.
  4. A site that wants to commit, enters a precommitted state. In this state, it is not allowed to abort unless it gets a message from the coordinator saying it can abort. Becoming precommitted involves:
     1. Ensuring all actions of `T_i` are done and their log records have been written, so they would be redone in recovery.
     2. `langle Ready\ T rangle` has been written to the log.
     3. A message ready T is sent to the coordinator.
  5. If a transaction doesn't want to commit, it writes `langle Don't\ commit\ T rangle` to its log and sends don't commit T to the coordinator. At that point it aborts the transaction.

Two Phase Commit - Phase 2

• Once each site has sent its ready T or don't commit T messages to the coordinator Phase 2 can begin.
• If a message isn't received by the coordinator within some time out period, it is treated as a don't commit message.
• To complete the transaction, the following operations are done in Phase 2:
  1. If the coordinator receives ready T from all of the components, then it decides to commit `T`. It logs `langle Commit\ T rangle` at its site and sends a commit T message to all the other sites.
  2. If the coordinator receives any don't commit T from any of the components, then it logs `langle A\b\o\rt\ T rangle` at its site and sends a abort T message to all the other sites.
  3. If a site receives a commit T message, it commits the component of `T` at its site by writing a `langle Commit\ T rangle`.
  4. If a site receives an abort T message, it aborts the component of `T` at its site by writing a `langle A\b\o\rt\ T rangle`.

Two Phase Commit - Recovery

• If a databases needs to be restarted in our two phase commit setting, then we can do the following to restore our copy of the database to a consistent state:
  • If we see for a transaction `T` a commit record in the log, then we redo it (we're assuming either redo or undo/redo logging).
  • If we see for a transaction `T` a ready record in the log, without a later commit or abort, then we redo it.
  • If we see for a transaction `T` a don't commit or an abort, we undo its actions on the database.
