Introduction

Last week, we were talking about problem solving agents and then uninformed search strategies.
Depth-first search, breadth-first search, and uniform cost search were examples of uninformed strategies because they do not make use of knowledge about the goal state in performing the search.
We then talked about iterative deepening depth first search as a way to combine the memory efficiency of DFS with the completeness and optimality of BFS.
We begin today by looking at two informed search strategies Greedy Best First Search and the `A^\star`-algorithm...

Informed Search Strategies

We now want to consider search strategies where one has problem specific knowledge.
Here the node we select for expansion is chosen according to some evaluation function `f(n)`.
In a Best-First-Search we assume `f(n)` is a cost and always expands node for which `f(n)` is smallest.
The question is how to choose `f`?
A key component of `f` is usually some heuristic function, `h(n)` where this is an estimate of the cost from a given node `n` to the goal.

Example Heuristic Functions

In a maze game, `h(n)` might be straight line distance (straight line mathematical distance from current position to the goal)
Or it could be the Manhattan distance, (the distance to the goal using horizontal and vertical line segments of a given length).
As an example, we could use the sum of the straight-line distance of each square from its ideal location as our heuristic with the 8-puzzle.
Greedy Best First Search (GBFS) chooses for its next node to expand the node of smallest cost according to this heuristic.
It is memory efficient in that it does not remember where it has been.

`A^star`-search

The problem with Greedy Best First Search is that it is not complete. You can end up going back and forth between two states.
In 1968, Peter Hart, Nils Nilsson and Bertram Raphael of SRI came up with a different choice of `f` to solve this problem.
Their algorithm is called`A^star` search.
They define `f(n)` to be `c(n)+h(n)` where `c(n)` is cost from the root node to the current node.
They came up with this while devising a sequence of algorithms A1, A2, etc based-on Dijkstra's algorithm (1956) to help Shakey the Robot navigate a room filled with obstacles.

`A^\star`-algorithm

Recall in informed search we have a fitness function `f` which says how good a current state is.
For the Greedy algorithm, `f = h`, where `h` is a heuristic function estimating the cost to a solution; for `A^\star`, `f = c + h`, where `h` is as in the Greedy Algorithm and `c` was the cost to get to the current state from the initial state.
The pseudo-code for the `A^\star`-algorithm looks like what you would do for uniform cost search:

function A-STAR-SEARCH(problem) returns a solution, or failure
    node := a node with STATE = problem.INITIAL-STATE, PATH-COST = 0,
        H-COST = heuristic's cost to solution
    frontier := a priority queue ordered by f=c+h, with node as
        the only element
    explored := an empty set
    loop do
        if EMPTY?(frontier) then return failure
        node := POP(frontier) /* lowest f=c+h-value in frontier
            since priority-queue */
        if problem.GOAL-TEST(node.STATE) then return SOLUTION(node)
        add node.STATE to explored
        for each action in problem.ACTIONS(node.STATE) do
            child := CHILD-NODE(problem, node, action)
            if child.STATE is not in explored or frontier then
                frontier := INSERT(child, frontier)
            else if child.STATE is in frontier with higher f value
                replace that frontier node with child

`A^star`-Example Map

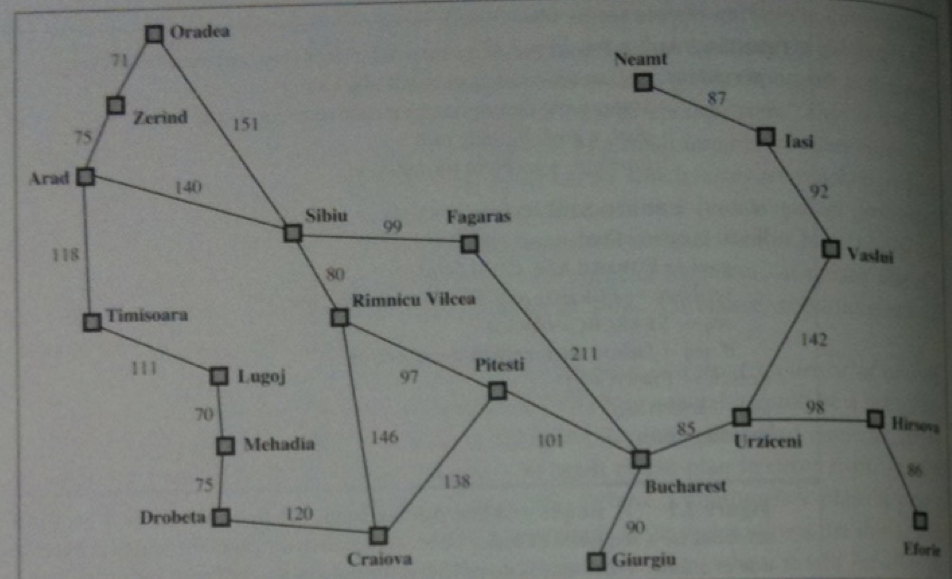

We will use the following road map of Romania to illustrate the `A^star`-algorithm:

`A^star`-Example Map

The trees below illustrate a search for Bucharest using `A^\star` starting at Arad.
The darkened nodes are the explored ones, the node with the triangle next to it is the node under consideration, all other nodes are on the frontier.

In-Class Exercise

Consider the following 8-puzzle configuration:

1 2 8

6 4

7 5 3
Suppose it is three moves from the initial starting puzzle and the heuristic function is the Manhattan distance.
Compute the fitness function for the four possible moves in the above situation, showing work.
Which move would be chosen?
Post your answers to the Sep 6 In-Class Exercise Thread.

Python

For this semester, we are going to mainly code our AI projects in Python.
Python is a programming language created by Guido van Rossum whose origins trace to the late 1980s.
When looking for an language to code AI projects there are several things to look for:
1. Good string and list processing facilities (minimize awkward additional user coding)
2. Scripted/interpreted coding available for faster testing and development
3. Higher-order function support. i.e., Can easily make functions which take other functions as arguments.
4. Syntax is not too weird compared to what everybody else uses.
5. Good set of built-in libraries.
6. Wide-range of free libraries/projects can build off.
7. People outside of AI use it, so other people can appreciate code.
A case can be made that Python satisfies each of these requirements.
The first three points are probably why LISP was originally popular as an AI language.
Unfortunately, (4) and to a lesser degree (7) are weaknesses of LISP/SCHEME/Racket.
According to TIOBE Language Popularity Index , Python is the most popular scripting language.

Getting Started

Python can be obtained from:
http://python.org/download/.
Python 2.7.x is available by default on Mac's running MacOS, so we'll stick to that rather than Python 3 (for what we do it won't make much difference).
Some differences between Version 2 and 3 are Unicode support in strings, exception chaining, annotations, etc -- none of which we'll really make use this semester.

Running Python

Assuming you have set up your path environment, you can launch python in interactive mode by just typing:

python

at the command prompt. You should see something like:

Python 2.7.1 (r271:86832, Jun 16 2011, 16:59:05)
[GCC 4.2.1 (Based on Apple Inc. build 5658) (LLVM build 2335.15.00)] on darwin
Type "help", "copyright", "credits" or "license" for more information.
>>>

Typing quit() on a line or hitting CTRL-D returns you to the command prompt.
As an example, we could type:
```
>>>print "hello world"
```
which would print hello world to the terminal.

Python as Calculator; Programs in Files

You can use the command prompt as a quick calculator of python expressions. For example,
```
>>>2 / 3 + 7.9
```
outputs 7.9; whereas, 2.0/3 + 7.9 outputs 8.566666666666666.
You can refer to the last result by using an underscore similar to Perl. So after the last expression _ + 1 would give 9.566666666666666.
Python programs are put into files with the .py extension. For example, we might have the file: hello.py with the following in it:
```
#!/usr/bin/env python
# The above would mean don't have to type python when run under *nix
# Comments begin with #
print "Hello World"
```
If we didn't have the first line or on Windows we would need to type "python hello.py" to run the program.

Variables and Arithmetic Expressions

Variables are bound to values by assignments. We don't have to declare variables before using them.

So we can do things like:

x = 7
x += 1 #note there are no ++ and -- operators
x *= 3
y = 5
z = x - y
print z

which would print 19

Notice we don't have to terminate statements with ';' although we can. If we want several statements of the same line we use ';'
Python supports a formatted string operator %:
```
print "%3d %0.2f" % (10, .9799)
```
prints 10 with a leading space followed by 0.98
There is also a format() function which outputs a string. So format(0.979, "0.2f") outputs the string 0.98 .

Conditionals

Python supports if elif else conditionals with the syntax:

a = 5
if a > 4:
    print "a is bigger than 4"

b = 99
if  b < 50:
    print "b is too little"
else:
    print "b is big enough"

if  a > 4 and  b < 50:
    print "1"
elif not a == 6:
    print "2"
else:
    print "3"

The bodies of these statements are denoted using indentation.
To create an empty clause, you can use the pass statement.
Python has boolean connectives and, or, and not.
Python uses the Boolean literal True and False.
Python does not have switch/case
