Introduction

On Monday, we were talking about regular expressions, a succinct notation for describing collections of strings over some alphabet.
A regular expression is a well formed expression built using `emptyset`, `epsilon`, the symbols of our alphabet, and the operations of union, concatenation, and `star`.
We showed how to convert any regular expression to an NFA recognizing its language. This entails we have linear time constant space recognition algorithms for any language defined by a regular expression.
We begin to day by showing the converse, we can convert any NFA into a regular expression which represents the same language...

Proof that regular implies the language of some regular expression

We will split the proof into two parts:
- We first define a new kind of finite automata called a generalized nondeterministic finite automata (GNFA) and show how to convert any DFA into a GNFA of a special form.
- Then we show how to convert this special form GNFA into a regular expression.
To begin we define a GNFA to be an NFA modified to allow transition arrows to have any regular expression as labels. For example `a^star b` would be a legal transition label.
To make this more formal, we define the transition function of a GNFA to be a map `delta:(Q - {q_(mbox(accept))}) times (Q - {q_(mbox(start))}) rightarrow mathcal(R)` where `mathcal(R)` is the set of all regular expressions. (As we will see on the next slide we assume there is a single accept state.)
The format of this transition function is a little bit different from those we have considered before. Rather than taking a state and a symbol or emptyset to a new set of states, we instead assign to an edge (a pair of states) in our automata graph a regular expression label.

Converting DFAs to GNFA

We will be interested in GNFAs that have the following special form:
- The start state has transition arrows to every other state but no arrows coming in from other states.
- There is a single accept state, and it has arrows coming in from every other state but no arrows going to any other state.
- Except for the start and accepts state, one arrow goes from every state to every other state and also from each state to itself.
To convert a DFA into a GNFA, we add a new start state with and `epsilon` arrow to the old start state and a new accept state with `epsilon` arrows from the old accept states.
If any arrows have multiple labels (or if we have two or more arrows between the same two states) we replace each with a single label whose label is the union labels of the these arrows.
Finally, we add arrows with labels `emptyset` between states which had no labels so as to satisfy the remaining conditions of our special form.

Converting GNFAs to Regular expressions

Our conversion above gives a GNFA with `k geq 2` states.
If `k > 2`, we will construct an equivalent GNFA with `k-1` states.
To do this we pick some state `q_(mbox(rip))` other than the start or accept state, and we will rip it out of the machine.
To compensate for the loss of this state, for any pair of states `q_i`, `q_j`. in this new machine we replace `delta(q_i, q_j)` with: `delta'(q_i, q_j) =(R_1R_2^star R_3)\cup(R_4)` where `delta(q_i, q_(mbox(rip))) = R_1`; `delta(q_(mbox(rip)), q_(mbox(rip))) = R_2`; `delta(q_(mbox(rip)), q_j) = R_3`; `delta(q_i, q_j) = R_4`.
This machine will be equivalent to the old machine.
Further, by repeatedly ripping out states in this fashion we can get down to the 2-state machine with just a regular expression on the single transition between these two states.
This regular expression will be equivalent to the original NFA.

The proof of equivalence of finite automata and regular expressions is due to McNaughton and Yamada (1960).

Corollary

The regular languages are closed under union, `star`, and concatenation.

Proof. The regular languages are precisely those recognized by DFAs. We have shown in turn that the languages recognized by DFAs are precisely those recognized by NFAs, and these in turn are precisely the languages recognized by regular expression. As the languages of regular expressions are trivially closed under these operations, we get the regular languages are closed under these operations.

In-Class Exercise

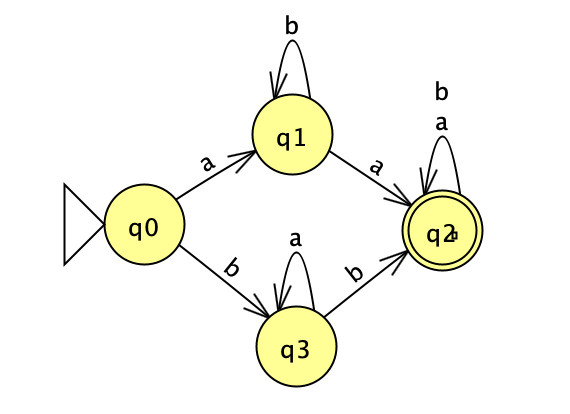

Apply the algorithm for converting an NFA to a regular expression to the automata:

Post your solution to the Feb 26 In-Class Exercise Thread.

Grammars

We now consider a different way to look at the regular languages based on grammars.
A grammar is defined as a 4-tuple `G=(V, T, P, S)` where `V` is a finite set of variables, `T` is a finite set of terminal symbols, `S in V` is called the start variable, and `P` is a finite set of productions of the form `v rightarrow w` where `v` is in `(V cup T)^+` and `w` is in `(V cup T)^star`.
For example, let `G=({<mbox(sentence)>, <mbox(noun)>, <mbox(verb)>}, {mbox(dog), mbox(cat), mbox(walks), mbox(eats)}, P, <sentence>)` where `P` is
`<mbox(sentence)> rightarrow <mbox(noun)> \ <mbox(verb)> \ <mbox(sentence)>`
`<mbox(sentence)> rightarrow <mbox(noun)> <mbox(verb)>`
`<mbox(noun)> rightarrow mbox(dog) | mbox(cat)` /* we are using `|` to abbreviate two line `<mbox(noun)> rightarrow mbox(dog)` and `<mbox(noun)> rightarrow mbox(cat)` */
`<mbox(verb)> rightarrow mbox(walks) | mbox(eats)`
`<mbox(noun)> <mbox(verb)> rightarrow <mbox(sentence)>`
Beginning with the start variable, a grammar can yield or generate a string over the alphabet of terminals via a finite sequence of substitutions:
`<mbox(sentence)> => <mbox(noun)> <mbox(verb)> => mbox(dog) <mbox(verb)> => mbox(dog) \ mbox(walks)`
we write `<sentence> =>^star dog \ walks` to indicate from the string <sentence> we can get dog walks via a finite sequence of substitutions.
We write `L(G)` for the set of strings generated by a grammar.

Regular Grammars

A grammar `G=(V, T, P, S)` is called right-linear if all its productions are of the form `A -> xB` or `A -> x` for some `A`, `B in V` and `x in T^star`.
A grammar is called left-linear if all its productions are of the form `A -> Bx` or `A -> x` for some `A, B in V` and `x in T^star`.
A grammar is called regular if it is either left or right linear.
For example, `G=({S}, {a,b}, P, S)` where `P` contains `S -> abS | epsilon` is right linear. It generates the strings in `(ab)^star`.
For example, `G=({S, A}, {a,b}, P, S)` where P contains `S -> Sab |A`, `A -> Aba | ba` is left linear. It generates the strings in `(ba)^+(ab)^star`.
The set of rules `S ->A`, `A -> aB|epsilon`, `A -> Ab` are all linear (so could belong to a linear grammar). The second rule is right linear, and the third is left linear, so these rules together could not belong to either a right linear or left linear grammar.

Equivalence with Regular Languages

To prove this we need to show every language generated by a regular grammar is regular and vice-versa.
In class we will only look at right linear grammars, but a similar argument can be made for left linear grammars. To begin:
Theorem. Let `G=(V, T, P, S)` be a right linear grammar. Then `L(G)` is a regular language.

Proof. Let `V={V_0, ldots , V_n}`. Assume `S=V_0`. The alphabet of our NFA will be the set of terminals. The set of states of our NFA will consist of `V_0, ldots, V_n` together with some auxiliary states and the state `F` which will be the unique accepting state. The start state will be `V_0`. The transition function `delta` will be based on the productions of `G`. A production `V_i -> a_1 ldots a_m V_j` will map to the sequence of states and transitions:

where the unlabelled states are auxiliary states.
A production of the form `V_i -> a_1 ldots a_m` is mapped to a set of transitions:

Given this description of the NFA, one can observe that `V_0 =>^star w` if and only if `delta^star(V_0, w) = F` and so if and only if `w` is accepted by the NFA.

Regular implies Regular Grammar

Theorem. If `L` is a regular language, then it is generated by right linear grammar.

Proof. Let `M = (Q, Sigma, delta, q_0, F)` be a DFA for `L`. Assume `Q={q_0, ldots, q_n}` and `Sigma={a_0, ..., a_m}`. Let `G=(V, Sigma, P, S)` be the grammar with `V={q_0, ..., q_n}` and `S= q_0` and where for each transition `delta(q_i, a_j) = q_k` we have the production `q_i -> a_jq_k` and if `q_k` is in `F` we also have the production `q_k -> epsilon`. It is not hard to see that `w` is accepted by `M` iff it is generated by this right linear grammar.

Regular Grammars and the equivalences between their languages and the regular languages is due to Chomsky and Miller. Information and Control. Vol. 1. 1958. pp 91--112.
