Outline

• O-Notation
• Equivalence Relations
• Graphs and Trees
• Strings
• Proofs and Proof Strategies

Growth Rates of Functions

Definition: Let `NN` be the nonnegative integers. Let `f` and `g` be functions from `NN` to `NN`.

• We write `f(n) = O(g(n))` if there are positive integer `c`, `m` such that `f(n) leq c cdot g(n)` for all `n geq m`. "f grows as g or slower"
• We write `f(n) = Omega (g(n))` if `g(n) = O(f(n))`.
• We write `f(n) = Theta (g(n))` if `f(n) = Omega(g(n))` and `f(n) = O(g(n))`.

For example, `n^2+1 = O(n^2)`.

To see this notice, for all `n geq 1`, `n^2+1 leq n^2+ n^2 leq 2cdot n^2`. So `m=1`, `c=2` work for the above definition.

You might want to convince yourself that: `n^3 = Omega(n^2+n+1)` and `n^3 + n^2= Theta(n^3)`.

Equivalence Relations

• One particularly useful kind of relation is an equivalence relation. Such a relation acts like `=` in situations where we might not usually have an equals around.
• Like the binary relation equals we will write equivalences in infix notation. i.e., we'll write `xRy` rather than `(x,y) in R` or `R(x,y)`.
• A binary relation `R` is an equivalence relation if for each `x`, `y`, `z`:
  • `R` is reflexive, that is, `xRx`.
  • `R` is symmetric, that is, `xRy` implies `yRx`.
  • `R` is transitive, that is, `xRy` and `yRz` implies `xRz`.
• The equivalence class of `x`, denoted `[x]`, is the set: `{y | xRy }`
• We often write `equiv` or `~` rather than `R` for equivalence relations.

Example Equivalence Relations

• Last day, we defined the natural numbers in terms of sets.
• Let `-` be coded as `0`, and `+` be coded as `1`.
• The integers `ZZ` are defined as `{[(sgn,n)]| sgn in {-,+} ^^ n in NN}` under the equivalence relation: `(sgn, n)~(sgn', n')` if `n=n'` and `sgn = sgn'` or if `n=n'=0`.
• To keep things simple we abbreviate `(+, n)` as `n` and `(-, n)` as `-n`. The `n=n'=0` case is so that `-0~0`.
• You might want to think how addition, subtraction, and less than can be defined within this definition of the integers.
• Once we do this, we get the usual view of the integers as `ldots -2, -1, 0, 1, 2 ldots`
• The rationals, `QQ`, are defined as the set of equivalence classes of pairs of integers `(p,q)` (which we write as `frac(p)(q)`) such that `q geq 1` and where `frac(p)(q) ~ frac(p')(q')` if and only if `p cdot q'= p' cdot q`.
• For example, `frac(1)(2) ~ frac(2)(4)` as `1cdot 4 = 2cdot 2`.
• The real numbers `RR` can be defined in terms equivalence classes of Cauchy sequences `{a_n}` of rationals. (A Cauchy sequence is a function `a:NN rightarrow QQ` (`a(n)` is usually written `a_n`) such that for any positive rational `epsilon` we can find an `N` such that for all `n`, `m` bigger than `N`, `|a_n -a_m| lt epsilon` ). Two reals are said to be equivalent if their defining Cauchy sequence converges to the same value. So the equivalence class of the sequence `9/10, 99/100, 999/1000, ldots` and that of `1, 1, 1, 1, ldots` would be the same.
• One can show that both the integers and the rationals are countable; however, the reals are not. (We'll do this later in the semester).

Graphs

• A graph (sometimes called a directed graph) is a pair `G=(V,E)` where `V` is a set of vertices (aka points or nodes) and `E subseteq V times V` is a set of edges between points. For example, `({1,2,3,4}, {(1,2),(2,4), (1,1),(3,4)})`.
• We can draw a graph like this pictorially:

• An edge of the form `(v,v)` is called a loop. For example, `(1,1)` above.
• An undirected graph (or just a graph) is graph in which we can ignore the direction on the edges. One way to do this is to require that if `(v,w)` is in `E` then `(w,v)` is also in `E`.
• For example, the undirected version of the above graph would be : `({1,2,3,4}, {(1,2),(2,1), (2,4),(4,2), (1,1),(3,4), (4,3)})`


More on Graphs

• Last day, we defined the cartesian power of a set `A^n=A stackrel(n)(\hat(times cdots times)) A.
• A sequence of elements from a set `A` is a tuple in `A^n` for some `n`.
• A sequence of edges of the form `( (v_1, v_2), (v_2, v_3), ...,(v_(n-1),v_n))` in a graph is called a walk. For example, `w=(` `(1,2), (2,4), (4,1), (1,2)` `)` is a walk.
• The length of a walk is the number of edges in it. `mbox(length(w)) = 4`.
• A path is a walk in which no edge is repeated. For example, `p=(` `(1,2), (2,4), (4,1), (1,3)` `)` is a path but `w` is not.
• A simple path is a path that does not go out of any vertex more than once. For example, `p'=(` `(1,2), (2,4), (4,3)` `)` is a simple path, but `p` is not a simple path.
• A cycle is a path which begins and ends at the same node. A cycle is simple if it does not repeat nodes except the end point twice. For example, `(` `(1,2), (2,5), (5,1), (1,3), (3,4), (4,1)` `)` is a cycle but is not simple; whereas, `(` `(1,2), (2,4), (4,1)` `)` is a simple cycle.

Finding Simple Paths

• In this course, we will find it useful to have an algorithm which on inputs a graph `G=(V,E)` and two vertices `s`, `t`, computes a simple path from `s` to `t`, if there is a simple path between these points.
• To do this we maintain a set `A` of active nodes and a set `S` of seen nodes.
  • Initialize `A={s}`, `S = emptyset`.
  • Repeat until either `t in A` or `A = emptyset`.
    • Pick an `x in A`, set `S:=S cup{x}`
    • Let `mbox(UnseenChild(x)) := {y | (x,y) in E ^^ y !in S}`
    • Set `A := (A cup mbox(UnseenChild(x))) - {x}`
  • If `A = emptyset` then output "there is no path s to t"
  • Otherwise, we can find a path in reverse order by looking in `S` for some `x` such that `(x,t) in E`, then looking in `S` for some `y` such that `(y,x) in E`, and so on until we get back to `s`. This will be a simple path.

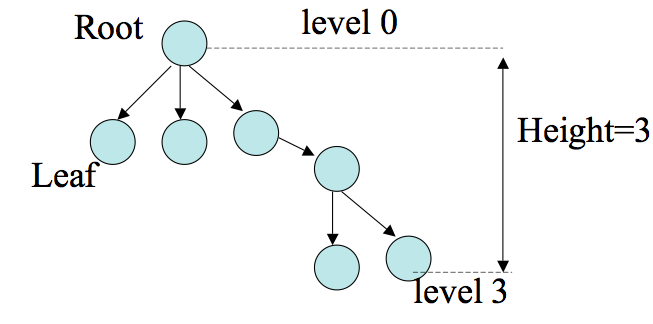

Trees

• A tree is a graph without cycles, and that has one distinct vertex, called the root, such that there is exactly one path from the root to every other vertex.
• The root has no incoming edges.
• Any node without outgoing edges is called a leaf.
• If `(v,w)` is an edge in a tree, then `v` is called the parent of `w` and `w` is called the child of `v`.
• The level of a vertex is the number of edges in the path from the root to that vertex.
• The height of a tree is the largest level number of any vertex.


Definitions, Theorems, Proofs

• Definitions describe the objects and notions that we use. We want our definitions to be as precise as possible. Ideally, we might want something of the form: `mbox(mydefn(x)) iff P(x)`, where `P` is a first-order formula in whatever system we are working in.
• Once we have made some definitions we make mathematical statements involving them:
  • A proof is a convincing logical argument that a statement is true.
  • A theorem is a mathematical statement which has been proved true.
  • A lemma is a simple mathematical statement which has been proved true and which will be used in the proof of a theorem.
  • A proposition is a mathematical statement with an easy proof. One can view it like a warm-up result, which does not immediately lead to the proof of a theorem
  • A corollary is a mathematical statement which can be proved easily once some theorem is known.

Strings

• For this class, we will define an alphabet to be some nonempty finite set `Sigma`. As examples, one could have:
  `Sigma = {0, 1}` or
  `Sigma = {a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v,w,x,y,z}`.
• The members of this set are called the symbols of the alphabet.
• A string over an alphabet is a finite sequence of symbols from that alphabet. For example, `0100`.
• The length of a string `w`, `|w|` is the number of symbols it contains.
• The empty string is written as `epsilon`.

Strings and Languages

• The reverse of a string `w`, `w^R` ,is the string consisting of the symbols of `w` in reverse order: `001^R = 100`.
• The concatenation of two strings `x` and `y`, `xy`, is the string consisting of the symbols in `x` followed by the symbols of `y`.
• We write `x^k` to denote `x` concatenated to itself `k` times.
• A language is a set of string.

Boolean Logic

• Is a logic based on two values TRUE or FALSE. (sometimes we use 1 and 0).
• These are called Boolean values.
• We also have boolean operations:
  • NOT (negation) `not x` is TRUE iff `x` is FALSE
  • AND (conjunction aka `cdot mod 2`) `x ^^ y` iff both `x` and `y` are TRUE
  • OR (disjunction) `x vv y` iff at least one of `x` or `y` is TRUE
  • XOR (exclusive OR, aka parity, aka `+ mod 2`) `x oplus y` iff exactly one of `x` or `y` is TRUE.
  • Equality `x iff y` iff `x` and `y` have the same value
  • Implications `x implies y` iff `x` is less than or equal to `y`

Finding proofs

• Example: For every graph G, the sum of the degrees of all the nodes in G is an even number.
  • Might approach problem by checking cases like when graph has a small number of vertices. One might then notice each edge contributes two to the total sum and that the sum of degrees = ` 2 times` number of edges in graph.
• Types of proofs:

  By Construction

  For example, There is a graph consisting of `n` nodes with only one cycle. Proof: let `V={1, ldots ,n}`, let `E={{1,2}, {2,3}, ...{n- 1,n}} cup {{1,n}}`.

  By Contradiction

  For example, `sqrt 2` cannot be expressed as `frac(m)(n)` where `m` and `n` are integers. i.e., it is irrationality. Proof Idea: If not can assume `sqrt 2 = frac(m)(n)` where `m` and `n` share no common factor. In which case, one is odd, the other even. Squaring both sides gives: `2n^2 = m^2`, so `m` is even because the square of an odd number is odd. So `m=2 cdot k`, so `2n^2 = (2k)^2= 4k^2`. So `n^2= 2k^2` implying `n` is also even, giving a contradiction.

  By induction

  `sum_(i = 1)^n i = frac(n(n+1))(2)`.
  Proof. When n =0, the left hand side is 0 and the right hand side is 0. So base case holds. Assume true of `n`, then `sum_(i = 1)^(n+1) i = n+1 + sum_(i = 1)^(n) i`. By the induction hypothesis, this last term is `frac(n(n+1))(2)`. So `sum_(i = 1)^(n+1) i = n+1 + frac(n(n+1))(2) = frac(2(n+1) + n(n+1))(2) = frac((n+1)(n+2))(2)`. So the induction step holds, thus, the statement holds for all `n`.
