Outline

• More about CFGs
• Quiz
• Parse Trees and Abstract Syntax Trees
• Ambiguity

More about CFGs

Recall we are learning about how to specify the syntax of a programming language. On Wednesday, we were learning about context-free grammars and gave an example grammar for a very tiny fragment of English:

sentence → noun-phrase verb-phrase .
noun-phrase → article noun
article → a | the
noun → girl | dog
verb-phrase → verb noun-phrase
verb → sees | pets

Remarks

• Using this grammar we gave a derivation of the sentence: the girl sees a dog.
• If you look at that grammar, you'll see that you could derive sentences like: "the dog pets the girl."
• So although it is syntactically correct, it doesn't quite make sense. Syntax ≠ Semantics.
• In terms of programming, you can have syntactically correct programs which don't do anything useful.

What is a context free grammar?

• A context free grammar consists of a sequence of rules (called productions) of the form: some structure-name, followed by → or ::=, followed by a string consisting of token symbols and 0 or more additional structure names.
• Structure names are sometimes called nonterminals and token symbols are sometimes called terminals.
• A context free grammar also has a distinguished nonterminal called the start symbol.
• The start symbol for our English example was sentence.
• All derivations must begin from the start symbol.
• The language of a grammar consists of all strings s of only terminals which have derivations beginning from the start symbol in grammar and which terminate with s.

Why are CFGs called context-free?

You could imagine productions where you have more than one thing on the left hand side:

<sentence> ::= <start-of-sentence> <noun-phrase> <verb-phrase>
<start-of-sentence> <article> ::= The | A
<start-of-sentence> ::= empty-string
...

This would allow you to capitalize the start of sentence, but the rule:

<start-of-sentence> <article> ::= The | A

uses the context in which the <article> appears.

Quiz

Which string does not match the regular expression: [a-z]+[0-9]*
?

1. emptystring
2. 9876
3. aaaa78

More Example Grammars

• Here is a grammar for arithmetic expressions involving + and *:

  <expr> ::= <expr> + <expr> | <expr> * <expr> | (<expr> ) | <number>
  <number> ::= <number> <digit> | <digit>
  <digit> ::= 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9


• Note the recursive nature of the rules above: <expr> and <number> appear on both sides of their rules. This is completely legal.
• Give the derivation for (2 + (11 * 5)).
• The book gives a fragment of the C's grammar. It has productions like:

  <external-declaration> ::= <function-definition> | <declaration>


Parse Trees and Abstract Syntax Trees

• Syntax establishes structure not meaning.
• One way of associating meaning with a particular program is to use the structure one obtains from parsing it and annotate that structure with code to give it meaning.
• This is sometimes called syntax-directed semantics.
• The structure typically associated with parsing a program is called its parse tree.

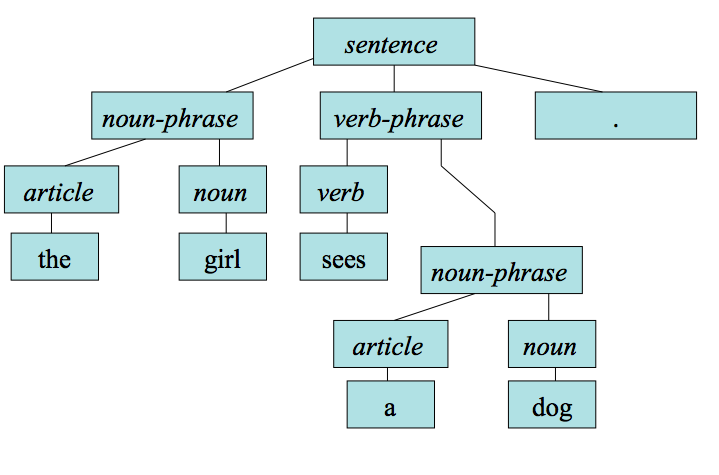

Example Parse Tree

Remarks

• Notice how the parse tree is completely specified by the grammar rules that were used in the derivation.
• i.e., if a rule like

  <struct1> ::= <struct2> <struct3> terminal

  was used then in the parse tree <struct2>, <struct3>, and terminal will be children of <struct1>
• Try to come up with the parse tree for (2 + (11*5)) in the grammar we gave a couple slides back.
• All the terminals and nonterminals in a derivation are included in a parse tree.
• Not all of these may be necessary to determine completely the syntactic structure of an expression.

More remarks

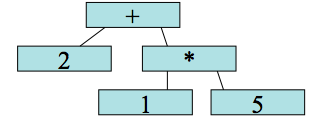

• For example, the relevant part of the tree needed to provide semantics to (2 + (1 * 5)) might look like:
• Such abbreviated trees are called abstract syntax trees or just syntax trees.

Ambiguity

• Consider the expression 3 + 4 * 5.
• It actually has two distinct parse trees using the grammar of a couple slides back:
  • One corresponds to 3 + (4 *5)
  • The other to (3 + 4) *5
• Worse, these two expressions evaluate to different things.
• Grammars which have two distinct parse trees for the same string are called ambiguous.
• We'll discuss how to avoid making such grammars on Wednesday.
