Heap, Variables, References, and Garbage

CS152

Chris Pollett

Mar. 11, 2009

Outline

On Monday, we were talking about environments.
These were mappings of names to environments.
We had just discussed how this worked for local variables in block structured languages:
- When we make a function call, we push locations onto the stack as needed for the local variables of this function; when the call completes these locations are popped.
Parameter variables that don't fit into the available registers are handled similarly.
It is usually arranged that after the call returns the top of the stack will have the return value.
Usually one has a couple of offset pointers into the stack, such as a pointer to the top and a base pointer for the start of the frame. How long a variable lives on the stack is its lifetime.

It is often the case that one has a programming task for which we don't know how much memory will be needed until runtime.
For example, we store user input and we don't know in advance how much there will be.
It also might be convenient to allow the lifetime of this data to exactly match that of a given block.
To facilitate this kind of allocation (called dynamic allocation), most modern programming languages have a runtime heap.
In C, when we make a call to malloc, we are allocating memory from this heap; a call to free deletes from the heap.
In C++, or Java when we use new we are allocating from the heap.

Typically, the memory for the heap is allocated starting from the bottom of the program environment growing towards the top; the stack on the other hand, grows downward to the bottom; and the static area is separate from either.
C/C++ use pointers to refer to locations within the heap. A NULL or 0 address is used as the address for pointers which are not yet assigned to allocated memory.
Other languages such as Java use the name references.
The sections of heap memory currently allocated may become holey as memory becomes deallocated. So the heap structure needs mechanisms both to remember what is currently free/allocated; as well as occasionally to defragment this memory.
Some languages such as Java have a garbage collector which is used to deallocate memory that is no longer referenced.
Note some languages allow us to set which of the heap, stack, or global storage should be used for storing a variable. For example, the keyword static in C.

A variable is an object whose stored value can change during execution.
So a variable can be completely specified by: Name, Other Attributes (such as type and size), Location, and Value.

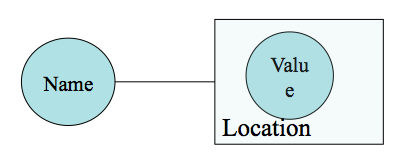

Sometimes people use box and circle diagrams to represent the main aspects of this:

The principle way a variable changes value is through assignment: x= e; where e is an expression.
The semantics of this are that e is evaluated to a value, which is then copied into the location of x.
If e is another variable y, then the assignment: x=y; // can be viewed as

It is important to distinguish between the location of a variable and the value stored there.
The value stored at a location is often called an r-value (because this is what a variable often means when it is on the right hand side of an assignment); the location of a variable is often called the l-value.
Some languages like ML make this distinction explicit. For instance, x would refer to the location, !x to the value. So to increment x one would write: x := !x + 1;
C automatically dereferences l-values to r-values, and to do things explicitly uses & to get the l-value of an r-value and * to get r-value of an l-value.

In some languages an assignment x=y actually binds the location of x to y. This is called assignment by sharing.
An alternative to this is to allocate a new location, copy the value of y to this new location, and bind x to the new location. This might be called assignment by cloning.
These two kinds of semantics are often called pointer semantics to distinguish them from the usual storage semantics.
For example, Java uses assignment by sharing for objects, but not for simple data.

A constant is a language entity that has a fixed value for the duration of its existence in a program.
A constant is like a variable except that it has no location attribute only a value attribute.
One sometimes says it has value semantics.
The notion of a constant is symbolic. A constant is essentially a name for a value. These names are usually declared and thus names can appear as l-value of such declarations.
Entities like "hello there", 42 and the like are literals not constants .
Constants come in two main flavors: compile-time, whose value can be determine at the time of translation; and static, whose value can only be determined after the program loads.(For instance, the location of a global variable).
Only the latter actually need to be stored in memory.
One can also have function constants, function variables, and function literals.

An alias occurs when the same object is bound to two different names at the same time.
For example, two pointers to the same object.
Aliases can cause side-effects, where a side-effect of a statement is any change in the value of a variable that persists beyond the execution of the statement.
For example, if x and y point to the same thing. Then *y=2; has two side-effects changing the value of y and changing the value of x -- the latter may not have been intended.
Another example is x and y point to the same memory. If we call free(y); then x points to memory which has been deallocated -- this is called a dangling reference.

One way to reduce the problem of dangling references is to not allow explicit deallocation of memory.
Instead, a runtime program called a garbage collector is used which determines which locations on the heap are no longer referenced, and deallocate them.
Java, Smalltalk, and many functional languages use garbage collectors.
