Outline

• Lower Bound Comparison Search
• Quiz
• Linear Time Sorting Algorithms

Introduction

• Last week, we started talking about sorting in linear time.
• We said that the variants of sorting we had considered up to this point where all O(n log n).
• For example, merge sort, heap sort, quicksort.
• Each of these is also a comparison sort, that is, the sorted order determined by the algorithm is only based on comparisons between the input elements.
• In class, I, not-on-slides, described radix sort which was a sort that uses other kinds of comparisons rather than comparing whole elements to determine the final sorted order. This and other sorts we consider today will all be linear time.
• To start today though, we will look at why comparison sorts cannot be linear time.

Lower Bounds for Comparison Sorting

• Over the next couple of slides we are going to show an `Omega(n log n)` lower bound for comparison sorting.
• To start notice in comparison sorting a sequence `langle a_1, a_2, ..., a_n rangle` we perform one of the tests `a_i < a_j`, `a_i le a_j`, `a_i = a_j`, `a_i ge a_j` or `a_i > a_j` to determine their relative order
• We may not inspect the values in order to gain information about them in any other way.
• For our lower bound we will assume all items are distinct so comparison of the form `a_i = a_j` are not needed.
• Further, given this assumption, it suffices to assume all comparisons are of of the `a_i le a_j`.

Decision Trees

• We frame the problem of comparison sorting inputs in terms of decision trees.
• A decision tree is a full binary tree (all non-leaves have two children) that represents the comparisons between elements that are performed by a particular sorting algorithm operating on an input of a given size. I.e., Fix a size of array, say `n =100`, from the comparison sort we get a decision tree that says the comparisons made to sort any array of 100 elements. We would get a different (presumably smaller) tree if `n=50`. Paths from the root to a leaf in the tree represent comparisons made for a particular input sequence.
• Control, data movement, and all other aspects of the algorithm are ignored.

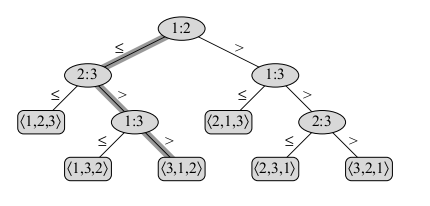

• The image above is an example decision tree for insertion sorting three elements.
• Let `a_1, ..., a_n` denote an input to the tree.
• Internal nodes of a decision tree are labeled `i:j` for some `1 le i,j le n`. This indicates we compared element `a_i` and `a_j` of the input.
• Leaves of the decision tree are labeled with permutations `langle pi(1), pi(2), ..., pi(n) rangle`, such that `a_(pi(1)) le a_(pi(2)) le ... le a_(pi(n))`.
• For example, suppose we had the input 6, 8, 5 to the above decision tree. i.e., `a_1 = 6, a_2 =8, a_3 =5`. The darkened path indicates the comparisons insertion sort would make on this input. The leaf is labelled `langle 3, 1, 2 rangle` which says, `a_3 le a_1 le a_2`, that is, `5 le 6 le 8`.

Worst case lower bound

• Any correct sorting algorithm must be able to produce each permutation of its inputs.
• So its decision tree must have at least `n!` leaves.
• Furthermore each of these leaves must be reachable from the root by a downward path corresponding to an actual execution of the comparisons.
• The length of the longest simple path from the root of a decision tree to any of its reachable leaves represents the worst-case comparisons that the corresponding sorting algorithm performs.
• Hence, the worst-case number of comparisons for a given comparison sort algorithms equals the height of its decision tree.
• Consider a decision tree of height `h` with `l` reachable leaves corresponding to a comparison sort on `n` elements. We must have `n! le l` as each input appears as some leaf. Since a binary tree of height `h` has no more than `2^h` leaves, we have
  `n! le l le 2^h`,
  taking logarithms, implies
  `h ge log (n!) = sum_(i=1)^n log i = Omega(n log n)`
• We have thus established:
  Theorem. Any comparison sort requires `Omega(n log n)` comparisons in the worst case.

Quiz (Sec 5)

Quiz (Sec 6)

Counting Sort

• We now start looking at non-comparison sorts.
• Counting sort assumes that each of the `n` input elements is an integer in the range `0` to `k` for some integer `k`.
• When `k = O(n)`, the sort runs in `Theta(n)` time.
• The idea is for each input element `x` we compute the number of elements less than or equal to `x`. Then we use this information to place element `x` directly into its position in the output array.
• For example, if 17 elements are less than `x`, then `x` belongs in position 18. (We have to be careful if not all of the elements distinct)

Counting Sort - Pseudocode

• Assume the input is `A[1..n]`. We use two other arrays `B[1..n]` for the sorted output and `C[0,..k]` for temporary storage. Recall `k` is the maximum value of any of the `A[i]`'s.

  COUNTING-SORT(A, B, k)
   1 let C[0..k] be a new array
   2 for i = 0 to k
   3     C[i] = 0
   4 for j = 1 to A.length
   5     C[A[j]] = C[A[j]] + 1
   6 // C[i] now contains the number of elements equal to i
   7 for i = 1 to k
   8     C[i] = C[i] + C[i - 1]
   9 // C[i] now contains the number of elements less than or equal to i
  10 for j = A.length downto 1
  11     B[C[A[j]]] = A[j]
  12     C[A[j]] = C[A[j]] - 1


• Line 12 is to handle the case where the items might nor be distinct. Decrementing `C[A[j]]` causes the next input element with a value less than or equal to `A[j]` to go to the position immediately before `A[j]` in the output array.
• The for loop of line 2-3 take time `Theta(k)`, the for loop of lines 4-5 takes time `Theta(n)`, the for loop of lines 7-8 takes time `Theta(k)`, finally the for loop of lines 10-12 takes time `Theta(n)`.
• Thus the overall times is `Theta(k + n)`. In particular if `k = O(n)`, then the run time is `Theta(n)`.

Properties of Counting Sort

• Notice counting sort makes no comparisons between input elements. Counting sort instead uses the actual values of the elements to index into an array. So it is not a comparison sort. So the `Omega(n log n)` lower bound does not apply.
• Counting sort is an example of a stable sort: numbers with the same value appear in the output array in the same order as they do in the input array.
• This is useful if you have satellite data that is being carried around with the element being sorted.
• It is also important for proving the correctness of radix sort which often makes use of counting sort as a subroutine.

Radix Sort

• Radix sort is the algorithm typically used by old-fashioned card-sorting machines.

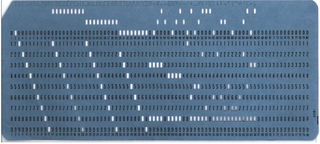

• A classic punch cards has 80 columns, and in each column a machine can punch a hole in one of 12 places.
• The sorter can be mechanically "programmed" to examine a given column of each card in a deck and distribute the card into one of 12 bins (for decimal digits like above, each column only uses 10 places) depending on which place has been punched.
• An operator can then gather the cards bin by bin, so that cards, with the first place punched are on top of cards with the second place and so on.
• In radix sort, we first sort the least significant digit using the above operation. We take the combined output and then set our mechanical sorter to sort the next-to-least significant digit, and we continue through 80 passes until we sort the most significant digit. At which point the array will be sorted.
• Obviously the same idea could be used if had some number of `d` columns other than 80.
• Notice sorting a single column can be viewed as executing counting sort. For the whole procedure to work we need that counting sort is stable.

Example and Pseudo-code

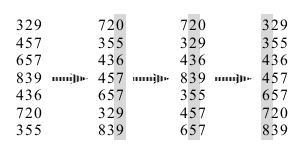

• The above shows a three column example of using radix sort to sort 3-digit decimal numbers. We sort using counting sort first the right-most, least significant column, then the middle column, then the left, most significant column.
• Radix sort is often used to sort information keyed by multiple fields, for example, year, month, and day.
• Pseudo-code for radix sort is:

  RADIX_SORT(A,d)
  1 for i = 1 to d
  2     use a stable sort to sort array A on digit i


Correctness and Runtime

Lemma. Given `n` d-digit numbers in which each digit can take on up to `k` possible values, RADIX-SORT correctly sorts these numbers in `Theta(d(n+k))` time if the stable sort it uses takes `Theta(n + k)` time.

Proof. The correctness of radix sort follows by induction on the columns being sorted. The induction hypothesis is that after the `m`th stable sort the numbers are in sorted order according to their least `m` significant digits. The analysis of the running time depends on the stable sort used as the intermediate sorting algorithm. When each digit is in the range `0` to `k-1`, and `k` is not too large, counting sort is the obvious choice. Each pass over `n` `d`-digit numbers then takes time `Theta(n+k)`. There are `d` passes, and so the total time for radix sort is `Theta(d(n + k))`. QED

• When `d` is constant and `k=O(n)`, radix is linear time.

Making Things Binary

• Typically, we store things in the computer in binary. How does this use of binary interplay with the base/alphabet size 10, 12, 26 of the `d`-letter strings/`d`-digit numbers we are sorting?

Lemma. Given `n` `b`-bit numbers and any positive `r le b`, RADIX-SORT correctly sorts these numbers in `Theta((b/r)(n+2^r))` time if the stable sort it uses takes `Theta(n +k)` time for inputs in the range `0` to `k`.

Here we can view `r` as being the number of bits needed to represent a digit in some other base than binary.

Proof. For a value `r le b`, we view each key as having `d = |~b/r~|` digits of `r` bits each. Each digit is an integer in the range `0` to `2^(r) - 1`, so we can use counting sort with `k = 2^r -1`. Each pass of counting sort takes time `Theta(n + k) = Theta(n + 2^r)` and there are `d` passes, for a total running time of `Theta(d(n+2^r))= Theta((b/r)(n+2^r))`. QED
