Outline

• Normal Map Example
• Quiz
• Cube Map
• Projection Map

Introduction

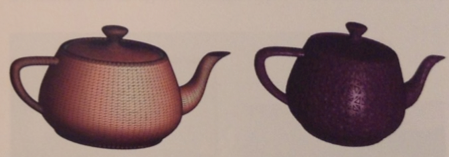

• Last day we said in normal mapping, the r,g,b values from a texture are interpreted as the three coordinates of the normal at the point.
• We said roughly how to do this, but didn't give any code, so I wanted to start today by giving some code
• After my initial lecture I went back and tacked on code for a cube map too.

Adding shaders, changes in Glut-land

• I added a new keyboard event for toggling between shaders

  static void keyboard(const unsigned char key, const int x, const int y)
  {
      switch (key)
      {
          case 27: //ESC
              exit(0);
          case 'h':
              cout << " ============== H E L P ==============\n\n"
              << "h\t\thelp menu\n"
              << "s\t\tsave screenshot\n"
              << "t\t\ttoggle between shaders\n"
              << "drag left mouse to rotate\n" << endl;
          break;
          case 's':
              glFlush();
              writePpmScreenshot(g_windowWidth, g_windowHeight, "out.ppm");
          break;
          case 't':
              g_activeShader++;
              if(g_activeShader >= g_numShaders) {
                  g_activeShader = 0;
              }
          break;
      }
    glutPostRedisplay();
  }


• I also added code where the number of shaders and which files they are in are set up. I also defined to textures:

  static const int g_numShaders = 3;
  static const char * const g_shaderFiles[g_numShaders][3] = {
      {"./shaders/basic-gl3.vshader", "./shaders/texture-gl3.fshader"},
      {"./shaders/basic-gl3.vshader", "./shaders/normal-gl3.fshader"},
      {"./shaders/basic-gl3.vshader", "./shaders/cube-gl3.fshader"}
  };
  static const char * const g_shaderFilesGl2[g_numShaders][3] = {
      {"./shaders/basic-gl2.vshader", "./shaders/texture-gl2.fshader"},
      {"./shaders/basic-gl2.vshader", "./shaders/normal-gl2.fshader"},
      {"./shaders/basic-gl2.vshader", "./shaders/cube-gl2.fshader"}
  };
  static vector > g_shaderStates;
      // our global shader states

  static shared_ptr g_tex0, g_tex1, g_tex2;


Changes to ShaderState Constructor

I set up a second and third texture handles in my ShaderState. Note only one texture is actually ever being used at one time, so I could have done this more efficiently in my shader code later

struct ShaderState {
    GlProgram program;

    // Handles to uniform variables
    GLint h_uLight;
    GLint h_uProjMatrix;
    GLint h_uModelViewMatrix;
    GLint h_uNormalMatrix;
    GLint h_uTexUnit0;
    GLint h_uTexUnit1;
    GLint h_uTexUnit2; //won't need coords for cube map

    // Handles to vertex attributes
    GLint h_aPosition;
    GLint h_aNormal;
    GLint h_aTexCoord0;
    GLint h_aTexCoord1;

    ShaderState(const char* vsfn, const char* fsfn) {
        readAndCompileShader(program, vsfn, fsfn);

        const GLuint h = program; // short hand

        // Retrieve handles to uniform variables
        h_uLight = safe_glGetUniformLocation(h, "uLight");
        h_uProjMatrix = safe_glGetUniformLocation(h, "uProjMatrix");
        h_uModelViewMatrix = safe_glGetUniformLocation(h, "uModelViewMatrix");
        h_uNormalMatrix = safe_glGetUniformLocation(h, "uNormalMatrix");
        h_uTexUnit0 = safe_glGetUniformLocation(h, "uTexUnit0");
        h_uTexUnit1 = safe_glGetUniformLocation(h, "uTexUnit1");
        h_uTexUnit2 = safe_glGetUniformLocation(h, "uTexUnit2");

        // Retrieve handles to vertex attributes
        h_aPosition = safe_glGetAttribLocation(h, "aPosition");
        h_aNormal = safe_glGetAttribLocation(h, "aNormal");
        h_aTexCoord0 = safe_glGetAttribLocation(h, "aTexCoord0");
        h_aTexCoord1 = safe_glGetAttribLocation(h, "aTexCoord1");

        if (!g_Gl2Compatible)
            glBindFragDataLocation(h, 0, "fragColor");
        checkGlErrors();
    }

};

New Geometry Draw Method

Here we basically, just add a couple of lines for the second texture (we won't need to set up a vbo for the cube map):

    void draw(const ShaderState& curSS)
    {
        // Enable the attributes used by our shader
        safe_glEnableVertexAttribArray(curSS.h_aPosition);
        safe_glEnableVertexAttribArray(curSS.h_aNormal);
        safe_glEnableVertexAttribArray(curSS.h_aTexCoord0);
        safe_glEnableVertexAttribArray(curSS.h_aTexCoord1);

        // bind vbo
        glBindBuffer(GL_ARRAY_BUFFER, vbo);
        safe_glVertexAttribPointer(curSS.h_aPosition, 3, GL_FLOAT, GL_FALSE,
            sizeof(GenericVertex), FIELD_OFFSET(GenericVertex, pos));
        safe_glVertexAttribPointer(curSS.h_aNormal, 3, GL_FLOAT, GL_FALSE,
            sizeof(GenericVertex), FIELD_OFFSET(GenericVertex, normal));
        glBindBuffer(GL_ARRAY_BUFFER, texVbo);
        safe_glVertexAttribPointer(curSS.h_aTexCoord0, 2, GL_FLOAT, GL_FALSE,
            sizeof(GenericVertex), FIELD_OFFSET(GenericVertex, tex));
        safe_glVertexAttribPointer(curSS.h_aTexCoord1, 2, GL_FLOAT, GL_FALSE,
            sizeof(GenericVertex), FIELD_OFFSET(GenericVertex, tex));
        // bind ibo
        glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ibo);

        // draw!
        glDrawElements(GL_TRIANGLES, iboLen, GL_UNSIGNED_SHORT, 0);

        // Disable the attributes used by our shader
        safe_glDisableVertexAttribArray(curSS.h_aPosition);
        safe_glDisableVertexAttribArray(curSS.h_aNormal);
        safe_glDisableVertexAttribArray(curSS.h_aTexCoord0);
        safe_glDisableVertexAttribArray(curSS.h_aTexCoord1);
    }

Initing the Normal Map

The interesting part of the new normal map code is how we actually set up the texture. Here we modify to intTextures to set up the second texture, but to get the texture data for this texture we call loadSphereNormalTexture which calculates the values. We will also have a function loadCubeTexture which we'll talk about when we get to cube maps.

Notice glTexParameter* takes the kind of texture, the parameter to set and its value. The magnifcation minification filter and nearest have to do with how we round texture pixel values when we are taking pixels from the texture

static void loadSphereNormalTexture(GLuint type, GLuint texHandle)
{
    int width = 512, height = 512;
    vector<PackedPixel> pixels;
    float x = 0;
    float y = 0;
    float z = 0;
    float invRootThree = 1/sqrt(3);

    pixels.resize(width * height);
    for (int row = height - 1; row >= 0; row--) {
        for (int l = 0; l < width; l++) {
            PackedPixel &p = pixels[row * width + l];
            x = invRootThree * ((float)(row - width/2)/(width/2));
            y = invRootThree * ((float)(l - height/2)/(height/2));
            z = sqrt(1 - x*x - y*y);
            p.r = (unsigned char)(255 * (x + 1)/2);
            p.g = (unsigned char)(255 * (y + 1)/2);
            p.b = (unsigned char)(255 * (z + 1)/2);
        }
    }

    glActiveTexture(type);
    glBindTexture(GL_TEXTURE_2D, texHandle);
    glTexImage2D(GL_TEXTURE_2D, 0, g_Gl2Compatible ? GL_RGB : GL_SRGB, width,
                 height, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixels[0]);
    checkGlErrors();
}

static void initTextures() {
    g_tex0.reset(new GlTexture());

    loadTexture(GL_TEXTURE0, *g_tex0, "myphoto.ppm");

    glActiveTexture(GL_TEXTURE0);
    glBindTexture(GL_TEXTURE_2D, *g_tex0);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP);

    g_tex1.reset(new GlTexture());

    loadSphereNormalTexture(GL_TEXTURE1, *g_tex1);

    glActiveTexture(GL_TEXTURE1);
    glBindTexture(GL_TEXTURE_2D, *g_tex1);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP);

    g_tex2.reset(new GlTexture());

    loadCubeTexture(GL_TEXTURE2, *g_tex2, "one.ppm", "two.ppm",
        "three.ppm", "four.ppm", "five.ppm", "six.ppm");
    glActiveTexture(GL_TEXTURE2);
    glEnable(GL_TEXTURE_CUBE_MAP);
    glBindTexture(GL_TEXTURE_CUBE_MAP, *g_tex2);
    glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
    glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
    glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_R, GL_CLAMP_TO_EDGE);

}

Normal Fragment Shaders

Notice the fragment shader only uses the texture stuff related to the normal mapping not to the basic or cube map shaders.

We are being lazy here. The normals from the texture are constants for the front face in the original orientation. For other faces in the initial view, we should transform these by how we would need to rotate the initial face to get that face. Further, if we rotate the whole object we should really multiply these normals by the NMVM.

Old Style

uniform vec3 uLight;
uniform sampler2D uTexUnit1;

varying vec3 vPosition;
varying vec2 vTexCoord1;

void main()
{
    vec3 tolight = normalize(uLight - vPosition);
    vec4 texNormal = texture2D(uTexUnit1, vTexCoord1);
    vec3 scaledTexNormal = normalize(2.0 * vec3(texNormal)  - vec3(1., 1., 1.));

    float diffuse = max(0.0, dot(vec3(scaledTexNormal), tolight));
    gl_FragColor = vec4(0.7, 0.7, 0.7, 1.0) * diffuse;
}

New Style

#version 130

uniform vec3 uLight;
uniform sampler2D uTexUnit1;

in vec3 vPosition;
in vec3 vTexCoord1;

out vec4 fragColor;

void main()
{
    vec3 tolight = normalize(uLight - vPosition);
    vec4 texNormal = texture2D(uTexUnit1, vTexCoord1);
    vec3 scaledTexNormal = normalize(2.0 * vec3(texNormal)  - vec3(1., 1., 1.));

    float diffuse = max(0.0, dot(vec3(scaledTexNormal), tolight));
    fragColor = vec4(0.7, 0.7, 0.7, 1) * diffuse;
}

Quiz

Cube Maps

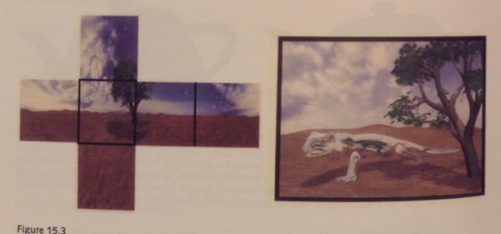

• Textures can also be used to model the environment in the distance around the object being rendered.
• In this case, we typically use six square textures representing the faces of a large cube surrounding the scene.
• Each texture pixel represents the color as seen along one direction in the environment.
• This called a cube map.
• GLSL has built-in a cube-texture data type just for this purpose called, samplerCube.
• When shading a point, we can treat the material at the point as a perfect mirror and fetch environment data from the appropriate incoming direction.

Loading our Cube Map

Recall we called the following function in our initTextures. Here is where we do the work of setting up the faces of our cube map

static void loadCubeTexture(GLuint type, GLuint texHandle,
    const char *ppmFilename1, const char *ppmFilename2,
    const char *ppmFilename3, const char *ppmFilename4,
    const char *ppmFilename5, const char *ppmFilename6)
{
    int texWidth, texHeight;
    vector<PackedPixel> pixData1, pixData2, pixData3,
        pixData4, pixData5, pixData6;

    ppmRead(ppmFilename1, texWidth, texHeight, pixData1);
    ppmRead(ppmFilename2, texWidth, texHeight, pixData2);
    ppmRead(ppmFilename3, texWidth, texHeight, pixData3);
    ppmRead(ppmFilename4, texWidth, texHeight, pixData4);
    ppmRead(ppmFilename5, texWidth, texHeight, pixData5);
    ppmRead(ppmFilename6, texWidth, texHeight, pixData6);

    glActiveTexture(type);
    glBindTexture(GL_TEXTURE_CUBE_MAP, texHandle);

    glTexImage2D(GL_TEXTURE_CUBE_MAP_POSITIVE_X, 0,
        GL_RGB, texWidth, texHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixData1[0]);
    glTexImage2D(GL_TEXTURE_CUBE_MAP_NEGATIVE_X, 0,
        GL_RGB, texWidth, texHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixData2[0]);
    glTexImage2D(GL_TEXTURE_CUBE_MAP_POSITIVE_Y, 0,
        GL_RGB, texWidth, texHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixData3[0]);
    glTexImage2D(GL_TEXTURE_CUBE_MAP_NEGATIVE_Y, 0,
        GL_RGB, texWidth, texHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixData4[0]);
    glTexImage2D(GL_TEXTURE_CUBE_MAP_POSITIVE_Z, 0,
        GL_RGB, texWidth, texHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixData5[0]);
    glTexImage2D(GL_TEXTURE_CUBE_MAP_NEGATIVE_Z, 0,
        GL_RGB, texWidth, texHeight, 0, GL_RGB, GL_UNSIGNED_BYTE, &pixData6[0]);
    checkGlErrors();
}

Implementing a Cube Map Shader

• To implement cube map texturing we calculate the bounce vector `B(vec v)`.
• This bounce vector will point toward the environment direction, that would be observed in a mirrored surface.
• By looking up the cube map using this direction, we give the surface the appearance of a mirror.

Old Shader

uniform samplerCube uTexUnit2;

varying vec3 vNormal;
varying vec3 vPosition;

vec3 reflect(vec3 w, vec3 n)
{
    return -w + n *(dot(w,n) *2.0);
}

void main(void)
{
    vec3 normal = normalize(vNormal);
    vec3 reflected = reflect(normalize(-vPosition), normal);
    gl_FragColor = textureCube(uTexUnit2, reflected);
}

New Shader

#version 330

uniform samplerCube uTexUnit2;

in vec3 vNormal;
in vec3 vPosition;

out fragColor;

vec3 reflect(vec3 w, vec3 n)
{
    return -w + n *(dot(w,n) *2.0);
}

void main(void)
{
    vec3 normal = normalize(vNormal);
    vec3 reflected = reflect(normalize(vec3(-vPosition)), normal);
    vec4 texColor0 = textureCube(texUnit2, reflected);
    fragColor = texColor0;
}

CubeMap Remarks

• In eye coordinates, the eye's position coincides with the origin. So -vPosition represent the view vector `-vec v`.
• textureCube is a special GLSL function that takes a direction and returns the color stored at this direction in the cube texture map.
• In the code, all of the vectors are expressed in eye coordinates, and so we are also assuming that our cube texture represent the environment data in eye coordinates.
• If our cube texture were representing directions using, say, world coordinates, then the appropriate coordinates for the rendered point would need to be passed to the fragment shader.

Projector Texture Mapping

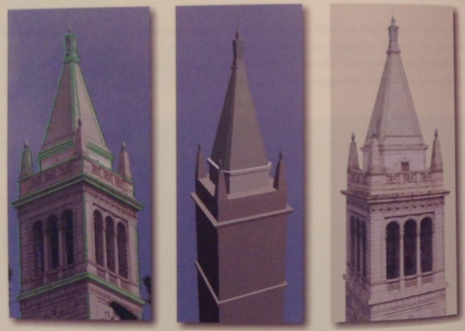

• Suppose we take a photograph of building facade and we want to paste in appropriately onto a digital 3D model of the building.

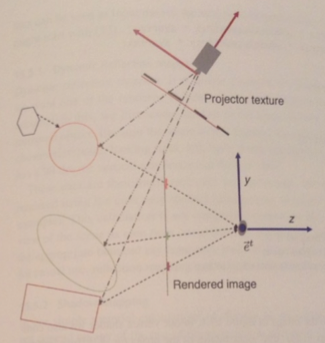

• To do this pasting, we would need to invert the geometry of the photograph by placing the camera with a virtual slide projector in the same position relative to the building.
• This is the goal of projector texture mapping.

Projector Texture Mapping Calculation

• In projector texture mapping, the slide projector is modeled using a 4x4 modelview and projection matrix `M_s` and `P_s`.
• These define the relation:
  `[[x_tw_t],[y_tw_t],[z_tw_t],[w_t]] = P_sM_s[[x_o],[y_o],[z_o],[1]]`
  where `x_t = (x_tw_t)/w_t` and `y_t = (y_tw_t)/w_t` are the texture coordinates.
• To color a point on a triangle with object coordinates `[x_o, y_o, z_o, 1]^t`, we fetch the texture data stored at location `[x_t, y_t]^t`. (see above)
• Because of the division by `w_t`, the values `x_t` and `y_t` are not affine functions of `(x_o, y_o, z_o)`. So they wouldn't be appropriate interpolated if implemented directly using a varying variable.
• Nevertheless, via our affine function arguments we had in CS116a, the three quantities `x_tw_t`, `y_tw_t`, and `w_t` are all affine functions `(x_o, y_o, z_o)`. Thus, these quantities can be properly interpolated over a triangle using varying variables.
• In the fragment shader, we need to divide by `w_t` to obtain actual texture coordinates.

Vertex Shader for Projection Mapping

#version 330
uniform mat4 uModelViewmatrix;
uniform mat4 uProjMatrix;

uniform mat4 uSProjMatrix;
uniform mat4 uSModelViewMatrix;

in vec4 aVertex;
out vec4 aTexCoord;

void main()
{
   vTexCoord = uSProjMatrix * uSModelViewMatrix * aVertex;
   gl_Position = uProjMatrix * uModelViewMatrix * aVertex;
}

Fragment Shader for Projection Mapping

#version 330

uniform sampler2D vTexUnit0;

in vec4 vTexCoord;
out fragColor;

void main()
{
    vec2 tex2;
    tex2.x = vTexCoord.x/vTexCoord.w;
    tex2.y = vTexCoord.y/vTexCoord.w;
    vec4 texColor0 = texture2D(vTexUnit0, tex2);
    fragColor = texColor0;
}

• It turns out, OpenGL actually has a special call, texture2DProj(vTexUnit0, vTexCoord); which will actually do the divide above for you.
• Inconveniently, though, when designing our slide projector uSProjMatrix, we have to deal with the fact that the canonical texture image domain is the unit square `[0,0]^t` to `[1,1]^t`.
• So the projection matrix passed to the vertex shader should be of the form makeTranslation(Cvec3(0.5,0.5,0.5))*makeScale(Cvec3(0.5,0.5,1)) * makeProjection(...).

Multipass Textures

• Many interesting texture effects can be obtained by using multiple passes over the geometry in the scene.
• In this approach all but the final of these passes are stored in offline buffers and not drawn to the screen.
• I.e., a framebufferObject (FBO) is used.
• We next briefly consider some examples of this.

Dynamic Reflection mapping

• In dynamic reflection mapping we want one of the rendered objects to be mirrored and reflect the rest of the scene.
• To accomplish this, we first render the scene as seen from say the center of the mirrored object.
• Because the scene is all around the object, we render the scene in six different directions looking right, left, back, forth, up, and down, each with a 90 degree field of view.
• These data are then transfered to a cube map. The mirrored object can then be rendered using the cube map data.
• Note this is not completely accurate as only rendered the scene from one point.
