Builder

Problem

We want to separate the construction of an assembly from the construction of its components.

Solution

Encapsulate the assembly construction process in a component called the director. Encapsulate the construction of the components in a component called the builder.

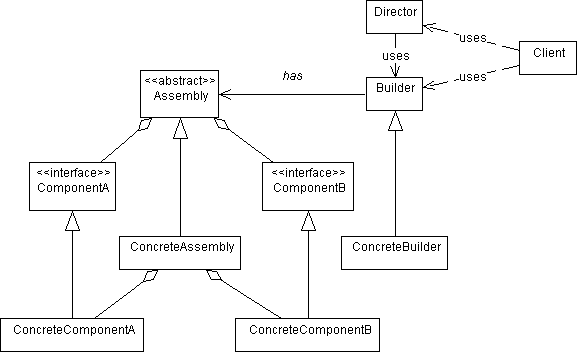

Structure

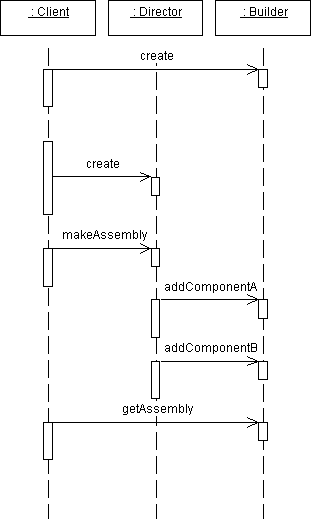

Behavior

Discussion

Builders are similar to abstract factories. There are two differences. First, the job of building the assembly is given to a component called the Director. Second, the components are created and added to the assembly by the builder.

Here is the abstract base class for all builders:

class Builder
{
protected:
Assembly* a = 0;
public:
virtual void addComponentA() = 0;
virtual void addComponentB() = 0;
// etc.
Assembly* getAssembly() { return a; }
};

A concrete builder instantiates a concrete assembly and implements the methods for building and adding concrete components to this assembly:

class ConcreteBuilder: public Builder
{
private:
class ConcreteComponentA: ComponentA { ... };
class ConcreteComponentB: ComponentB { ... };
class ConcreteAssembly: Assembly { ... };
public:
ConcreteBuilder(){ a = new ConcreteAssembly(); }
void addComponentA() { a->add(new ConcreteComponentA(); }
void addComponentB() { a->add(new ConcreteComponentB(); }
};

The process for adding components to the assembly is implemented by the director:

class Director
{
public:
void makeAssembly(Builder* b)
{
b->addComponentA();
b->addComponentB();
// etc.
}
};

Here is how a client builds an assembly:

Builder* b = new ConcreteBuilder();
Director d;
d.makeAssembly(b);
Assembly a = b->getAssembly();
