Virtual Studio

Version 0.1 of Virtual Studio allows users to create shapes, place them on a canvas, and display them:

In this initial version of VS there are four types of shape, simple shapes-- polygons, texts, circles-- and group shapes. A group shape is several shapes grouped together as a single shape.

·       All shapes have a draw method that uses a Java's Graphics parameter to do the actual art work.

·       All shapes can be moved around the canvas. This is done by the translate method, which shifts the shape by adding a point to each point in the shape.

·       A point has integer x and y coordinates. Points are examples of value objects. Points can be added to each other.

·       A simple shape has a color.

·       A polygon consists of three or more vertices. A vertex is a point.

·       A label has an upper left corner and a string to be displayed.

·       A Circle has an integer radius and a center point. Unfortunately, Circle does not extend SimpleShape and can't be modified.

·       A group has many component shapes.

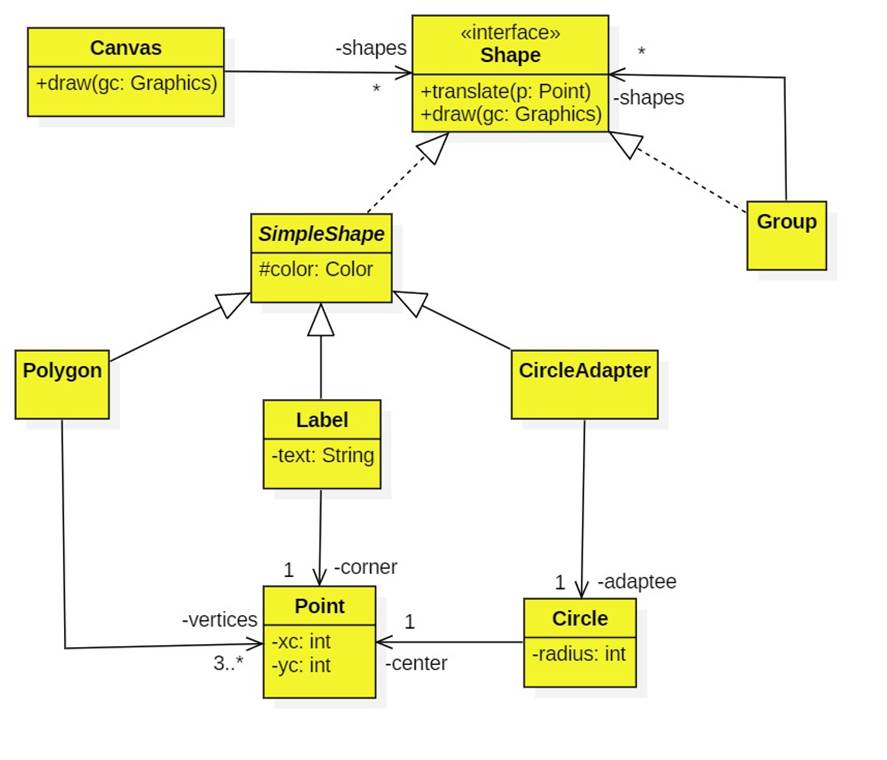

Design

Implementation

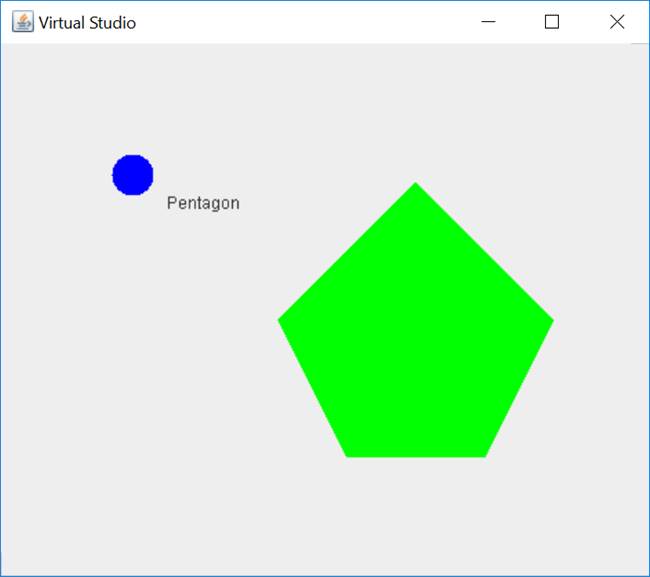

Here's the code that drew the canvas above:

VirtualStudio.java

Here's the code for displaying a canvas:

Canvas.java

Here’s the code for mos of the other classes:

Shape.java

Concepts

·       Graphics Programming

·       Heterogeneous Collection

o   The shapes on a canvas can be a mixture of circles, polygons, labels, and groups.

o   The members of a group can also be a mixture of circles, polygons, labels, and groups.

o   These collections are implemented as sets because they don't have a relevant ordering and members should be unique.

·       Abstract Classes vs. Interfaces

o   An abstract method has no implementation. Or it might be better to say that it has multiple implementations found in other classes.

o   Abstract classes and interfaces contain abstract method declarations.

o   One difference is that an interface only contains abstract method declarations, while an abstract class may contain fields and concrete (i.e., implemented) methods.

o   Another difference is that a class may implement many interfaces but extends at most one class.

o   SimpleShape had to be an abstract class because it defines the concrete, inheritable property of color.

o   Although SimpleShape contains no abstract methods and therefore could technically be implemented, we make it abstract because the concept it represents is abstract. "Shape" is simply a word used to collectively refer to concrete shapes such as polygons and circles.

·       Value vs. Reference Objects

o   Point is a good example of a value object.

·       Lists vs. Sets

Patterns

·       Composite Pattern

·       Adapter Pattern

Labs

Complete and test the implementation of Virtual Studio.
