During the edit phase the editor is used to create and modify source code. In the build phase the program is compiled and linked. Errors that pop up during the build phase force programmers back to the edit phase to make corrections. After a successful build phase, program testing begins. Programmers attempt to exercise each path through their program. Sometimes the nature of an error that occurs during the test phase is obvious, and programmers can go directly back to the edit phase to make the necessary corrections. More commonly, test phase errors are subtle and require the use of a debugger to trace the errant path of execution while monitoring the values of suspicious expressions.

Only make a small number of modifications during the edit phase. This will increase the number of loops you make through the edit-build-test-debug cycle, but the complexity and duration of each phase will be much more manageable. There's nothing quite so discouraging as a list of 500 compiler errors. Even after you correct them, there is still the prospect of scores of errors that will turn up during testing.

Compiler errors include syntax and type errors that occur in a single source code file. These errors are reported in the output window when you build your program. Double click on the error message, and Visual C++ will show you the offending line of code. Place the mouse cursor in the compiler error code (Cxxx), click once with the left mouse button, then press the F1 key. This displays an IV Topic explaining the general nature of the error.

Always begin with the first error message because the same bug may cause several errors. For this reason it is sometimes a good idea to rebuild your program after fixing a syntax error just to see how many error messages disappear.

Linker errors occur after all source code files have been successfully compiled and the phrase "Linking ..." appears in the output window. Common causes of linker errors are undefined or multiply defined global variables or functions. If you get stuck, try using the error number (LNKxxx) to locate the IV topic describing the general nature of the error. Link errors sometimes involve the linker options. Select Settings from the Project menu to display the Project Settings dialog box, then select the Link tab to see or change the linker options.

Program testing can only begin after the program has been successfully compiled and linked. Two types of errors occur during testing: runtime errors and logic errors.

With a runtime error the program begins running, but then crashes or gets stuck pursuing a never ending calculation. With a logic error, the program runs to completion, but simply produces the wrong answer. Logic errors are the worst type of all. The mistake is usually in the implementation or choice of algorithm. Sometimes it is necessary to redesign the entire program!

There are tricks for discovering the cause of a runtime error. Some programmers insert diagnostic messages in their programs so they can trace the flow of execution. Sometimes the diagnostic messages print the values of suspicious or strategic expressions. Diagnostic messages can also be left in the code if they are conditionally executed or compiled:

(Hint: Be sure to terminate your diagnostic message with a newline character to force immediate display. Also, sending your diagnostic messages to cerr instead of cout allows you to trace your program even when cout has been redirected to a file or to another program.)

A better solution is to use the Visual C++ debugger. To do this, make sure the active configuration is set to Debug before you build.

Normally, C++ programs are executed by the computer's CPU (Central Processing Unit). VC++ also provides a virtual machine called the debugger that can execute C++ programs (with the help of the CPU). Unlike the CPU, the debugger allows programmers to step through their programs-- one instruction at a time, or one function at a time-- while observing critical variables and expressions.

Close all windows and open the Debug project in the Lab 6 workspace. The entire project consists of a single source file called main.cpp. Besides main(), there are a couple of global variables and three functions: fun1(), fun2(), and fun3(). The program doesn't do much, just some arithmetic, not even I/O. main() calls fun1(), fun2(), then fun3(). Build and run the project. See? Nothing happens.

Press the F11 key. This activates the debugger. The user interface (UI) changes dramatically. The title bar changes, the Build menu is replaced by a Debug menu, new toolbars appear, and new windows appear. The debugger UI has five new docking windows: Registers, Memory, Call Stack, Watch, and Variables.

The Registers window shows the CPU's registers (EAX, EBX, ECX, EDX, etc.). The Memory window shows the entire contents of memory, in hex and binary! These windows are mostly for hard core debugging sessions. The Call Stack window shows the stack of functions that are currently active (i.e., they have been called, but haven't returned yet). This is especially useful for quickly locating bugs. When a program being run by the debugger crashes, begin looking for the bug in the topmost function on the call stack.

Close all toolbars and close all windows except for the main.cpp document window and the Variables docking window. (Use the shortcut menu to do this.)

1. Repeatedly press the F11 key (this is the shortcut key for the "Step Into" option under the new Debug menu). You are executing the program one instruction at a time!







Notice that the instruction pointer (the yellow arrow in the left margin of the main.cpp window) moves, always pointing at the next instruction to be executed.

When main's "return 0" instruction is executed, the program calls a low-level assembly language function that terminates your program. At that point (or at any point) select Restart from the Debug menu to start over again.

The Variables Window

Notice that the Variables window consists of three tabbed spread sheets: Auto, Locals, and "this". The Locals sheet shows all of the parameters and local variables of the current function (i.e., the function containing the instruction pointer). The Auto sheet shows the values of all variables appearing in the current expression and the previous expression. When the instruction pointer enters a member function, the implicit parameter is displayed in the sheet tabbed "this". Programmers can even change the values of a variables by typing the new value in its Value cell!

2. This time repeatedly press the F10 key (this is the shortcut key for the "Step Over" option under the Debug menu). You are executing the program one function at a time. In other words, the debugger is treating function calls like indivisible instructions.

The F10 key is useful when the next function called is either bug-free (are you sure?) or a library function. For example, using the F11 key to step into the instruction:

cout << "Hello, Neptune!\n";

pops a window containing the source file containing a (C++, C, or assembly language) definition of the << operator. Unless you really want to see this, press Shift+F11 (step out) (i.e., hold down the Shift key and press F11.) This will cause the debugger to jump to the next statement after the call to the function.

3. Experiment with this. Restart the debugger, repeatedly press F11 until the instruction pointer points at the second or third instruction of fun1(), then press Shift+F11. What happened?

Setting Permanent and Temporary Breakpoints

After examining the call stack, a programmer has a rough idea where her bug is and wants to quickly execute the first part of the program, pausing just before the suspicious instruction. There are two ways to do this: set a temporary breakpoint by placing the mouse cursor just before the suspicious instruction, then click the left mouse button to move the insertion point to that spot, or set a "permanent" breakpoint by placing the mouse cursor just before the suspicious instruction, then click the right mouse button to display a shortcut menu. Select the "Insert/Remove Breakpoint" option. A large brownish dot appears next to the instruction. (Repeat this process to remove the breakpoint.)

If you set a temporary breakpoint, then select "Run to Cursor" (Ctrl+F10) from the "Start Debug" submenu of the Build menu or from the Debug menu. This runs the program to the insertion point. If you set a permanent breakpoint, then select "Go" (F5) from the "Start Debug" submenu of the Build menu or from the Debug menu. This runs the program to the next permanent breakpoint. In either case you may now use the F10 or F11 keys to carefully trace through the remainder of the program.

4. Experiment with this. Select "Stop Debugging" from the Debug menu. This stops the debugger and the familiar MSDS user interface returns. Place a breakpoint in main just before the call to fun2(), then press Ctrl+F10 or F5. What happened? Now move the insertion point to just after the call to fun3() and press Ctrl+F10 or F5 again. What happened?

Running to a breakpoint is especially useful when a program requests user input. In this case the DOS console window (or the program's UI) waiting for the user input remains hidden behind the MSDS window. Pressing the F11 or F10 keys just produces irritating beeps. The instruction pointer doesn't budge! The programmer must uncover the console window and supply the requested input before the program can resume. The best approach is to place the insertion point beyond where the user input is read, then run to the cursor.

Watching Globals and Other Expressions

The Watch window is divided into four tabbed spread sheets. Each sheet displays the values of a group of related variables and expressions (dragged there by the programmer).

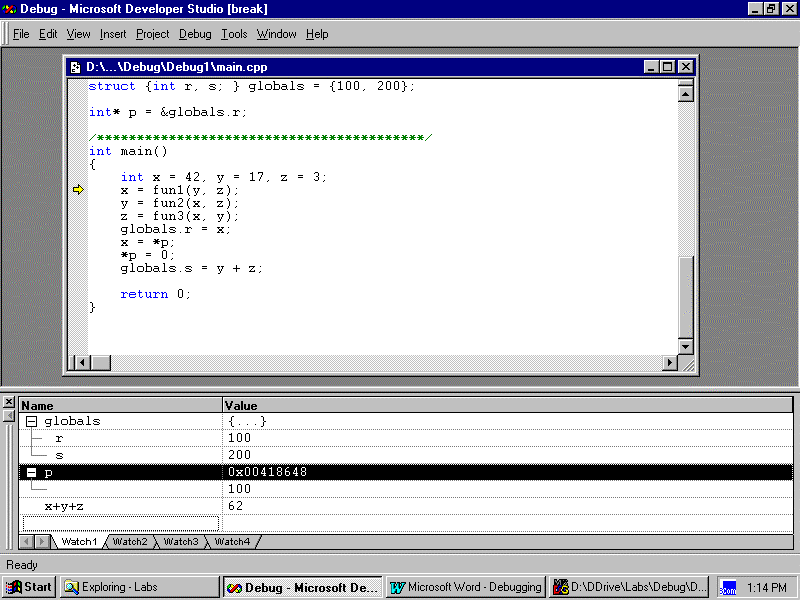

5. Restart the debugger again. Close the Variables window and open the Watch window. (Use the shortcut menu to do this.) Select p and globals and drag them from where they are declared in the main.cpp window into the Watch window. In the third line of the Watch window type the expression x + y + z. Press the F11 key twice to step into main().







The value of x + y + z (62 = 42 + 17 + 3) is displayed in the Watch window.

6. Globals is a struct. Press the + sign next to it to display the names and values of its fields. The value contained in p is an address (because p is a pointer). Press the + sign next to p to see the value of the variable it points at. This should be the same as globals.r.
7. Select "Quick Watch" from the Debug menu (Shift+F9) to display the Quick Watch dialog box. Type the expression x * y * z in the edit control, then press the Recalculate button. The value of x * y * z (2142 = 42 * 17 * 3) is displayed in the list box. Press the Add Watch button to add this expression to the Watch window.

Press the F11 key a few more times. As the instruction pointer enters fun1(), the Watch window displays the error message: "CXX0017: Error: symbol "x" not found" next to the expression x + y + z. This happens because x, y, and z are no longer in scope. When the instruction pointer reenters main(), this message will go away.

8. What happened to globals.r when the line *p = 0 is executed?

To remove a watched expression, click on the expression in the Watch window, then press the Delete key.

Edit and Continue is a new MSDS feature that allows programmers to make small code changes while the debugger is running the program.

9. Restart the debugger again. Close all windows except the Variable window and the main.cpp window. Set a breakpoint in fun2() just after the declaration of temp. Run to this point. The value of temp should be visible on the Locals sheet of the Variables window.

Now type the line:

temp *= 2;

just after the line:

temp = temp + 2;

Select "Apply Code Changes" from the Debug menu. The Output window appears and displays a few compile and link messages. Now continue stepping through the function. Is the new line executed? How can you tell?
