Binary Trees

(Code adapted from Weiss's book.)

Trees

A graph (or network) is a set of nodes and links. A link connects two nodes. A node contains a data element and a set of links to neighboring nodes.

A tree is a special graph in which links connect parent nodes to child nodes.  Every node has at most one parent. A node with no children is called a leaf node.

Sorted Sets

Recall that a set is a collection that forbids duplicate elements.

Recall that a sorted set is a set of comparable elements ordered by the logical ordering of the elements.

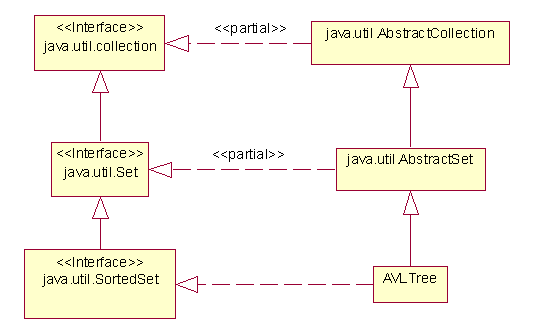

Recall that AbstractCollection is a partial implementation of the Collection interface. AbstractSet extends AbstractCollection by providing implementations of the removeAll, equals and hashCode methods.

Simple Sorted Sets

public interface SimpleSortedSet {
   public Comparable first();
   public Comparable last() ;
   boolean isEmpty();
   int size();
   boolean contains( Comparable x );
   boolean add(Comparable x)
      throws UnsupportedOperationException;
   boolean remove( Comparable x )
      throws UnsupportedOperationException;
   void clear() throws UnsupportedOperationException;
   }

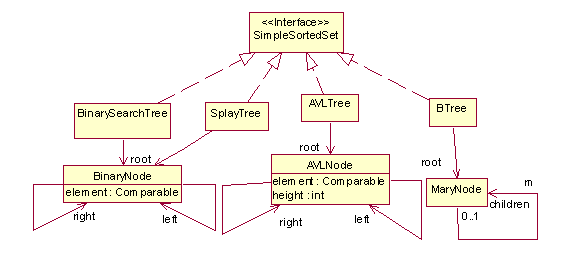

Overview

Binary Search Trees

A Binary Search Tree (BST) is a tree satisfying the following properties:

Every node N has at most two children (called N.left and N.right)

Data elements stored by nodes are comparable.

N.left.element < N.element < N.right.element

Binary Nodes

class BinaryNode {

   Comparable element;
   BinaryNode left;
   BinaryNode right;

   BinaryNode( Comparable theElement ) {
      this( theElement, null, null );
   }

   BinaryNode(Comparable theElement, BinaryNode lt, BinaryNode rt) {
      element  = theElement;
      left     = lt;
      right    = rt;
   }
}

Binary Search Tree

public class BinarySearchTree implements SimpleSortedSet {

   private BinaryNode root = null;

   public Comparable first() {
      return findMin(root).element;
   }
   public Comparable last() {
      return findMax(root).element;
   }
   public boolean contains(Comparable x) {
      return find(x, root) != null;
   }
   public void clear() { root = null; }
   public boolean isEmpty( ) { return size() == 0; }
   public int size() { return size(root); }
   public String toString() {
      return "{" + toString(root) + " }";
   }

   public boolean add(Comparable x) {
      BinaryNode node = insert(x, root);
      if (node == null) return false;
      root = node;
      return true;
   }

   public boolean remove(Comparable x) {
      if (!contains(x)) return false;
      BinaryNode node = remove( x, root );
      if (node == null) return false; // x not in this
      root = node;
      return true;
   }

//private helper methods:

   // recursive version:
   private BinaryNode findMin( BinaryNode t ) {
      if( t == null || t.left == null) return t;
      return findMin( t.left );
   }
   // iterative version:
   private BinaryNode findMax( BinaryNode t ) {
      while( t != null && t.right != null ) t = t.right;
      return t;
   }
   private int size(BinaryNode t) {
      if (t == null) return 0;
      return 1 + size(t.left) + size(t.right);
   }
   private String toString( BinaryNode t ) {
      String result = "";
      if( t != null ) {
         result += toString( t.left );
         result += " " + t.element;
         result += toString( t.right );
      }
      return result;
   }
   private BinaryNode find( Comparable x, BinaryNode t ) {
      if( t == null ) return null;
      if( x.compareTo( t.element ) < 0 ) return find( x, t.left );
      if( x.compareTo( t.element ) > 0 ) return find( x, t.right );
      return t;    // Match
   }


   private BinaryNode insert( Comparable x, BinaryNode t ) {
      if( t == null ) return new BinaryNode(x);
      if( x.compareTo( t.element ) < 0 ) {
        t.left = insert( x, t.left );
        return t;
     }
     if( x.compareTo( t.element ) > 0 ) {
        t.right = insert( x, t.right );
        return t;
     }
      return null; // x already in t
   }

   private BinaryNode remove( Comparable x, BinaryNode t ) {
      if( t == null ) return t;   // Item not found; do nothing
      if( x.compareTo( t.element ) < 0 )
         t.left = remove( x, t.left );
      else if( x.compareTo( t.element ) > 0 )
         t.right = remove( x, t.right );
      else if( t.left != null && t.right != null ) { // two children
         t.element = findMin( t.right ).element;
         t.right = remove( t.element, t.right );
      }
      else // return t's only child or null
         t = ( t.left != null ) ? t.left : t.right;
      return t;
   }

// Test program

   public static void main( String [ ] args ) {
      SimpleSortedSet t = new BinarySearchTree( );
      t.add("One");
      t.add("Two");
      t.add("Three");
      t.add("Four");
      t.add("Five");
      t.add("Six");
      t.add("Seven");
      t.add("Eight");
      t.add("Nine");
      t.add("Ten");
      System.out.println(t);
      t.remove("Ten");
      System.out.println(t);
      System.out.println(t.contains("Ten"));
      System.out.println(t.contains("One"));
   }
}

Program Output

{ Eight Five Four Nine One Seven Six Ten Three Two }
{ Eight Five Four Nine One Seven Six Three Two }
false
true

Analysis

Let N be a BinaryNode:

height(null) = 0
height(N) = 1 + max(height(N.left), height(N.right))

size(null) = 0
size(N) = 1 + size(N.left) + size(N.right)

Let T be a BinarySearchTree:

height(T) = height(T.root)
size(T) = size(T.root)

Theorem

Assume N is a BinaryNode, then:

size(N) <= 2height(N) - 1

Proof

The proof is by induction on the height of a node.

Base case:

size(null) = 0 <= 2height(null) - 1 = 20 - 1 = 0

Assume:

size(N.left) <= 2height(N.left) - 1
size(N.right) <= 2height(N.right) - 1

Hence:

size(N)
= 1 + size(N.left) + size(N.right)
<= 1 + 2height(N.left) - 1 + 2height(N.right) - 1
<= 1 + 2height(N)- 2
= 2height(N) - 1

Corollary:

log(size(N) + 1) <= height(N)

A BST is balanced if for every node N:

height(N.left) = height(N.right)

In this case we have equality:

size(T) = 2height(T) - 1

or equivalently

log(size(N) + 1) = height(N)

Most of the BST methods involve searching a branch of a BST, hence most methods are O(log N).

AVL Trees

An AVL tree is a Binary Search Tree satisfying the additional requirement:

|height(T.left) - height(T.right)| < 2

In other words, nodes in an AVL tree are almost balanced.

AVL Nodes

class AVLNode {

   Comparable element;
   AVLNode    left;
   AVLNode    right;
   int        height;

   AVLNode( Comparable theElement ) {
      this( theElement, null, null );
   }

   AVLNode( Comparable theElement, AVLNode lt, AVLNode rt ) {
      element  = theElement;
      left     = lt;
      right    = rt;
      height   = 0;
   }
}

AVL Trees

public class AVLTree implements SimpleSortedSet {

   private AVLNode root;

   public Comparable first() {
      return findMin(root).element;
    }
    public Comparable last() {
      return findMax(root).element;
    }
    public boolean contains(Comparable x) {
      return find(x, root) != null;
   }
   public void clear() { root = null; }
    public boolean isEmpty( ) { return size() == 0; }
    public int size() { return size(root); }
    public String toString() {
      return "{" + toString(root) + " }";
   }

   public boolean add( Comparable x ) {
      AVLNode node = insert(x, root);
      if (node == null) return false;
      root = node;
      return true;
   }

   public boolean remove( Comparable x )
      throws UnsupportedOperationException {
      throw new UnsupportedOperationException();
   }

// private helper methods

/*
Most are the same as the private helper methods in BinarySearchTree except they operate on AVLNodes instead of BinaryNodes. For example:
*/

   private AVLNode find( Comparable x, AVLNode t ) {
      if( t == null ) return null;
      if( x.compareTo( t.element ) < 0 ) return find( x, t.left );
      if( x.compareTo( t.element ) > 0 ) return find( x, t.right );
      return t;    // Match
   }

/*
Here's a little utility for computing the height of an AVLNode or null:
*/

   private static int height( AVLNode t ) {
      return t == null ? -1 : t.height;
   }

// self adjusting insertion:

   private AVLNode insert( Comparable x, AVLNode t ) {
      if( t == null ) return new AVLNode(x);
      if( x.compareTo( t.element ) < 0 ) {
         t.left = insert( x, t.left );
         if( height( t.left ) - height( t.right ) == 2 )
            if( x.compareTo( t.left.element ) < 0 )
               t = rotateWithLeftChild( t );
            else
               t = doubleWithLeftChild( t );
      } else if( x.compareTo( t.element ) > 0 ) {
         t.right = insert( x, t.right );
         if( height( t.right ) - height( t.left ) == 2 )
            if( x.compareTo( t.right.element ) > 0 )
               t = rotateWithRightChild( t );
            else
               t = doubleWithRightChild( t );
      } else
         return null; // x already in t
      t.height = Math.max( height( t.left ), height( t.right ) ) + 1;
      return t;
   }

// Rotations

/**
Rotate binary tree node with left child. For AVL trees, this is a single rotation for case 1. Update heights, then return new root.|
*/

   private static AVLNode rotateWithLeftChild( AVLNode k2 ) {
      AVLNode k1 = k2.left;
      k2.left = k1.right;
      k1.right = k2;
      k2.height =
         Math.max( height( k2.left ), height( k2.right ) ) + 1;
      k1.height = Math.max( height( k1.left ), k2.height ) + 1;
      return k1;
   }

/**
Rotate binary tree node with right child. For AVL trees, this is a single rotation for case 4. Update heights, then return new root. It is similar to the last method.
 */

   private static AVLNode rotateWithRightChild( AVLNode k1 ) {
      ???
   }

/**
 Double rotate binary tree node: first left child  with its right child; then node k3 with new left child. For AVL trees, this is a double rotation for case 2.  Update heights, then return new root.
 */

   private static AVLNode doubleWithLeftChild( AVLNode k3 ) {
      k3.left = rotateWithRightChild( k3.left );
      return rotateWithLeftChild( k3 );
   }

/**
Double rotate binary tree node: first right child with its left child; then node k1 with new right child.  For AVL trees, this is a double rotation for case 3. Update heights, then return new root. It is similar to the last method.
*/

   private static AVLNode doubleWithRightChild( AVLNode k1 ) {
      ???
   }

// Test program

   public static void main( String [ ] args ) {
      SimpleSortedSet t = new AVLTree( );
      t.add("One");
      t.add("Two");
      t.add("Three");
      t.add("Four");
      t.add("Five");
      t.add("Six");
      t.add("Seven");
      t.add("Eight");
      t.add("Nine");
      t.add("Ten");

      System.out.println(t);
      System.out.println(t.contains("Ten"));
      System.out.println(t.contains("Eleven"));
   }
}

Program Output

{ Eight Five Four Nine One Seven Six Ten Three Two }
true
false

Splay Trees

A splay tree is a binary search tree, i.e., a tree of ordinary binary nodes. However, each time a node is accessed by the contains() method, the accessed node is percolated up to the root of the tree through a sequence of rotations.

public class SplayTree implements SimpleSortedSet {

   private BinaryNode root = null;

   public Comparable first() {
      return findMin(root).element;
   }
   public Comparable last() {
      return findMax(root).element;
   }
   public boolean contains(Comparable x) {
      return find(x, root) != null;
   }
   public void clear() { root = null; }
   public boolean isEmpty( ) { return size() == 0; }
   public int size() { return size(root); }
   public String toString() {
      return "{" + toString(root) + " }";
   }

   public boolean add(Comparable x) {
      BinaryNode node = insert(x, root);
      if (node == null) return false;
      root = node;
      return true;
   }

   public boolean remove(Comparable x) {
      if (!contains(x)) return false;
      BinaryNode node = remove( x, root );
      if (node == null) return false; // x not in this
      root = node;
      return true;
   }

   // etc.
}



private BinaryNode find(Comparable x, BinaryNode x) {
   locate node with element = x in the usual way.
   percolate this node to the root using rotations
}



B-Trees

A B-tree is a tree of M-ary nodes:

class Node {

}

class parentNode extends Node {
   <= M Node children
}

class LeafNode extends Node {
   // <= L Comparable children
}

class MAryNode {
   Comparable min; // smallest element
   Comparable[] leafChildren;
   MAryNode[] parentChildren;
   int order; // = max children
   boolean leaf;
   MAryNode(int m, boolean leaf) {
      children = new Comparable[m];
      order = m;
      this.leaf = leaf;
   }
}

Such that:

1. Between L/2 and L elements are stored in leaf nodes
2. All leaf nodes are at the same depth
3. Parent nodes have between M/2 and M children
4. The root node has between 2 and M children



class BTree implements SimpleSortedSet {
   private MAryNode root;
   BTree(int m) {
      root = new MAryNode(m, false);
   }
   boolean isEmpty() { return size() == 0; }
   int size() { /* exercise */ }
   boolean contains( Comparable x ) {

   }
   boolean add(Comparable x) {
      // the usual algorithm
   }
   boolean remove( Comparable x ) {
      // exercise
   }
   void clear() {
      for(int i = 0; i < root.order; i++) {
         root.children[i] = null;
      }
   }
}

Assume T is an order m B-tree. Assume T.size() = N. Then the longest path is T is logM(N)

Problems

Problem 1

Implement the SortedSet interface from the Java Collections Framework as an AVL tree:

You may assume that removing elements is not allowed.

Hint: The hard part of this problem is implementing the iterator method. Here is how I would start (just a sketch):

class AVLTree extends AbstractSet implements SortedSet {

   private AVLNode root;
   private Comparator comparator = null;
   public AVLTree() {
      root = null;
      comparator = null;
   }
   public AVLTree(Comparator c) {
      root = null;
      comparator = c;
   }
   public AVLTree(Collection elems) {
      root = result of inserting all elems;
      comparator = null;
   }
   public AVLTree(Collection elems, Comparator c) {
      root = result of inserting all elems;
      comparator = c;
   }

   private void CompareTo(Object elem1, Object elem2) {
      if (comparator != null)
         return comparator.compareTo(elem1, elem2);
      return (Comparable)elem1.compareTo((Comparable)elem2);
   }


   public Iterator iterator() {
      return new AVLIterator(findMin(root));
   }

   class AVLIterator implements Iterator {

      private AVLNode next; // next unseen node
      private AVLNode last; // last node seen

      public AVLIterator(AVLNode first) {
         next = first;
         last = null;
      }

      public boolean hasNext() throws
         ConcurrentModificationException {
         return (next != null);
      }
      public Object next() throws
         NoSuchElementException,
         ConcurrentModificationException {
         ???
      }

      public void remove() throws
         IllegalStateException,
         UnsupportedOperationException,
         ConcurrentModificationException {
         throw new UnsupportedOperationException();
      }
      // etc.
   }
   // etc.
}

The hard part is next(), which sets last to next and next to the node containing the least element greater than last:

      public Object next() throws
         NoSuchElementException,
         ConcurrentModificationException {
         last = next;
         next = leastGreater(last);
         return last.element;
      }

If last has a right child, then this is simply findMin(last.right).

private AVLNode leastGreater(AVLNode node) {
   if (node.right != null) return findMin(node.right);
   ???
}

If last has no right child, then this is findMin(node.right) where node is the ancestor of last having the least element greater than last:

private AVLNode leastGreater(AVLNode node) {
   if (node.right != null) return findMin(node.right);
   Node ancestor = root;
   Node leastGreaterAncestor = null;
   while(ancestor != node) {
      if (node < ancestor < leastGreaterAncestor)
         leastGreaterAncestor = ancestor;
      ancestor = ancestor.left or ancestor.right
   }
   return leastGreaterAncestor;
}

Problem 2

A diary consists of a set of daily entries. An entry has the form:

class Entry implements Comparable {
   String text;
   Date date;
   // etc.
}

Implement and test a diary using your AVL implementation of sorted sets:

class Diary {
   private SortedSet entries = new AVLTree();
   public void addEntry(String text) { ??? }
   public String toString() {
      iterator p = entries.iterator();
      while(p.hasNext()) {
         // pretty print date and text of p.next();
      }
   }
   public static void main(String[] args) {
      // create and print a juicy diary
   }
}


Problem 3

Create a program that reads a text file one line at a time (use a BufferedReader for this) and generates a line number index.

It scans each line for tokens bracketed by asterisks (use StringTokenizer for this). For example:

*life and liberty*

The index itself is a Map in which keys are Strings and associated values are sets of line numbers. When the indexer encounters an index entry, it either makes a new entry in the map, or it adds the line number to the set indexed by the entry.

Read over the section of character streams in

 http://www.mathcs.sjsu.edu/faculty/pearce/java2/jpop/chp5/chp5.htm
