The real world context of an application is called the application domain. For example, the application domain of a warehouse inventory program is the warehouse itself, including the associated tangibles (forklifts, pallets, goods, etc.), transactions (receiving goods, receiving purchase orders, locating goods, shipping goods, sending invoices, receiving payments, taking inventory), places (loading docks, receiving docks, bins, aisles, etc.), and people (customers, managers, truckers, suppliers, workers).

Taken together, the artifacts produced by a programmer (documentation, files, modules, code, test results, tools, computers, etc.) form the solution domain. We can partition the solution domain into levels. Abstract, high-level design documents (diagrams, data dictionaries, requirement specifications, models, etc.) belong to the upper levels of the solution domain, while more specific, detailed artifacts (data structures, statements, function definitions, type definitions, hardware, etc.) belong to the lower levels.

Developing an application can be loosely divided into four phases:

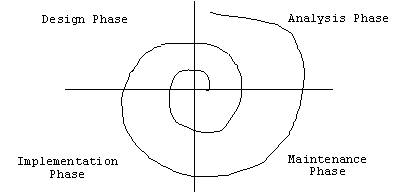

Of course programmers often pass through these phases more than once:

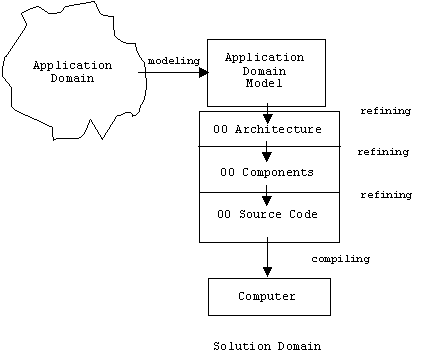

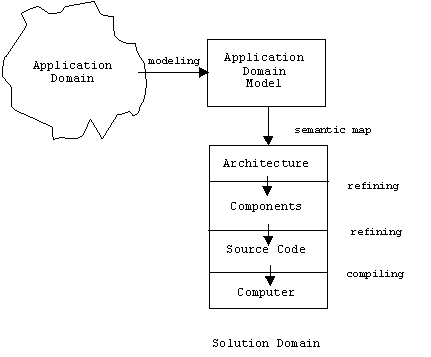

We can summarize all but the last phase with a diagram:

Building a good model of the application domain is nearly impossible, unless you happen to be a programmer and a domain expert (e.g., the warehouse manager). We'll ignore this little paradox for now. If you do end up with a reasonable model of the application domain, another nasty problem arises.

Recall the modularity principle:

The basic module of procedural programming is the function. Following the top down design method, we specify the high level architecture of our application in terms of the principle functions and data structures. We refine the architecture by identifying and defining supporting functions. We repeat this refinement process until there are no more undefined supporting functions.

The problem is that the objects in the application domain (transactions, places, people, tangibles, etc.) don't much resemble the items in the solution domain (functions and data structures). Therefore, the model of the application domain will be quite different from the model of the application. How will we use the model to derive the architecture? It seems that the semantic map must bridge a very wide gap between two very different worlds. This gap is called the semantic gap.

A paradigm is a collection of tools, components, and techniques used to build models. We can restate the basic problem in terms of paradigms: We use the object paradigm to model application domains: identify and describe the important objects and their relationships, but we use the procedural paradigm to model programs: identify and describe the important functions and data structures.

Why do we use different paradigms? We use the object paradigm to model the application domain because the application domain consists of objects. We use the procedural paradigm to describe solutions because each level of the solution domain is an abstraction of the level below it. The bottom level is the computer itself, which is composed of interconnected memory modules (data structures) and processors (functions). Regardless of the structure of the application domain, our high level architecture must ultimately be mapped to the architecture of the underlying computer.

The basic program building blocks of object oriented programming languages like Smalltalk and Java are objects, not functions and data. Like its application domain counterpart, the behavior of a solution domain object depends on its internal state, the environment, and stimuli from other objects. Object-oriented design and programming (i.e., designing and programming with objects) narrows the semantic gap because we can represent application domain objects by corresponding solution domain objects. Mapping the application domain model to the application's architecture is only a matter of model refinement. The semantic gap is displaced. It is now between the source code and the computer, safely hidden by the compiler:

C++ supports procedural programming and object-oriented programming (a recipe for disaster). A C++ object encapsulates services (behavior) and attributes (state). Objects are software analogs of integrated circuits (sometimes objects are called software ICs). Objects, not functions and data, are the fundamental building blocks of object oriented programs.

The basic interaction between two objects fits a client-server model. The client object requests a service from the server object. The server object may respond with a result:

Of course the server and client can change roles. Different object oriented systems have different ways of requesting services. Some systems view requests and results as messages sent between the client and the server (the Win32 API, for example). In C++ attributes are encapsulated variables called member variables, services are encapsulated functions called methods or member functions, a service request-- also called a method invocation-- is a call to a member function, and the result is the corresponding return value.

Here's some sample C++ client code. The two bank account objects can be regarded as servers. In this example the client (not shown) might represent a bank:

The attribute of a bank account is its balance. The services provided by bank accounts are the member functions getBalance(), withdraw(), and deposit(). Note that calls to the member functions must be qualified with the name of the server object using the dot or arrow operator.

A class is a pattern for constructing objects. An object constructed by a class is called an instance of that class. All instances of a class provide the same services and attribute variables but differ in the values stored in these variables.

In C++ the declaration of a class may include member functions, and member variables:

From this definition it might appear that there is only a single variable called balance. This isn't true. Each bank account instance will encapsulate a variable called balance. For example, the earlier declarations of a and b created two variables called balance:

Each object could also encapsulate the member functions, but this would be wasteful. Instead, there is only one withdraw() function for all bank account objects. Officially, this function is called:

C++ can determine which account money is being withdrawn from by the account instance that qualifies each call to withdraw():

More on this later.

Classes vs. C Structs

The syntax of a class declaration is similar to the syntax of a struct declaration. In fact, we can replace the reserved word "class" by the reserved word "struct" in the definition above without any affect. (Officially, structs, unions, and classes are all called classes.) However, there are some striking differences between class declarations and traditional C struct declarations.

The scope of a declaration is the region of the program where the binding created by the declaration is visible. For example, global declarations have global scopes. They are visible throughout the entire program. Local declarations have local scopes. They are only visible inside the block they are declared in. The member variables grouped by a C structure have the same scope as the structure. In the following example:

today is a Date variable that groups three integer member variables: today.day, today.month, and today.year. The member variables are visible anywhere the today variable is visible. If today is a global variable, then so are the member variables.

C++ programmers can control the scopes of their class members (i.e. member variables and functions). There are three scopes: public, private, and protected. The scope of a member is determined by the section of the class declaration it is declared in. In the Account example balance is private because it is declared in the private section. The constructor and member functions are all public because they are declared in the public section. There is no protected section in this declaration. A class can have multiple public, protected, and private sections. Members not declared in a section are assumed to be private in class declarations and public in struct declarations.

Members with public scope have the same scope as the object that encapsulates them. They are visible to the clients of the encapsulating object. Members with private scope are only visible to other members. For example, a global function can call the constructor and methods of a global account variable, but not its balance variable:

Why do we need three scopes? We need at least two scopes: public and private. The public members define the public interface of the class. They are accessible to all clients of the class. The private members are only accessible by other members. They support the implementation of the public members.

C++ recognizes two types of clients: end users and value adders. Value adders are interested in modifying or adding features to a class for use by their clients. Although value adders still can't access the private members of a class, the class can make certain additional supporting members available to them that are not available to end users. These are the members with protected scope.

The first thing that catches the eye is the occurrence of function prototypes for deposit(), withdraw(), and getBalance() inside the Account class declaration. These are the member functions. The implementations of the member functions are normally placed in another file, see below. By contrast, a struct in C is only a mechanism for grouping related variables, not variables and functions. The function prototypes can be regarded as specifying the interface each instance of the Account class implements.

In C there is only one type of function: global functions. C++ has global functions, too, but member functions are different from global functions in some significant ways, so it will be important for us to distinguish between member functions and global functions.

The implementations of the constructors and member functions can be separated from their interfaces in C++. Outside of its class declaration a member function must be qualified by its class name to remind the C++ compiler where it came from. Unfortunately, qualifying a member function definition uses different syntax from qualifying a member function call. Assume aaa is an instance of a class AAA that has a member function called fun(). We use the dot operator to qualify the call to fun(), but we use the scope resolution operator(::) to qualify the definition of fun():

Here are the implementations of the Account member functions:

An important principle in C++ is that objects should be initialized at the time they are created. If creation and initialization are separated, then there is a risk that the programmer will forget to perform the initialization or that some client will try to use the object before it is initialized.

When an object is created, for example in a declaration:

C++ automatically calls a constructor function that initializes the object's member variables. If no constructor is declared, then C++ automatically generates two constructors. The default constructor assigns random values to the object's member variables, and the copy constructor assigns the member variables of a specified object to the corresponding member variables of the object being created. For example, assume two bank accounts are created and their balances displayed:

Here is what gets printed on my computer:

Note that b.balance has the same value as a.balance, almost 0, but if interest is compounded monthly, then this could add up to a few cents over a couple hundred billion years! In effect, b is a clone of a. Of course they are different objects. Depositing money in one account has no effect on the other:

Relying on compiler-generated constructors is a bad idea, so C++ allows programmers to define their own constructors. The name of a constructor always matches the name of the class (since the primary service of the class is to construct instances), and the constructor does not have a return type. Overloading permits multiple constructors as long as their parameter lists are different.

Here is the implementation of the constructor:

If a programmer defines any constructor at all, then the compiler will not generate a default constructor. Therefore, if a programmer defines a constructor, he should also define a default constructor (i.e. a parameterless constructor). In some situations, for example declaring an array of objects:

the default constructor is used to initialize the array components.

By specifying a default argument (0) for the Account constructor's parameter, my constructor functions as a default constructor and a single parameter constructor.

We can call a constructor directly:

This is necessary if we want to create a new object on the heap, as a return value, or as the right side of an assignment statement:

The last example is wasteful. It is equivalent to:

More commonly, we can get C++ to call a constructor by using an argument list as a declaration initializer:

In this example a.balance is initialized to $50, b.balance is initialized to $100, and c.balance is initialized to $0.

You might think the declaration:

initializes Account c by calling the Account::Account() constructor with its default argument, 0. Although this interpretation makes sense, this syntax is already used by C (hence inherited by C++) to declare a parameterless function c that returns an instance of the Account class. Instead:

declares an Account variable c initialized using the default argument.

Assigning one object to another creates a copy of the first object. For example, if a and *b are bank accounts, then:

copies the a.balance into b->balance.

Copies of objects are made in other places, too. global function with an account value parameter or that returns an account creates account copies. Assume:

Calling *b = clone(a) copies a to x. The copy constructor generated by the compiler is used to make this copy. Next an anonymous temporary account is made from x.balance + 50. Finally, this temporary is copied into *b.

Programmers can put implementations of some or all member functions, constructors, etc. inside class declarations:

Implementing a member function inside a class declaration makes it an inline function, so programmers should heed the usual warnings about overly complex inline functions when following this practice.

The implementation of getBalance() refers to balance without qualifying which account it belongs to. How does it know which balance to return? Of course the intended account qualifies the call to getBalance():

But how does the C++ compiler know how to translate the balance that appears in getBalance() into a specific address? Although invisible, getBalance() really has a parameter of type Account*, which qualifies balance. Here's how getBalance() might look in C with its implicit parameter revealed:

The method invocation a.getBalance() translates into the C call getBalance(&a).

We can use the implicit parameter as a convenient reference to the encapsulating object. For example, suppose suspiciously large deposits are to be reported to the IRS. The IRS might be represented by a class with a static report() method:

If necessary, Account's deposit() method can pass its encapsulating object to irs.report() using the implicit parameter:

Note: global functions do not have implicit parameters. This only makes sense for member functions.

How can we indicate that the implicit parameter is constant? For example, Account::getBalance() method only returns the balance. It doesn't alter it. To declare that the implicit account parameter is constant, we write const after the parameter list:

Why didn't we write const after deposit() and withdraw()?

Suppose we wanted to keep track of the total number of accounts. Where would be the best place to store this number? If it's a global variable, then it could get altered by a rogue function. If we made it a member variable, then every account object would have a copy. Each time the total changed, we would have to change it in each account instance. A third option is to make it a private member of the Account class rather than a member of instances of the class. This is done by writing the reserved word "static" in front of the variable. Functions can be class members, too. This is the case with getTotal().

Actually, the declaration of total isn't a definition. In other words, it only associates a type to total, not a variable. To remedy this situation, we must define and initialize total. Account.cpp would be a good place to do this:

Notice that outside of the class declaration, then name of the variable must be qualified with the class name (using the scope resolution operator), not the name of an account object. This makes sense because total is not associated with individual accounts, rather it is associated with the Account class. The same is true for client calls to the getTotal() function:

Of course client's can't access total since it is private.

We can increment the total in the constructor:

We must also introduce a copy constructor because the one generated by C++ only copies variables. It doesn't increment total:

Among other times, the copy constructor is called to copy account arguments into account parameters. For example, assume the following function is defined:

Assume a is an account:

When a is passed to rich(), the copy constructor copies a.balance into x.balance and increments total.

Suppose the copy constructor's parameter is a value parameter instead of a reference parameter:

Calling rich(a) calls Account(a), as before, but now a must also be copied into the copy constructor's parameter, acct. The copy constructor is called to make this copy. This turns into a never-ending sequence of calls to Account(a)!

C++ allows programmers to make funeral arrangements for their objects by defining destructors. A destructor has the name of the class preceded by "~" and never has parameters. It is automatically called just before an object is deleted from the heap or popped off the stack:

How are constant and reference members initialized? Initializing them in a constructor's block is too late. The compiler doesn't allow us to assign values to constants:

The solution provided by C++ is the initializer list. Initializer lists appear between the header and block of a constructor:

and alter the (random) default values the compiler uses when it first creates memory for an object.

For example, suppose we want to turn the tax calculator from a few chapters back into an object. Recall that the tax calculator depended on several constants (rates, income levels, etc.) These must now be defined in the initializer list:

Tax calculation uses a multi way conditional to compute a progressive tax:

This is simply a printing utility:

The initializer list is also a good place to initialize member objects. For example, assume temperatures are represented as objects:

A thermometer object might contain a temperature object:

Consider the first line of the constructor:

On the right hand side, an anonymous, temporary temperature object is being created an initialized. This object is then copied into temp by the assignment operator:

This is especially wasteful, because the member variable temp.value, was already initialized to a random value when it was first allocated. Instead of a random value, we can get the runtime memory system to use our temperature constructor by initializing temp in the initialzer list:

Sometimes the compiler doesn't generate assignment operators for a class. This happened for TaxCalculator, although I'm not sure why. When this happens, we must initialize member objects in the initializer list:

We can grant functions and classes access to the private members of a class using the friend declaration. For example, assume an IRS class is defined that provides functions for computing taxes. Also assume a global function is defined for computing fees levied by a bank. We want the member functions of the IRS class and the global function for computing fees to have access to the private balance variable encapsulated by account objects. To do this, simply write the name of the class or function prototype preceded by the reserved word friend, in the Account declaration:

Note that class IRS and computeFee() can't declare themselves friends from outside the class. This would defeat the purpose of having private data. Only the implementer of Account can declare friends.

A class diagram is a blueprint of a program. One notation system for making diagrams is called the Universal Modeling Language (UML). Classes in a UML diagram appear as boxes showing the class name and, optionally, the class attributes and services:

Objects are boxes showing the name and/or class of the object together with the object's current attribute values:

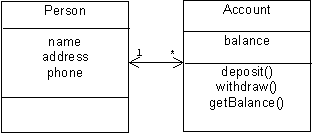

An association is a relationship between objects, although it is drawn as a line connecting classes. The line can show multiplicity, direction, and a label. For example, the following association:

shows one instance of the Person class may be associated with multiple instances of the Account class. In C++ this might mean that an instance of the Person class contains a list of pointers to instances of the Account class. Each instance of the Account class might also have a pointer back to its associated instance of the Person class. We can indicate that it is possible to navigate from instances of one class to instances of another by putting arrow heads on our associations:

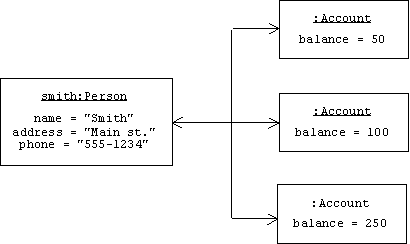

We can show associations in object diagrams, too. In this case the multiplicity shown in the class diagram turns into multiple Account instances and multiple arrows:

Aggregation

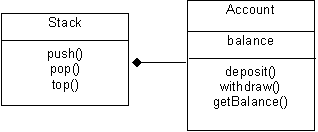

A special type of association occurs when instances of one class are containers (stacks, queues, vectors, lists, etc.) and instances of the other class are storables (i.e., the contained items). We call the association between a container class and a storable class aggregation. A special UML link is used to denote aggregation. For example, assume we want to create a stack of accounts. Here is how this is expressed in UML:

Sample Session

Calc is a console program that allows users to perform stack arithmetic on rational numbers. Here is a sample session. Program output is shown in bold face (user input is in normal font):

You can deduce from the session that arithmetic commands (including div and sub) replace the top two items on the stack with their arithmetic combination.

Structure

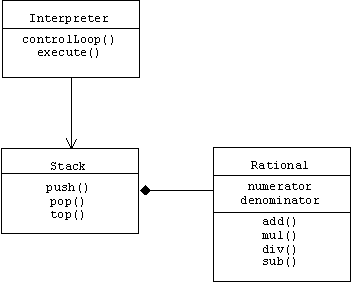

The stack calculator consists of an interpreter object and a stack object containing rational number objects:

The Interpreter

An interpreter consists of a control loop, a command processor, and a context:

The context of a stack calculator is a stack:

The control loop follows the model developed earlier, except this time it's a member function. The real work is done by the command processor, execute(), which must inspect the command, call the appropriate execute sequence, then return the result.

Rational Numbers

A rational number (i.e. a fraction) has two integer parts: a numerator and a positive denominator. Rational numbers can be combined arithmetically like any other numbers (see your middle school algebra book to remember how):

Question: arithmetic operators normally combine two numbers, but the arithmetic operators above only have a single rational number parameter. Where is the other number?

The Rational constructor automatically reduces and normalizes the numerator and denominator. For example:

To reduce a rational number replace the numerator and denominator by the result of dividing them by their greatest common divisor:

Here's an efficient gcd() function you can add to your utils.h file:

The Stack

The context of the interpreter commands will be a last-in-first-out store called a stack. The implementation below simply encapsulates an array of items. The stack pointer, sp, equals the index of the next available location in the items array:

The definitions of STACK_SIZE and Item should be separated from the definition of Stack:

In this application it might be wise to define a few global functions that perform stack arithmetic:

It wouldn't be a good idea to make these member functions of Stack since some definitions of Item might not support arithmetic operations.

main()

The main function should look like this:

Problem

Finish and test the stack calculator.

Problem

How would you implement an undo command in your interpreter?

Problem

Replace your implementation of Stack with the standard library implementation of stack:

What changes must you make in the rest of your program?

The Grid class provides poor man's graphics:

Here are the implementations of the member functions:

A turtle is a virtual creature that wanders around a grid marking it with a pen. The turtle's basic attributes are its pen, its position in the grid, its heading, and a flag indicating if its pen is up or down. Clients can set the turtle's heading, move it forward n steps, and change its pen state:

A heading is just a compass direction. On the grid, north (N) is the direction of lower row numbers:

Use the interpreter class to implement a turtle graphics program. The basic user commands are: show grid, erase grid, move n, turn right, turn left, pen up, and pen down. A context consists of a grid and a turtle:

Point

A point P in the plane can be represented by two reals (x, y) representing the x and y coordinates of P respectively. Complete the following C++ implementation of Point:

Line

Any two points (x₀, y₀) and (x₁, y₁) on the plane determine a unique line l that passes through them. The slope, y-intercept, and equation of this line is determined by the equations:

Two lines are parallel if their slopes are the same, but their y-intercepts are different. Two lines are equal if their slopes and y-intercepts are the same. Two lines are perpendicular if the product of their slopes is -1.

Complete the following C++ implementation of Line:

Test Harness

Implement a simple interpreter that perpetually prompts users for two lines, then displays the results produced by all of the functions defined above.
